Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#2040) — 188 parça

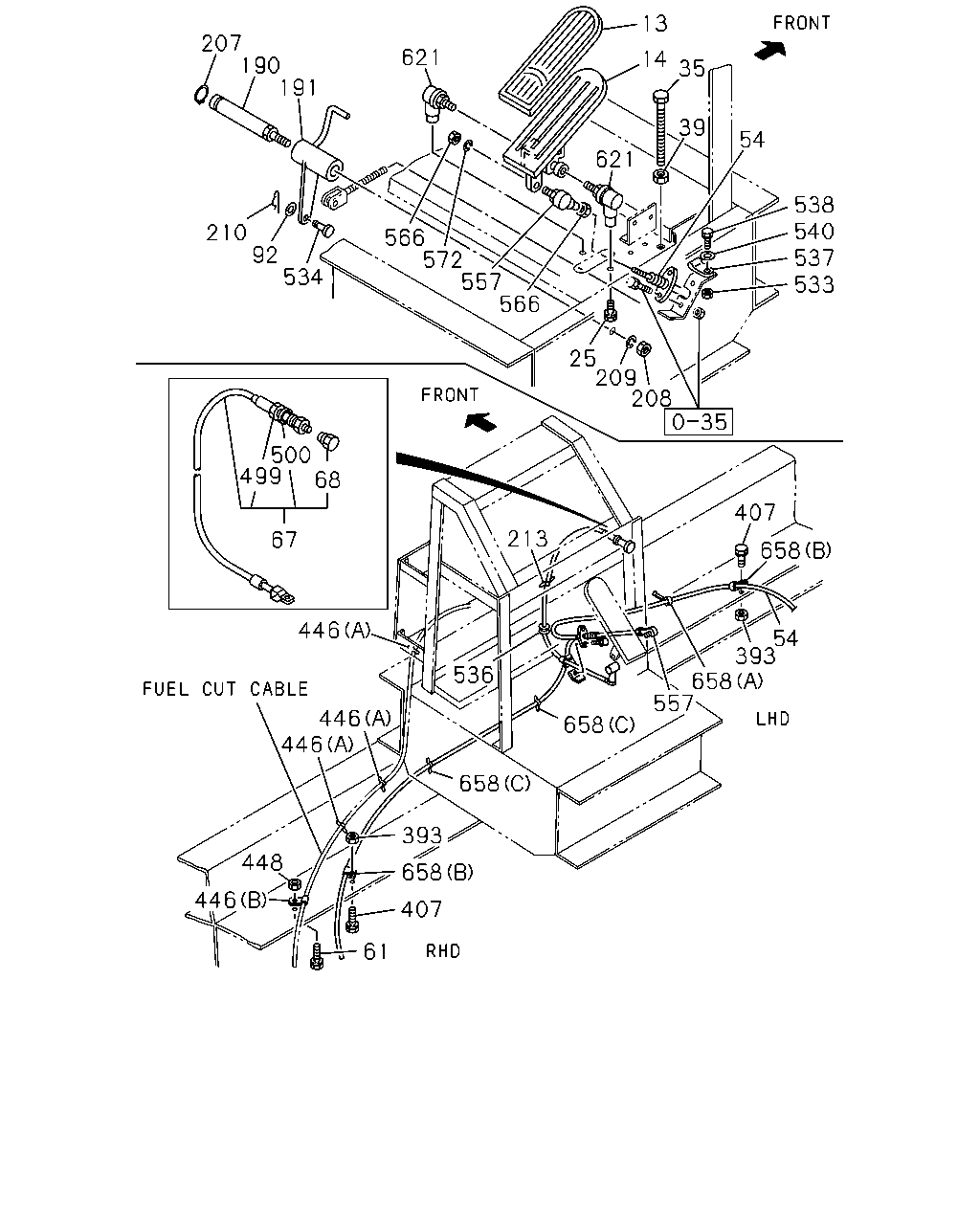

13 207 190 191 621 14 35 39 54 621 538 540 537 533 210 92 534 566 572 557 566 25 209 208 500 499 68 407 213 67 658 446 54 393 658 557 536 446 446 658 658 393 448 658 446 407 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	COVER; ACCEL PEDAL	9-23242-003-0	01	1	9001-	●	●	●	●
14	PAD; PEDAL,ACCEL	1-23240-045-0	01	1	9001-	●	●	●	●
25	BOLT; SHAFT SIDE M6X14	9-01910-614-0	02	1	9001-9005	●	●		●
25	BOLT; SHAFT SIDE M6X14 W/LK WASHER	0-50040-614-0	02	1	9006-9606	●	●	●	●
25	BOLT; SHAFT SIDE M6X12 FLANGE	0-28080-612-0	02	1	9607-	●	●	●	●
35	STOPPER; ACCEL PEDAL	9-02051-000-0	01	1	9001-9603	●	●	●	●
35	STOPPER; ACCEL PEDAL	0-20801-000-0	01	1	9604-	●	●	●	●
39	NUT; ACCEL PEDAL STOPPER M10	9-09111-410-0	01	1	9001-9606	●	●	●	●
39	NUT; ACCEL PEDAL STOPPER M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
54	CABLE; ENG CONT RIGHT HAND DRIVE(LVR5FB) L=2060	1-23210-728-0	01	1	9001-	●			●
54	CABLE; ENG CONT LEFT HAND DRIVE(LVR6FB) L=1150	1-23210-725-0	01	1	9001-	●			●
54	CABLE; ENG CONT L=1150	1-23210-725-0	01	1	9001-		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X22	9-01970-822-0	02	1	9001-9005				●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9006-				●
61	BOLT; BRKT TO FRAME ENG CONT CABLE RIGHT HAND DRIVE(LVR5FB) M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204	●			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE RIGHT HAND DRIVE(LVR5FB) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9606	●			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE RIGHT HAND DRIVE(LVR5FB) M6X20 FLANGE	0-28680-620-0	01	1	9607-9704	●			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE RIGHT HAND DRIVE(LVR5FB) M6X25 FLANGE	0-28680-625-0	01	1	9705-	●			●
67	CABLE ASM; IDLE CONT L=850	1-23210-710-0	01	1	9001-9910	●	●	●	●
67	CABLE ASM; IDLE CONT L=850	1-23230-376-0	01	1	9911-	●	●	●	●
68	KNOB; IDLE CONT	1-23211-005-0	01	1	9001-	●	●	●	●
92	WASHER; PL,IDLE CONT CABLE ID=6.4	9-09160-506-0	01	1	9001-	●	●	●	●
190	SHAFT; IDLING CONT	1-23331-060-0	01	1	9001-	●	●	●	●
191	LEVER; IDLING CONT	1-23311-176-2	01	1	9001-	●	●	●	●
207	RING; SNAP,SHAFT ID=9	9-09185-409-0	01	1	9001-	●	●	●	●
208	NUT; SHAFT M10	9-09110-510-0	01	1	9308-9606	●	●	●	●
208	NUT; SHAFT M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
209	WASHER; LK,SHAFT ID=10.2	9-09150-510-0	01	1	9001-9606	●	●	●	●
210	RING; SNAP,JOINT BALL L=17.9	1-09747-002-0	01	1	9001-	●	●	●	●
213	CLIP; IDLING CONT ID=8 L=38	9-09917-424-0	01	1	9001-	●	●	●	●
393	NUT; CLIP TO FRAME M6	9-09110-406-0	03	1	9001-9606	●	●	●	●
393	NUT; CLIP TO FRAME M6 FLANGE	0-91150-106-0	03	1	9607-	●	●	●	●
407	BOLT; CLIP TO ENG M6X16 W/LK WASHER	9-01910-616-0	03	1	9001-9005	●	●		●
407	BOLT; CLIP TO ENG M6X16 W/LK WASHER	0-50040-616-0	03	1	9006-9606	●	●	●	●
407	BOLT; CLIP TO ENG M6X16 FLANGE	0-28080-616-0	03	1	9607-	●	●	●	●
446	CLIP; ENG CONT RIGHT HAND DRIVE(LVR5FB) (A) ID=11 L=41	1-09700-403-0	04	1	9001-	●			●
446	CLIP; ENG CONT RIGHT HAND DRIVE(LVR5FB) (B) ID=9 L=16	9-09524-822-0	01	1	9001-	●			●
448	NUT; CLIP,CONT WIRE RIGHT HAND DRIVE(LVR5FB) M6	9-09110-406-0	01	1	9001-9606	●			●
448	NUT; CLIP,CONT WIRE RIGHT HAND DRIVE(LVR5FB) M6 FLANGE	0-91150-106-0	01	1	9607-	●			●
499	NUT; IDLE CONT CABLE	9-09840-072-0	01	1	9001-	●	●	●	●
500	WASHER; IDLE CONT CABLE	9-09855-057-0	01	1	9001-	●	●	●	●
533	NUT; CLIP,IDLE CONT CABLE M6	9-09110-406-0	01	1	9001-9606	●	●	●	●
533	NUT; CLIP,IDLE CONT CABLE M6 FLANGE	0-91150-106-0	01	1	9607-	●	●	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	9-08233-510-0	01	1	9001-	●	●	●	●
536	GROMMET; IDLING CONT ID=10 OD=20	9-09956-240-0	01	1	9001-	●	●	●	●
537	CLIP; IDLING CONT CABLE	9-09522-842-0	01	1	9001-	●	●	●	●
538	BOLT; CLIP,IDLING CONT M6X16 W/LK WASHER	9-01910-616-0	01	1	9001-9005	●	●		●
538	BOLT; CLIP,IDLING CONT M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9606	●	●	●	●
538	BOLT; CLIP,IDLING CONT M6X12 FLANGE	0-28080-612-0	01	1	9607-	●	●	●	●
540	WASHER; PL ID=6.4	9-09160-506-0	01	1	9001-9606	●	●	●	●
557	ROD ASM; LINK,ENG CONT RH THREAD	1-09760-002-0	01	1	9001-	●	●	●	●
566	NUT; LK,JOINT M5	9-99110-405-0	02	1	9001-	●	●	●	●
572	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	01	1	9001-	●	●	●	●
621	JOINT; BALL,LINK ROD	1-09760-004-0	02	1	9001-	●	●	●	●
658	CLIP; ENG CONT CABLE RIGHT HAND DRIVE(LVR5FB) (C) ID=11 L=41	1-09700-403-0	04	1	9001-	●			●
658	CLIP; ENG CONT CABLE (A)	1-09700-201-1	01	1	9001-	●	●	●	●
658	CLIP; ENG CONT CABLE (B) ID=9 L=16	9-09524-822-0	02	1	9001-	●	●	●	●

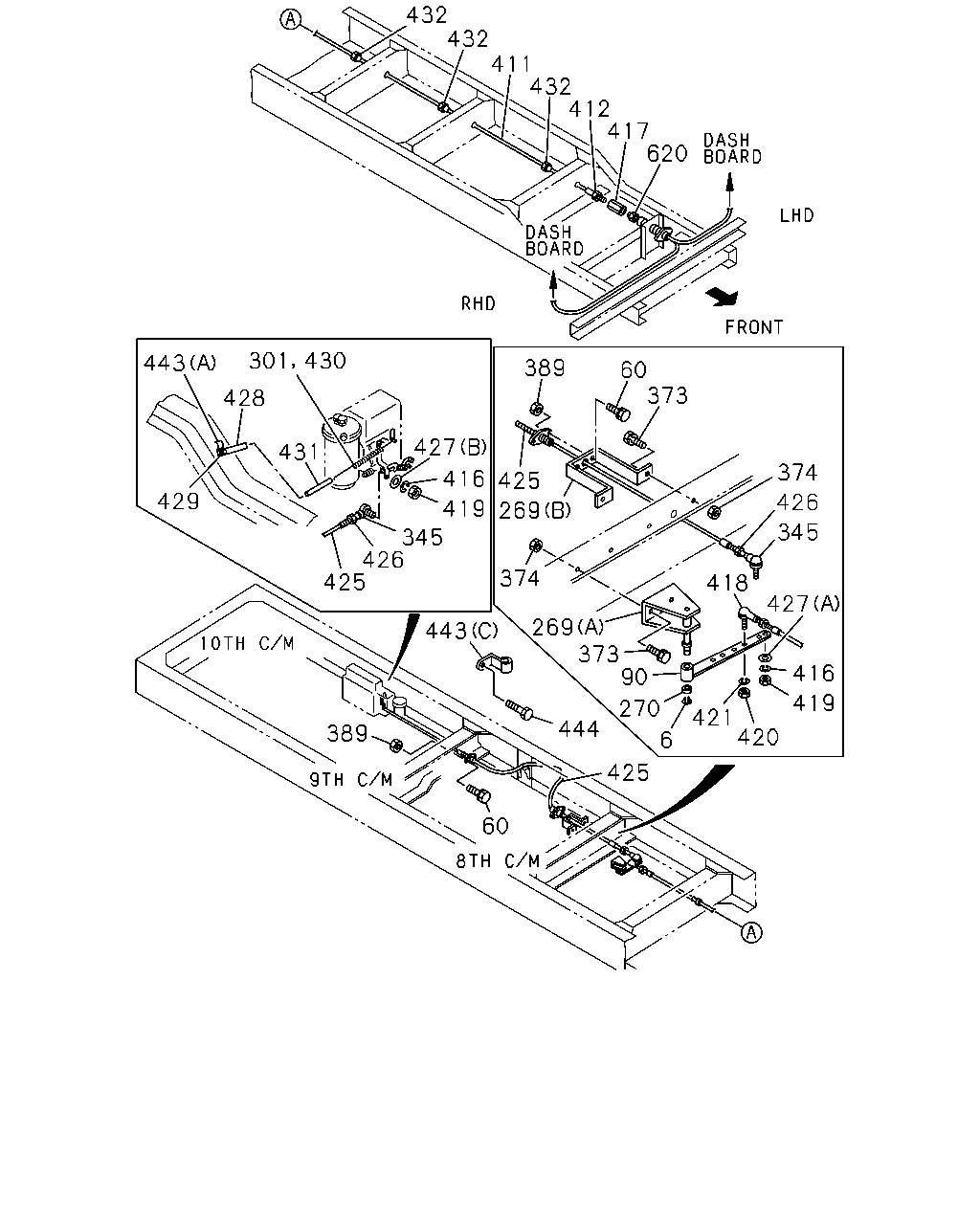

432 432 411 432 412 417 620 301 443 389 60 373 428 427 431 374 416 425 429 426 419 269 345 345 426 425 374 418 427 269 373 90 443 416 419 270 421 420 444 389 6 425 60 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	RING; SNAP,LINK TO LINK ID=5	9-09185-005-0	01	1	9001-	●	●	●	●
60	BOLT; CABLE M6X16 W/LK WASHER	9-01910-616-0	04	1	9001-9005	●	●		●
60	BOLT; CABLE M6X16 W/LK WASHER	0-50040-616-0	04	1	9006-9606	●	●	●	●
60	BOLT; CABLE M6X16 FLANGE	0-28080-616-0	04	1	9607-	●	●	●	●
90	LEVER; RELAY,ENG CONT	1-23311-140-1	01	1	9001-	●	●	●	●
269	BRACKET; RELAY LEVER (A)	1-23335-086-0	01	1	9001-	●	●	●	●
269	BRACKET; RELAY LEVER (B)	1-23335-123-0	01	1	9001-	●	●	●	●
270	BEARING; BALL,RELAY LEVER	1-09800-066-0	02	1	9001-	●	●	●	●
301	SPRING; RETURN,CYL	5-09583-119-0	01	1	9001-				●
345	BALL ASM; JOINT,ACCEL CONT ROD RH THREAD	1-09760-002-0	02	1	9001-	●	●	●	●
373	BOLT; BRKT,RELAY LEVER M6X18	9-01910-618-0	02	1	9001-9005	●	●		●
373	BOLT; BRKT,RELAY LEVER M6X18 W/LK WASHER	0-50040-618-0	02	1	9006-9606	●	●	●	●
373	BOLT; BRKT,RELAY LEVER M6X16 FLANGE	0-28080-616-0	02	1	9607-	●	●	●	●
373	BOLT; BRKT,RELAY LEVER M10X22	9-01911-022-0	02	1	9001-9002	●	●		●
373	BOLT; BRKT,RELAY LEVER M10X22 W/LK WASHER	0-50041-022-0	02	1	9003-9606	●	●	●	●
373	BOLT; BRKT,RELAY LEVER M10X20 FLANGE	0-28681-020-0	02	1	9607-9701	●	●	●	●
373	BOLT; BRKT,RELAY LEVER M10X25 FLANGE	0-28681-025-0	02	1	9702-	●	●	●	●
374	NUT; BRKT,RELAY LEVER M6	9-09110-406-0	02	1	9001-9606	●	●	●	●
374	NUT; BRKT,RELAY LEVER M6 FLANGE	0-91150-106-0	02	1	9607-	●	●	●	●
374	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9308-9606	●	●	●	●
374	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●	●
389	NUT; ACCEL CONT CABLE FIX M6	9-09110-406-0	04	1	9001-9606	●	●	●	●
389	NUT; ACCEL CONT CABLE FIX M6 FLANGE	0-91150-106-0	04	1	9607-	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 5800MM(58W) L=6055	1-23319-041-1	01	1	9001-9910	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 5800MM(58W) L=6055	1-23319-105-0	01	1	9911-	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 6600MM(66W) L=6905	1-23319-046-1	01	1	9001-9910	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 6600MM(66W) L=6905	1-23319-107-0	01	1	9911-	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 6800MM(68W) L=7055	1-23319-042-1	01	1	9001-9910	●	●	●	●
411	WIRE; ENG CONT WHEEL BASE 6800MM(68W) L=7055	1-23319-106-0	01	1	9911-	●	●	●	●
412	NUT; LK,WIRE M5 LH THREAD	9-09840-277-0	01	1	9001-	●	●	●	●
416	WASHER; LK,TURN BUCKLE ID=5.1	9-09150-505-0	02	1	9001-	●	●	●	●
417	BUCKLE; TURN,ENG CONT	9-23319-194-0	01	1	9001-	●	●	●	●
418	JOINT; BALL,ENG CONT RH THREAD	1-09760-002-0	01	1	9001-	●	●	●	●
419	NUT; LK,BALL JOINT M5	9-99110-405-0	03	1	9001-	●	●	●	●
420	NUT; BALL JOINT M5	9-99110-405-0	01	1	9001-	●	●	●	●
421	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	01	1	9001-	●	●	●	●
425	WIRE; ENG CONT,RR MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5L M/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) L=2870	1-23210-726-0	01	1	9001-9012				●
425	WIRE; ENG CONT,RR M/T<X9C> EXC. BUS BODY REAR OVERHANG<YK4> L=2870	1-23210-726-0	01	1	9101-9112				●
425	WIRE; ENG CONT,RR EXC. BUS BODY REAR OVERHANG<YK4> L=2870	1-23210-726-0	01	1	9201-				●
425	WIRE; ENG CONT,RR A/T<X9D> L=3020	1-23210-730-0	01	1	9001-9012	●	●		●
425	WIRE; ENG CONT,RR RIGHT HAND DRIVE(LVR5FB) MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) L=3020	1-23210-730-0	01	1	9001-9012				●
425	WIRE; ENG CONT,RR LEFT HAND DRIVE(LVR6FB) MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) L=3020	1-23210-730-0	01	1	9001-9012				●
425	WIRE; ENG CONT,RR A/T<X9D> L=3020	1-23210-730-0	01	1	9101-9112	●	●		●
425	WIRE; ENG CONT,RR M/T<X9C> BUS BODY REAR OVERHANG<YK4> L=3020	1-23210-730-0	01	1	9101-9112				●
425	WIRE; ENG CONT,RR BUS BODY REAR OVERHANG<YK4> L=3020	1-23210-730-0	01	1	9201-				●
425	WIRE; ENG CONT,RR WHEEL BASE 6600MM(66W) L=2985	1-23210-729-0	01	1	9001-9012	●	●		●
425	WIRE; ENG CONT,RR LEFT HAND DRIVE(LVR6FB) MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) L=2985	1-23210-729-0	01	1	9001-9012	●			●
425	WIRE; ENG CONT,RR MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) L=2985	1-23210-729-0	01	1	9001-9012		●
425	WIRE; ENG CONT,RR L=2985	1-23210-729-0	01	1	9001-9012			●
425	WIRE; ENG CONT,RR M/T<X9C> BUS BODY REAR OVERHANG<YK4> L=2985	1-23210-729-0	01	1	9101-9112	●	●	●
425	WIRE; ENG CONT,RR BUS BODY REAR OVERHANG<YK4> L=2985	1-23210-729-0	01	1	9201-	●	●	●
425	WIRE; ENG CONT,RR MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5L M/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) L=2835	1-23210-727-0	01	1	9001-9012	●	●
425	WIRE; ENG CONT,RR M/T<X9C> EXC. BUS BODY REAR OVERHANG<YK4> L=2835	1-23210-727-0	01	1	9101-9112	●	●	●
425	WIRE; ENG CONT,RR EXC. BUS BODY REAR OVERHANG<YK4> L=2835	1-23210-727-0	01	1	9201-	●	●	●
426	NUT; LK,JOINT BALL,ACCEL CONT LINK ROD M5	9-99110-405-0	02	1	9001-	●	●	●	●
427	WASHER; PL,ACCEL CONT CABLE (A) ID=5.3	9-09160-505-0	01	1	9001-	●	●	●	●
427	WASHER; PL,ACCEL CONT CABLE (B) ID=5.3 OD=12	9-09160-605-0	01	1	9001-	●	●	●	●
428	EYE; RETURN SPR,CONT WIRE L=205	1-47324-003-0	01	1	9001-				●
428	EYE; RETURN SPR,CONT WIRE L=135	1-47324-002-0	01	1	9001-	●	●	●
429	BOLT; EYE,CONT WIRE M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204	●	●	●	●
429	BOLT; EYE,CONT WIRE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9606	●	●	●	●
429	BOLT; EYE,CONT WIRE M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●	●	●
430	SPRING; RETURN,ACCEL CONT CABLE	1-09583-002-0	01	1	9001-	●	●	●	●
431	COVER; SPR L=170	1-09366-030-0	01	1	9001-	●	●	●	●
432	GUIDE; CONT WIRE	9-61176-352-1	08	1	9001-	●	●	●	●
443	CLIP; CABLE RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) (A)	9-09917-456-0	13	1	9001-	●			●
443	CLIP; CABLE RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) (A)	9-09917-456-0	15	1	9001-	●			●
443	CLIP; CABLE LEFT HAND DRIVE(LVR6FB) (A)	9-09917-456-0	17	1	9001-	●			●
443	CLIP; CABLE (A)	9-09917-456-0	17	1	9001-		●	●
443	CLIP; CABLE (C)	1-09701-073-0	01	1	9306-	●	●	●	●
443	CLIP; CABLE (B)	1-23219-005-2	01	1	9001-	●	●	●
444	BOLT; CABLE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9306-9606	●	●	●	●
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-	●	●	●	●
620	NUT; JOINT LK M5	9-99110-405-0	01	1	9001-	●	●	●	●

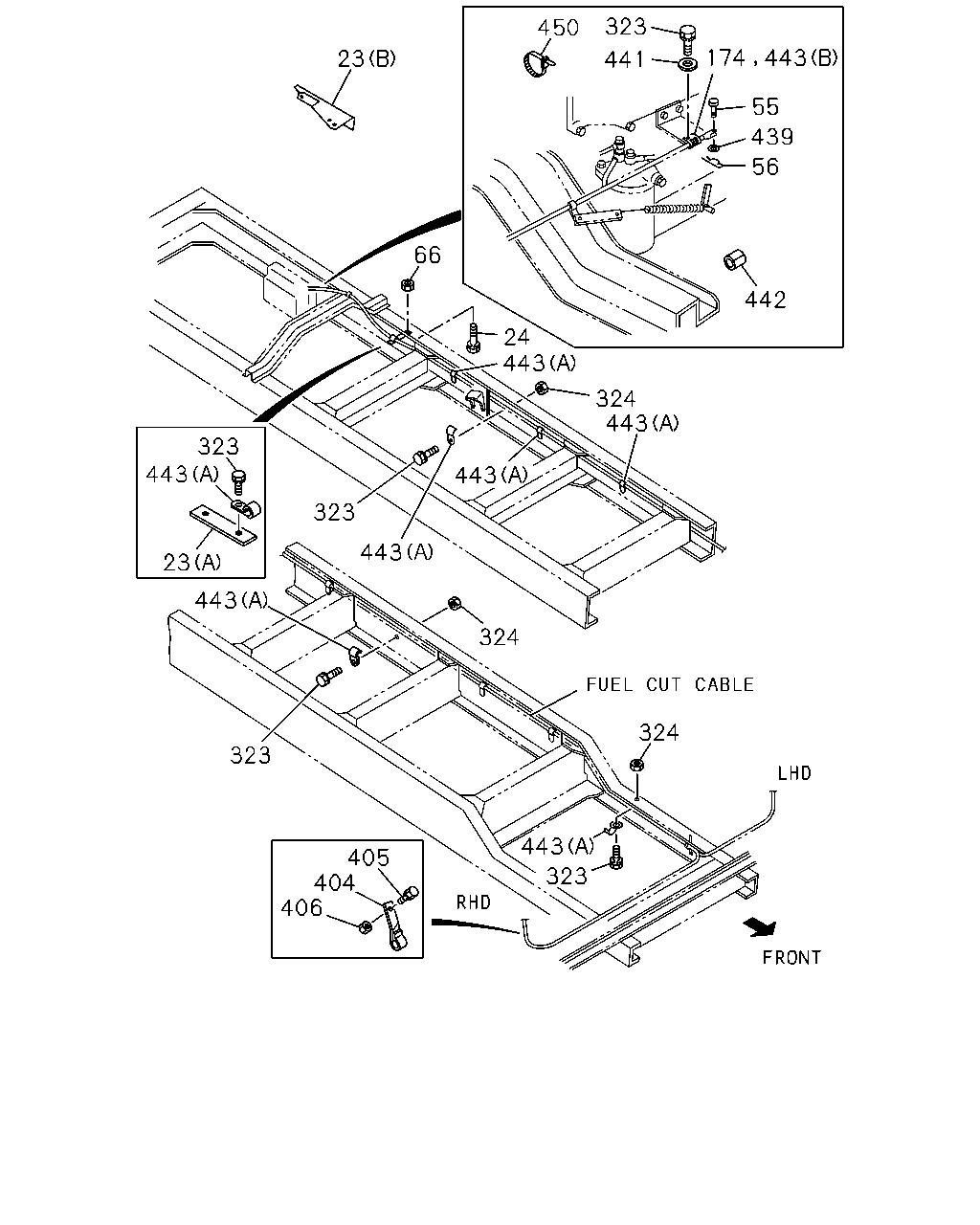

323 450 23 441 55 439 56 66 442 24 443 324 443 323 443 443 323 443 23 443 324 324 323 443 405 404 406 323 174 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE (B)	1-23219-049-1	01	1	9001-				●
23	BRACKET; FUEL CUT CABLE (A)	1-47465-052-0	01	1	9001-9108	●	●	●	●
23	BRACKET; FUEL CUT CABLE (A)	1-47476-082-0	01	1	9109-	●	●	●	●
24	BOLT; BRKT M10X22 W/LK WASHER	9-01931-022-0	02	1	9001-9002				●
24	BOLT; BRKT M10X22 W/LK WASHER	0-50051-022-0	02	1	9003-				●
24	BOLT; BRKT RIGHT HAND DRIVE(LVR5FB) M8X25 W/LK WASHER	9-01900-825-0	02	1	9001-9204	●			●
24	BOLT; BRKT RIGHT HAND DRIVE(LVR5FB) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9606	●			●
24	BOLT; BRKT RIGHT HAND DRIVE(LVR5FB) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●			●
24	BOLT; BRKT RIGHT HAND DRIVE(LVR5FB) M8X25 FLANGE	0-28680-825-0	01	1	9607-	●			●
24	BOLT; BRKT LEFT HAND DRIVE(LVR6FB) M8X25 W/LK WASHER	9-01900-825-0	18	1	9001-9204	●			●
24	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	18	1	9001-9204		●	●
24	BOLT; BRKT LEFT HAND DRIVE(LVR6FB) M8X25 W/LK WASHER	0-50040-825-0	18	1	9205-9606	●			●
24	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	18	1	9205-9606		●	●
24	BOLT; BRKT LEFT HAND DRIVE(LVR6FB) M8X25 FLANGE	0-28680-825-0	18	1	9607-	●			●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	18	1	9607-		●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9001-	●	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9001-	●	●	●	●
66	NUT; BRKT RIGHT HAND DRIVE(LVR5FB) M8	9-09110-408-0	01	1	9001-9606	●			●
66	NUT; BRKT RIGHT HAND DRIVE(LVR5FB) M8 FLANGE	0-91150-108-0	01	1	9607-	●			●
66	NUT; BRKT LEFT HAND DRIVE(LVR6FB) M8	9-09110-408-0	18	1	9001-9606	●			●
66	NUT; BRKT M8	9-09110-408-0	18	1	9001-9606		●	●
66	NUT; BRKT LEFT HAND DRIVE(LVR6FB) M8 FLANGE	0-91150-108-0	18	1	9607-	●			●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	18	1	9607-		●	●
174	CLIP; FUEL CUT CABLE	1-09709-116-1	01	1	9001-				●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9001-9204	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9606	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) M6X20 FLANGE	0-28680-620-0	01	1	9607-9704	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) M6X25 FLANGE	0-28680-625-0	01	1	9705-	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) M8X25 W/LK WASHER	9-01900-825-0	12	1	9001-9204	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) M8X25 W/LK WASHER	0-50040-825-0	12	1	9205-9606	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) M8X25 FLANGE	0-28680-825-0	12	1	9607-	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) M8X25 W/LK WASHER	9-01900-825-0	14	1	9001-9204	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) M8X25 W/LK WASHER	0-50040-825-0	14	1	9205-9606	●			●
323	BOLT; CLIP RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) M8X25 FLANGE	0-28680-825-0	14	1	9607-	●			●
323	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9204	●	●	●
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9606	●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●	●
324	NUT; CLIP FIX RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) M8	9-09110-408-0	12	1	9001-9606	●			●
324	NUT; CLIP FIX RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) M8 FLANGE	0-91150-108-0	12	1	9607-	●			●
324	NUT; CLIP FIX RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) M8	9-09110-408-0	14	1	9001-9606	●			●
324	NUT; CLIP FIX RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) M8 FLANGE	0-91150-108-0	14	1	9607-	●			●
404	CLIP; CABLE RIGHT HAND DRIVE(LVR5FB)	1-09700-434-0	01	1	9001-	●			●
405	BOLT; CABLE CLIP RIGHT HAND DRIVE(LVR5FB) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204	●			●
405	BOLT; CABLE CLIP RIGHT HAND DRIVE(LVR5FB) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9606	●			●
405	BOLT; CABLE CLIP RIGHT HAND DRIVE(LVR5FB) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●			●
406	NUT; CABLE CLIP RIGHT HAND DRIVE(LVR5FB) M8	9-09110-408-0	01	1	9001-9606	●			●
406	NUT; CABLE CLIP RIGHT HAND DRIVE(LVR5FB) M8 FLANGE	0-91150-108-0	01	1	9607-	●			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9001-	●	●	●	●
441	WASHER; PL,BRKT ID=8.4	9-09160-508-0	02	1	9001-9606	●	●	●
442	SLEEVE; RUBBER,OIL PIPE ID=17 OD=21 L=40	1-09337-012-0	01	1	9001-	●	●	●
443	CLIP; CABLE RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 5800MM(58W) (A)	9-09917-456-0	13	1	9001-	●			●
443	CLIP; CABLE RIGHT HAND DRIVE(LVR5FB) WHEEL BASE 6800MM(68W) (A)	9-09917-456-0	15	1	9001-	●			●
443	CLIP; CABLE LEFT HAND DRIVE(LVR6FB) (A)	9-09917-456-0	17	1	9001-	●			●
443	CLIP; CABLE (A)	9-09917-456-0	17	1	9001-		●	●
443	CLIP; CABLE (C)	1-09701-073-0	01	1	9306-	●	●	●	●
443	CLIP; CABLE (B)	1-23219-005-2	01	1	9001-	●	●	●
450	CLIP; BAND L=250	5-09707-030-1	01	1	9001-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
