Sayfa 3-46 - Isuzu EPC

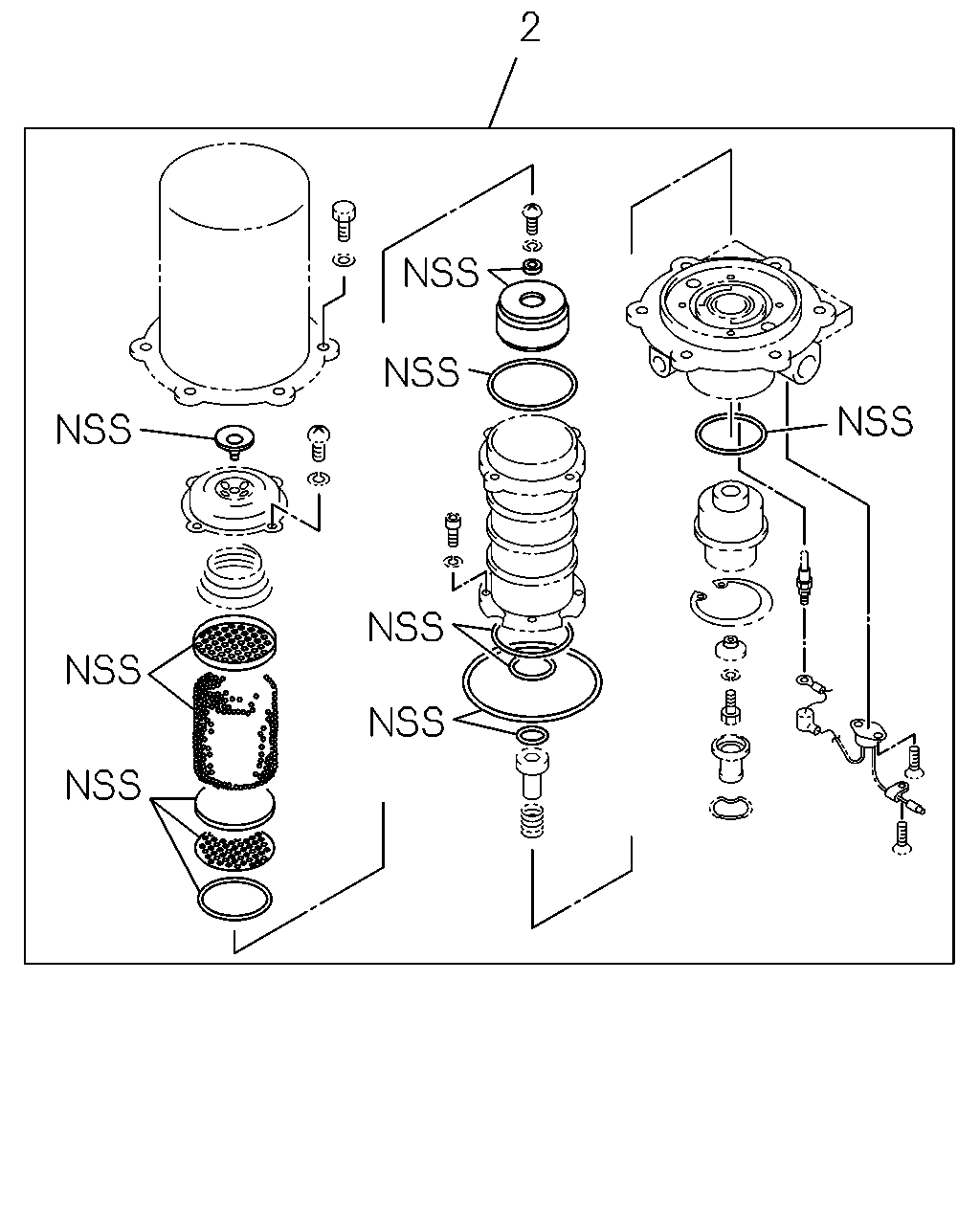

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-083-0	01	1	9212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-056-0	01	1	9212-9303
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-368-0	01	1	9304-

2 7

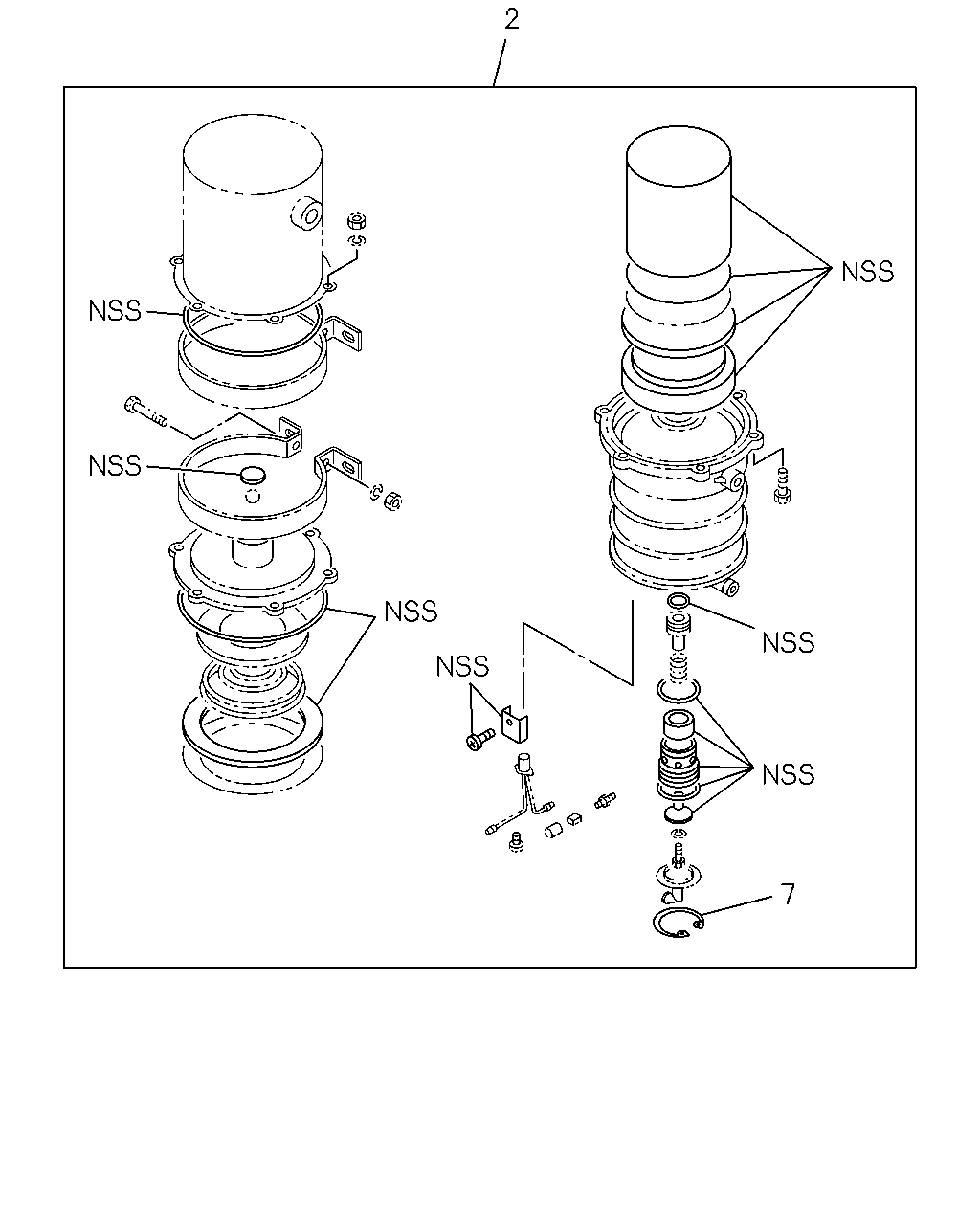

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-083-0	01	1	9212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-056-0	01	1	9212-9303
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-368-0	01	1	9304-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-100-0	01	1	9212-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-223-0	01	1	9212-

11 10 1 10 8 13 1 9 9 81 75 68 3 84 5 77 65 6 7 4

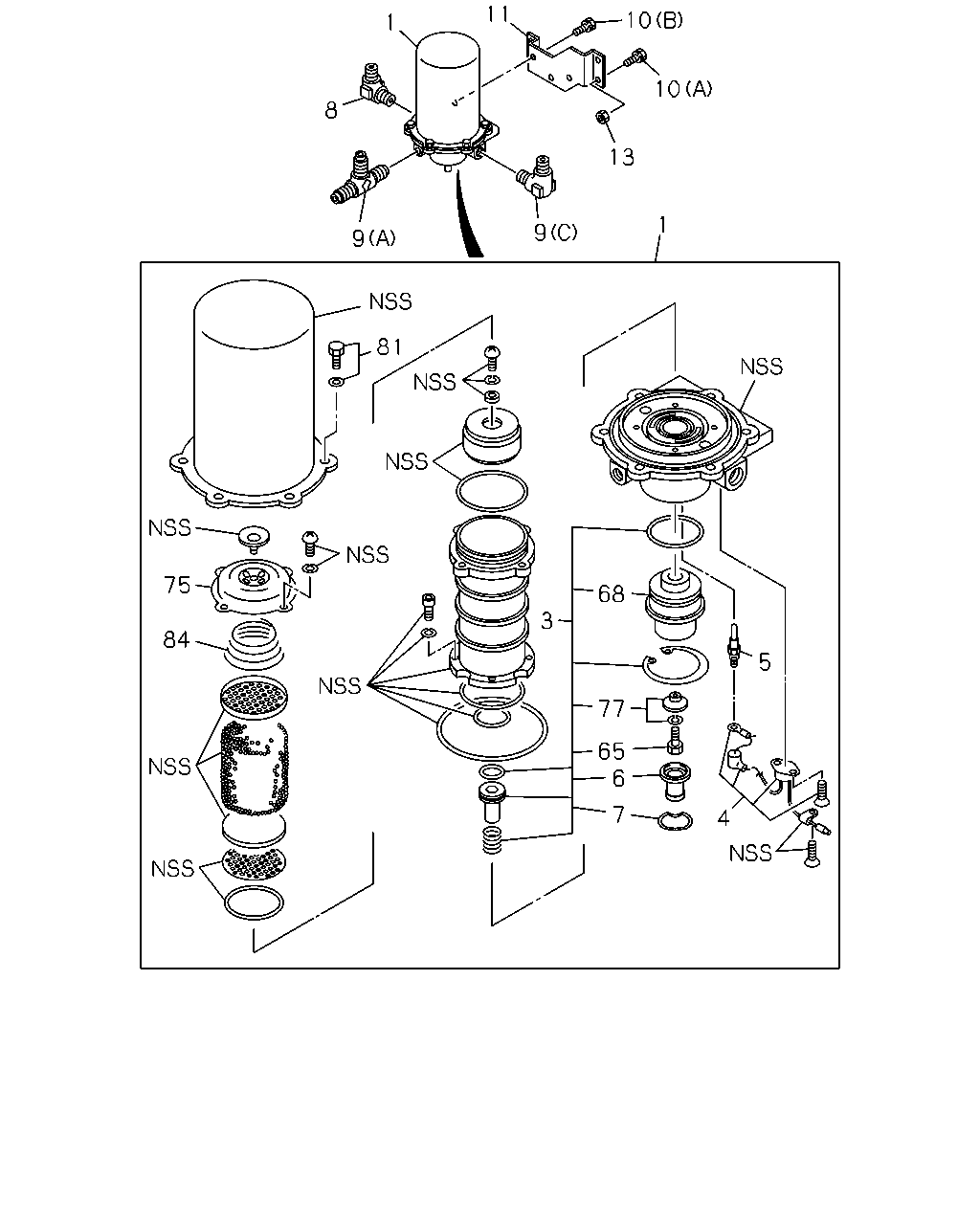

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-091-0	01	1	9212-
1	DRYER; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-111-0	01	1	9212-9303
1	DRYER; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-157-0	01	1	9304-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-084-0	01	1	9212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-058-0	01	1	9212-9303
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-150-0	01	1	9304-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-121-0	01	1	9212-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-133-0	01	1	9212-9303
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-152-0	01	1	9304-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-200-0	01	1	9212-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-246-0	01	1	9212-9303
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-085-0	01	1	9304-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-132-0	01	1	9212-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-266-0	01	1	9212-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-100-0	01	1	9212-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-223-0	01	1	9212-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9212-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9212-9303
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9304-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9212-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9212-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9212-9303
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9304-
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9212-
10	BOLT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9212-
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X16	0-20801-016-0	03	1	9212-
11	BRACKET; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48195-057-0	01	1	9212-
11	BRACKET; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48195-032-1	01	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	02	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9212-
65	BOLT; PURGE VLV AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-102-0	01	1	9212-9303
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9304-
68	BODY; VALVE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-216-0	01	1	9212-
68	BODY; VALVE AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-221-0	01	1	9304-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-201-0	01	1	9212-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-236-0	01	1	9304-
77	WASHER; LK,VALVE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-103-0	01	1	9212-9303
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9304-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-208-0	06	1	9212-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-365-0	06	1	9304-
84	SPRING; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-092-0	01	1	9212-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-235-0	01	1	9304-

71 72 80 79 85 82 79 82 85 75 81 5 72 3 84 68 77 70 4 65 7 6 11 1 1 13 8 9 10 9 10

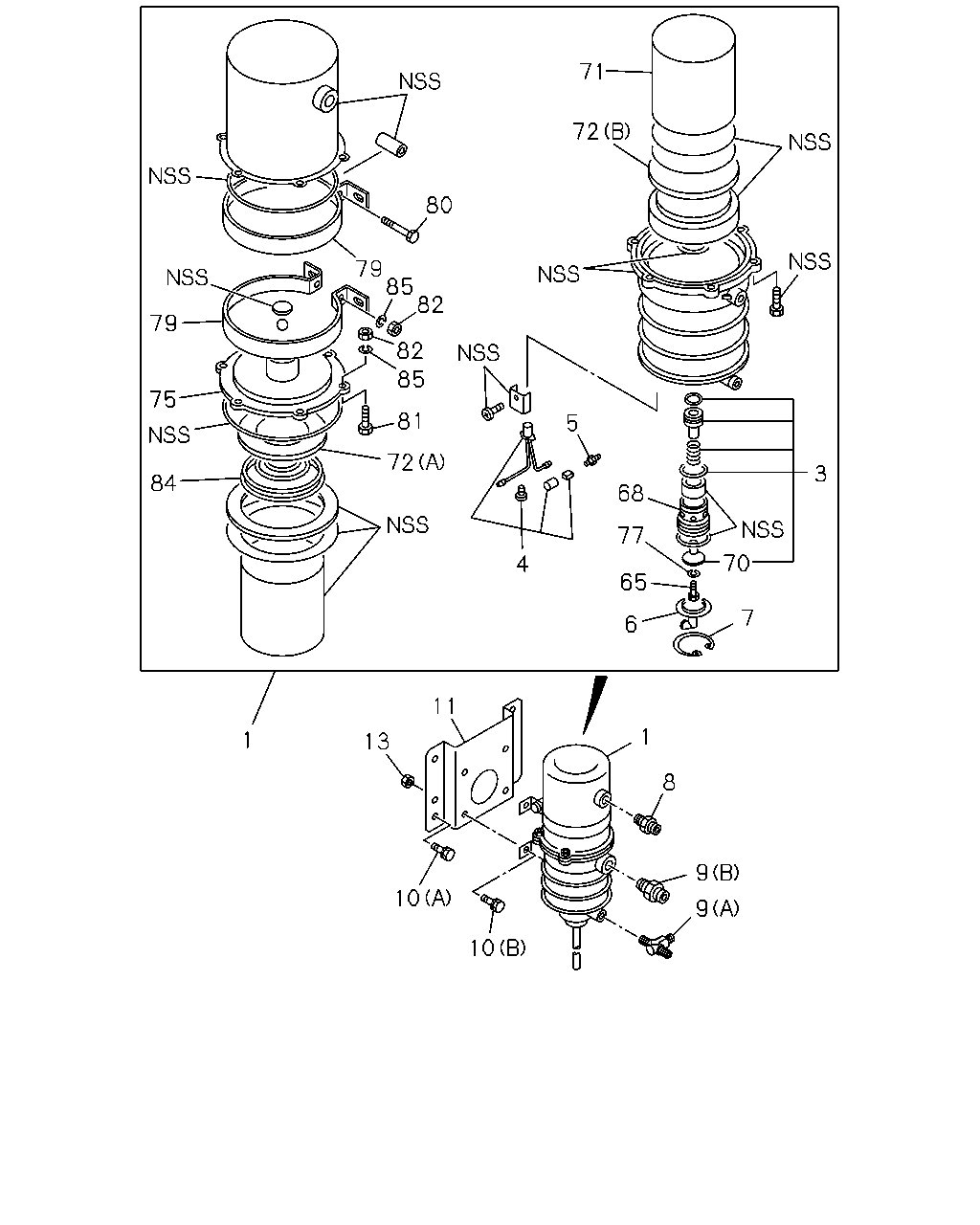

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-091-0	01	1	9212-
1	DRYER; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-111-0	01	1	9212-9303
1	DRYER; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48190-157-0	01	1	9304-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-084-0	01	1	9212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-058-0	01	1	9212-9303
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-150-0	01	1	9304-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-121-0	01	1	9212-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-133-0	01	1	9212-9303
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-152-0	01	1	9304-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-200-0	01	1	9212-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-246-0	01	1	9212-9303
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-085-0	01	1	9304-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-132-0	01	1	9212-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-266-0	01	1	9212-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-100-0	01	1	9212-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-223-0	01	1	9212-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9212-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9212-9303
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9304-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9212-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9212-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9212-9303
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9304-
10	BOLT; AIR DRYER AIR DRYER<PS7> (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9212-
10	BOLT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9212-
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X16	0-20801-016-0	03	1	9212-
11	BRACKET; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48195-057-0	01	1	9212-
11	BRACKET; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48195-032-1	01	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	02	1	9212-
13	NUT; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9212-
65	BOLT; PURGE VLV AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-102-0	01	1	9212-9303
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9304-
68	BODY; VALVE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-216-0	01	1	9212-
68	BODY; VALVE AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-221-0	01	1	9304-
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9212-
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-099-0	01	1	9212-
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48199-097-0	01	1	9212-
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-48199-098-0	01	1	9212-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-201-0	01	1	9212-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-236-0	01	1	9304-
77	WASHER; LK,VALVE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-103-0	01	1	9212-9303
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9304-
79	BRACKET; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-209-0	02	1	9212-
80	BOLT; BRKT AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-212-0	02	1	9212-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-208-0	06	1	9212-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-365-0	06	1	9304-
82	NUT; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-211-0	08	1	9212-
84	SPRING; AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-092-0	01	1	9212-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-235-0	01	1	9304-
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48199-024-0	08	1	9212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
