Sayfa 1-41B - Isuzu EPC

1-41B — FUEL PIPING; CHASSIS (#20399) — 168 parça

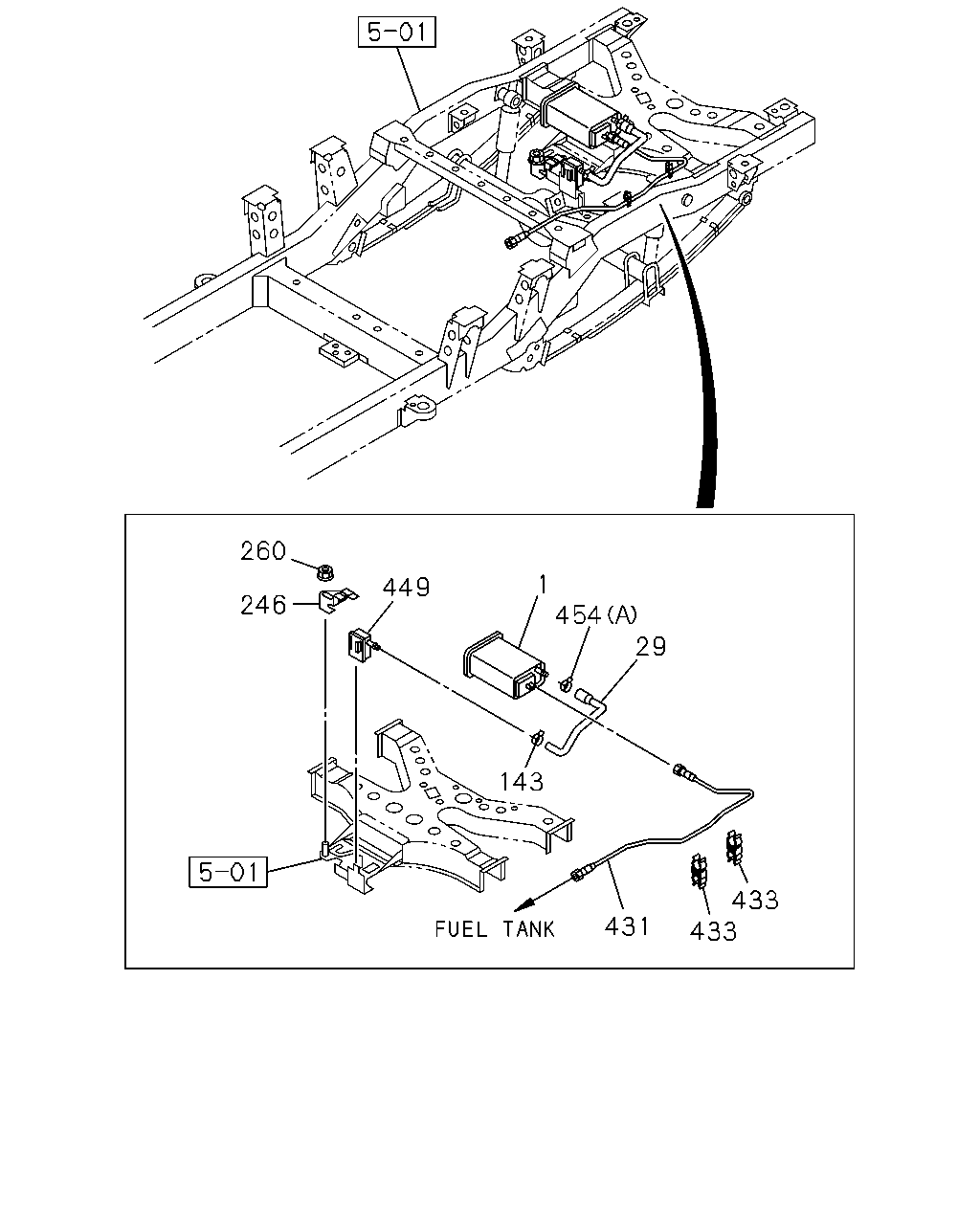

260 1 454 449 246 29 143 433 433 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	0307-0508	●
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	0509-0609	●	●
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	0610-		●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0307-0508	●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0509-0609	●	●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0610-		●
143	03.162 CLAMP; FUEL FILTER 01.166 ID=14	8-94238-572-0	01	1	0307-0508	●
143	03.162 CLAMP; FUEL FILTER 01.166 ID=14	8-94238-572-0	01	1	0509-0609	●	●
143	03.162 CLAMP; FUEL FILTER 01.166 ID=14	8-94238-572-0	01	1	0610-		●
246	03.130 BRACKET; CANISTER	8-97234-462-1	01	1	0307-0508	●
246	03.130 BRACKET; CANISTER	8-97234-462-1	01	1	0509-0609	●	●
246	03.130 BRACKET; CANISTER	8-97234-462-1	01	1	0610-		●
260	03.130 NUT; CANISTER BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	0307-0508	●
260	03.130 NUT; CANISTER BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	0509-0609	●	●
260	03.130 NUT; CANISTER BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-		●
431	03.163 PIPE; PURGE,ENG ROOM 03.145	8-97215-197-0	01	1	0307-0508	●
431	03.163 PIPE; PURGE,ENG ROOM 03.145	8-97215-197-0	01	1	0509-0609	●	●
431	03.163 PIPE; PURGE,ENG ROOM 03.145	8-97215-197-0	01	1	0610-		●
433	03.162 CLIP; PURGE PIPE 03.680 ID=7.5 & 7.5	8-97019-084-0	02	1	0307-0508	●
433	03.162 CLIP; PURGE PIPE 03.680 ID=7.5 & 7.5	8-97019-084-0	02	1	0509-0609	●	●
433	03.162 CLIP; PURGE PIPE 03.680 ID=7.5 & 7.5	8-97019-084-0	02	1	0610-		●
449	03.890 FILTER; AIR 03.162	8-17096-210-0	01	1	0307-0508	●
449	03.890 FILTER; AIR 03.162	8-17096-210-0	01	1	0509-0609	●	●
449	03.890 FILTER; AIR 03.162	8-17096-210-0	01	1	0610-		●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0307-0508	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0509-0609	●	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0610-		●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0307-0508	●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0509-0609	●	●

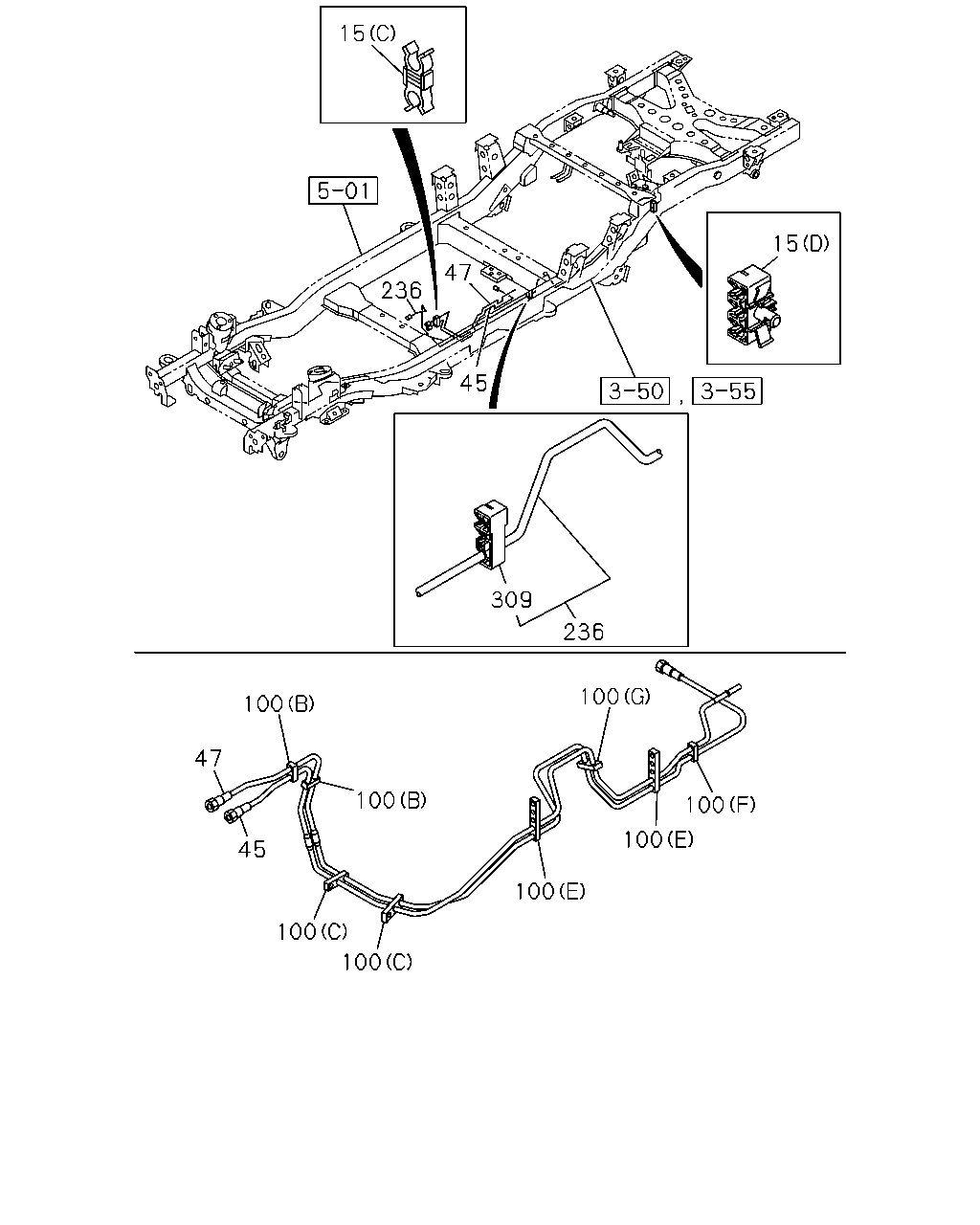

15 15 47 236 45 309 236 100 100 47 100 100 100 45 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0307-0508	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-0609	●	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0610-		●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-0508	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0509-0609	●	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0610-		●
45	03.163 PIPE; FUEL,DELIVERY EXTRA LONG(TF***K)	8-97236-142-1	01	1	0403-0508	●
45	03.163 PIPE; FUEL,DELIVERY EXTRA LONG(TF***K)	8-98000-452-0	01	1	0509-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-138-1	01	1	0307-0402	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-138-1	01	1	0403-0508	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 CREW CAB LONG(TFS*WF)	8-97236-138-1	01	1	0509-0609	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97236-142-1	01	1	0307-0402	●
45	03.163 PIPE; FUEL,DELIVERY LONG(TF***F)	8-98000-447-0	01	1	0509-		●
47	03.163 PIPE; FUEL,RETURN EXTRA LONG(TF***K)	8-97236-143-0	01	1	0403-0508	●
47	03.163 PIPE; FUEL,RETURN 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-140-0	01	1	0307-0402	●
47	03.163 PIPE; FUEL,RETURN 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-140-0	01	1	0403-0508	●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB LONG(TFS*WF)	8-97236-140-0	01	1	0509-0609	●
47	03.163 PIPE; FUEL,RETURN 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97236-143-0	01	1	0307-0402	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-0612		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0701-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0509-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (D) ID=8 & 8	8-97249-908-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE 4X4 CREW CAB LONG(TFS*WF) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0509-0609	●
236	03.163 PIPE; FUEL,CANISTER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97250-533-1	01	1	0307-0508	●
236	03.163 PIPE; FUEL,CANISTER 4X4 CREW CAB LONG(TFS*WF)	8-97250-533-1	01	1	0509-0609	●
236	03.163 PIPE; FUEL,CANISTER 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97250-534-1	01	1	0307-0402	●
236	03.163 PIPE; FUEL,CANISTER EXTRA LONG(TF***K)	8-97250-534-1	01	1	0403-0508	●
236	03.163 PIPE; FUEL,CANISTER EXTRA LONG(TF***K)	8-98000-449-0	01	1	0509-		●
236	03.163 PIPE; FUEL,CANISTER LONG(TF***F)	8-98000-448-0	01	1	0509-		●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0307-0402	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0403-0508	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0509-0609	●	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-		●

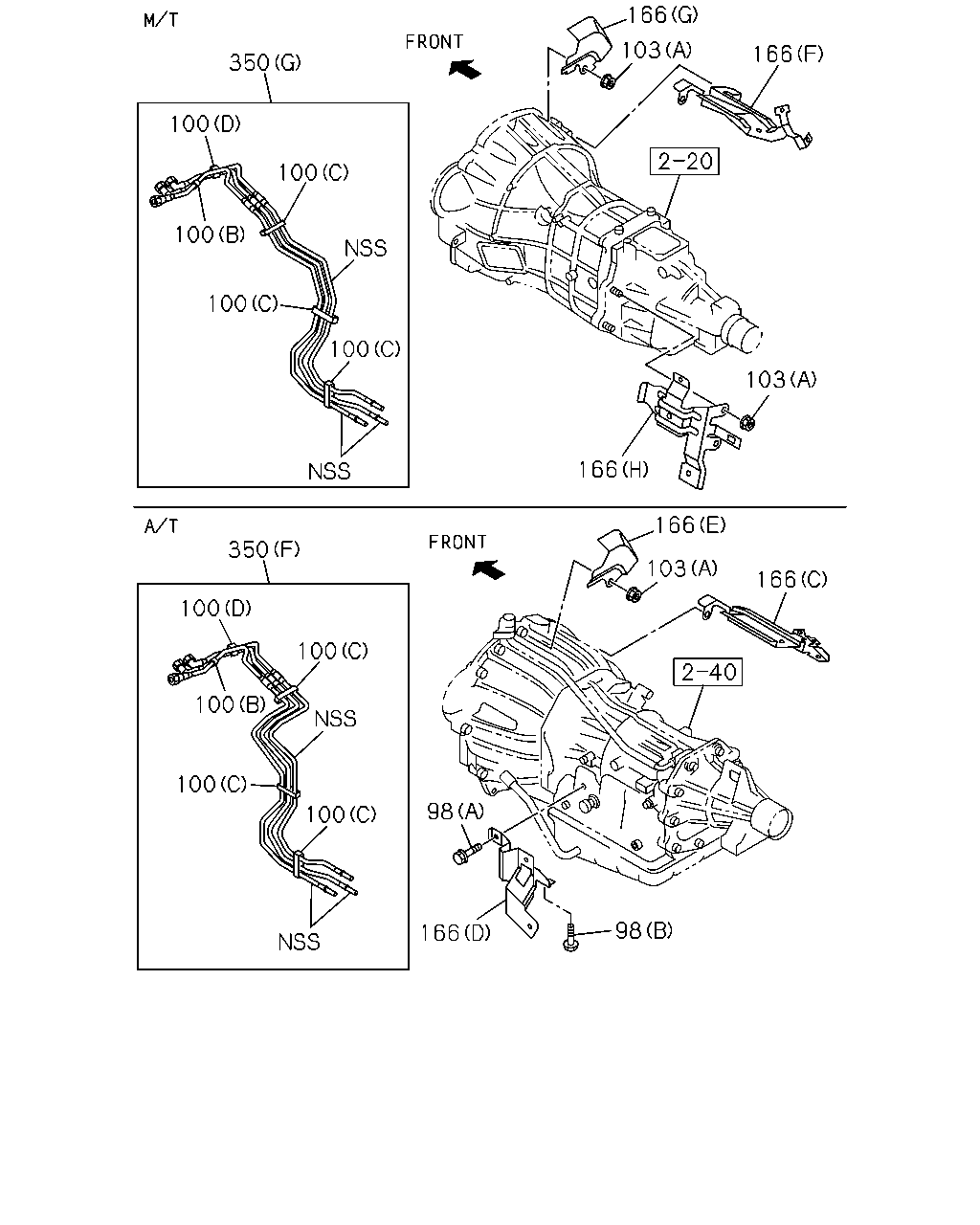

166 103 166 350 100 100 100 100 100 103 166 166 350 103 166 100 100 100 100 98 100 98 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0609	●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0307-0609	●
98	03.162 BOLT; BRKT,FUEL PIPE (D)	8-92138-771-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-0612		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0701-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0509-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (D) ID=8 & 8	8-97249-908-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE 4X4 CREW CAB LONG(TFS*WF) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0509-0609	●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 06.168 (A) M10 FLANGE	8-94242-425-0	02	1	0307-0508	●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 06.168 (A) M10 FLANGE	8-94242-425-0	02	1	0509-0609	●
103	03.130 NUT; BRKT 06.168 (A) M10 FLANGE	8-94242-425-0	01	1	0307-0609	●
103	03.130 NUT; BRKT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0509-		●
103	03.130 NUT; BRKT M/T AISIN 5 SPEED(MA5) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0509-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (C)	8-97215-306-2	01	1	0307-0609	●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (D)	8-97215-307-1	01	1	0307-0609	●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (E)	8-97309-670-0	01	1	0307-0609	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (F)	8-97215-304-2	01	1	0307-0609	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (G)	8-97309-507-1	01	1	0307-0609	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (H)	8-97310-176-0	01	1	0307-0609	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0307-0609	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (G)	8-97215-170-0	01	1	0307-0609	●

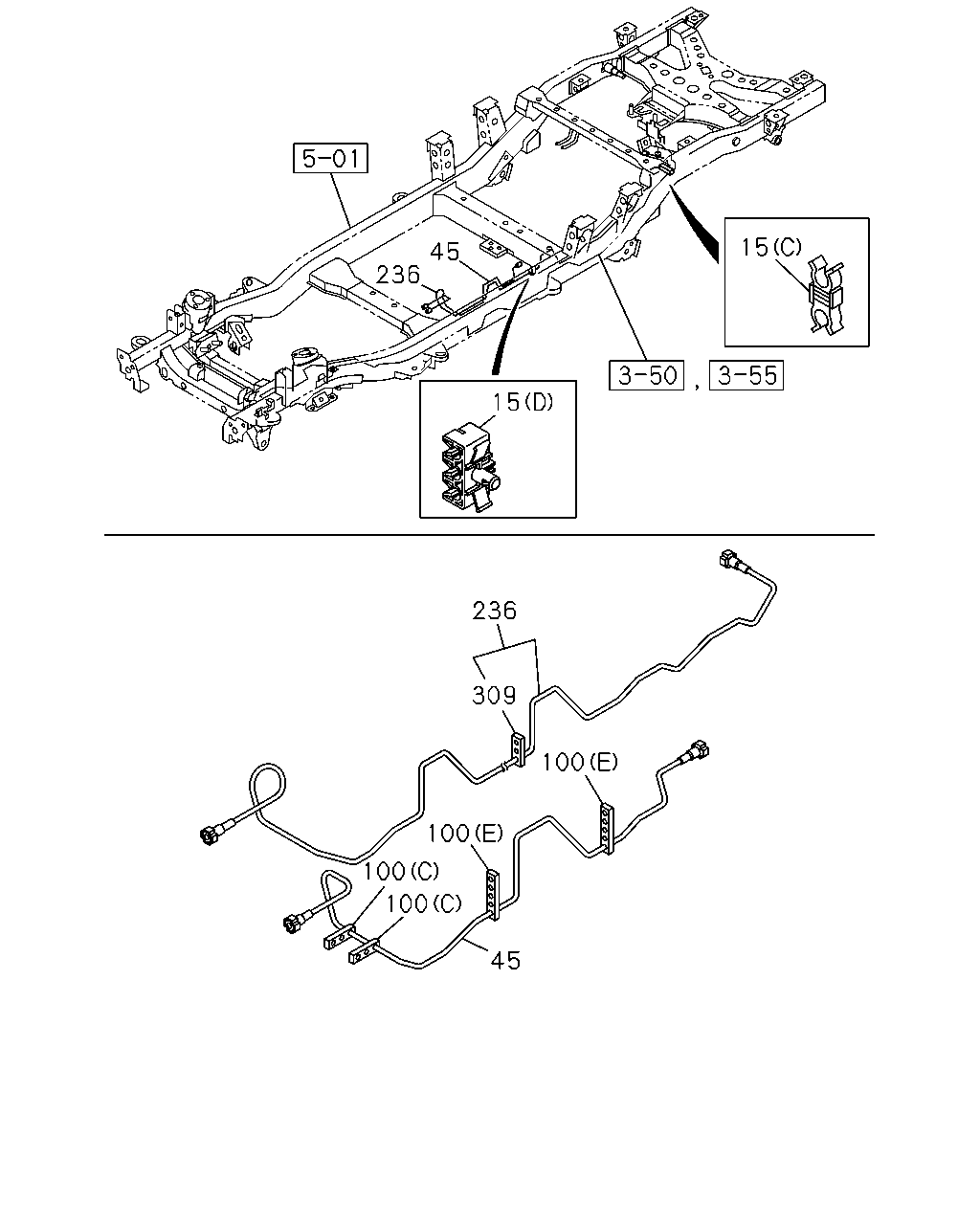

15 45 236 15 236 309 100 100 100 100 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0307-0508	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-0609	●	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0610-		●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-0508	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0509-0609	●	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0610-		●
45	03.163 PIPE; FUEL,DELIVERY EXTRA LONG(TF***K)	8-97236-142-1	01	1	0403-0508	●
45	03.163 PIPE; FUEL,DELIVERY EXTRA LONG(TF***K)	8-98000-452-0	01	1	0509-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-138-1	01	1	0307-0402	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97236-138-1	01	1	0403-0508	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 CREW CAB LONG(TFS*WF)	8-97236-138-1	01	1	0509-0609	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97236-142-1	01	1	0307-0402	●
45	03.163 PIPE; FUEL,DELIVERY LONG(TF***F)	8-98000-447-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609	●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-0612		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0701-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0509-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE (D) ID=8 & 8	8-97249-908-0	01	1	0307-0609	●
100	03.162 CLIP; FUEL PIPE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0307-0508	●
100	03.162 CLIP; FUEL PIPE 4X4 CREW CAB LONG(TFS*WF) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0509-0609	●
236	03.163 PIPE; FUEL,CANISTER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF)	8-97250-533-1	01	1	0307-0508	●
236	03.163 PIPE; FUEL,CANISTER 4X4 CREW CAB LONG(TFS*WF)	8-97250-533-1	01	1	0509-0609	●
236	03.163 PIPE; FUEL,CANISTER 4X2 EXTEND CAB EXTRA LONG(TFB5CK) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X4 REGULAR CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97250-534-1	01	1	0307-0402	●
236	03.163 PIPE; FUEL,CANISTER EXTRA LONG(TF***K)	8-97250-534-1	01	1	0403-0508	●
236	03.163 PIPE; FUEL,CANISTER EXTRA LONG(TF***K)	8-98000-449-0	01	1	0509-		●
236	03.163 PIPE; FUEL,CANISTER LONG(TF***F)	8-98000-448-0	01	1	0509-		●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0307-0402	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0403-0508	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0509-0609	●	●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0610-		●

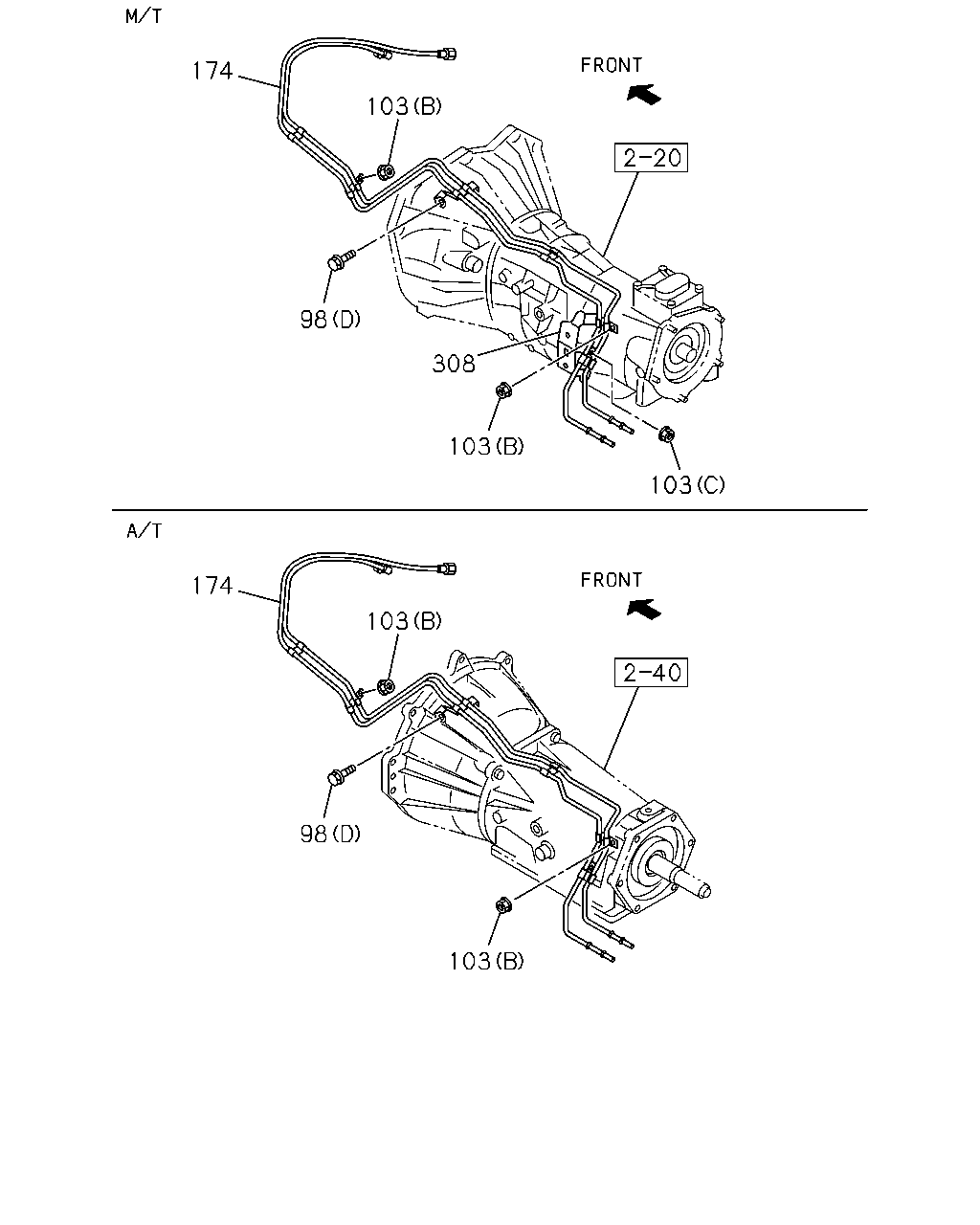

174 103 98 308 103 103 174 103 98 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0307-0609	●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0307-0609	●
98	03.162 BOLT; BRKT,FUEL PIPE (D)	8-92138-771-0	01	1	0509-		●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 06.168 (A) M10 FLANGE	8-94242-425-0	02	1	0307-0508	●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 06.168 (A) M10 FLANGE	8-94242-425-0	02	1	0509-0609	●
103	03.130 NUT; BRKT 06.168 (A) M10 FLANGE	8-94242-425-0	01	1	0307-0609	●
103	03.130 NUT; BRKT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0509-		●
103	03.130 NUT; BRKT M/T AISIN 5 SPEED(MA5) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0509-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-98000-445-0	01	1	0509-0609		●
174	03.163 PIPE; FUEL,FEED,FRT	8-98038-296-1	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE M/T AISIN 5 SPEED(MA5)	8-98000-474-0	01	1	0509-		●

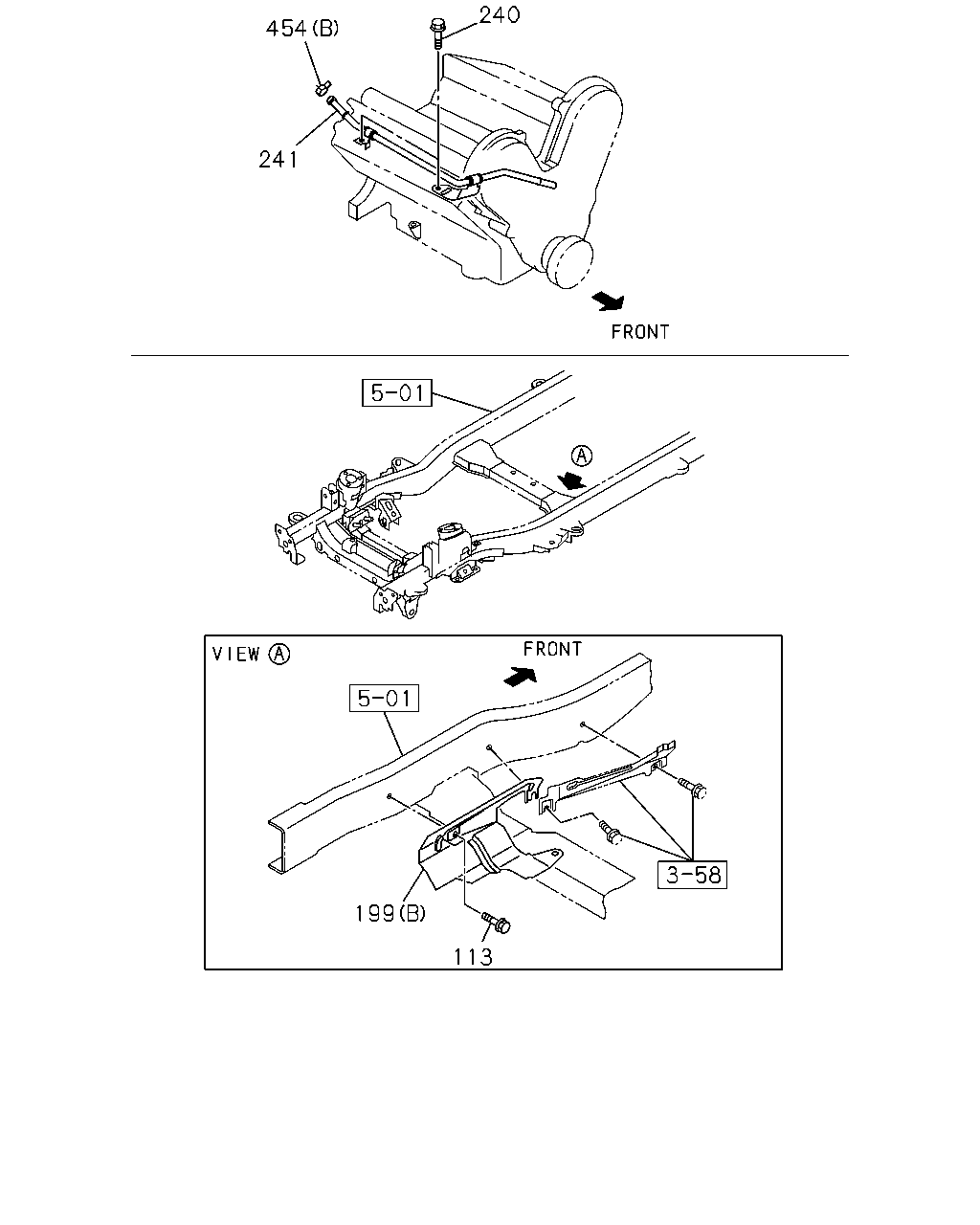

240 454 241 199 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	03.162 BOLT; PROTECTOR 07.874 M6X22 W/PL WASHER	8-97012-072-0	02	1	0307-0508	●
113	03.162 BOLT; PROTECTOR 07.874 M6X22 W/PL WASHER	8-97012-072-0	02	1	0509-0609	●	●
113	03.162 BOLT; PROTECTOR 07.874 M6X22 W/PL WASHER	8-97012-072-0	02	1	0610-0906		●
113	03.162 BOLT; PROTECTOR M6X22 W/PL WASHER	8-98136-167-0	02	1	0907-		●
199	03.162 PROTECTOR; FUEL PIPE (B)	8-97215-320-3	01	1	0307-0508	●
199	03.162 PROTECTOR; FUEL PIPE (B)	8-97215-320-3	01	1	0509-0609	●	●
199	03.162 PROTECTOR; FUEL PIPE (B)	8-97215-320-3	01	1	0610-		●
240	03.145 BOLT; EVAP PIPE CLIP 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0307-0508	●
240	03.145 BOLT; EVAP PIPE CLIP 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0509-0609	●	●
241	03.163 PIPE; EVAP	8-97307-237-1	01	1	0307-0508	●
241	03.163 PIPE; EVAP	8-97307-237-1	01	1	0509-0609	●	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0307-0508	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0509-0609	●	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0610-		●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0307-0508	●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0509-0609	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
