◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31B - AIR DUCT ▶
1-31B — AIR DUCT (#20394) — 15 parça

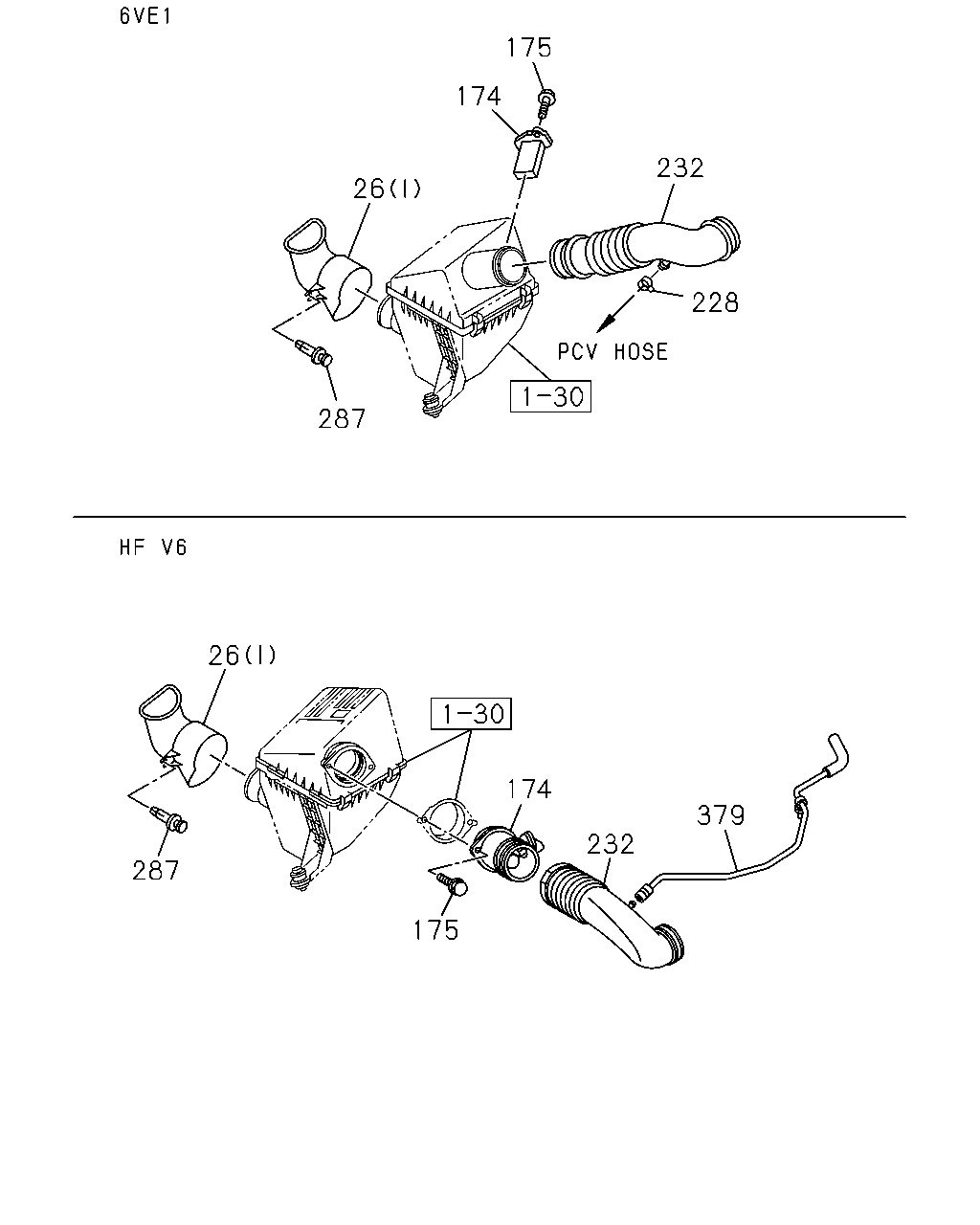

çizim 56235
175 174 232 26 228 287 26 174 379 232 287 175
BalonParca AdiParca NoAdetTipApplied Date A B
26 03.417 DUCT; AIR INT
(I) 		8-97234-460-0 01 1 0307-0508 ●
26 03.417 DUCT; AIR INT
(I) 		8-97234-460-0 01 1 0509-0609 ● ●
26 03.417 DUCT; AIR INT
(I) 		8-97234-460-0 01 1 0610- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97312-395-0 01 1 0307-0609 ●
174 03.682 SENSOR; AIR FLOW CONT 8-12566-846-0 01 1 0509- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
16.545 M4X10 W/PL WASHER 		9-03900-410-0 02 1 0307-0605 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
M4X10 W/PL WASHER 		0-36210-410-0 02 1 0606-0609 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR 8-92138-175-0 02 1 0509- ●
228 03.278 CLIP; PCV HOSE
01.762 ID=19 		8-94238-569-0 01 1 0509-0609 ●
232 03.417 HOSE; CONN 8-97234-397-1 01 1 0307-0609 ●
232 03.417 HOSE; CONN 8-98000-454-0 01 1 0509- ●
287 03.417 CLIP; AIR DUCT
08.154 		1-09470-001-0 02 1 0307-0508 ●
287 03.417 CLIP; AIR DUCT
08.154 		1-09470-001-0 02 1 0509-0609 ● ●
287 03.417 CLIP; AIR DUCT
08.154 		1-09470-001-0 02 1 0610- ●
379 03.675 HOSE; RUBBER 8-92174-689-0 01 1 0509- ●
