◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31A - AIR DUCT ▶
1-31A — AIR DUCT (#20393) — 249 parça

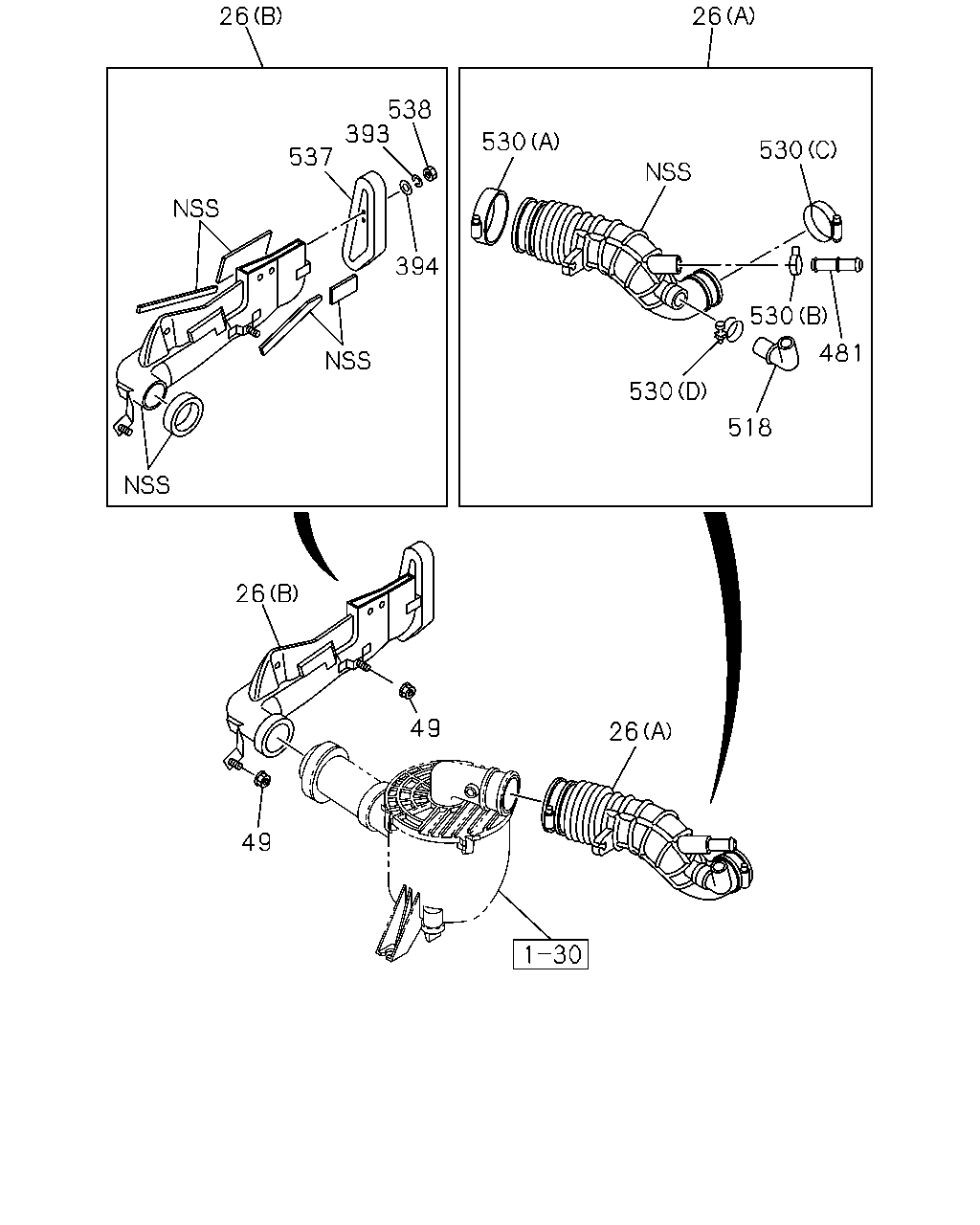

çizim 52995
26 26 538 393 530 530 537 394 530 481 530 518 26 49 26 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
26 03.417 DUCT; AIR INT
(A) 		8-97943-554-0 01 1 0307-0908 ●
26 03.417 DUCT; AIR INT
(A) 		8-98123-482-0 01 1 0909- ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0307-0407 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(C) 		8-97943-555-0 01 1 0307-0609 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(D) 		8-97369-079-0 01 1 0307- ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(G) 		8-98000-986-0 01 1 0610- ● ●
26 03.417 DUCT; AIR INT
(H) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ●
393 03.417 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 0307-0609 ● ● ●
393 03.417 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 0610- ●
394 03.417 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 0307-0609 ● ● ●
394 03.417 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 0610- ●
481 03.417 PIPE; PCV 8-97943-204-0 01 1 0307-0609 ● ● ●
481 03.417 PIPE; PCV 8-97943-204-0 01 1 0610- ●
518 03.417 RESONATOR; AIR INT 8-97943-199-0 01 1 0307- ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-97943-200-0 01 1 0307- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97943-202-0 01 1 0307-0908 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98132-486-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0610-0908 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98132-487-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0307-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98052-417-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98052-418-0 01 1 0610- ● ●
537 03.417 PLATE; AIR DUCT
00.030 		8-97943-211-0 01 1 0307-0407 ● ● ●
537 03.417 PLATE; AIR DUCT 8-97367-574-1 01 1 0408-0609 ● ● ●
537 03.417 PLATE; AIR DUCT 8-97367-574-1 01 1 0610- ●
538 03.417 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 0307-0609 ● ● ●
538 03.417 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 0610- ●

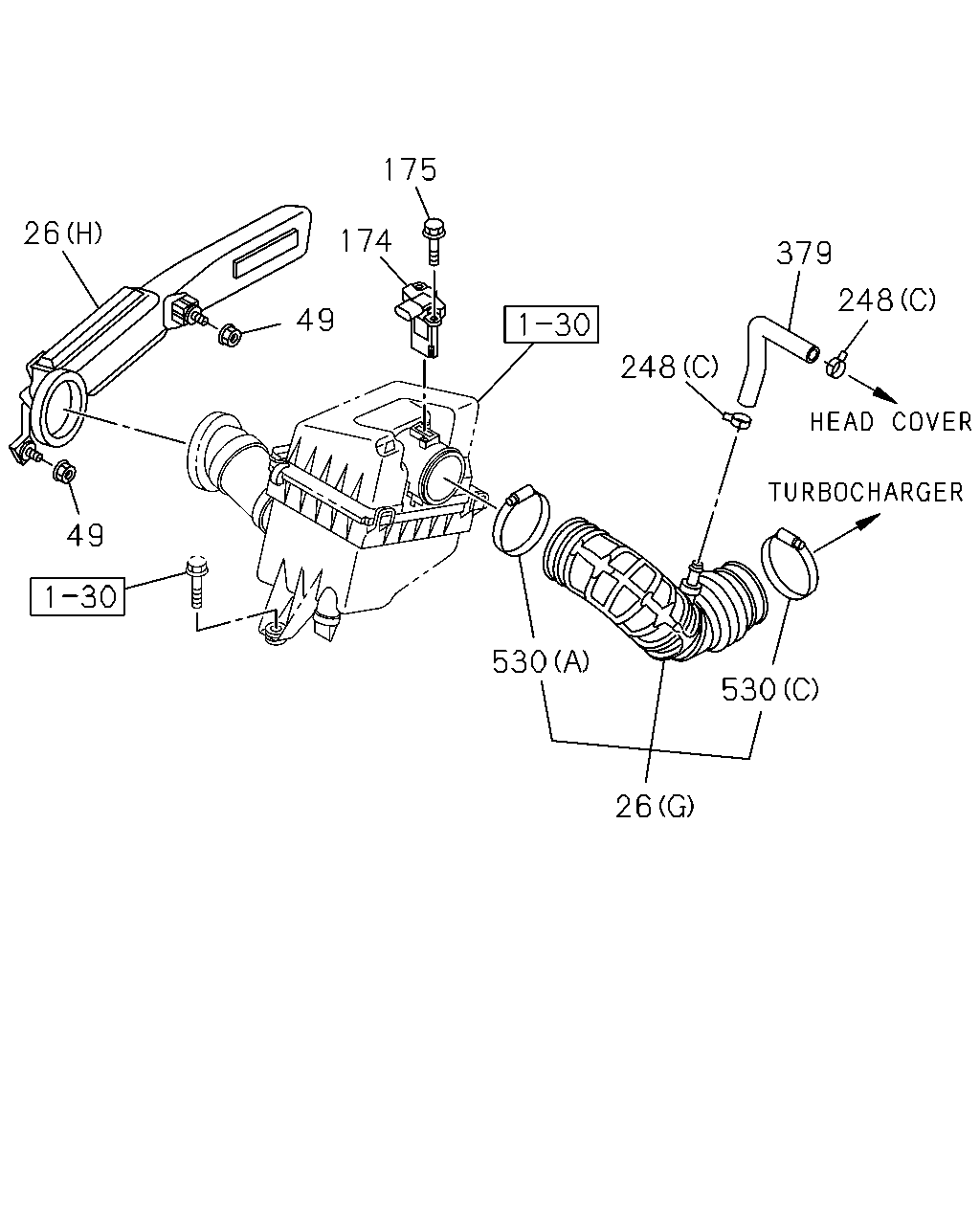

çizim 54600
175 26 174 379 248 49 248 49 530 530 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
26 03.417 DUCT; AIR INT
(A) 		8-97943-554-0 01 1 0307-0908 ●
26 03.417 DUCT; AIR INT
(A) 		8-98123-482-0 01 1 0909- ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0307-0407 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(C) 		8-97943-555-0 01 1 0307-0609 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(D) 		8-97369-079-0 01 1 0307- ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(G) 		8-98000-986-0 01 1 0610- ● ●
26 03.417 DUCT; AIR INT
(H) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-1 01 1 0307-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610-0612 ● ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0701-0912 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1001- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0610-0612 ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0701-0912 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 0307-1004 ●
248 03.417 CLIP; RUBBER HOSE
03.278 (A) ID=22 		8-97359-141-0 01 1 1005- ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 0307- ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0610-0612 ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0701-0912 ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 1001- ● ● ● ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 0307- ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0610-0612 ● ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0701-0912 ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 1001- ● ●
379 03.675 HOSE; RUBBER 8-98008-134-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-97943-200-0 01 1 0307- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97943-202-0 01 1 0307-0908 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98132-486-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0610-0908 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98132-487-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0307-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98052-417-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98052-418-0 01 1 0610- ● ●
çizim 54679
248 232 379 26 248 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
26 03.417 DUCT; AIR INT
(A) 		8-97943-554-0 01 1 0307-0908 ●
26 03.417 DUCT; AIR INT
(A) 		8-98123-482-0 01 1 0909- ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0307-0407 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(C) 		8-97943-555-0 01 1 0307-0609 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(D) 		8-97369-079-0 01 1 0307- ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(G) 		8-98000-986-0 01 1 0610- ● ●
26 03.417 DUCT; AIR INT
(H) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ●
232 03.417 HOSE; CONN 8-97234-398-2 01 1 0307- ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 0307-1004 ●
248 03.417 CLIP; RUBBER HOSE
03.278 (A) ID=22 		8-97359-141-0 01 1 1005- ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 0307- ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0610-0612 ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0701-0912 ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 1001- ● ● ● ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 0307- ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0610-0612 ● ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0701-0912 ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 1001- ● ●
379 03.675 HOSE; RUBBER 8-98008-134-0 01 1 0610- ● ●

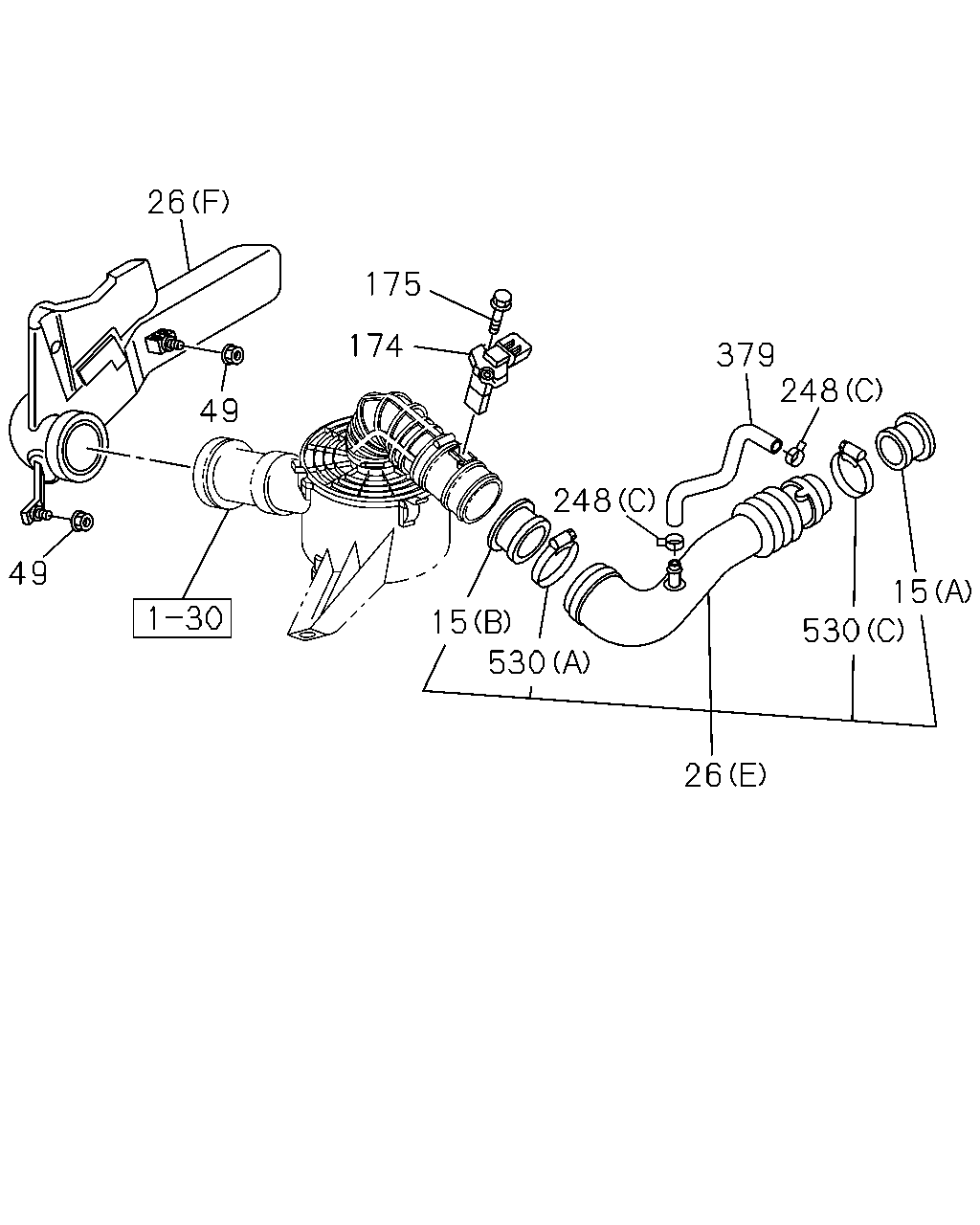

çizim 55890
26 175 174 379 248 49 248 49 15 530 15 530 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
15 03.417 INSULATOR
(A) 		8-98000-142-0 01 1 0610-0612 ● ●
15 03.417 INSULATOR
(A) 		8-98000-142-0 01 1 0701-0912 ●
15 03.417 INSULATOR
(A) 		8-98000-142-0 01 1 1001- ● ●
15 03.417 INSULATOR
(B) 		8-98000-143-0 01 1 0610-0612 ● ●
15 03.417 INSULATOR
(B) 		8-98000-143-0 01 1 0701-0912 ●
15 03.417 INSULATOR
(B) 		8-98000-143-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97943-554-0 01 1 0307-0908 ●
26 03.417 DUCT; AIR INT
(A) 		8-98123-482-0 01 1 0909- ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0307-0407 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(C) 		8-97943-555-0 01 1 0307-0609 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(D) 		8-97369-079-0 01 1 0307- ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(G) 		8-98000-986-0 01 1 0610- ● ●
26 03.417 DUCT; AIR INT
(H) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-1 01 1 0307-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610-0612 ● ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0701-0912 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1001- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0610-0612 ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0701-0912 ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 0307-1004 ●
248 03.417 CLIP; RUBBER HOSE
03.278 (A) ID=22 		8-97359-141-0 01 1 1005- ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 0307- ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0610-0612 ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 0701-0912 ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 (C) ID=20.4 		8-94121-113-0 02 1 1001- ● ● ● ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 0307- ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0610-0612 ● ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 0701-0912 ●
379 03.675 HOSE; RUBBER 8-97370-562-1 01 1 1001- ● ●
379 03.675 HOSE; RUBBER 8-98008-134-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-97943-200-0 01 1 0307- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97943-202-0 01 1 0307-0908 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98132-486-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0610-0908 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98132-487-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0307-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98052-417-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98052-418-0 01 1 0610- ● ●

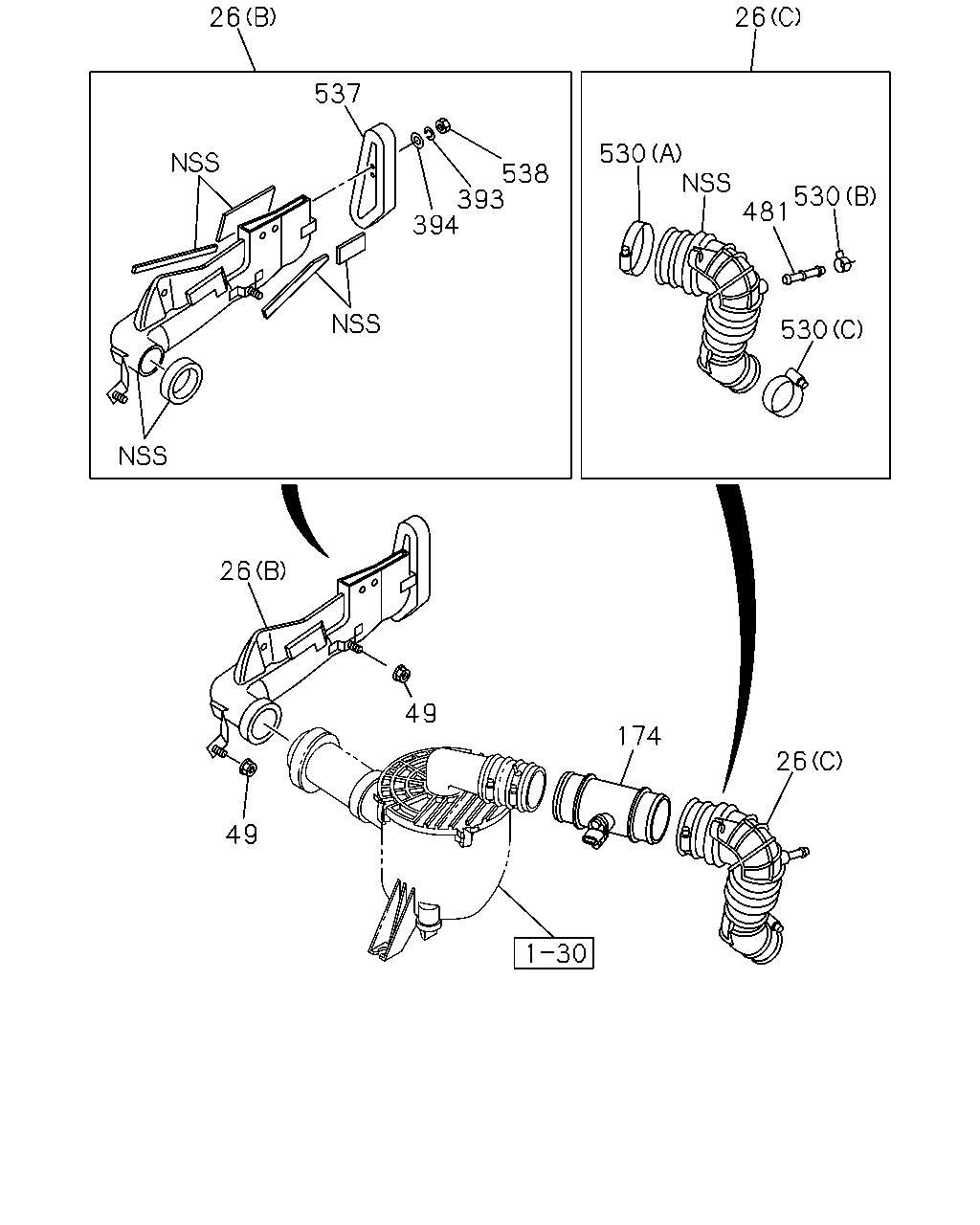

çizim 55951
26 26 537 530 530 481 538 393 394 530 26 49 174 26 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
26 03.417 DUCT; AIR INT
(A) 		8-97943-554-0 01 1 0307-0908 ●
26 03.417 DUCT; AIR INT
(A) 		8-98123-482-0 01 1 0909- ●
26 03.417 DUCT; AIR INT
(B) 		8-97365-513-0 01 1 0307-0407 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0408-0609 ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-97379-281-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(C) 		8-97943-555-0 01 1 0307-0609 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(F) 		8-97375-945-2 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(D) 		8-97369-079-0 01 1 0307- ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0610-0612 ● ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 0701-0912 ●
26 03.417 DUCT; AIR INT
(E) 		8-97387-946-0 01 1 1001- ● ●
26 03.417 DUCT; AIR INT
(G) 		8-98000-986-0 01 1 0610- ● ●
26 03.417 DUCT; AIR INT
(H) 		8-98029-373-1 01 1 0610- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-1 01 1 0307-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610-0612 ● ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0701-0912 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1001- ● ● ● ●
393 03.417 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 0307-0609 ● ● ●
393 03.417 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 0610- ●
394 03.417 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 0307-0609 ● ● ●
394 03.417 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 0610- ●
481 03.417 PIPE; PCV 8-97943-204-0 01 1 0307-0609 ● ● ●
481 03.417 PIPE; PCV 8-97943-204-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(D) 		8-97943-200-0 01 1 0307- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97943-202-0 01 1 0307-0908 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98132-486-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(B) 		8-97943-201-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0307-0609 ● ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-97943-558-0 01 1 0610-0908 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98132-487-0 01 1 0909- ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-97359-251-0 01 1 0307-0609 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98000-140-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0610-0612 ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 0701-0912 ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98000-141-0 01 1 1001- ● ●
530 03.407 CLAMP; AIR DUCT
(C) 		8-98052-417-0 01 1 0610- ● ●
530 03.407 CLAMP; AIR DUCT
(A) 		8-98052-418-0 01 1 0610- ● ●
537 03.417 PLATE; AIR DUCT
00.030 		8-97943-211-0 01 1 0307-0407 ● ● ●
537 03.417 PLATE; AIR DUCT 8-97367-574-1 01 1 0408-0609 ● ● ●
537 03.417 PLATE; AIR DUCT 8-97367-574-1 01 1 0610- ●
538 03.417 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 0307-0609 ● ● ●
538 03.417 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
