◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30B - AIR CLEANER ▶
1-30B — AIR CLEANER (#20392) — 33 parça

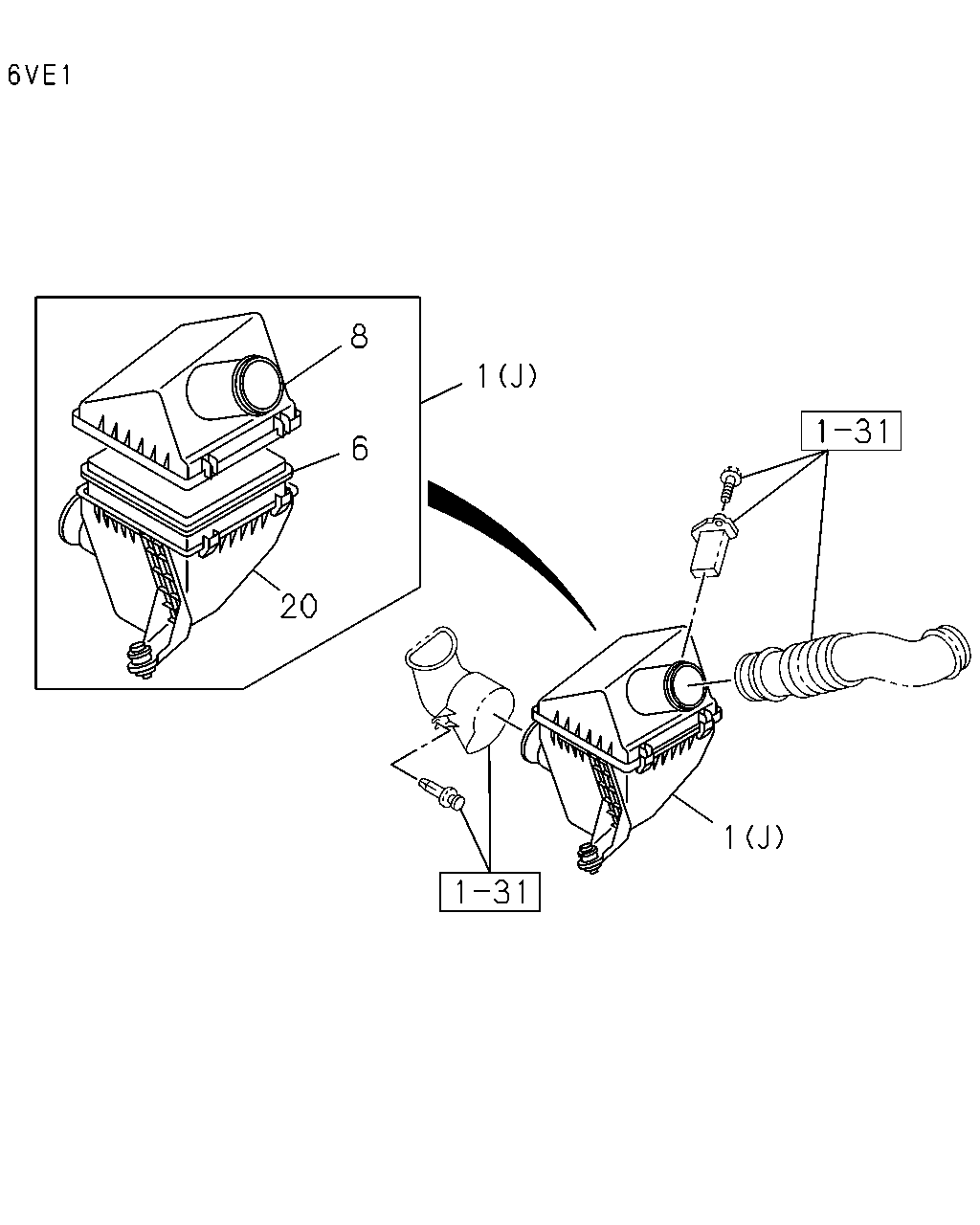

çizim 12878
8 1 6 20 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (J) 		8-97315-502-1 01 1 0307-0609 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (J) 		8-97249-067-3 01 1 0307-0502 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (J) 		8-98004-958-0 01 1 0503-0609 ●
1 03.402 CLEANER ASM; AIR
(K) 		8-98019-088-0 01 1 0509- ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> 		8-97251-943-0 01 1 0307-0609 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97251-944-0 01 1 0307-0502 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97369-293-0 01 1 0503-0508 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97369-293-0 01 1 0509-0609 ●
6 03.410 FILTER; ACL 8-97369-293-0 01 1 0509-0609 ●
6 03.410 FILTER; ACL 8-97369-293-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> 		8-97349-365-0 01 1 0307-0609 ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97321-552-2 01 1 0307-0609 ●
8 03.410 COVER ASM; ACL 8-92174-716-0 01 1 0509- ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0307-0508 ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0509-0609 ● ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0610- ●

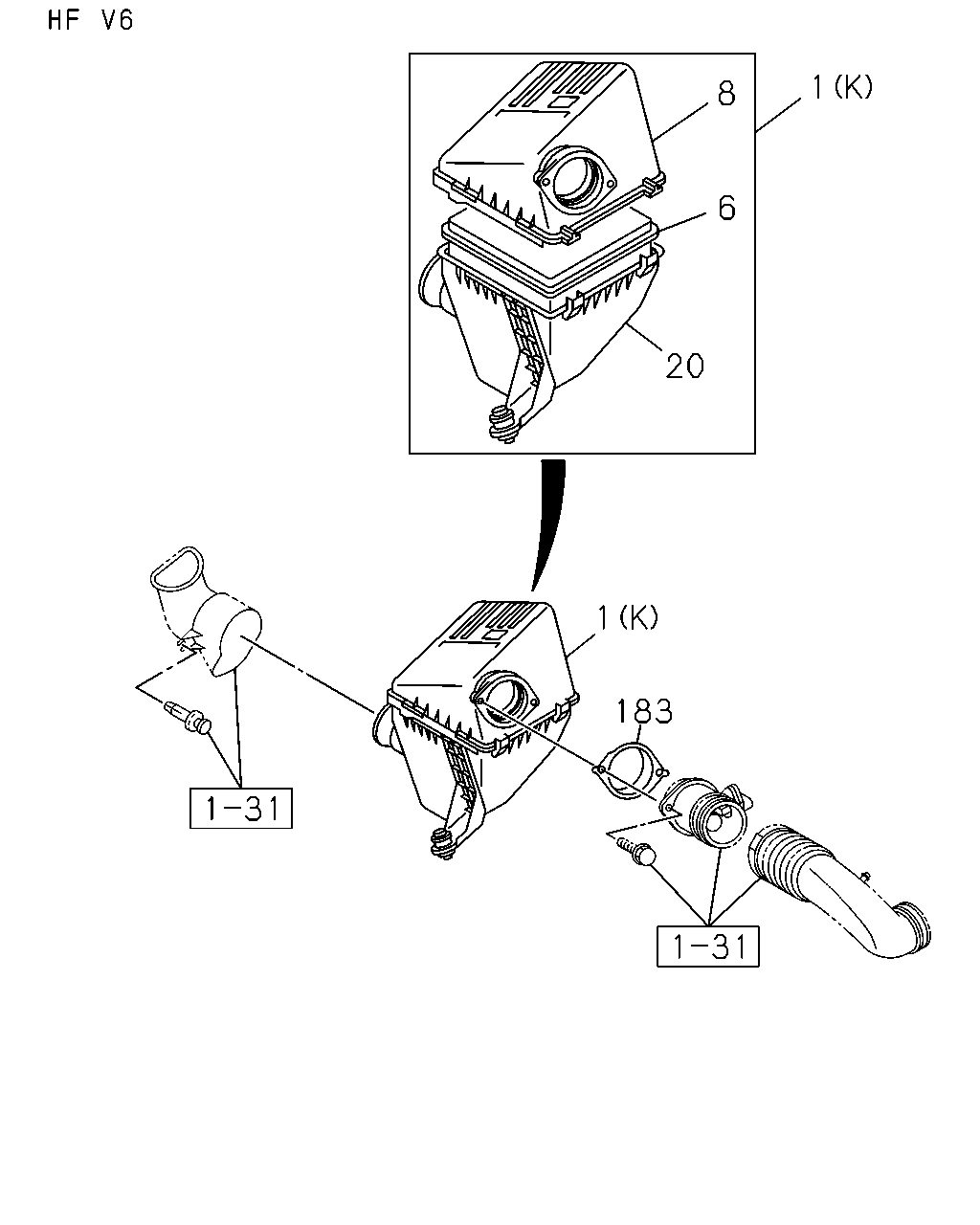

çizim 53822
1 8 6 20 1 183
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (J) 		8-97315-502-1 01 1 0307-0609 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (J) 		8-97249-067-3 01 1 0307-0502 ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (J) 		8-98004-958-0 01 1 0503-0609 ●
1 03.402 CLEANER ASM; AIR
(K) 		8-98019-088-0 01 1 0509- ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> 		8-97251-943-0 01 1 0307-0609 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97251-944-0 01 1 0307-0502 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97369-293-0 01 1 0503-0508 ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97369-293-0 01 1 0509-0609 ●
6 03.410 FILTER; ACL 8-97369-293-0 01 1 0509-0609 ●
6 03.410 FILTER; ACL 8-97369-293-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> 		8-97349-365-0 01 1 0307-0609 ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97321-552-2 01 1 0307-0609 ●
8 03.410 COVER ASM; ACL 8-92174-716-0 01 1 0509- ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0307-0508 ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0509-0609 ● ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0610- ●
183 03.405 GASKET; ACL 8-98019-096-0 01 1 0509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
