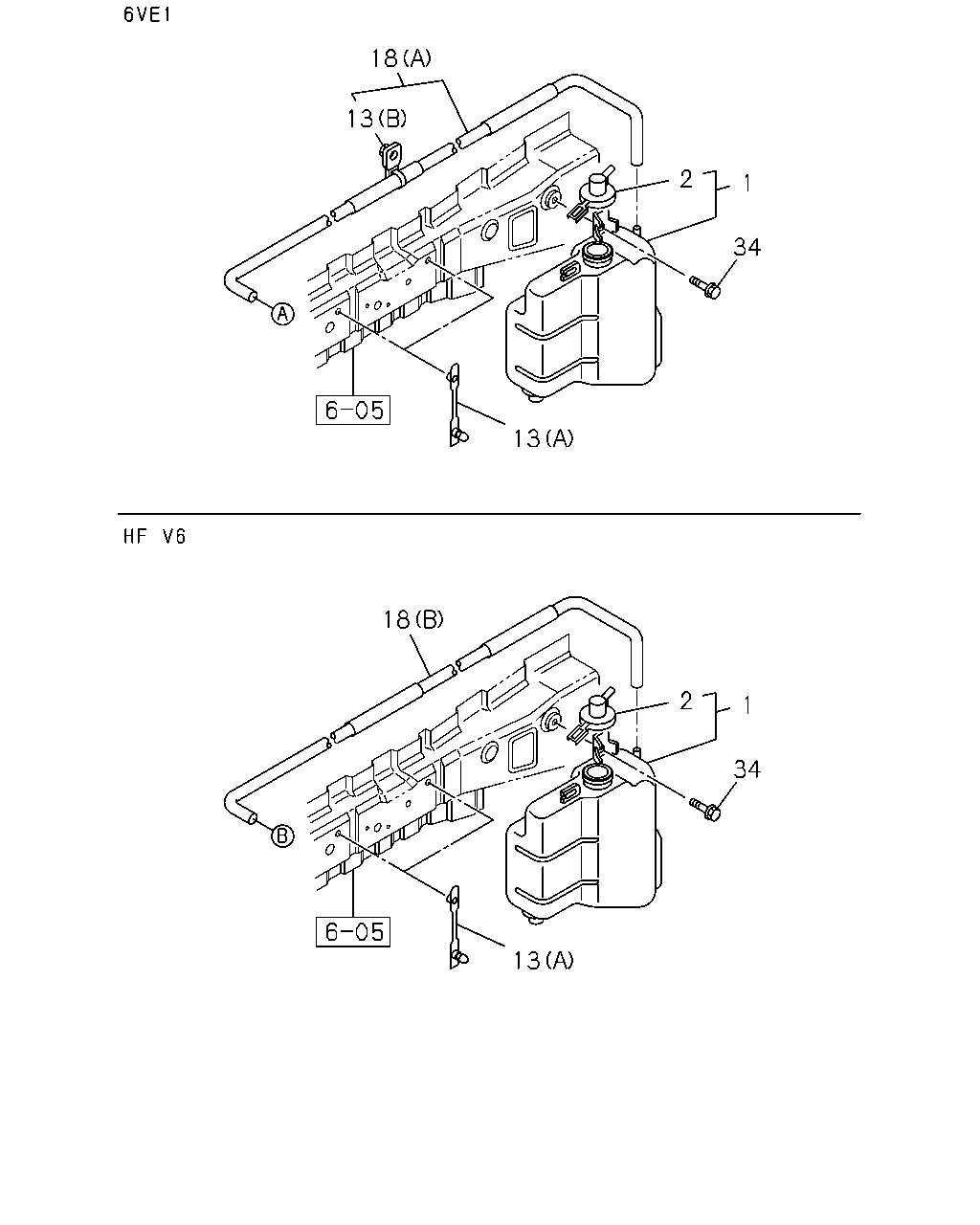

1-11B — RADIATOR HOSE AND SUB TANK (#20390) — 29 parça

18 13 2 1 34 13 18 2 1 34 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0307-0508	●
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0509-0609	●	●
1	01.219 TANK; SURGE,RAD	8-97941-501-3	01	1	0610-		●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0307-0508	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0509-0609	●	●
2	01.203 CAP; SURGE TANK	8-97333-354-0	01	1	0610-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0307-0609	●
13	01.240 CLIP; HOSE,SURGE TANK (B)	8-94373-241-0	01	1	0307-0609	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	03	1	0509-0609		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0610-0612		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	0701-0912		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=88	8-94239-338-0	02	1	1001-		●
18	01.240 HOSE; RAD TO SURGE TANK (A)	8-97362-955-0	01	1	0307-0609	●
18	01.240 HOSE; RAD TO SURGE TANK (B)	8-98001-222-0	01	1	0509-		●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0307-0508	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0509-0609	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0610-0611		●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	01	1	0612-		●

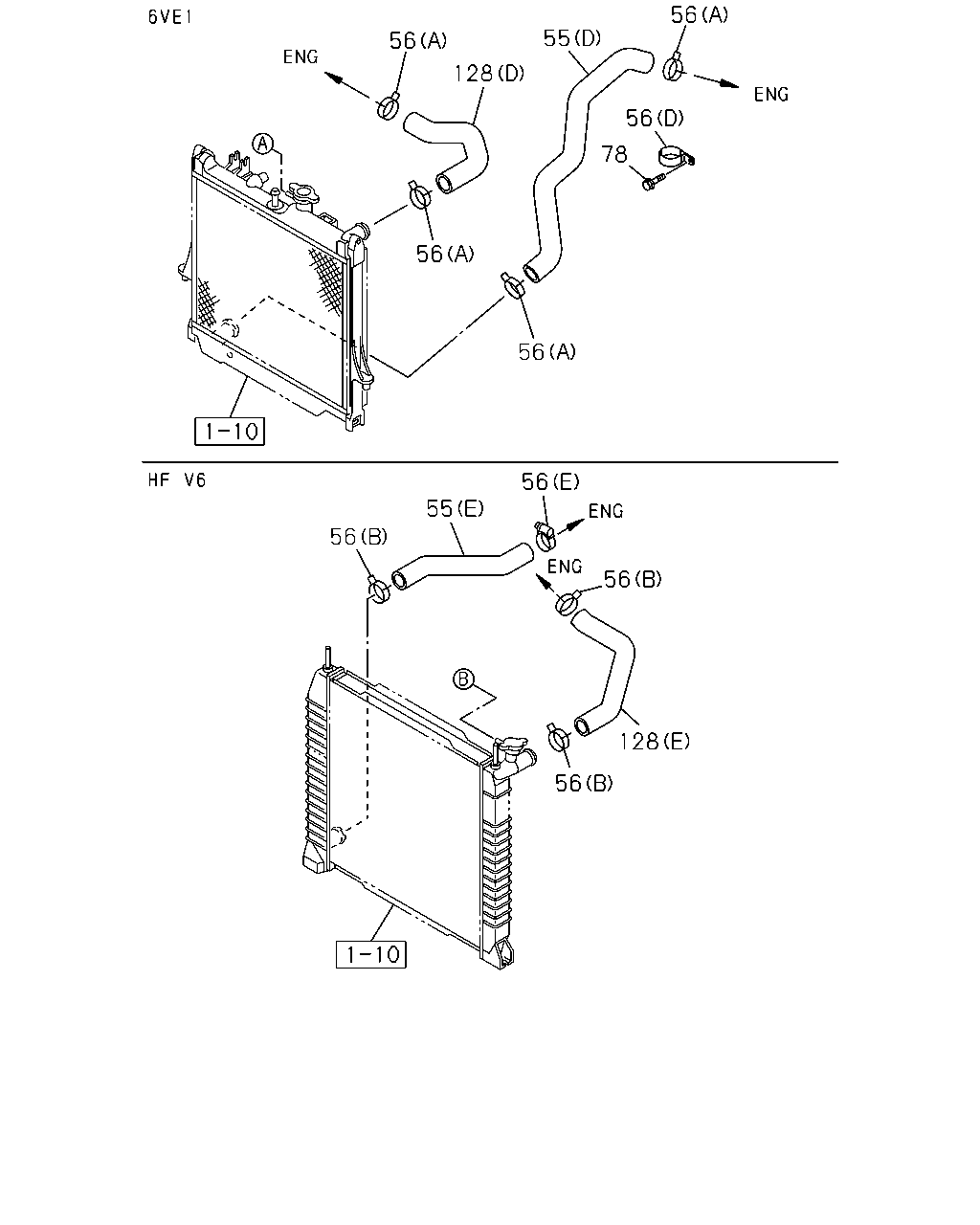

56 55 56 128 56 78 56 56 56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET (D)	8-97248-430-1	01	1	0307-0609	●
55	01.173 HOSE; WATER,RAD OUTLET (E)	8-98019-864-0	01	1	0509-		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0307-0609	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40.5	8-97313-472-0	02	1	0307-0609	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	01	1	0509-		●
56	01.166 CLIP; WATER HOSE,RAD (D) ID=46	8-94362-266-0	01	1	0307-0609	●
56	01.166 CLIP; WATER HOSE,RAD 01.745 (E) ID=32-48	1-09707-133-0	01	1	0509-		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=36.5	8-97135-907-1	02	1	0509-		●
78	01.159 BOLT; CLIP,HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0307-0508	●
128	01.159 HOSE; WATER,RAD INL (D)	8-97248-427-1	01	1	0307-0609	●
128	01.159 HOSE; WATER,RAD INL (E)	8-98019-863-0	01	1	0509-		●
