0-87 — COUPLING; INJECTION PUMP (#2039) — 70 parça

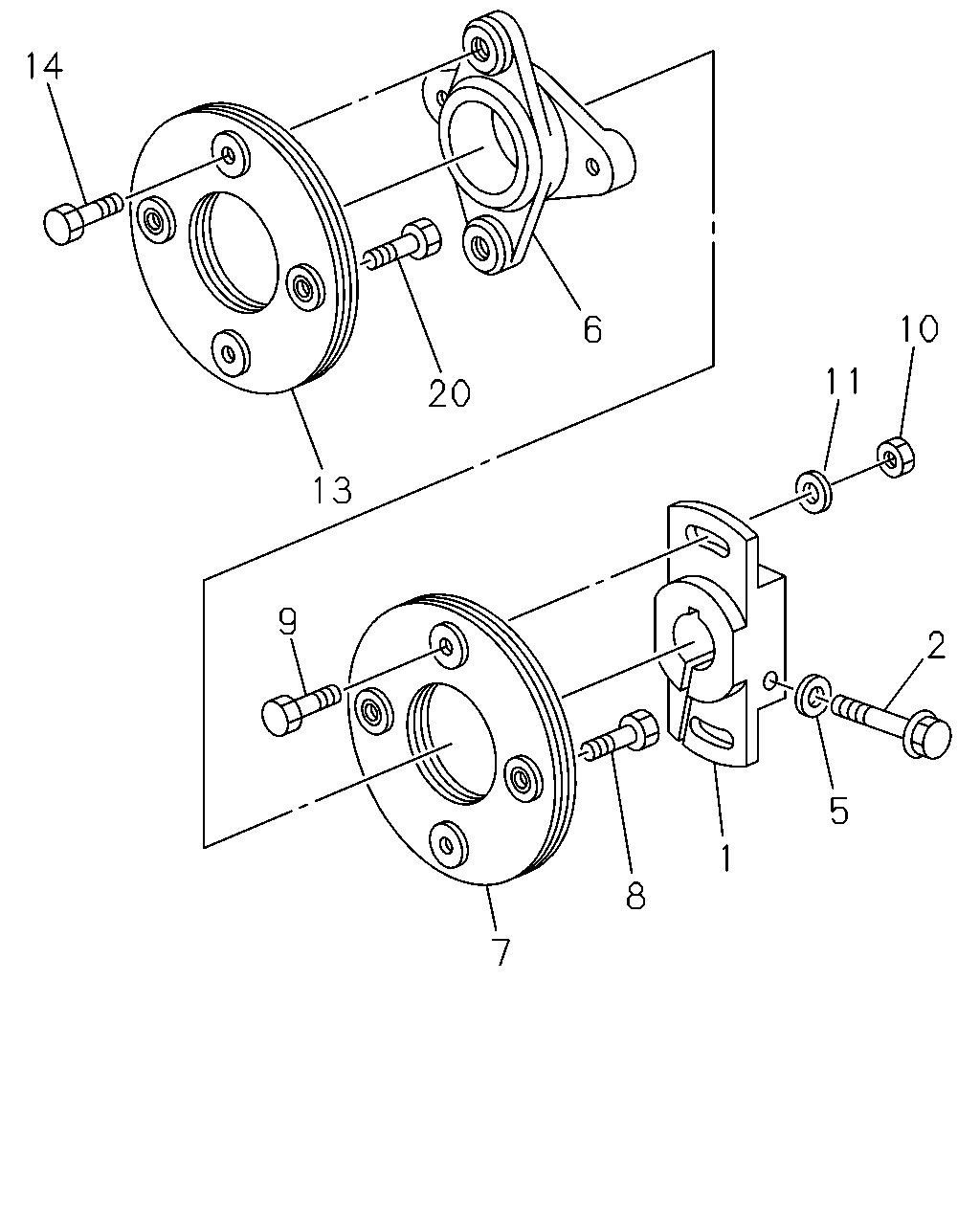

çizim 94086
14 10 6 11 20 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15781-017-0 01 1 9001-9304 ● ● ● ●
1 COUPLING; INJ PUMP DRIVE 1-15781-017-0 01 1 9305- ● ● ●
1 COUPLING; INJ PUMP DRIVE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15781-017-0 01 1 9305- ●
1 COUPLING; INJ PUMP DRIVE
TAIWAN EMISSION REGULATION<TAL> 		1-15781-005-0 01 1 9305- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-020-0 01 1 9001- ● ● ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9001- ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-100-0 01 1 9001-9304 ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-100-0 01 1 9305- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-100-0 01 1 9305- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
TAIWAN EMISSION REGULATION<TAL> 		1-15789-037-0 01 1 9305- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9001-9204 ● ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9205- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-096-0 01 1 9205- ●
7 PLATE; COUPLING,COUPLING SIDE
TAIWAN EMISSION REGULATION<TAL> 		1-15789-036-0 01 1 9305- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-029-0 02 1 9001- ● ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-029-0 02 1 9001- ● ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9001- ● ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-095-0 02 1 9001-9304 ● ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-095-0 02 1 9305- ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-095-0 02 1 9305- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-017-0 02 1 9305- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9001-9304 ● ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9305- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-065-0 01 1 9305- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-038-0 01 1 9305- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-064-0 02 1 9001-9304 ● ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-064-0 02 1 9305- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-064-0 02 1 9305- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
TAIWAN EMISSION REGULATION<TAL> 		1-15789-029-0 02 1 9305- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-084-0 02 1 9001-9304 ● ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-084-0 02 1 9305- ● ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-084-0 02 1 9305- ●
20 BOLT; COUPLING TO INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-024-0 02 1 9305- ●

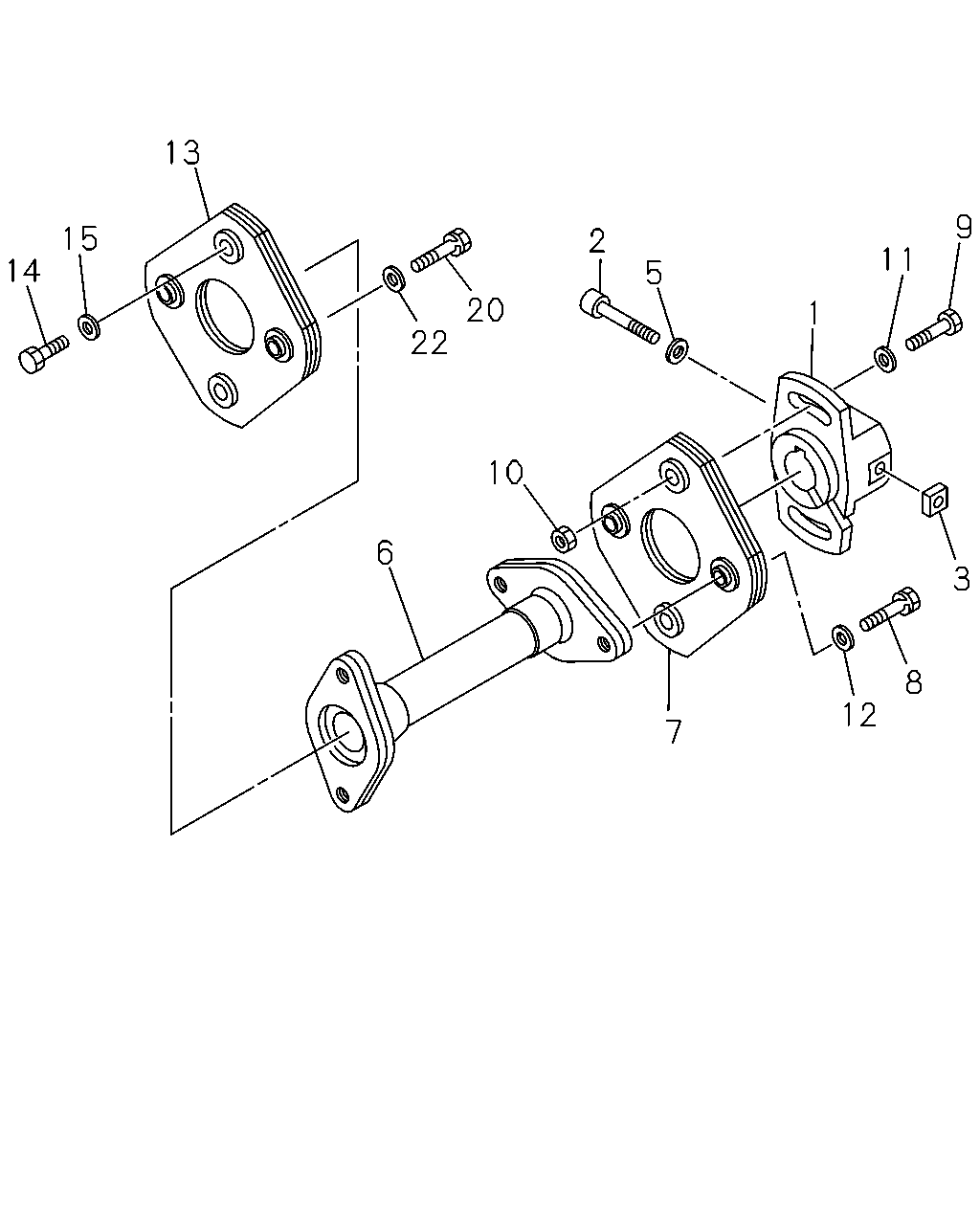

çizim 94527
13 9 15 2 11 14 5 20 1 22 10 6 3 8 12 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15781-017-0 01 1 9001-9304 ● ● ● ●
1 COUPLING; INJ PUMP DRIVE 1-15781-017-0 01 1 9305- ● ● ●
1 COUPLING; INJ PUMP DRIVE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15781-017-0 01 1 9305- ●
1 COUPLING; INJ PUMP DRIVE
TAIWAN EMISSION REGULATION<TAL> 		1-15781-005-0 01 1 9305- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-020-0 01 1 9001- ● ● ● ●
3 NUT; COUPLING FIX,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-033-0 01 1 9305- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9001- ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-100-0 01 1 9001-9304 ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-100-0 01 1 9305- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-100-0 01 1 9305- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
TAIWAN EMISSION REGULATION<TAL> 		1-15789-037-0 01 1 9305- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9001-9204 ● ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-096-0 01 1 9205- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-096-0 01 1 9205- ●
7 PLATE; COUPLING,COUPLING SIDE
TAIWAN EMISSION REGULATION<TAL> 		1-15789-036-0 01 1 9305- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-029-0 02 1 9001- ● ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-029-0 02 1 9001- ● ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9001- ● ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-095-0 02 1 9001-9304 ● ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-095-0 02 1 9305- ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-095-0 02 1 9305- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-017-0 02 1 9305- ●
12 WASHER; PLATE TO CROSS COUPLING
TAIWAN EMISSION REGULATION<TAL> 		1-15789-011-0 02 1 9305- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9001-9304 ● ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9305- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-065-0 01 1 9305- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-038-0 01 1 9305- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-064-0 02 1 9001-9304 ● ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-064-0 02 1 9305- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-064-0 02 1 9305- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
TAIWAN EMISSION REGULATION<TAL> 		1-15789-029-0 02 1 9305- ●
15 WASHER; PLATE TO CROSS COUPLING
TAIWAN EMISSION REGULATION<TAL> 		1-15789-011-0 02 1 9305- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-084-0 02 1 9001-9304 ● ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-084-0 02 1 9305- ● ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-084-0 02 1 9305- ●
20 BOLT; COUPLING TO INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-024-0 02 1 9305- ●
22 WASHER; PL,COUPLING TO INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-011-0 02 1 9305- ●
