◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10A - RADIATOR ▶
1-10A — RADIATOR (#20387) — 81 parça

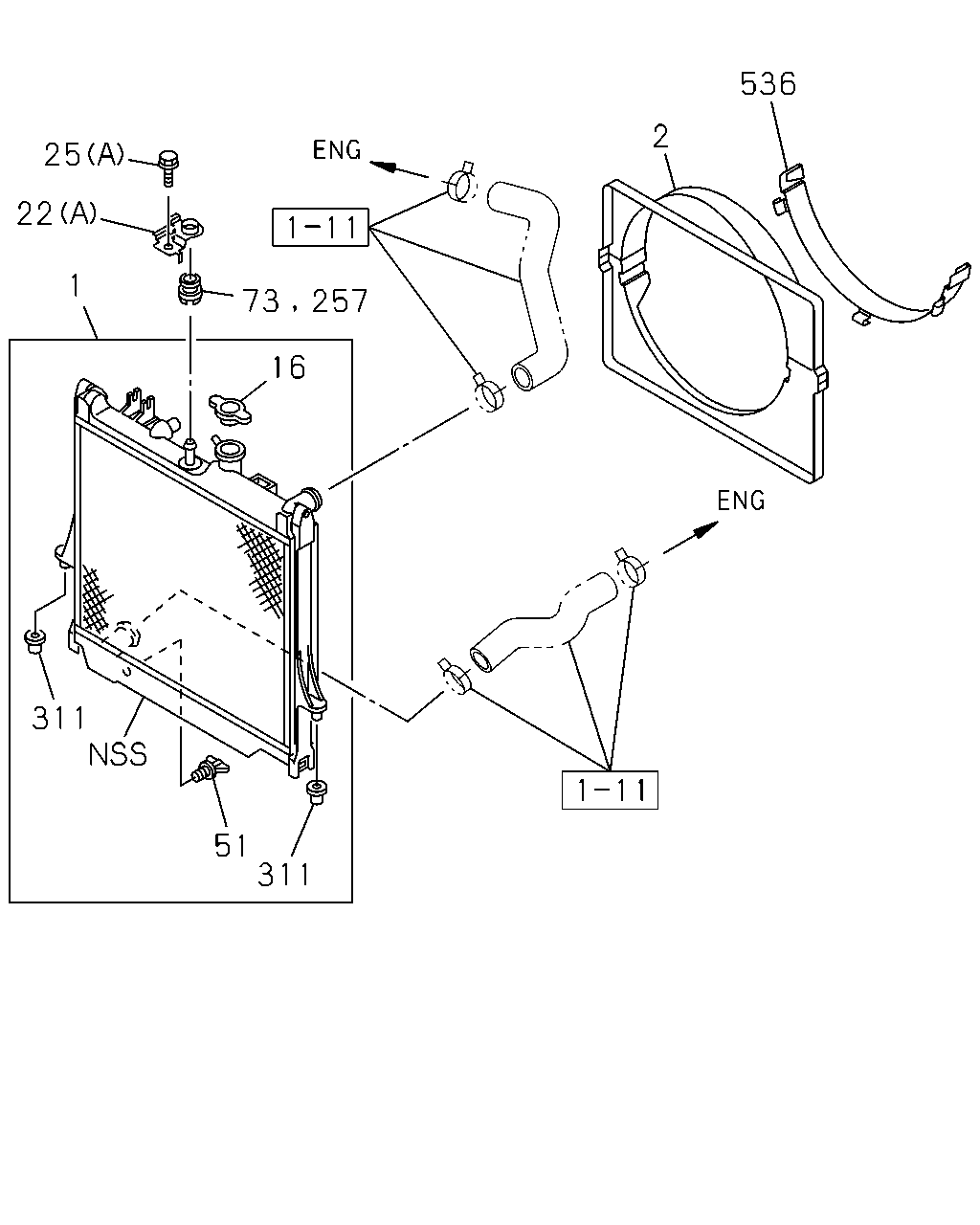

çizim 56765
536 2 25 22 1 73 16 311 51 311 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.219 RADIATOR ASM 8-97333-351-2 01 1 0307-0508 ● ●
1 01.219 RADIATOR ASM
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97333-351-2 01 1 0509-0609 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-98047-676-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-98164-751-0 01 1 1003- ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-97333-352-2 01 1 0307-0609 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98047-678-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98164-746-0 01 1 1003- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97333-353-2 01 1 0307-0609 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98047-674-0 01 1 0610-0612 ● ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 0610-0612 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98047-674-0 01 1 0701-0912 ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 0701-0912 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98047-674-0 01 1 1001-1002 ● ● ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98047-674-0 01 1 1001-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-98164-748-0 01 1 1003- ● ● ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98164-748-0 01 1 1003- ●
1 01.219 RADIATOR ASM 8-97363-066-0 01 1 0307-0609 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98047-680-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98164-753-0 01 1 1003- ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-98047-677-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-98164-745-0 01 1 1003- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98047-679-0 01 1 0610-1002 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-98164-747-0 01 1 1003- ●
2 01.277 GUIDE; FAN 8-97333-348-1 01 1 0307-0609 ● ● ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97333-348-1 01 1 0610- ●
2 01.277 GUIDE; FAN 8-97357-909-0 01 1 0307-0609 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97357-909-0 01 1 0610- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 0610-0612 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 0610-0612 ● ●
2 01.277 GUIDE; FAN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97371-447-2 01 1 0610-0612 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 0701-0912 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 0701-0912 ●
2 01.277 GUIDE; FAN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97371-447-2 01 1 0701-0912 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 1001- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 		8-97371-447-2 01 1 1001- ● ●
2 01.277 GUIDE; FAN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97371-447-2 01 1 1001- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0307-0609 ● ● ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0610-0612 ● ● ● ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97942-268-1 01 1 0701-0912 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97942-268-1 01 1 0701-0912 ● ●
16 01.203 CAP; RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-268-1 01 1 0701-0912 ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97942-268-1 01 1 1001- ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97942-268-1 01 1 1001- ● ● ●
16 01.203 CAP; RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-268-1 01 1 1001- ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 0307-0609 ● ● ● ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 0610-0612 ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 0701-0912 ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
(A) 		8-97941-547-0 01 1 1001- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0307-0508 ● ● ● ●
25 01.271 BOLT; BRKT
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0509-0601 ● ● ● ●
25 01.271 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0602-0609 ● ● ● ●
25 01.271 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0912 ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0307-0609 ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0610-0612 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) W/GASKET 		8-97171-437-0 01 1 0701-0912 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) W/GASKET 		8-97171-437-0 01 1 0701-0912 ● ●
51 08.951 PLUG; DRAIN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) W/GASKET 		8-97171-437-0 01 1 0701-0912 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) W/GASKET 		8-97171-437-0 01 1 1001- ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) W/GASKET 		8-97171-437-0 01 1 1001- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) W/GASKET 		8-97171-437-0 01 1 1001- ●
73 01.270 RUBBER; CUSHION,RAD MTG 8-97249-541-1 01 1 0307-0504 ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0505-0609 ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0610-0612 ● ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 0701-0912 ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 01 1 1001- ● ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0307-0609 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0610-0612 ● ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97942-297-0 02 1 0701-0912 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97942-297-0 02 1 0701-0912 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-297-0 02 1 0701-0912 ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97942-297-0 02 1 1001- ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97942-297-0 02 1 1001- ● ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 		8-97942-297-0 02 1 1001- ●
536 01.020 SHROUD; FAN 8-97941-533-0 01 1 0307-0609 ● ● ●
536 01.020 SHROUD; FAN 8-97941-533-0 01 1 0610- ●
536 01.020 SHROUD; FAN 8-97941-531-0 01 1 0307- ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0610-0612 ● ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 0701-0912 ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
