◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#20382) — 15 parça

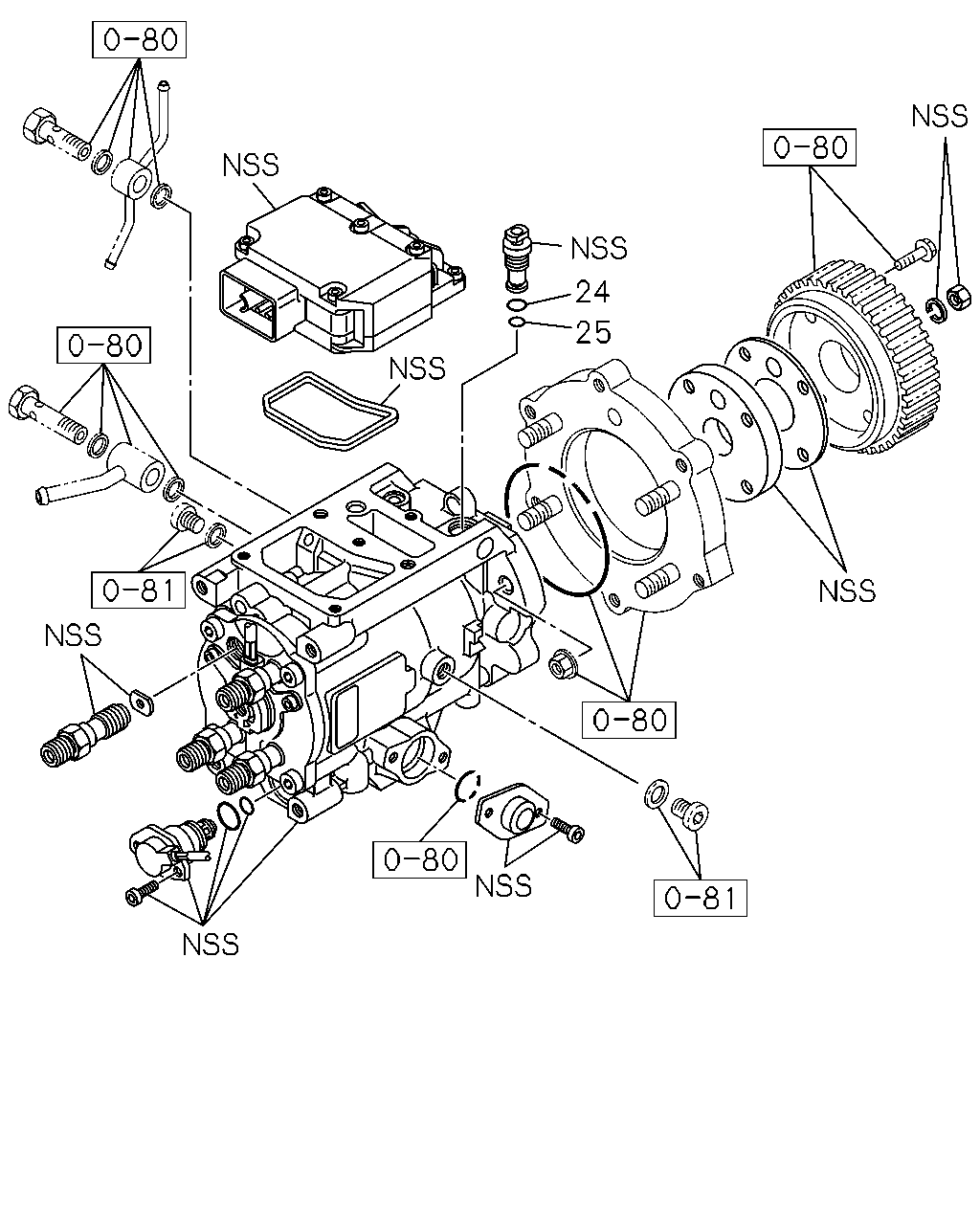

çizim 11571
24 25
BalonParca AdiParca NoAdetTipApplied Date
24 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-641-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97372-191-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-640-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97372-190-0 01 1 -

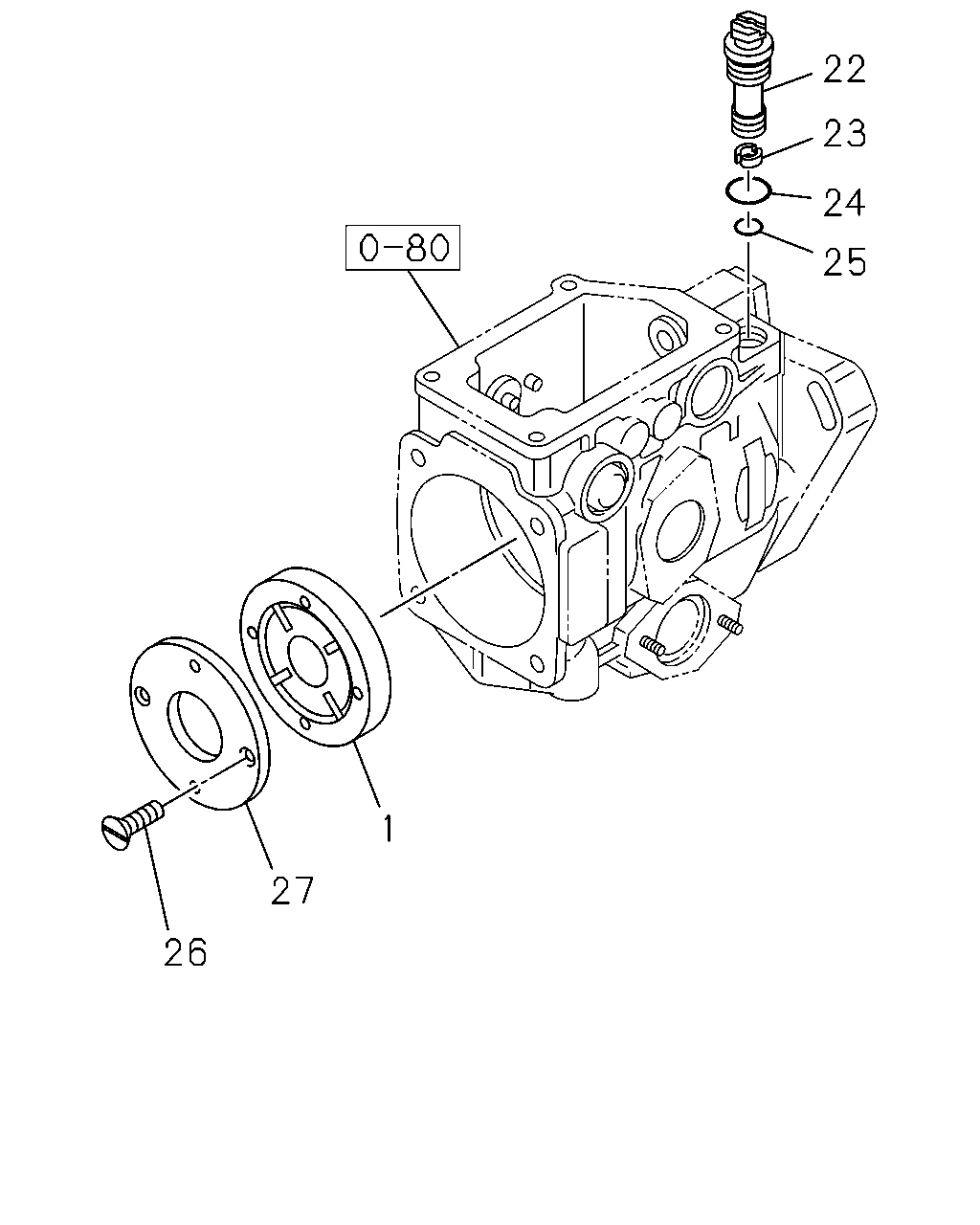

çizim 56575
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-477-0 01 1 -
22 03.901 VALVE; REGULATING,INJ PUMP
STAMP 06 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94174-819-0 01 1 -
23 03.901 RING; SPRING,REGULATING VLV,INJ
03.320 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-643-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-641-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97372-191-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-640-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97372-190-0 01 1 -
26 03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330 ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398, G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-94227-479-0 02 1 -
27 03.910 COVER; FUEL FEED PUMP
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398 		8-97218-959-0 01 1 -0407
27 03.910 COVER; FUEL FEED PUMP
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394, E = 8-97350-396-4, 97350396, F = 8-97350-398-3, 97350398 		8-97386-241-0 01 1 0408-
27 03.910 COVER; FUEL FEED PUMP
ASM PART: G = 8-98180-717-0, 98180717, H = 8-98180-718-0, 98180718 		8-97386-241-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
