0-85 — AUTO TIMER; INJECTION PUMP (#2038) — 124 parça

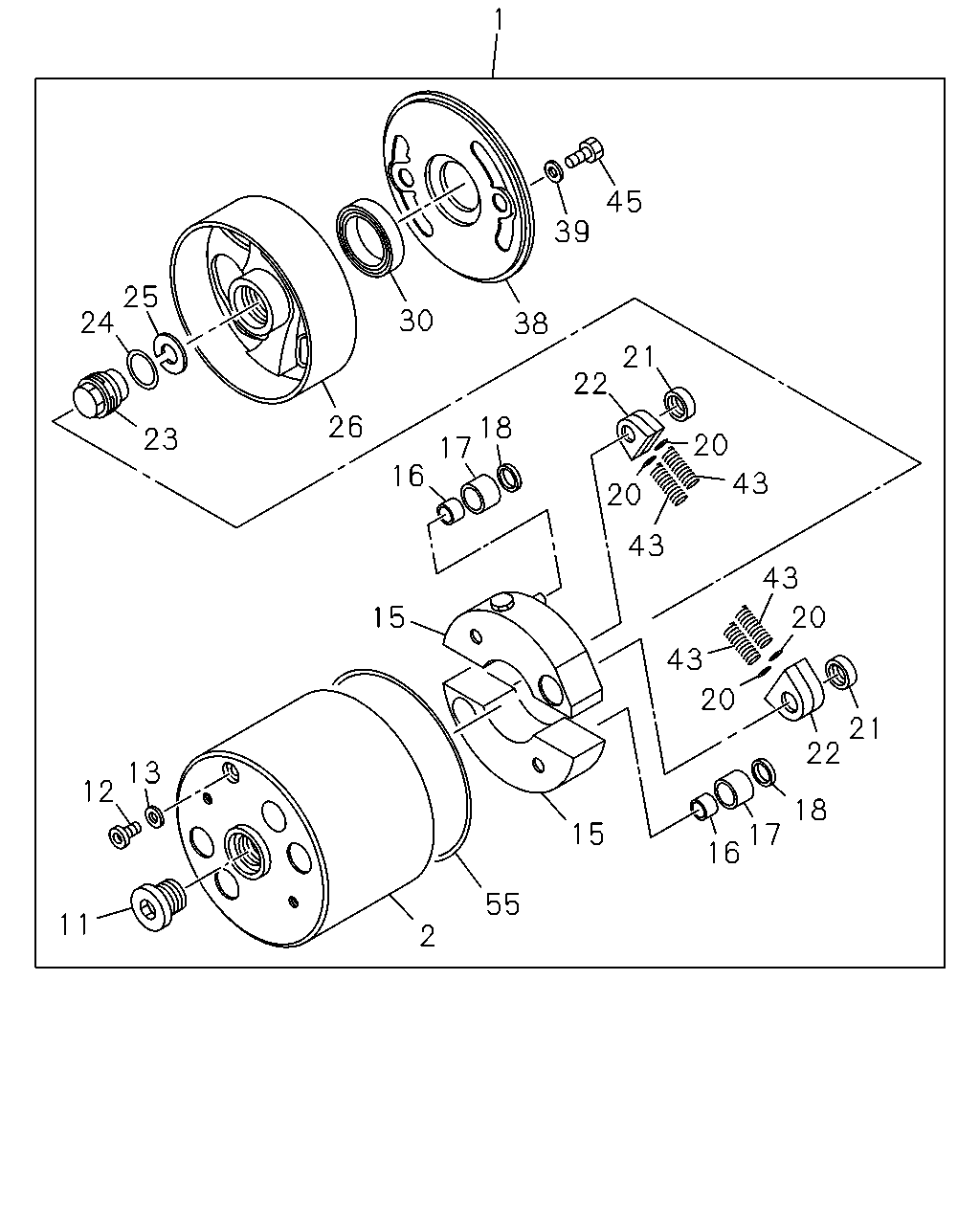

1 45 39 25 24 30 38 21 22 26 18 17 23 20 20 16 43 43 43 20 15 43 20 21 22 13 12 18 15 17 16 55 11 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15740-102-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15740-104-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15740-127-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: P = 1-15602-883-0	1-15740-441-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15741-044-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15743-011-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15743-012-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15743-013-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15743-094-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: Q = 1-15603-242-0	5-15749-043-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: Q = 1-15603-242-0	5-15749-044-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: Q = 1-15603-242-0	5-15749-045-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2	5-15749-046-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: Q = 1-15603-242-0	5-15749-046-0	AR	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.500 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.000 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.250 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-051-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-036-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-116-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15742-014-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15742-111-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-062-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-789-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-788-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-030-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15749-070-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-074-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15749-107-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15749-108-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-786-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-031-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	1-15749-449-1	01	1	9602-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	1-15749-449-1	01	1	-9003
55	GASKET; TIMER HSG,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-049-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	5-15749-049-0	01	1	9004-9601

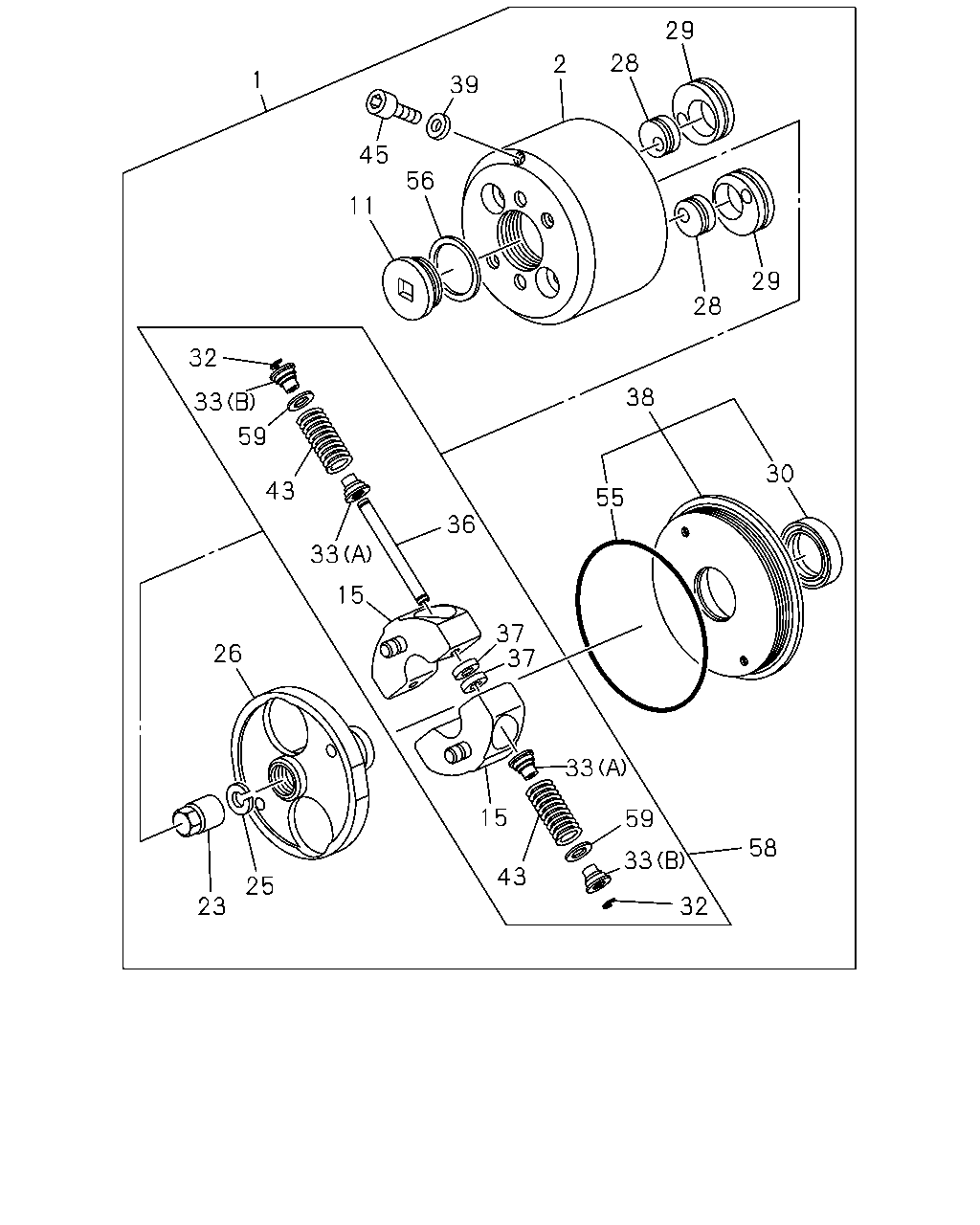

29 28 2 1 39 45 56 11 29 28 32 38 33 59 30 43 55 36 33 15 37 37 26 33 15 59 58 33 43 25 32 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15740-102-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15740-104-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15740-127-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: P = 1-15602-883-0	1-15740-441-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15741-044-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-735-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15743-011-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15743-012-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15743-013-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15743-094-0	02	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-051-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-116-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15742-014-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15742-111-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-062-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP (A) ASM PART: P = 1-15602-883-0	1-15749-182-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP (B) ASM PART: P = 1-15602-883-0	1-15749-584-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-158-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-402-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-788-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-030-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15749-070-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-074-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0	1-15749-107-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1	1-15749-108-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-786-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-031-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: P = 1-15602-883-0	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	1-15749-449-1	01	1	9602-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, F = 1-15600-988-0, H = 1-15601-004-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	1-15749-449-1	01	1	-9003
55	GASKET; TIMER HSG,INJ PUMP ASM PART: D = 1-15600-980-2, E = 1-15600-986-2, G = 1-15600-990-2, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-15749-049-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15600-757-6	5-15749-049-0	01	1	9004-9601
56	GASKET; CAP ASM PART: P = 1-15602-883-0	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15743-133-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: P = 1-15602-883-0	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: P = 1-15602-883-0	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: P = 1-15602-883-0	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: P = 1-15602-883-0	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: P = 1-15602-883-0	1-15749-494-0	AR	1	-
