Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

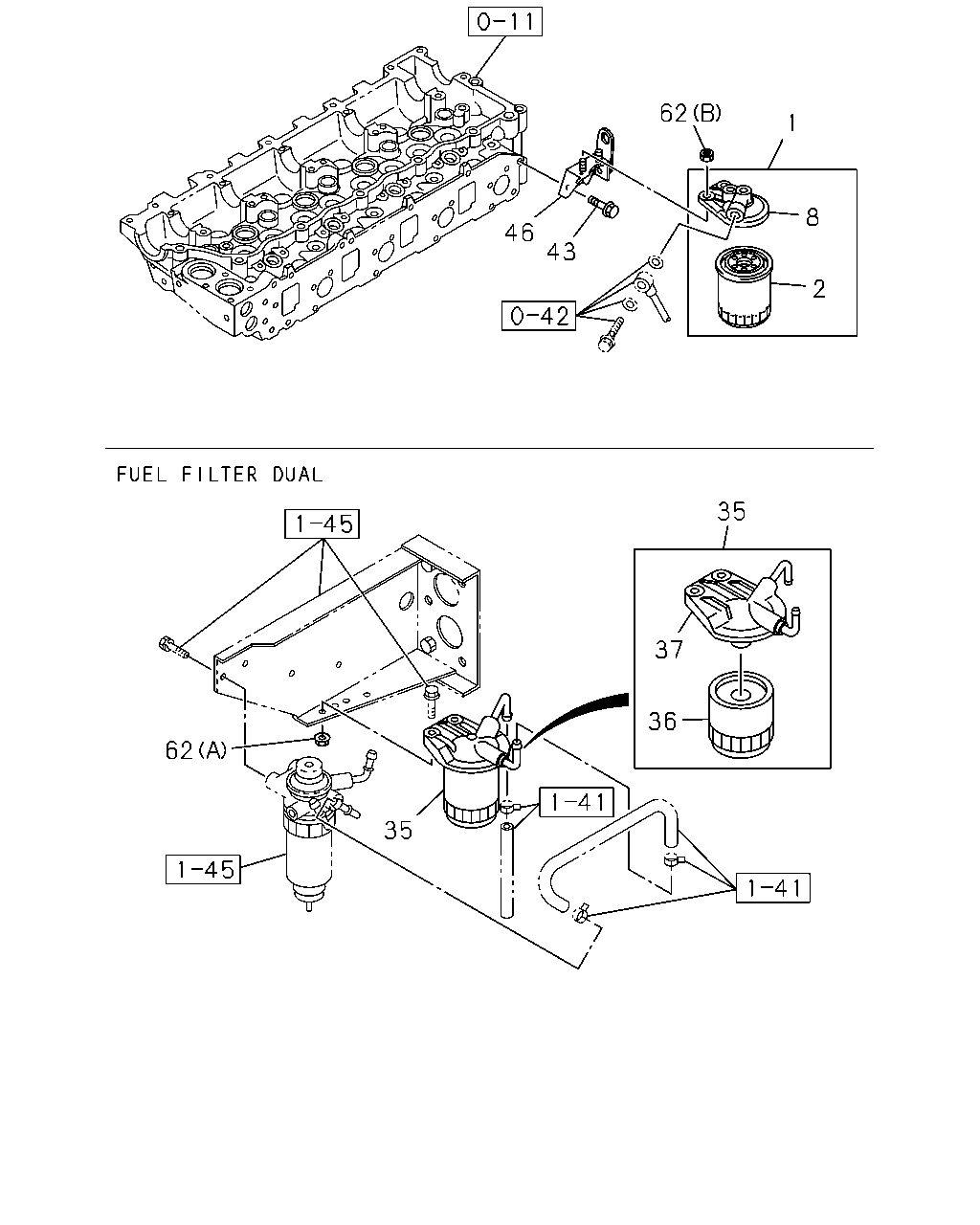

0-41 — FUEL FILTER AND BRACKET
(#20375) — 20 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
62
1
8
46
43
2
35
37
36
62
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FILTER ASM; FUEL
1-13200-890-3
01
1
0504-0609
●
1
FILTER ASM; FUEL
1-13200-890-4
01
1
0610-
●
2
ELEMENT KIT; FUEL FILTER
1-13240-079-1
01
1
0504-0609
●
2
ELEMENT KIT; FUEL FILTER
1-13240-079-1
01
1
0610-0803
●
2
ELEMENT KIT; FUEL FILTER
8-98036-654-0
01
1
0804-
●
2
ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS
1-87610-053-1
01
1
0804-
●
8
COVER; FUEL FILTER
1-13212-159-2
01
1
0504-0609
●
8
COVER; FUEL FILTER
1-13212-159-2
01
1
0610-
●
35
FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B)
8-98006-454-0
01
1
0610-
●
36
ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-97916-993-2
01
1
0610-
●
37
COVER; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-97917-558-0
01
1
0610-
●
43
BOLT; BRKT
M12X25
0-28781-225-0
02
1
0504-0512
●
43
BOLT; BRKT
M12X25 FLANGE
0-28751-225-0
02
1
0601-0609
●
43
BOLT; BRKT
M12X25 FLANGE
0-28751-225-0
02
1
0610-
●
46
BRACKET
8-97148-962-2
01
1
0504-0609
●
46
BRACKET
8-97148-962-2
01
1
0610-
●
62
NUT; FUEL FILTER
(B) M10 FLANGE
0-91150-110-0
02
1
0504-0602
●
62
NUT; FUEL FILTER
(B) M10 FLANGE
0-91180-110-0
02
1
0603-0609
●
62
NUT; FUEL FILTER
(B) M10 FLANGE
0-91180-110-0
02
1
0610-
●
62
NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) (A) M10 FLANGE
0-91180-210-0
02
1
0610-
●
