4-42 — POWER STEERING OIL PUMP (#20374) — 131 parça

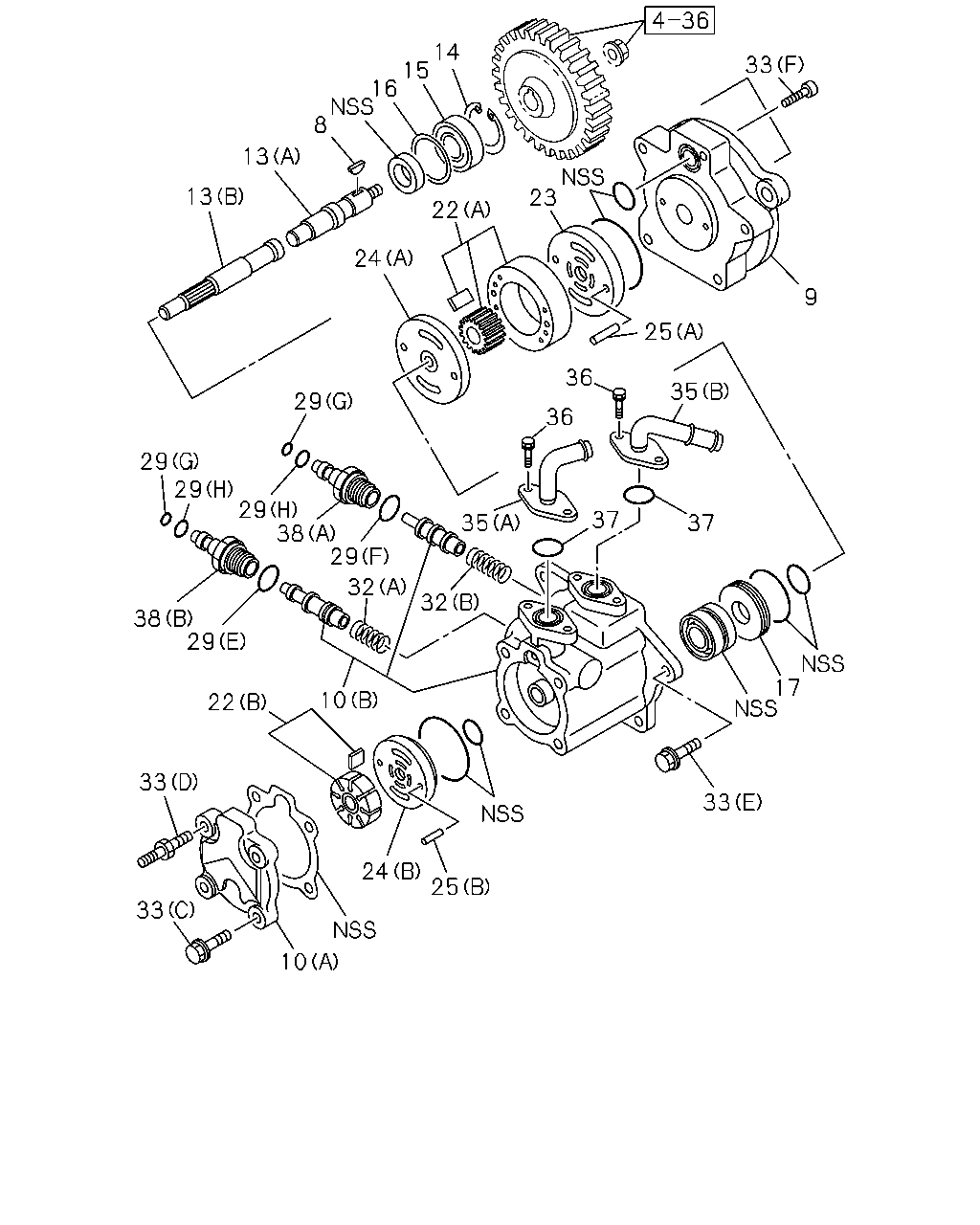

çizim 12698
14 15 16 8 33 13 23 13 22 24 9 25 36 35 29 36 29 29 29 38 37 35 37 29 32 32 38 29 17 10 22 33 33 24 25 33 10
BalonParca AdiParca NoAdetTipApplied Date
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 8-97258-461-0 		9-19519-089-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97258-461-0 		8-97182-095-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97369-595-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-641-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97029-772-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-097-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-108-0 01 1 -
13 SHAFT KIT; RET
(A) ASM PART: A = 8-97258-461-0 		8-97182-096-0 01 1 -
13 SHAFT KIT; RET
(B) ASM PART: A = 8-97258-461-0 		8-97182-105-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-258-0 01 1 -
17 RING; RET
ASM PART: A = 8-97258-461-0 		8-97182-106-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97148-690-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-092-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-102-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97147-453-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97258-461-0 		8-97182-094-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: A = 8-97258-461-0 		8-97182-093-0 01 1 -
24 PLATE ASM; THRUST
(B) ASM PART: A = 8-97258-461-0 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
(A) ASM PART: A = 8-97258-461-0 		1-19519-052-0 02 1 -
25 PIN; HSG,P/S
(B) ASM PART: A = 8-97258-461-0 		8-97182-104-0 02 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-581-0 01 1 -
29 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: A = 8-97258-461-0 		9-09561-111-0 02 1 -
29 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: A = 8-97258-461-0 		9-09561-113-0 02 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97258-461-0 		9-48429-028-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97258-461-0 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-654-0 01 1 -
32 SPRING; OIL PUMP
(A), THA ASM PART: A = 8-97258-461-0 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		9-19529-013-0 01 1 -
33 BOLT; COVER
(E) ASM PART: A = 8-97258-461-0 		1-44519-119-0 04 1 -
33 BOLT; COVER
(C) ASM PART: A = 8-97258-461-0 		1-48119-054-0 02 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97029-773-0 03 1 -
33 BOLT; COVER
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-585-0 01 1 -
33 BOLT; COVER
(F) ASM PART: A = 8-97258-461-0 		8-97182-100-0 01 1 -
33 BOLT; COVER
(D) ASM PART: A = 8-97258-461-0 		8-97182-110-0 02 1 -
35 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97091-932-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-101-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97258-420-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-640-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-664-0 02 1 -
36 BOLT; CONN,PIPE
THA ASM PART: A = 8-97258-461-0 		8-94461-139-1 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-292-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97029-777-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97184-767-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97093-504-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-098-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-109-0 01 1 -

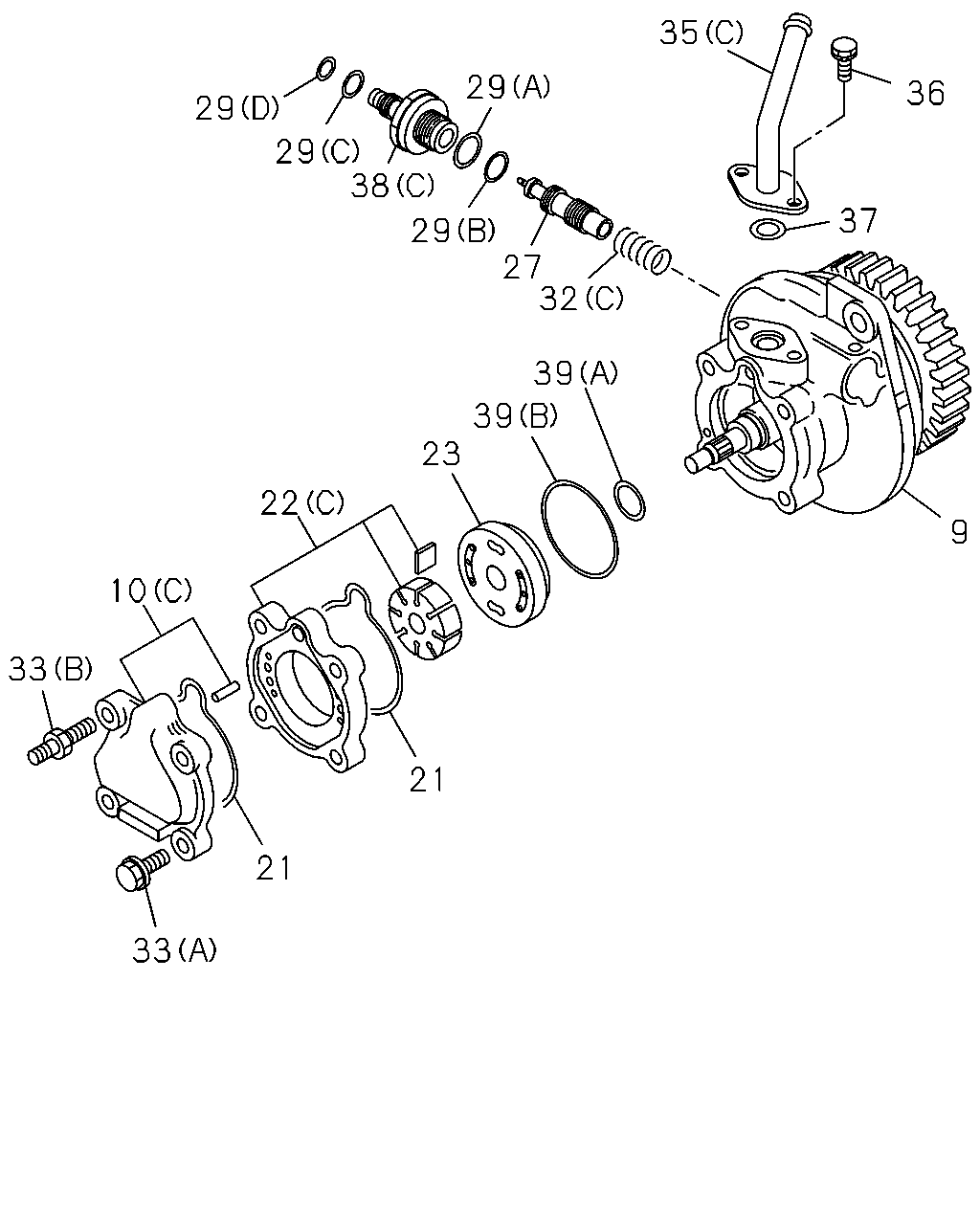

çizim 54189
35 29 36 29 29 38 37 29 27 32 39 39 23 22 9 10 33 21 21 33
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97258-461-0 		8-97182-095-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97369-595-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-641-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97029-772-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-097-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-108-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97062-329-0 02 1 -
22 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97148-690-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-092-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-102-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97147-453-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97258-461-0 		8-97182-094-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 8-97357-213-0, D = 8-97388-651-0 		8-97075-587-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: C = 8-97357-215-0, E = 8-97388-652-0 		8-97134-862-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-581-0 01 1 -
29 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: A = 8-97258-461-0 		9-09561-111-0 02 1 -
29 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: A = 8-97258-461-0 		9-09561-113-0 02 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97258-461-0 		9-48429-028-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97258-461-0 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-654-0 01 1 -
32 SPRING; OIL PUMP
(A), THA ASM PART: A = 8-97258-461-0 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		9-19529-013-0 01 1 -
33 BOLT; COVER
(E) ASM PART: A = 8-97258-461-0 		1-44519-119-0 04 1 -
33 BOLT; COVER
(C) ASM PART: A = 8-97258-461-0 		1-48119-054-0 02 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97029-773-0 03 1 -
33 BOLT; COVER
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-585-0 01 1 -
33 BOLT; COVER
(F) ASM PART: A = 8-97258-461-0 		8-97182-100-0 01 1 -
33 BOLT; COVER
(D) ASM PART: A = 8-97258-461-0 		8-97182-110-0 02 1 -
35 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97091-932-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-101-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97258-420-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-640-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-664-0 02 1 -
36 BOLT; CONN,PIPE
THA ASM PART: A = 8-97258-461-0 		8-94461-139-1 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-292-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97029-777-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97184-767-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97093-504-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97258-461-0 		8-97182-098-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97258-461-0 		8-97182-109-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-647-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97147-441-0 01 1 -

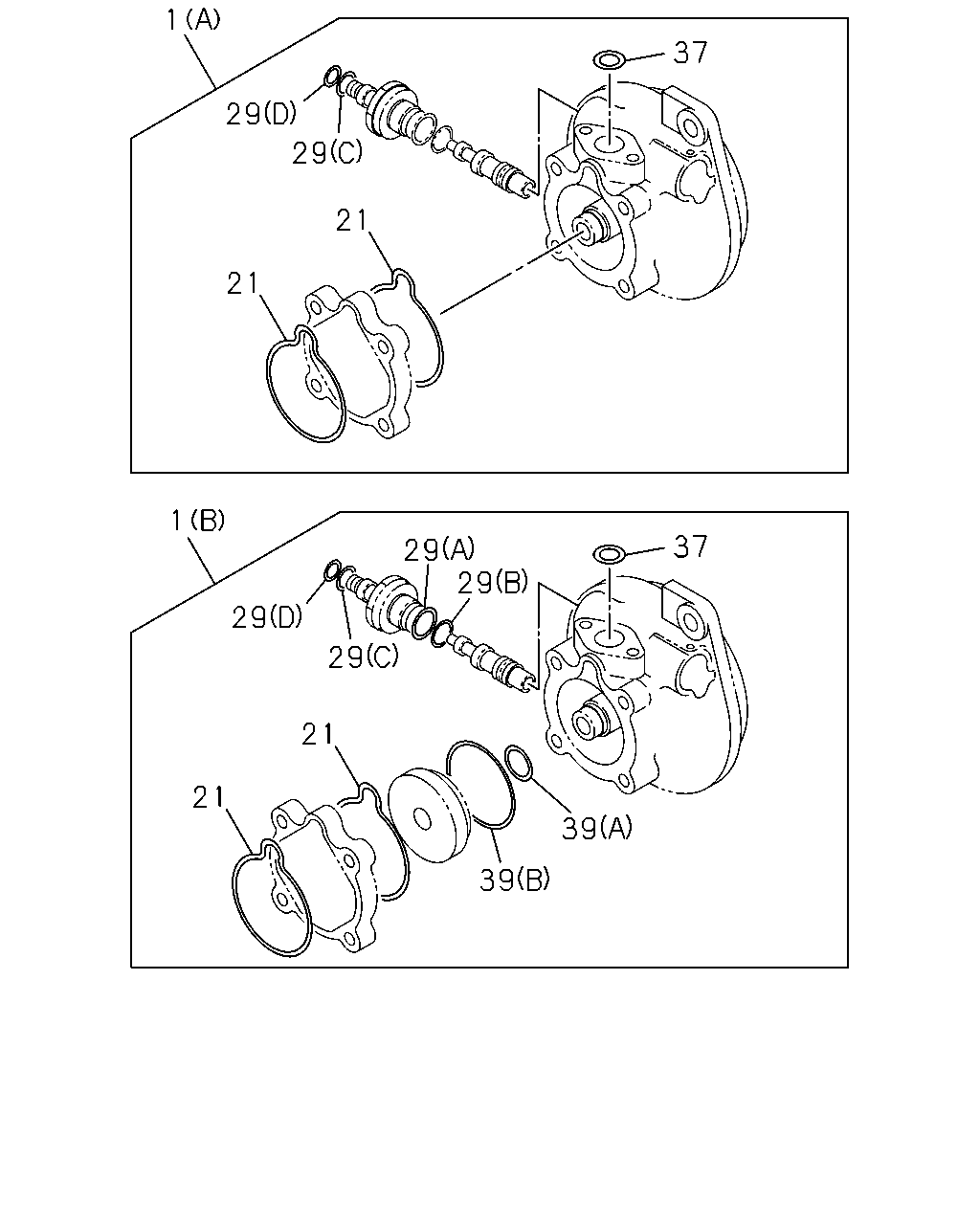

çizim 56025
1 37 29 29 21 21 1 37 29 29 29 29 21 21 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97075-583-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97075-584-0 01 1 -
1 REPAIR KIT; OIL PUMP
(C) ASM PART: A = 8-97258-461-0 		8-97182-111-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-648-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-649-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97062-329-0 02 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-581-0 01 1 -
29 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: A = 8-97258-461-0 		9-09561-111-0 02 1 -
29 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: A = 8-97258-461-0 		9-09561-113-0 02 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97258-461-0 		9-48429-028-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97258-461-0 		9-88510-248-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-292-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97029-777-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97184-767-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-647-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97147-441-0 01 1 -

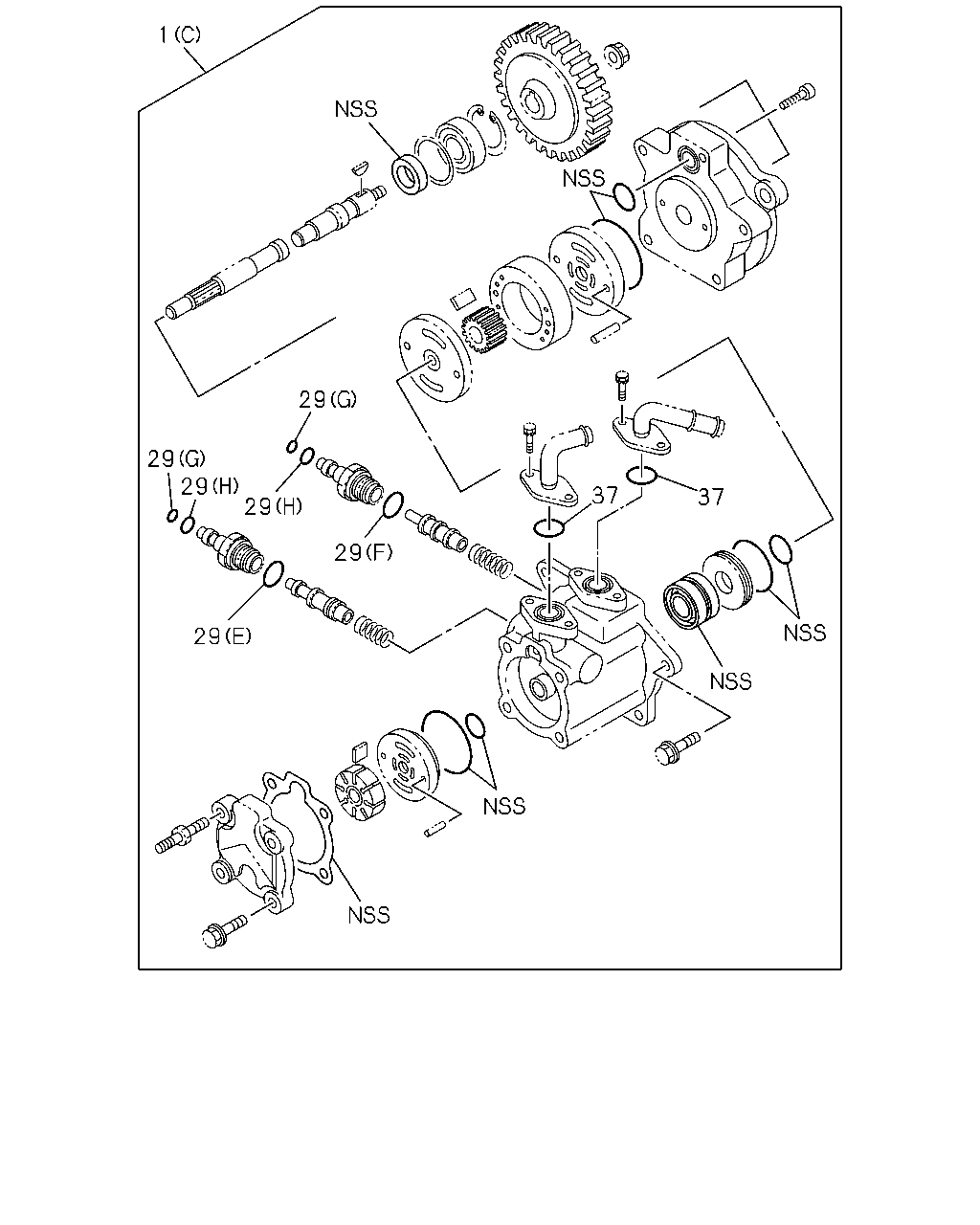

çizim 56026
1 29 29 29 29 37 37 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97075-583-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97075-584-0 01 1 -
1 REPAIR KIT; OIL PUMP
(C) ASM PART: A = 8-97258-461-0 		8-97182-111-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-648-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97388-649-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: B = 8-97357-213-0, C = 8-97357-215-0, D = 8-97388-651-0, E = 8-97388-652-0 		8-97075-581-0 01 1 -
29 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: A = 8-97258-461-0 		9-09561-111-0 02 1 -
29 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: A = 8-97258-461-0 		9-09561-113-0 02 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97258-461-0 		9-48429-028-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97258-461-0 		9-88510-248-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97258-461-0 		1-19519-292-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97357-213-0, C = 8-97357-215-0 		8-97029-777-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: D = 8-97388-651-0, E = 8-97388-652-0 		8-97184-767-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
