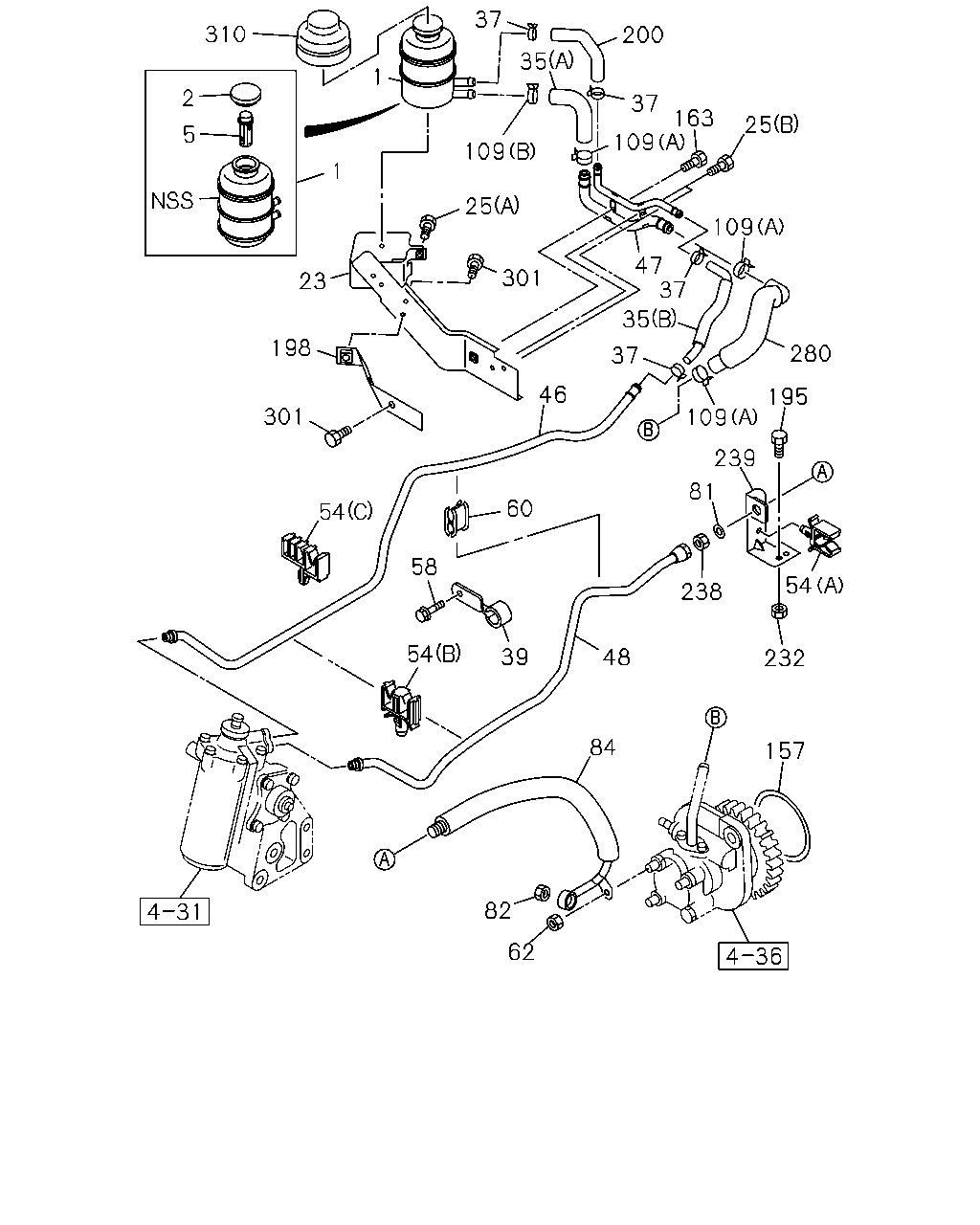

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#20371) — 57 parça

37 310 200 35 1 2 37 163 25 5 109 109 1 25 109 47 37 301 23 35 198 280 37 46 195 301 109 239 81 60 54 58 54 238 54 39 48 232 84 157 82 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0309-	●	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0309-			●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0309-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0309-			●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0309-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0309-			●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	0309-	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0309-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28480-620-0	01	1	0309-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	0309-	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B)	8-97096-949-1	01	1	0309-	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	04	1	0309-	●	●	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=28 L=60	1-09700-585-1	01	1	0309-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97262-198-0	01	1	0309-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1 ENG<RLY>	8-97262-198-0	01	1	0309-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97257-365-0	01	1	0309-	●	●
47	PIPE; RETURN POWER STEERING<N40>	8-97040-001-2	01	1	0309-0402	●	●	●
47	PIPE; RETURN POWER STEERING<N40>	8-97378-860-0	01	1	0403-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97064-722-2	01	1	0309-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HE1 ENG<RLY> POWER STEERING<N40>	8-97096-453-1	01	1	0309-	●		●
54	CLIP; OIL PIPE POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	01	1	0309-	●
54	CLIP; OIL PIPE 4HE1 ENG<RLY> (A) ID=10 H=40	8-94462-219-0	01	1	0309-			●
54	CLIP; OIL PIPE POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0309-	●
54	CLIP; OIL PIPE 4HE1 ENG<RLY> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0309-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0309-	●	●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 & 4.8X3	8-97038-938-0	01	1	0309-	●	●
58	BOLT; CLIP POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●	●
60	CLAMP; PIPE,RETURN POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-	●
60	CLAMP; PIPE,RETURN 4HE1 ENG<RLY> ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-			●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0309-			●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0309-	●	●	●
84	HOSE; FLEX,P/S 4HE1 ENG<RLY> POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97358-337-2	01	1	0309-	●
84	HOSE; FLEX,P/S 4HG1 ENG<RJH> POWER STEERING<N40>	8-97358-345-2	01	1	0309-	●	●
84	HOSE; FLEX,P/S 4HE1 ENG<RLY> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97358-387-2	01	1	0309-	●		●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0309-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0309-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	03	1	0309-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0309-0407	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0502-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0408-	●	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●	●	●
198	STAY; OIL TANK,POWER STEERING POWER STEERING<N40>	8-97081-778-1	01	1	0309-	●	●	●
200	HOSE; RUBBER,RETURN POWER STEERING<N40>	8-97080-109-0	01	1	0309-	●	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-	●	●	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0309-	●	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	0309-			●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97033-926-2	01	1	0309-	●	●	●
280	HOSE; P/S OIL PUMP,INL 4HE1 ENG<RLY> POWER STEERING<N40> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-730-0	01	1	0309-	●
280	HOSE; P/S OIL PUMP,INL 4HE1 ENG<RLY> POWER STEERING<N40> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97218-729-0	01	1	0309-	●
280	HOSE; P/S OIL PUMP,INL 4HE1 ENG<RLY>	8-97218-729-0	01	1	0309-			●
280	HOSE; P/S OIL PUMP,INL 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97107-524-1	01	1	0309-	●	●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
310	COVER; OIL TANK POWER STEERING<N40>	8-97103-394-0	01	1	0309-	●	●	●
