◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#2037) — 77 parça

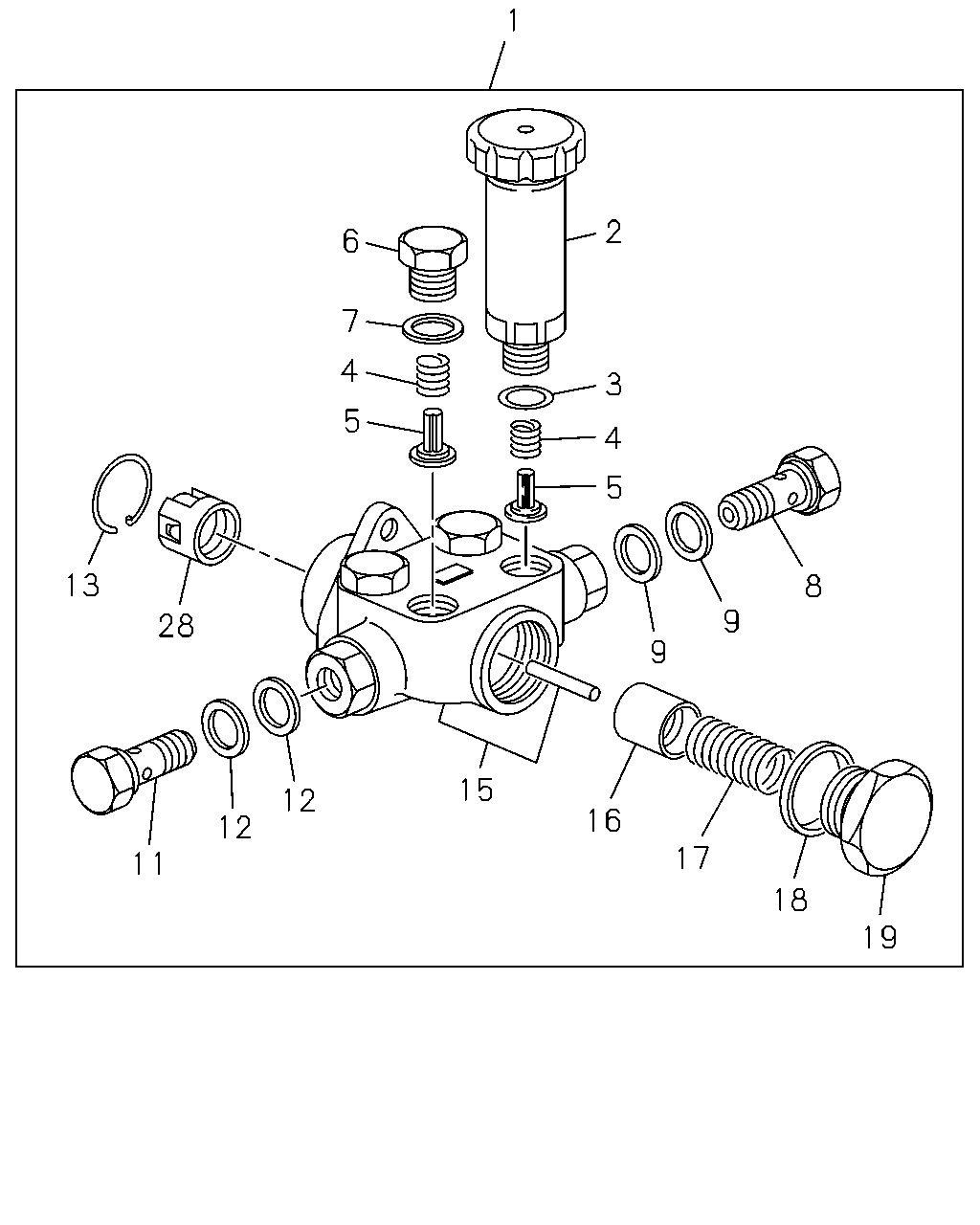

çizim 93786
1 2 6 7 4 3 5 4 5 13 8 9 28 9 15 12 16 12 17 11 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0 		1-15750-038-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: P = 1-15602-883-0 		1-15750-068-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15750-074-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-09623-016-0 01 1 9004-9601
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, O = 1-15602-197-2 		1-09623-016-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-19623-016-0 01 1 -9003
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-19623-016-0 01 1 9602-
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-702-0 02 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-602-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15759-009-0 01 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-031-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-031-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15600-757-6, O = 1-15602-197-2, Q = 1-15603-242-0 		1-09675-063-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: P = 1-15602-883-0 		1-15759-029-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-012-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1 		1-09675-063-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15600-757-6, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-011-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-025-0 01 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15751-018-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-023-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15754-002-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0 		1-15754-003-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: P = 1-15602-883-0 		1-15754-004-0 01 1 -

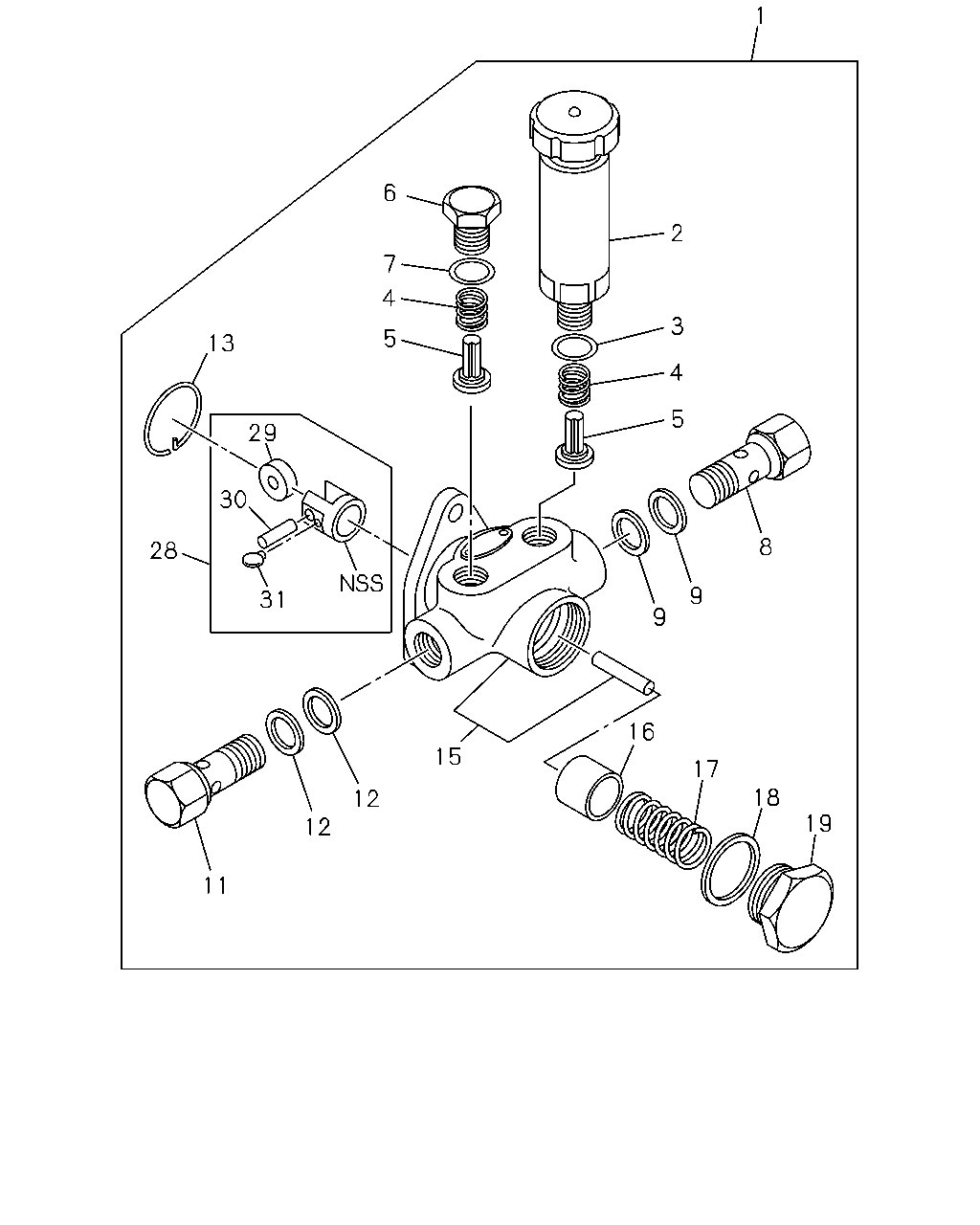

çizim 95042
1 6 2 7 4 3 5 13 4 5 29 30 8 28 9 31 9 16 15 17 18 12 19 12 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0 		1-15750-038-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: P = 1-15602-883-0 		1-15750-068-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15750-074-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-09623-016-0 01 1 9004-9601
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, O = 1-15602-197-2 		1-09623-016-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-19623-016-0 01 1 -9003
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6 		1-19623-016-0 01 1 9602-
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-702-0 02 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-602-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15759-009-0 01 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-031-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-031-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15600-757-6, O = 1-15602-197-2, Q = 1-15603-242-0 		1-09675-063-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: P = 1-15602-883-0 		1-15759-029-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-012-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1 		1-09675-063-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15600-757-6, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-011-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-025-0 01 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15751-018-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-302-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81355-023-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		1-15754-002-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0 		1-15754-003-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: P = 1-15602-883-0 		1-15754-004-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-403-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-406-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1 		9-81351-416-0 02 1 -
