4-31 — STEERING COLUMN AND SHAFT (#20369) — 128 parça

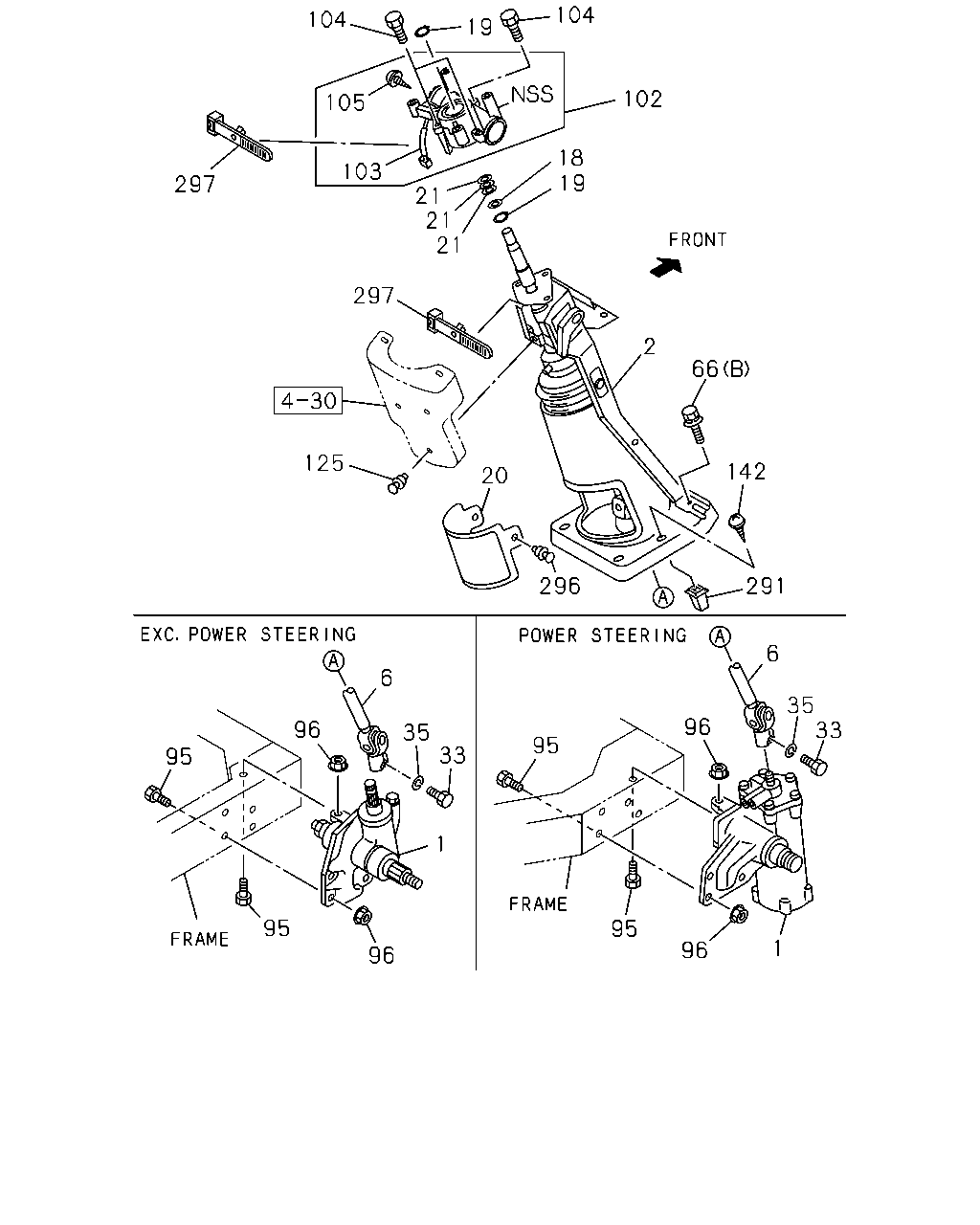

çizim 13270
104 104 19 102 105 18 19 103 297 21 21 21 297 2 66 125 142 20 296 291 6 6 35 33 96 96 35 33 95 95 1 95 95 1 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97287-197-1 01 1 0309- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97287-197-1 01 1 0309- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97224-871-0 01 1 0309- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0309-0311 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405- ● ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0309-0311 ● ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0309-0311 ● ● ●
18 WASHER; STEERING SHAFT
ID=19 		8-94146-919-0 01 1 0309- ● ● ●
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 0309- ● ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0309- ● ● ●
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0309- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 0309-0311 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0312- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 0309-0311 ● ● ●
35 WASHER; LK,STRG SHAFT
TILT STEERING<N33> ID=8.2 		9-09150-508-0 01 1 0309-0311 ● ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		9-09150-508-0 01 1 0312- ● ● ●
35 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> ID=10.2 		9-09150-810-0 01 1 0309-0311 ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0309- ● ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0309- ● ● ●
95 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 0309- ● ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 0309- ● ● ●
102 LOCK ASM; STRG 8-97170-364-0 01 1 0309- ● ● ●
103 SWITCH; IGNITION 8-97088-268-0 01 1 0309- ● ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 03 1 0309- ● ● ●
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0309- ● ● ●
125 CLIP; STRG SHAFT
BLACK 		8-97868-409-0 01 1 0309- ● ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0309- ● ● ●
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 0309- ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0309- ● ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0309- ● ● ●
297 CLIP; BAND
L=145 		8-94257-575-1 03 1 0309- ● ● ●

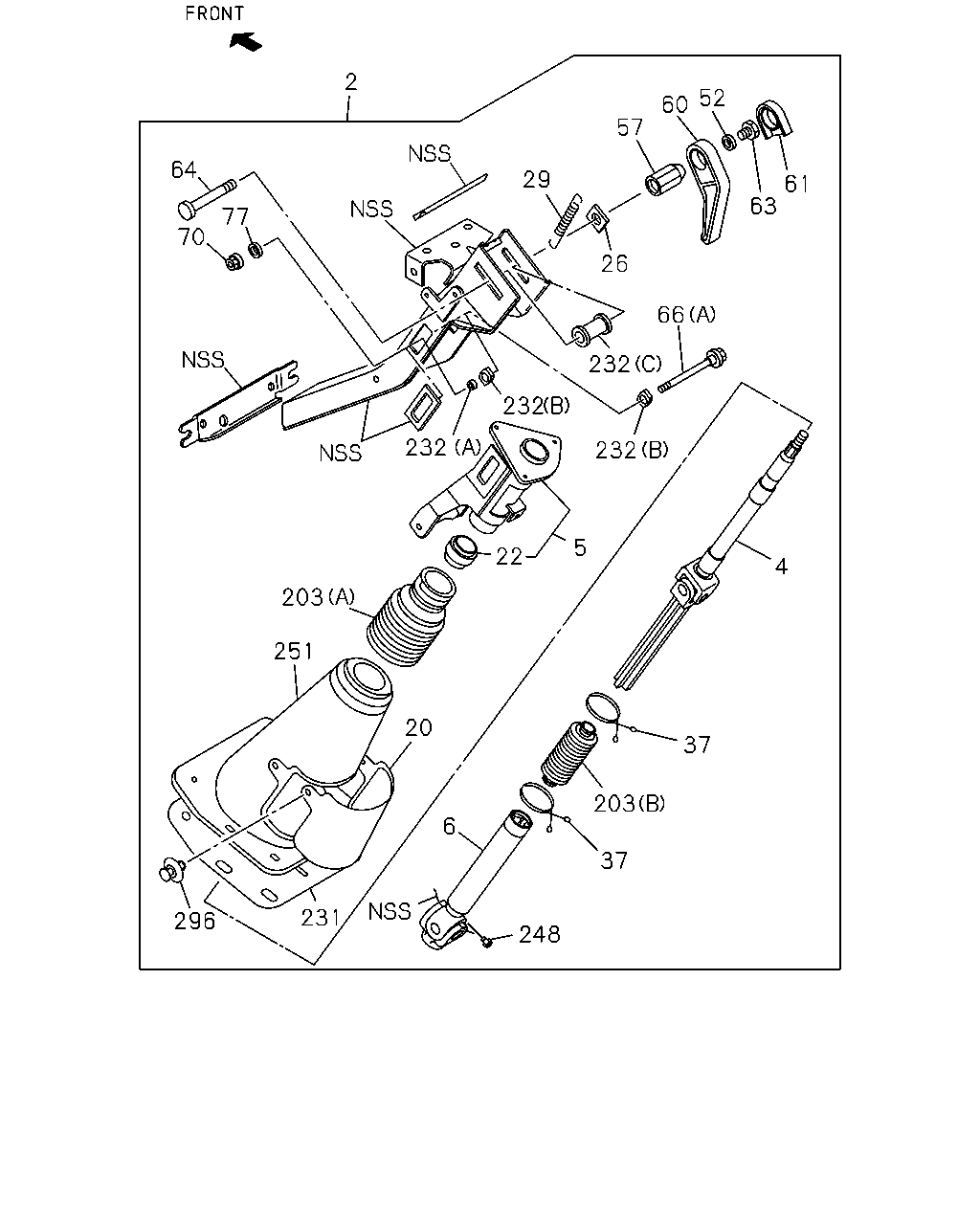

çizim 55266
2 52 60 57 64 29 61 63 77 70 26 66 232 232 232 232 5 22 4 203 251 20 37 203 6 37 231 296 248
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0309-0311 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405- ● ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0309-0311 ● ● ●
4 SHAFT; STRG 8-97201-110-1 01 1 0312-0404 ● ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0405- ● ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0309-0311 ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0309- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0309- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 0309-0311 ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312- ● ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0309-0311 ● ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0309-0311 ● ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0309- ● ● ●
22 BUSHING; STRG COLUMN 8-97378-617-0 01 1 0405- ● ● ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 0309-0311 ● ● ●
22 BUSHING; STRG COLUMN 8-97076-821-0 01 1 0312- ● ● ●
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0309- ● ● ●
29 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0309- ● ● ●
37 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0309-0404 ● ● ●
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0309- ● ● ●
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0309- ● ● ●
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0309- ● ● ●
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0309- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0309- ● ● ●
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0309- ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0309- ● ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0309- ● ● ●
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0309- ● ● ●
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0309- ● ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0312- ● ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404 ● ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (C) 		8-97173-632-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (D) 		8-97351-851-0 01 1 0309-0311 ● ● ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0309-0311 ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312- ● ● ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0309-0311 ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0309- ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0309- ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0309- ● ● ●
248 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0309-0311 ● ● ●
248 SCREW; YOKE 8-97222-984-0 01 1 0312- ● ● ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0309-0311 ● ● ●
251 COVER; LWR
BLACK 		8-97159-168-1 01 1 0312- ● ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> BLACK 		8-97159-175-0 01 1 0309-0311 ● ● ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97291-634-1 01 1 0408- ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0309- ● ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0309- ● ● ●

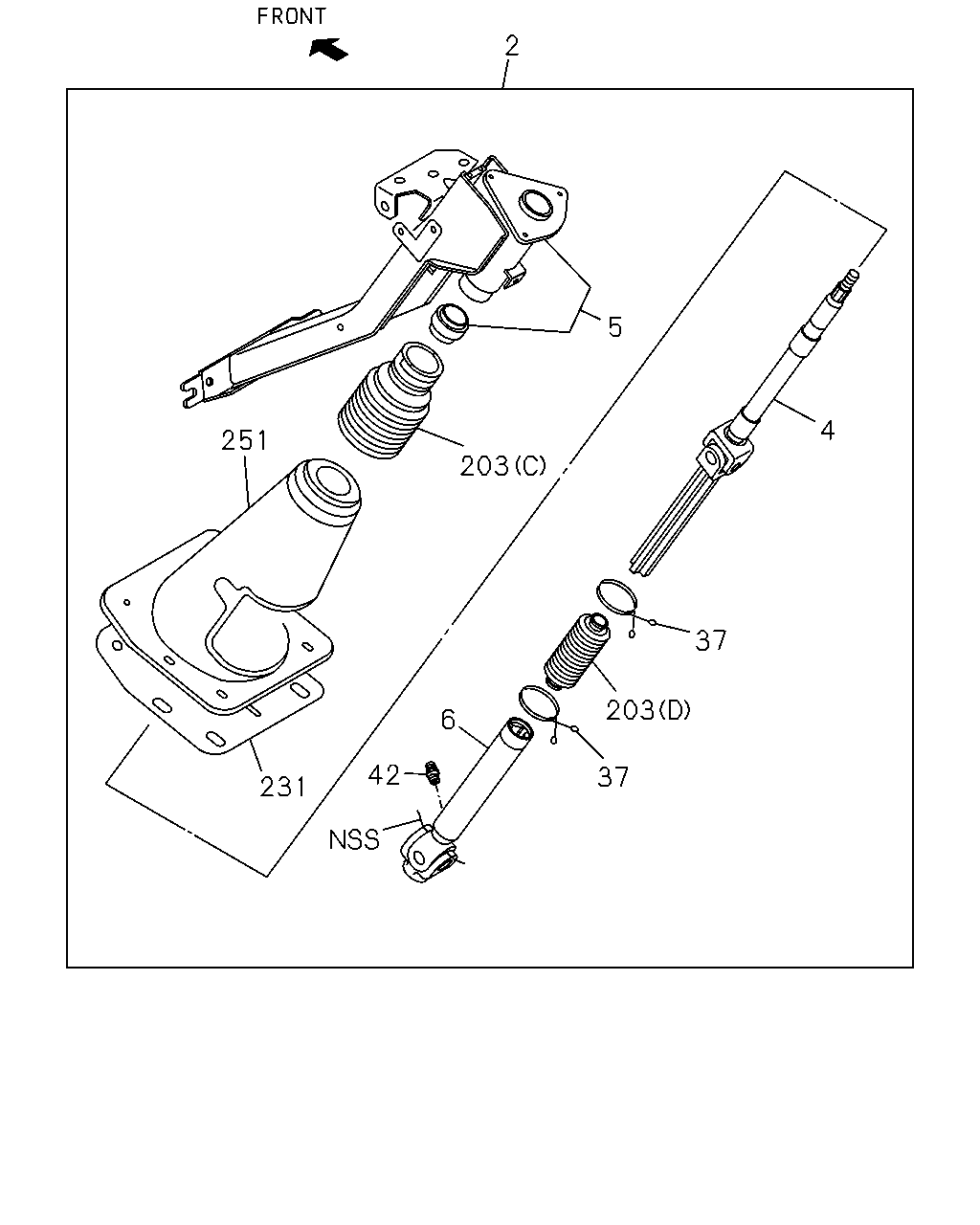

çizim 55398
2 5 4 251 203 37 203 6 42 37 231
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0309-0404 ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-0 01 1 0405- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0309-0311 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-0 01 1 0405- ● ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0309-0311 ● ● ●
4 SHAFT; STRG 8-97201-110-1 01 1 0312-0404 ● ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0405- ● ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0309-0311 ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0309- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0309- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 0309-0311 ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312- ● ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0309-0311 ● ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0309-0311 ● ● ●
37 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0309-0404 ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. TILT STEERING<N33> 		8-97178-201-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0312- ● ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404 ● ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (C) 		8-97173-632-0 01 1 0309-0311 ● ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (D) 		8-97351-851-0 01 1 0309-0311 ● ● ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0309-0311 ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312- ● ● ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0309-0311 ● ● ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0309-0311 ● ● ●
251 COVER; LWR
BLACK 		8-97159-168-1 01 1 0312- ● ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> BLACK 		8-97159-175-0 01 1 0309-0311 ● ● ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97291-634-1 01 1 0408- ● ● ●
