4-20 — REAR AXLE CASE AND SHAFT (#20366) — 102 parça

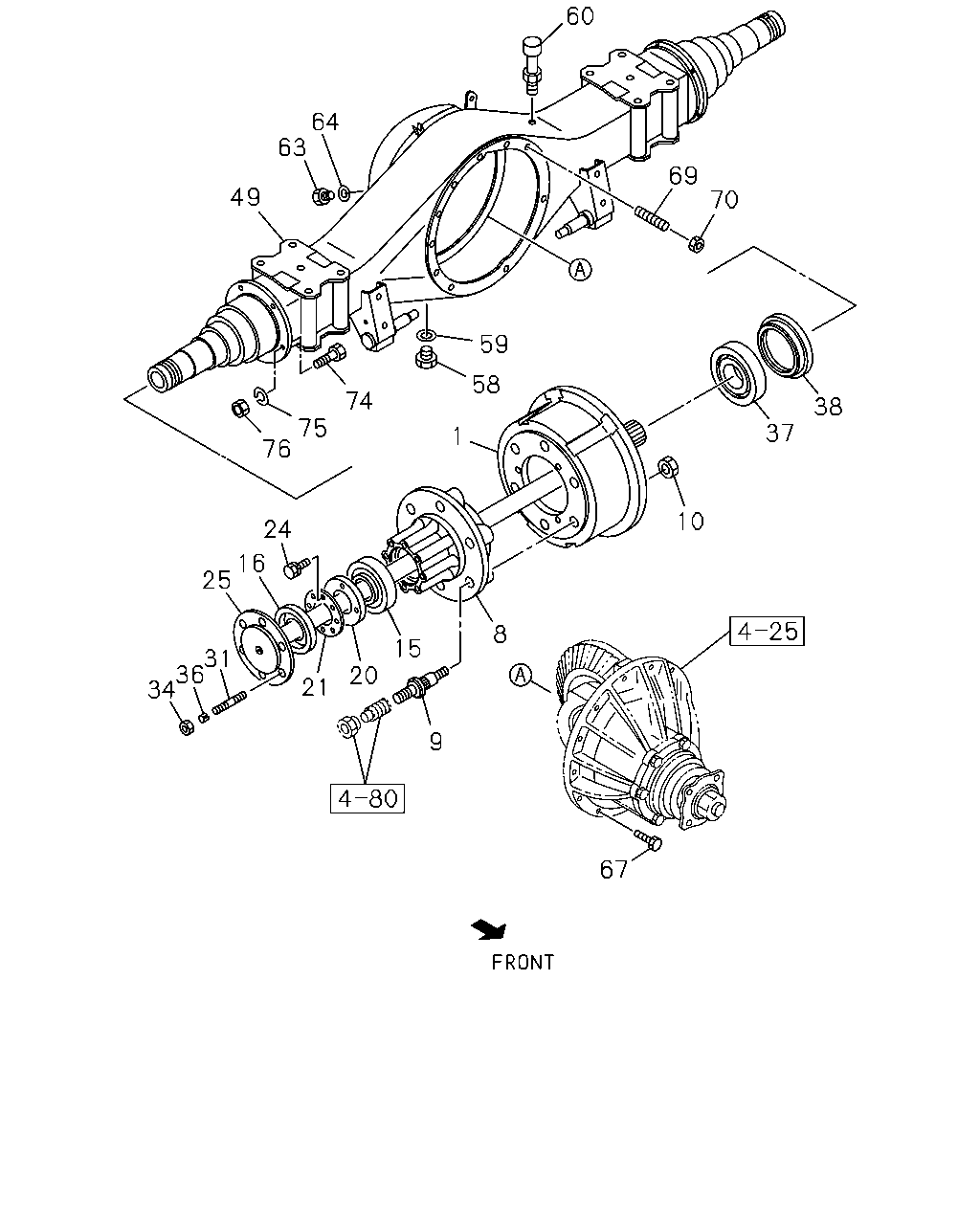

çizim 56359
60 64 63 69 49 70 59 58 74 38 75 76 37 1 10 24 16 25 8 15 31 36 34 20 21 9 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-563-0 02 1 0309- ●
1 DRUM; BRK,RR
THA 		8-97940-563-0 02 1 0309- ●
1 DRUM; BRK,RR
4HG1 ENG<RJH> FINAL GEAR RATIO 39/6<R43> THA 		8-97940-562-0 02 1 0309-0407 ●
1 DRUM; BRK,RR
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> THA 		8-97940-562-0 02 1 0309-0407 ●
1 DRUM; BRK,RR
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-562-0 02 1 0408- ●
1 DRUM; BRK,RR
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> THA 		8-97940-562-0 02 1 0408- ●
8 HUB; RR AXLE
FRAME STRAIGHT TYPE<7KJ> THA 		8-97942-200-0 02 1 0309- ●
8 HUB; RR AXLE
THA 		8-97942-200-0 02 1 0309- ●
8 HUB; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 39/6<R43> THA 		8-97940-280-0 02 1 0309-0407 ●
8 HUB; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> THA 		8-97940-280-0 02 1 0309-0407 ●
8 HUB; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-280-0 02 1 0408- ●
8 HUB; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> THA 		8-97940-280-0 02 1 0408- ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0309- ● ● ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0309- ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 12 1 0309- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK THA 		9-00093-607-0 02 1 0309- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0309-0407 ● ●
16 SEAL; OIL,RR HUB,OUTER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> TKK 		8-94336-317-2 02 1 0309-0407 ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0309-0407 ● ●
16 SEAL; OIL,RR HUB,OUTER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NOK 		8-94367-960-1 02 1 0309-0407 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0408- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0408- ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0309-0407 ● ●
20 NUT; BRG,RR HUB
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M55 		8-97137-094-0 02 1 0309-0407 ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0408- ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0309-0407 ● ●
21 WASHER; LK,BRG NUT
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=55 		9-09653-002-0 02 1 0309-0407 ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0408- ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0309-0407 ● ●
24 BOLT; LK WASHER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M6X12 W/LK WASHER 		0-50040-612-0 04 1 0309-0407 ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0408- ● ● ●
25 SHAFT; AXLE,RR
FRAME STRAIGHT TYPE<7KJ> L=885 		8-97134-439-0 02 1 0309- ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0309- ●
25 SHAFT; AXLE,RR
EXC. FRAME STRAIGHT TYPE<7KJ> L=822 		8-97079-903-1 02 1 0309- ●
25 SHAFT; AXLE,RR
L=822 		8-97079-903-1 02 1 0309- ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0309- ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 0309- ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0309- ● ● ●
37 BEARING; HUB INNER,RR AXLE
FRAME STRAIGHT TYPE<7KJ> NSK THA 		8-97122-938-0 02 1 0309- ●
37 BEARING; HUB INNER,RR AXLE
NSK THA 		8-97122-938-0 02 1 0309- ●
37 BEARING; HUB INNER,RR AXLE
FRAME STRAIGHT TYPE<7KJ> KOYO THA 		8-97123-119-0 02 1 0309- ●
37 BEARING; HUB INNER,RR AXLE
KOYO THA 		8-97123-119-0 02 1 0309- ●
37 BEARING; HUB INNER,RR AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> NSK THA 		9-00093-624-0 02 1 0309- ●
37 BEARING; HUB INNER,RR AXLE
NSK THA 		9-00093-624-0 02 1 0309- ●
38 SEAL; OIL,RR HUB,INNER
FRAME STRAIGHT TYPE<7KJ> NOK 		8-97147-681-0 02 1 0309- ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-97147-681-0 02 1 0309- ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 39/6<R43> TKK 		8-94336-316-1 02 1 0309-0407 ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> TKK 		8-94336-316-1 02 1 0309-0407 ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> EXC. FRAME STRAIGHT TYPE<7KJ> TKK 		8-94336-316-1 02 1 0408- ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> TKK 		8-94336-316-1 02 1 0408- ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 39/6<R43> NOK 		8-94367-958-0 02 1 0309-0407 ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NOK 		8-94367-958-0 02 1 0309-0407 ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> EXC. FRAME STRAIGHT TYPE<7KJ> NOK 		8-94367-958-0 02 1 0408- ●
38 SEAL; OIL,RR HUB,INNER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> NOK 		8-94367-958-0 02 1 0408- ●
49 CASE; RR AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-97287-599-0 01 1 0309- ●
49 CASE; RR AXLE 8-97287-599-0 01 1 0309- ●
49 CASE; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 39/6<R43> 		8-97048-635-6 01 1 0309-0407 ●
49 CASE; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 		8-97048-635-6 01 1 0309-0407 ●
49 CASE; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97048-635-6 01 1 0408- ●
49 CASE; RR AXLE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> 		8-97048-635-6 01 1 0408- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0309-0407 ● ●
58 PLUG; DRAIN,AXLE CASE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M16X12.5 		8-97109-869-0 01 1 0309-0407 ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0408- ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0309-0407 ● ●
59 GASKET; DRAIN PLUG
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=16.2 OD=24 		9-09571-416-0 01 1 0309-0407 ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0408- ● ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0309-0409 ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410- ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0309-0407 ● ●
63 PLUG; OIL FILLER,AXLE CASE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M20X10.5 		9-09662-005-0 01 1 0309-0407 ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0408- ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 0309-0407 ● ●
64 GASKET; OIL FILLER,AXLE CASE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> ID=20 OD=30 THA 		8-94462-734-0 01 1 0309-0407 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 0408- ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0309-0407 ● ●
67 BOLT; FINAL DRIVE SETTING
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10X40 W/LK WASHER 		0-50061-040-0 07 1 0309-0407 ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0309-0407 ● ●
67 BOLT; FINAL DRIVE SETTING
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10X50 W/LK WASHER 		0-50061-050-0 04 1 0309-0407 ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0408- ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0408- ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0309-0407 ● ●
69 STUD; AXLE CASE
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10X40.5 L=52.5 		8-97026-282-0 02 1 0309-0407 ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0408- ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0309-0407 ● ●
70 NUT; CARRIER
4HG1 ENG<RJH> FINAL GEAR RATIO 41/8<RU1> M10 FLANGE 		0-91150-210-0 02 1 0309-0407 ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0408- ● ● ●
74 BOLT; RR BRK ASM SETTING
FRAME STRAIGHT TYPE<7KJ> M14X35 		8-97122-853-2 12 1 0309-0310 ●
74 BOLT; RR BRK ASM SETTING
M14X35 		8-97122-853-2 12 1 0309-0310 ●
74 BOLT; RR BRK ASM SETTING
FRAME STRAIGHT TYPE<7KJ> M14X40 		8-97357-301-1 12 1 0311- ●
74 BOLT; RR BRK ASM SETTING
M14X40 		8-97357-301-1 12 1 0311- ●
74 BOLT; RR BRK ASM SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M12X32 		5-09000-078-0 12 1 0309- ●
74 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0309- ●
75 WASHER; LK,RR BRK ASM SETTING
FRAME STRAIGHT TYPE<7KJ> ID=14.2 		9-09150-814-0 12 1 0309- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 12 1 0309- ●
75 WASHER; LK,RR BRK ASM SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> ID=12.2 		9-09150-612-0 12 1 0309- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		9-09150-612-0 12 1 0309- ●
76 NUT; RR BRK ASM SETTING
FRAME STRAIGHT TYPE<7KJ> M14 		9-99110-514-0 12 1 0309- ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 12 1 0309- ●
76 NUT; RR BRK ASM SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M12 		9-99110-512-0 12 1 0309-0512 ●
76 NUT; RR BRK ASM SETTING
M12 		9-99110-512-0 12 1 0309-0512 ●
76 NUT; RR BRK ASM SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M12 		0-91110-512-0 12 1 0601- ●
76 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ●
