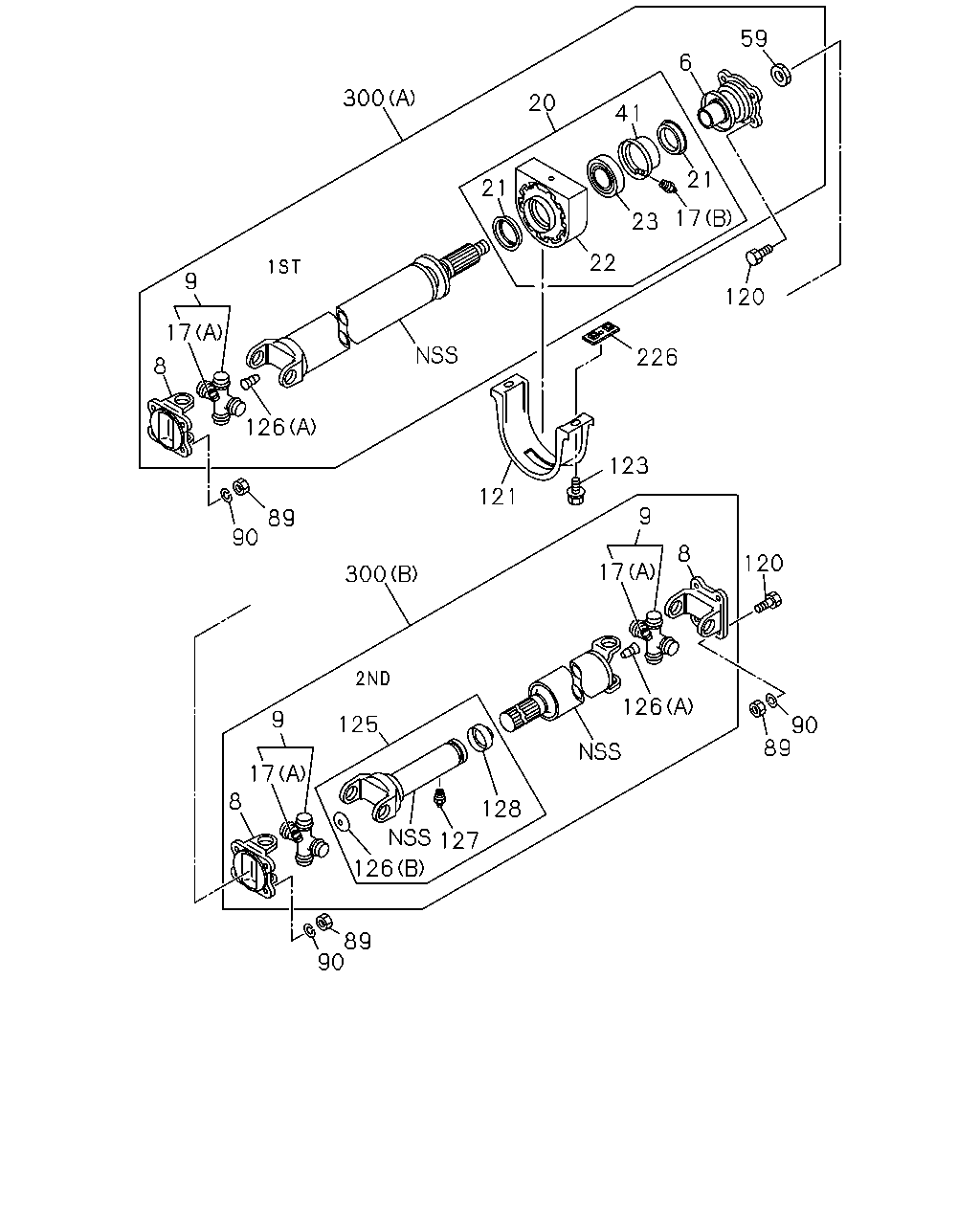

4-01 — PROPELLER SHAFT (#20363) — 117 parça

59 6 300 20 41 21 21 17 23 22 9 120 17 226 8 126 123 121 9 89 90 8 120 17 300 126 9 125 90 89 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR>	1-37245-115-0	01	1	0408-	●	●
6	COUPLING ASM; DRIVER,PROP SHAFT THA	8-97036-123-0	01	1	0309-0403	●	●	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97036-123-0	01	1	0404-0407	●		●
6	COUPLING ASM; DRIVER,PROP SHAFT M/T MYY5T<RSM> THA	8-97036-123-0	01	1	0408-	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97036-123-0	01	1	0408-			●
8	YOKE; FLANGE,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR> D=80	1-37211-037-4	03	1	0408-	●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0309-0403	●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-663-0	01	1	0404-0407	●		●
8	YOKE; FLANGE,PROP SHAFT M/T MYY5T<RSM>	8-97322-663-0	01	1	0408-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-663-0	01	1	0408-			●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	02	1	0309-0403	●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-663-0	02	1	0404-0407	●		●
8	YOKE; FLANGE,PROP SHAFT M/T MYY5T<RSM>	8-97322-663-0	02	1	0408-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-663-0	02	1	0408-			●
9	JOURNAL ASM; PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR>	1-37300-103-0	03	1	0408-	●	●
9	JOURNAL ASM; PROP SHAFT	8-97322-749-0	01	1	0309-0403	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-749-0	01	1	0404-0407	●		●
9	JOURNAL ASM; PROP SHAFT M/T MYY5T<RSM>	8-97322-749-0	01	1	0408-	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-749-0	01	1	0408-			●
9	JOURNAL ASM; PROP SHAFT	8-97322-749-0	02	1	0309-0403	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-749-0	02	1	0404-0407	●		●
9	JOURNAL ASM; PROP SHAFT M/T MYY5T<RSM>	8-97322-749-0	02	1	0408-	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM>	8-97322-749-0	02	1	0408-			●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR> PT1/16 ELBOW 40?	8-97240-194-0	01	1	0408-	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR> PT1/8 ELBOW	9-09031-210-0	03	1	0408-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	9-09031-006-0	01	1	0309-0403	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) M6 STRAIGHT	9-09031-006-0	01	1	0404-0407	●		●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T<RSM> M6 STRAIGHT	9-09031-006-0	01	1	0408-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> M6 STRAIGHT	9-09031-006-0	01	1	0408-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0309-0403	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) PT1/8 ELBOW	9-09031-210-0	01	1	0404-0407	●		●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T<RSM> PT1/8 ELBOW	9-09031-210-0	01	1	0408-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> PT1/8 ELBOW	9-09031-210-0	01	1	0408-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0309-0403	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) PT1/8 ELBOW	9-09031-210-0	02	1	0404-0407	●		●
17	NIPPLE; GREASE,PROP SHAFT M/T MYY5T<RSM> PT1/8 ELBOW	9-09031-210-0	02	1	0408-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> PT1/8 ELBOW	9-09031-210-0	02	1	0408-			●
20	BEARING ASM; CTR,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR>	8-97131-143-1	01	1	0408-	●	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0309-0403	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0404-0407	●		●
20	BEARING ASM; CTR,PROP SHAFT M/T MYY5T<RSM> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0408-	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0408-			●
21	SEAL; OIL,CENTER BRG 4HE1 ENG<RLY> M/T MZZ6F<RSR> ID=54	1-09625-161-0	02	1	0408-	●	●
21	SEAL; OIL,CENTER BRG ID=49 THA	5-09625-067-1	02	1	0309-0403	●	●	●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MYY5T<RSM> ID=49 THA	5-09625-067-1	02	1	0404-0407	●		●
21	SEAL; OIL,CENTER BRG M/T MYY5T<RSM> ID=49 THA	5-09625-067-1	02	1	0408-	●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MYY5T<RSM> ID=49 THA	5-09625-067-1	02	1	0408-			●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HE1 ENG<RLY> M/T MZZ6F<RSR>	8-97131-125-0	01	1	0408-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	5-37516-005-1	01	1	0309-0403	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37516-005-1	01	1	0404-0407	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T<RSM> THA	5-37516-005-1	01	1	0408-	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37516-005-1	01	1	0408-			●
23	BEARING; CENTER,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR>	9-00090-071-0	01	1	0408-	●	●
23	BEARING; CENTER,PROP SHAFT OD=80 THA	5-09800-068-0	01	1	0309-0403	●	●	●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> OD=80 THA	5-09800-068-0	01	1	0404-0407	●		●
23	BEARING; CENTER,PROP SHAFT M/T MYY5T<RSM> OD=80 THA	5-09800-068-0	01	1	0408-	●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> OD=80 THA	5-09800-068-0	01	1	0408-			●
41	COVER; CENTER BRG,PROP SHAFT 4HE1 ENG<RLY> M/T MZZ6F<RSR>	1-37529-068-0	01	1	0408-	●	●
41	COVER; CENTER BRG,PROP SHAFT THA	5-37512-004-0	01	1	0309-0403	●	●	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37512-004-0	01	1	0404-0407	●		●
41	COVER; CENTER BRG,PROP SHAFT M/T MYY5T<RSM> THA	5-37512-004-0	01	1	0408-	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	5-37512-004-0	01	1	0408-			●
59	NUT; RET TO SUPPORT 4HE1 ENG<RLY> M/T MZZ6F<RSR> M30	8-97160-857-0	01	1	0408-	●	●
59	NUT; RET TO SUPPORT M27 H=25	8-97253-126-0	01	1	0309-0403	●	●	●
59	NUT; RET TO SUPPORT 4HG1 ENG<RJH> M/T MYY5T<RSM> M27 H=25	8-97253-126-0	01	1	0404-0407	●		●
59	NUT; RET TO SUPPORT M/T MYY5T<RSM> M27 H=25	8-97253-126-0	01	1	0408-	●
59	NUT; RET TO SUPPORT 4HG1 ENG<RJH> M/T MYY5T<RSM> M27 H=25	8-97253-126-0	01	1	0408-			●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0309-	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0309-	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0309-	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0309-	●	●	●
123	BOLT; RET M10X25 FLANGE	0-28681-025-0	04	1	0309-	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-0	01	1	0309-0403	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> L=183	8-97327-979-0	01	1	0404-0407	●		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T<RSM> L=183	8-97327-979-1	01	1	0408-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG<RJH> M/T MYY5T<RSM> L=183	8-97327-979-1	01	1	0408-			●
126	PLUG; SPLINED YOKE 4HE1 ENG<RLY> M/T MZZ6F<RSR>	1-09600-014-0	01	1	0408-	●	●
126	PLUG; SPLINED YOKE 4HE1 ENG<RLY> M/T MZZ6F<RSR> THA	1-09600-023-0	02	1	0408-	●	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0309-0403	●	●	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0309-0403	●	●	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) THA	1-09600-023-0	01	1	0404-0407	●		●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) THA	1-09600-023-0	01	1	0404-0407	●		●
126	PLUG; SPLINED YOKE M/T MYY5T<RSM> THA	1-09600-023-0	01	1	0408-	●
126	PLUG; SPLINED YOKE M/T MYY5T<RSM> THA	1-09600-023-0	01	1	0408-	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	1-09600-023-0	01	1	0408-			●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	1-09600-023-0	01	1	0408-			●
126	PLUG; SPLINED YOKE (B) THA	8-94366-900-0	01	1	0309-0403	●	●	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) THA	8-94366-900-0	01	1	0404-0407	●		●
126	PLUG; SPLINED YOKE M/T MYY5T<RSM> THA	8-94366-900-0	01	1	0408-	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-94366-900-0	01	1	0408-			●
127	NIPPLE; GREASE,SPLINED YOKE 4HE1 ENG<RLY> M/T MZZ6F<RSR> PT1/8 STRAIGHT	9-09031-010-0	01	1	0408-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0309-0403	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> M6 STRAIGHT	9-09031-006-0	01	1	0404-0407	●		●
127	NIPPLE; GREASE,SPLINED YOKE M/T MYY5T<RSM> M6 STRAIGHT	9-09031-006-0	01	1	0408-	●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG<RJH> M/T MYY5T<RSM> M6 STRAIGHT	9-09031-006-0	01	1	0408-			●
128	SEAL; SLEEVE 4HE1 ENG<RLY> M/T MZZ6F<RSR>	1-37247-001-1	01	1	0408-	●	●
128	SEAL; SLEEVE THA	8-97145-746-0	01	1	0309-0403	●	●	●
128	SEAL; SLEEVE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97145-746-0	01	1	0404-0407	●		●
128	SEAL; SLEEVE M/T MYY5T<RSM> THA	8-97145-746-0	01	1	0408-	●
128	SEAL; SLEEVE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97145-746-0	01	1	0408-			●
226	PLATE; LK,CENTER BRG FRAME STRAIGHT TYPE<7KJ>	8-97371-572-0	02	1	0309-	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0309-		●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MYY5T<RSM> L=693	8-97350-381-3	01	1	0408-	●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MZZ6F<RSR> L=1080	8-97214-108-0	01	1	0408-	●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MZZ6F<RSR> L=608	8-97360-238-0	01	1	0408-	●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MZZ6F<RSR> L=1424	8-97214-110-0	01	1	0408-		●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MZZ6F<RSR> L=1058	8-97360-239-0	01	1	0408-		●
300	SHAFT ASM; PROP,RR (B) L=1062	8-97350-388-1	01	1	0309-0403	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> (B) L=1062	8-97350-388-1	01	1	0309-0403			●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) L=1062	8-97350-388-1	01	1	0404-0407	●		●
300	SHAFT ASM; PROP,RR M/T MYY5T<RSM> L=1062	8-97350-388-2	01	1	0408-	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> L=1062	8-97350-388-2	01	1	0408-			●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MYY5T<RSM> (A) L=693	8-97350-381-2	01	1	0309-0403	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) L=774	8-97350-385-3	01	1	0309-	●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) L=1222	8-97350-387-3	01	1	0309-			●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> (B) L=1417	8-97350-380-1	01	1	0309-0403		●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MYY5T<RSM> (A) L=1140	8-97350-382-2	01	1	0309-0403		●
