Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#20362) — 209 parça

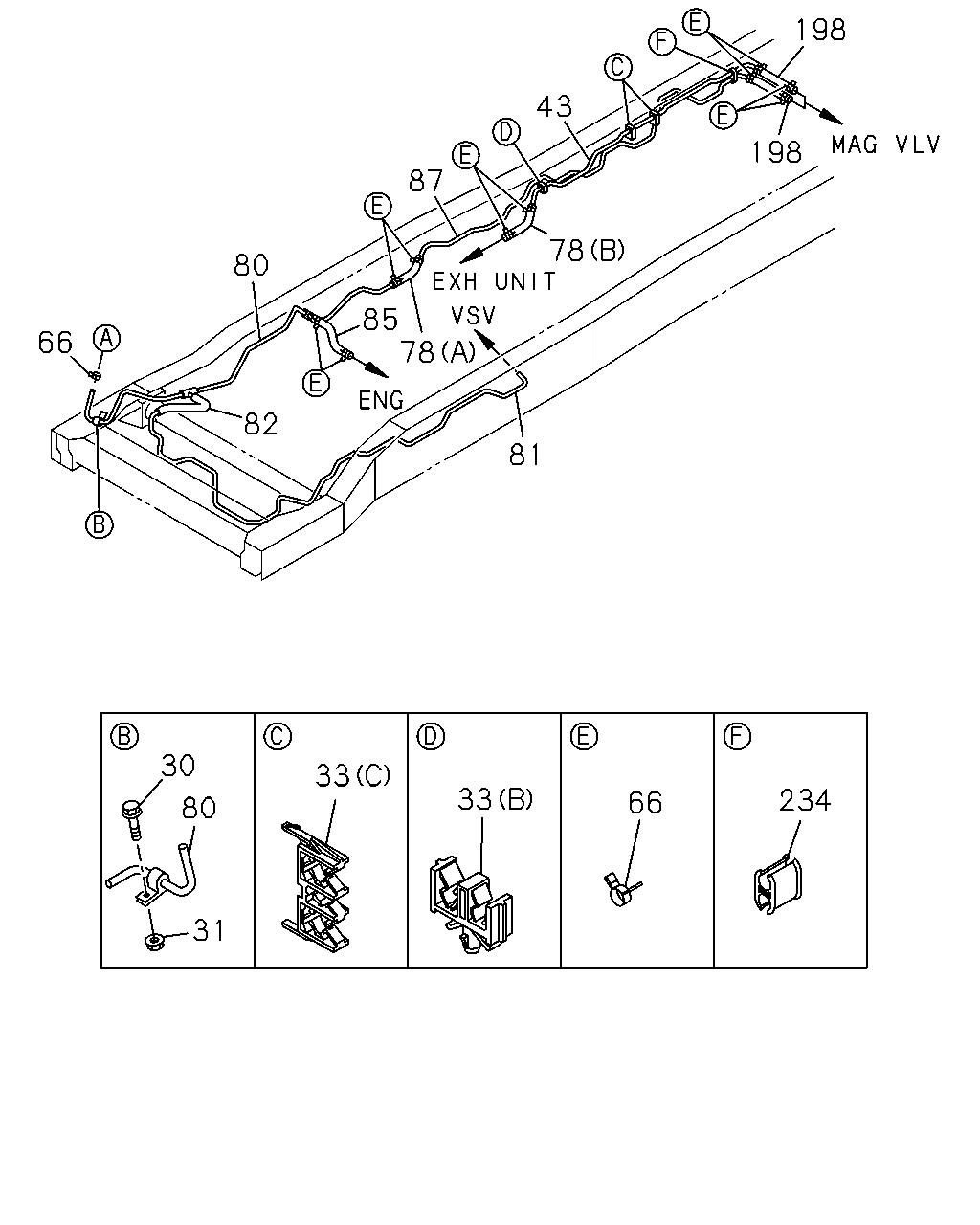

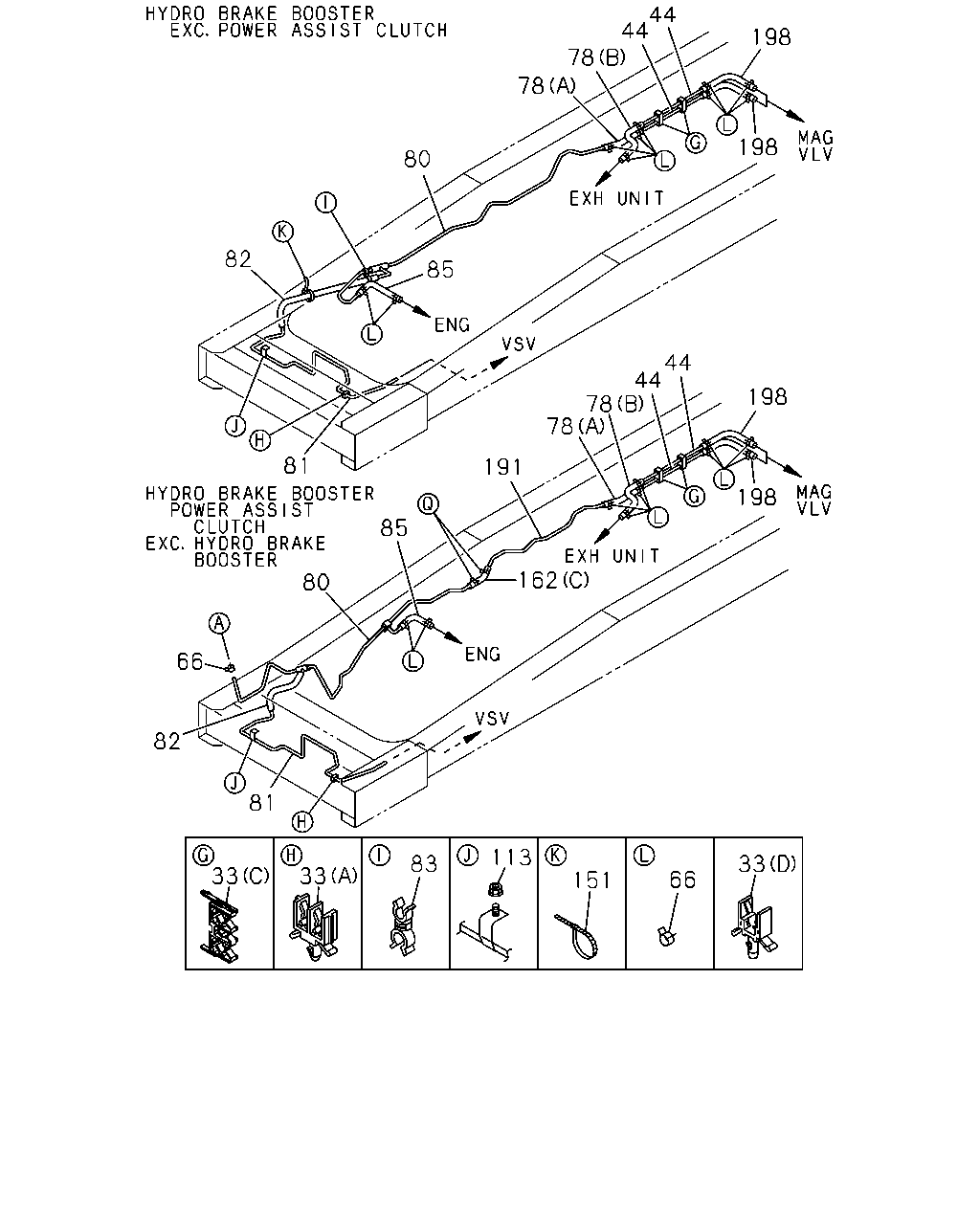

44 44 78 198 78 198 80 82 85 44 44 78 78 198 81 191 198 85 162 80 66 82 81 33 33 113 83 33 66 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0309-	●
33	CLIP; VAC PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0309-	●	●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> (A) ID=4.8X2	8-94316-410-0	01	1	0309-	●		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0309-	●		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0309-	●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0309-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0309-			●
44	PIPE; VAC,MAG VLV 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0309-	●
44	PIPE; VAC,MAG VLV 4HE1 ENG<RLY>	8-97096-972-0	02	1	0309-			●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	11	1	0309-	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0309-		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0309-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0309-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0309-0403	●	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0404-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0404-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-793-0	01	1	0309-	●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH>	8-97325-793-0	01	1	0309-		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0309-	●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-462-0	01	1	0309-	●	●
81	PIPE; VAC,VSV 4HE1 ENG<RLY>	8-97181-226-2	01	1	0309-	●		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0309-0407	●
82	HOSE; VAC,VSV EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0309-0407			●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0408-	●		●
82	HOSE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●	●
82	HOSE; VAC,VSV POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●
83	CLIP; VSV HOSE 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=8.3 & 16.5	8-94169-027-0	01	1	0309-	●		●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97109-066-0	01	1	0309-	●	●
85	HOSE; VAC,ENG SIDE 4HE1 ENG<RLY>	8-97239-327-0	01	1	0309-	●		●
113	NUT 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	01	1	0309-	●		●
151	CLIP; BAND FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0309-	●		●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0309-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-658-0	01	1	0309-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-98000-392-0	01	1	0502-	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
191	PIPE; VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0309-	●		●
191	PIPE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0309-	●
198	HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1 ENG<RLY> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0309-			●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1 ENG<RJH> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0309-		●

39 116 12 12 39 184 165 39 12 108 12 39 203 162 156 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0309-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-		●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0309-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=14.5	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0309-	●	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0309-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0309-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC ID=25.5	8-97077-492-0	01	1	0404-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> ID=25.5	8-97077-492-0	01	1	0404-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0309-	●		●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0309-	●		●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ>	9-09956-353-0	01	1	0309-	●		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97035-968-0	01	1	0309-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0309-	●		●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0309-	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0309-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-658-0	01	1	0309-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-98000-392-0	01	1	0502-	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0309-	●	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0309-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-94386-540-0	01	1	0309-0412	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94386-540-0	01	1	0501-	●
203	VALVE; CHECK	8-94386-540-0	01	1	0501-		●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0309-	●	●	●

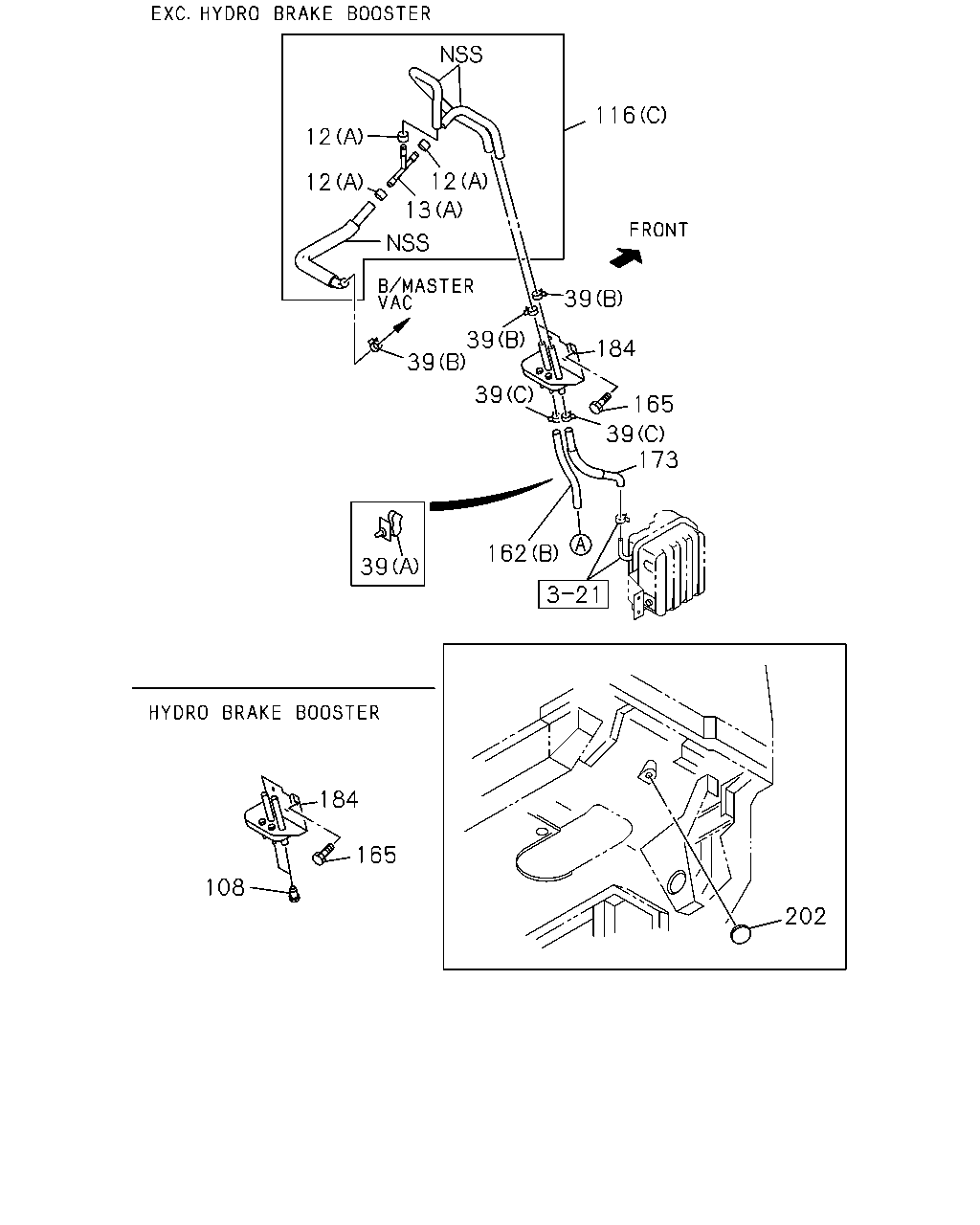

116 12 12 13 12 39 39 39 184 39 165 39 173 162 39 184 165 108 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0309-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-		●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0309-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=14.5	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0309-	●	●	●
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0309-	●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0309-		●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0309-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0309-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC ID=25.5	8-97077-492-0	01	1	0404-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> ID=25.5	8-97077-492-0	01	1	0404-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0309-	●		●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0309-	●		●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ>	9-09956-353-0	01	1	0309-	●		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97035-968-0	01	1	0309-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0309-	●		●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0309-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-658-0	01	1	0309-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-98000-392-0	01	1	0502-	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0309-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-875-0	01	1	0309-	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0309-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0309-	●	●	●
202	SEAL EXC. POWER ASSIST CLUTCH<S2T> OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0309-	●	●	●

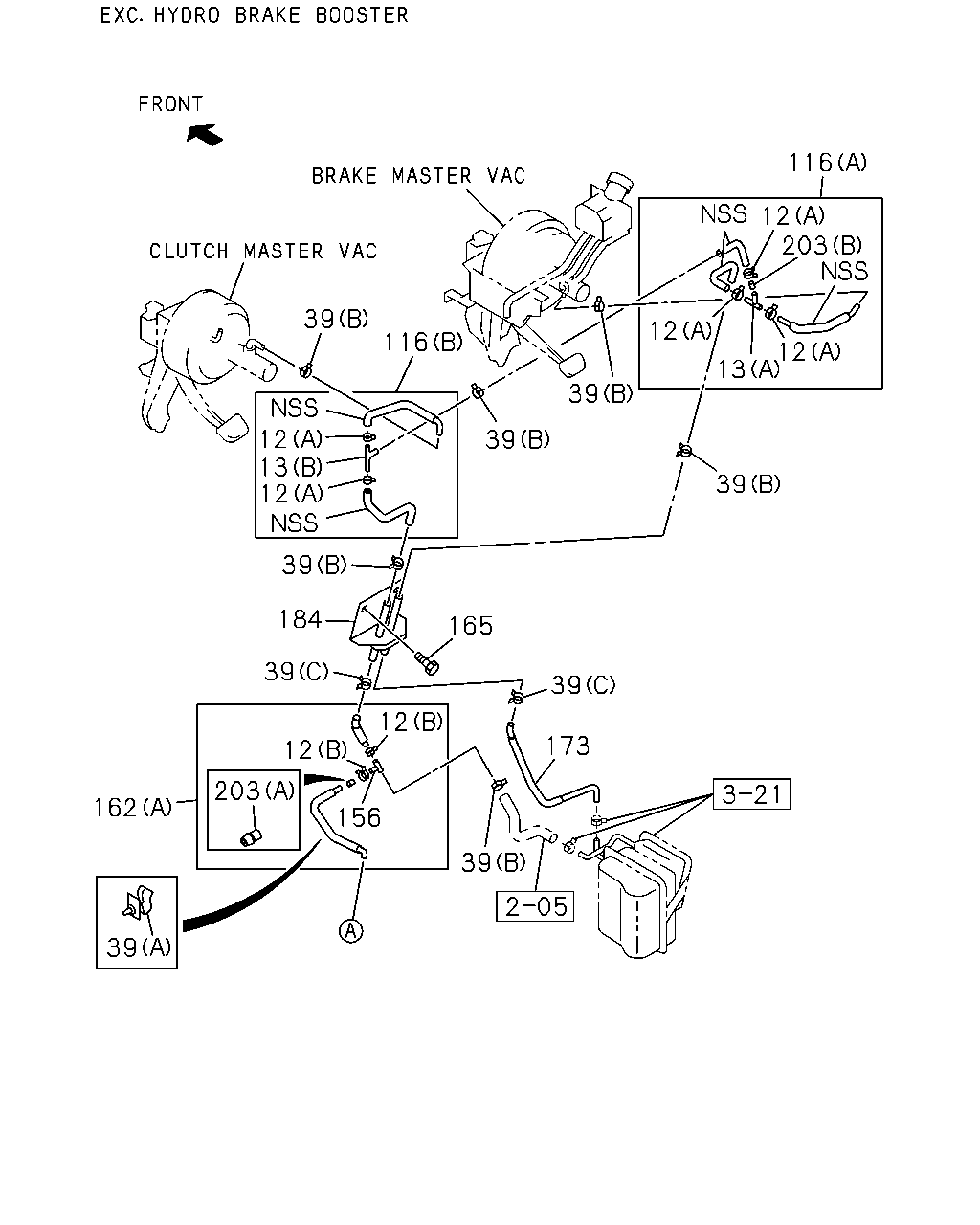

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 39 39 12 173 12 203 162 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0309-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0309-		●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0309-0412	●	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=14.5	8-94167-480-0	02	1	0501-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0309-	●	●	●
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0309-	●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0309-		●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0309-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0309-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0309-0403	●		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> ID=25.5	8-97077-492-0	01	1	0404-	●
39	CLIP; HOSE,VAC ID=25.5	8-97077-492-0	01	1	0404-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> ID=25.5	8-97077-492-0	01	1	0404-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0309-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0309-	●		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0309-	●		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97035-968-0	01	1	0309-0403	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97379-286-1	01	1	0404-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0309-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0309-	●		●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0309-	●	●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0309-	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-658-0	01	1	0309-0501	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-98000-392-0	01	1	0502-	●	●	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0309-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-875-0	01	1	0309-	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0309-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0309-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-94386-540-0	01	1	0309-0412	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94386-540-0	01	1	0501-	●
203	VALVE; CHECK	8-94386-540-0	01	1	0501-		●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0309-	●	●	●

198 43 198 87 78 80 85 78 66 82 81 30 33 33 234 66 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6X20 FLANGE	0-28680-620-0	01	1	0309-	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0309-		●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE	0-91150-106-0	01	1	0309-	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0309-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0309-	●
33	CLIP; VAC PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0309-	●	●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> (A) ID=4.8X2	8-94316-410-0	01	1	0309-	●		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0309-	●		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0309-	●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0309-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0309-			●
43	PIPE; VAC,MAG VLV TO UNION 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-807-0	01	1	0309-0507	●
43	PIPE; VAC,MAG VLV TO UNION 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98021-598-0	01	1	0508-	●
43	PIPE; VAC,MAG VLV TO UNION 4HG1 ENG<RJH>	8-97325-808-1	01	1	0309-		●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	11	1	0309-	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0309-		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0309-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0309-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0309-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0309-0403	●	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0404-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1 ENG<RJH> L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0404-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-793-0	01	1	0309-	●
80	PIPE; VAC,ENG SIDE 4HG1 ENG<RJH>	8-97325-793-0	01	1	0309-		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0309-	●		●
80	PIPE; VAC,ENG SIDE 4HE1 ENG<RLY> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0309-	●
81	PIPE; VAC,VSV 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-462-0	01	1	0309-	●	●
81	PIPE; VAC,VSV 4HE1 ENG<RLY>	8-97181-226-2	01	1	0309-	●		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0309-0407	●
82	HOSE; VAC,VSV EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0309-0407			●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0408-	●		●
82	HOSE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●	●
82	HOSE; VAC,VSV POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0309-	●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97109-066-0	01	1	0309-	●	●
85	HOSE; VAC,ENG SIDE 4HE1 ENG<RLY>	8-97239-327-0	01	1	0309-	●		●
87	PIPE; VAC,ENG TO MAG VLV 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-803-3	01	1	0309-	●
87	PIPE; VAC,ENG TO MAG VLV 4HG1 ENG<RJH>	8-97325-804-3	01	1	0309-		●
198	HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1 ENG<RLY> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0309-			●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0309-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1 ENG<RJH> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0309-		●
234	CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-	●
234	CLAMP; PIPE ID=10X2 H=22 THA	8-94252-455-2	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
