3-58 — FIXING PARTS; OIL PIPING (#20361) — 102 parça

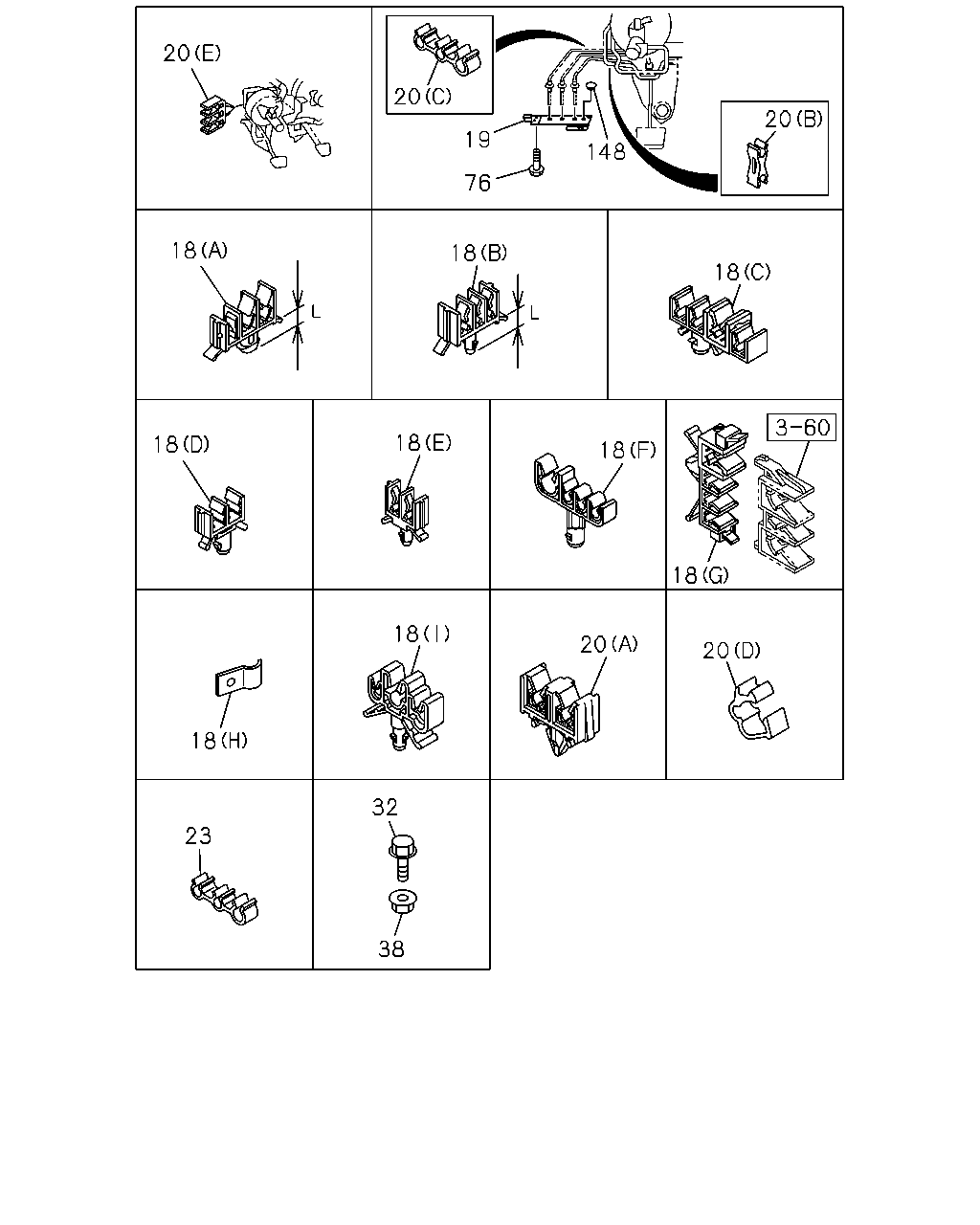

20 20 20 148 19 76 18 18 18 18 18 18 18 18 20 20 18 32 23 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0309-	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0309-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	04	1	0309-	●
18	CLIP; BRK PIPE (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	04	1	0309-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0309-	●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0309-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2	8-94455-816-0	01	1	0309-	●
18	CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0309-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0309-	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0309-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97326-158-1	04	1	0309-	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	04	1	0309-			●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) B=18 L=20	1-09700-372-0	02	1	0309-	●
18	CLIP; BRK PIPE (H) B=18 L=20	1-09700-372-0	02	1	0309-			●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	03	1	0309-	●
18	CLIP; BRK PIPE (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	03	1	0309-			●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0309-	●
18	CLIP; BRK PIPE (I) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0309-			●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0309-	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0309-			●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0309-	●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	02	1	0309-	●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0309-	●		●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0309-	●		●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	02	1	0309-0407	●		●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94424-234-0	01	1	0408-	●		●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	01	1	0309-0407	●		●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94424-234-0	02	1	0408-	●		●
18	CLIP; BRK PIPE (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	01	1	0309-0403	●	●	●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94131-710-2	01	1	0404-	●
18	CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94131-710-2	01	1	0404-	●
18	CLIP; BRK PIPE ID=6.5 & 4.8X2	8-94131-710-2	01	1	0404-		●	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	08	1	0309-	●	●	●
18	CLIP; BRK PIPE 4HG1 ENG<RJH> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	01	1	0309-			●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	06	1	0309-		●
19	BRACKET; OIL PIPE THA	8-97917-182-0	01	1	0309-	●	●	●
20	CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0309-	●	●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0309-	●	●	●
20	CLIP; BRK PIPE (C) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0309-	●	●	●
20	CLIP; BRK PIPE (B) ID=4.6X2 THA	8-94241-454-0	01	1	0309-	●	●	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0309-	●	●	●
23	CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> ID=6.4 & 4.8X2	8-94146-043-0	02	1	0309-	●
23	CLAMP; PIPE ID=6.4 & 4.8X2	8-94146-043-0	02	1	0309-			●
32	BOLT; CLIP,OIL PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-	●		●
38	NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0309-	●
38	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0309-			●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
148	GROMMET EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94294-358-0	01	1	0309-	●
148	GROMMET	8-94294-358-0	01	1	0309-			●

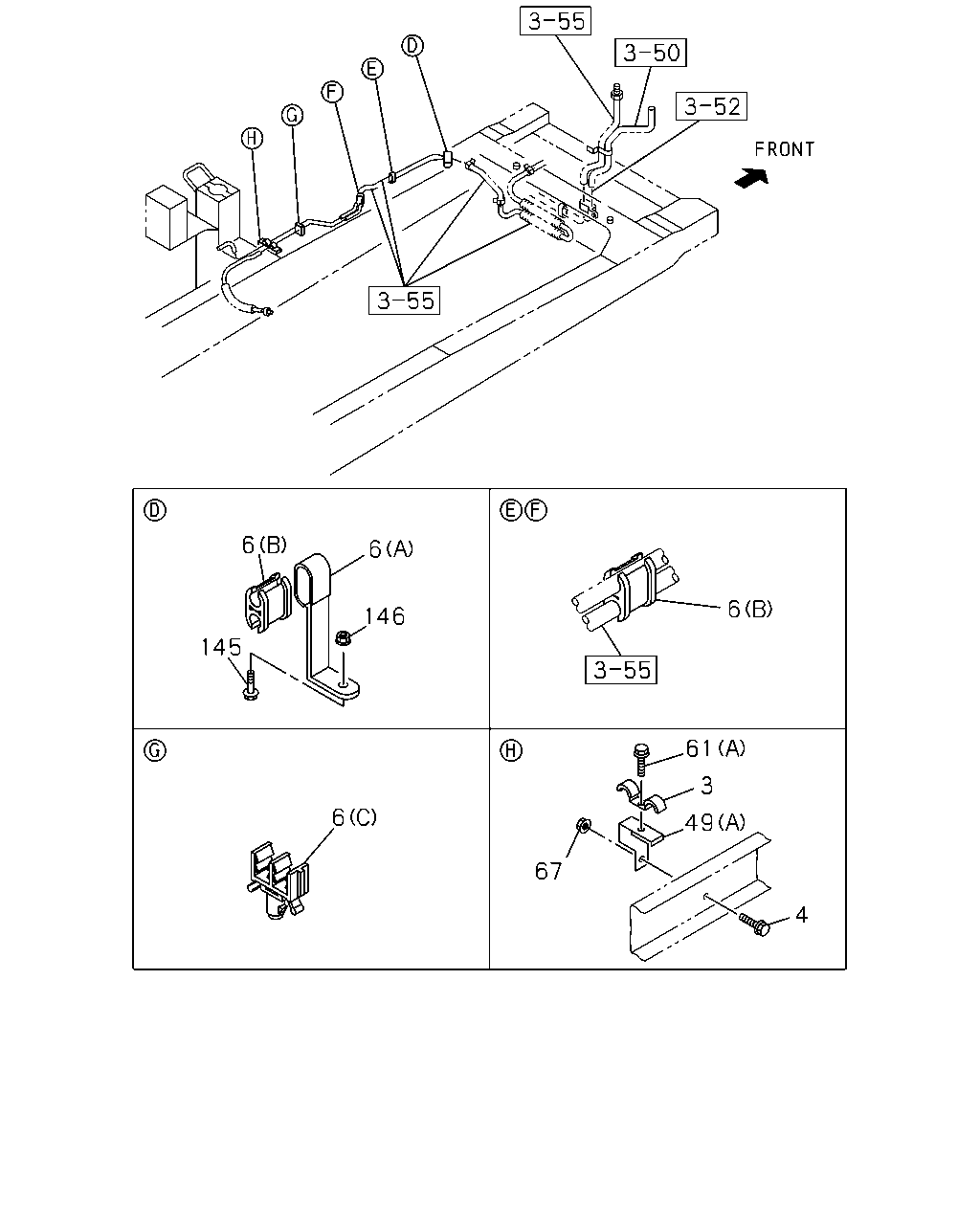

6 6 6 146 145 61 3 6 49 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0309-	●
3	CLIP; BRK PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0309-		●
4	BOLT; BRKT 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> M10X25 FLANGE	0-28681-025-0	01	1	0309-	●	●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (D) H=15 ID=14	1-09700-744-0	01	1	0309-	●
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X2 H=30 L=25 THA	1-09701-101-0	01	1	0309-	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25 THA	1-09701-101-0	01	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0309-	●
6	CLIP; PIPE (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0309-	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0309-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0309-	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0309-		●
49	BRACKET; BRK PIPE 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0309-	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE	0-28080-612-0	01	1	0309-	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0309-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE	0-28681-025-0	02	1	0309-	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0309-		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	02	1	0309-	●
67	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-		●
67	NUT; BRKT 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	01	1	0309-	●	●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	02	1	0309-		●
146	NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0309-	●
146	NUT; PIPE M8 FLANGE	0-91150-108-0	01	1	0309-		●

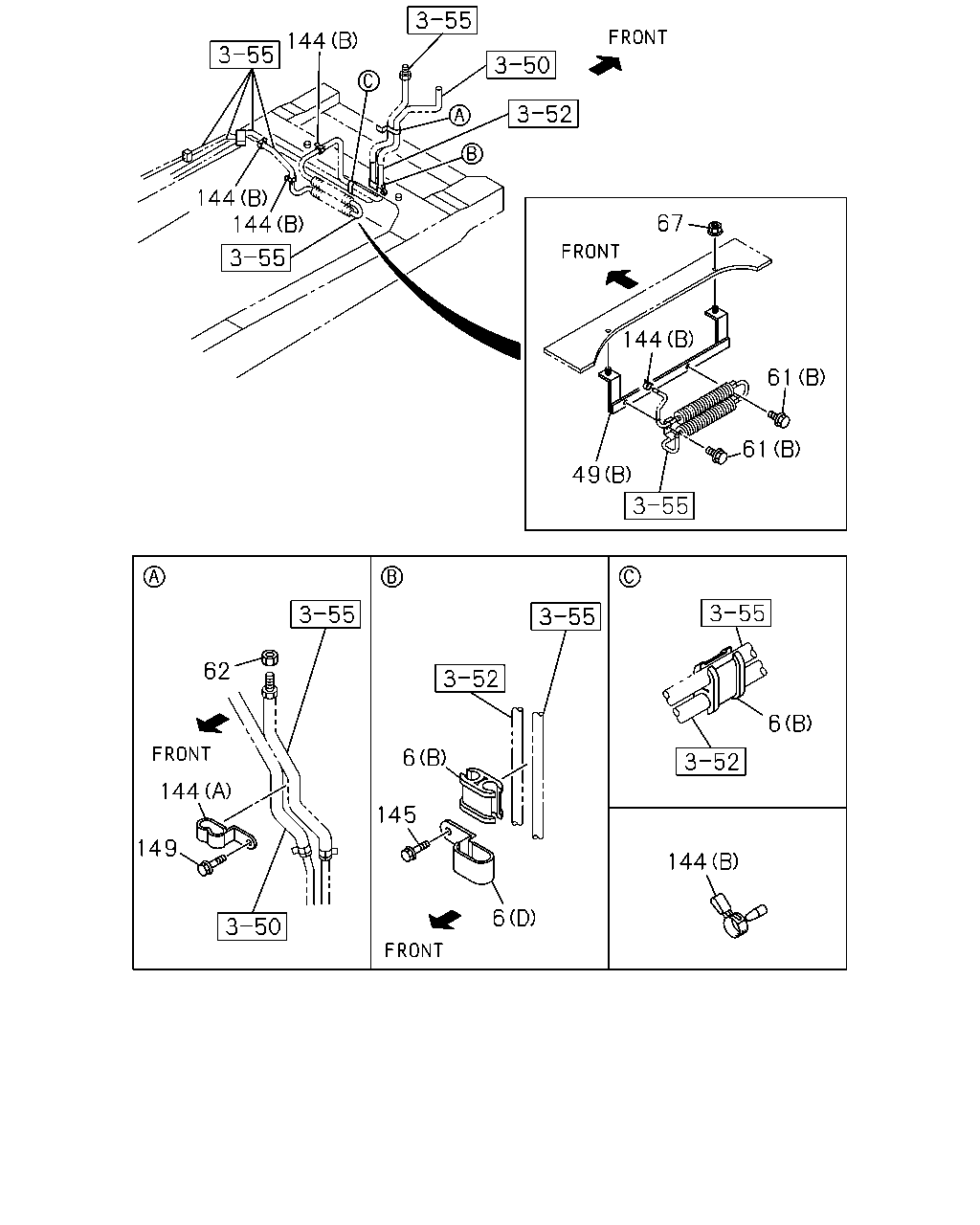

144 144 144 67 144 61 61 49 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (D) H=15 ID=14	1-09700-744-0	01	1	0309-	●
6	CLIP; PIPE (D) H=15 ID=14	1-09700-744-0	01	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X2 H=30 L=25 THA	1-09701-101-0	01	1	0309-	●
6	CLIP; PIPE (A) ID=14X2 H=30 L=25 THA	1-09701-101-0	01	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0309-	●
6	CLIP; PIPE (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0309-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0309-	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0309-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0309-	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0309-		●
49	BRACKET; BRK PIPE 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0309-	●	●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE	0-28080-612-0	01	1	0309-	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0309-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE	0-28681-025-0	02	1	0309-	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0309-		●
62	NUT HYDRO BRAKE BOOSTER<7QQ> M14	9-99111-414-0	01	1	0309-	●
62	NUT M14	9-99111-414-0	01	1	0309-		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	02	1	0309-	●
67	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-		●
67	NUT; BRKT 4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	01	1	0309-	●	●
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0309-	●
144	CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0309-		●
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0309-	●
144	CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0309-		●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	02	1	0309-		●
149	BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> M6X12 FLANGE	0-28080-612-0	01	1	0309-	●
149	BOLT; HOSE M6X12 FLANGE	0-28080-612-0	01	1	0309-		●
