3-55 — BRAKE PIPING; OIL,REAR
(#20360) — 25 parça
Tümü
A - NPC5SF
B - NPC5SN
C - NPC5SK
◀

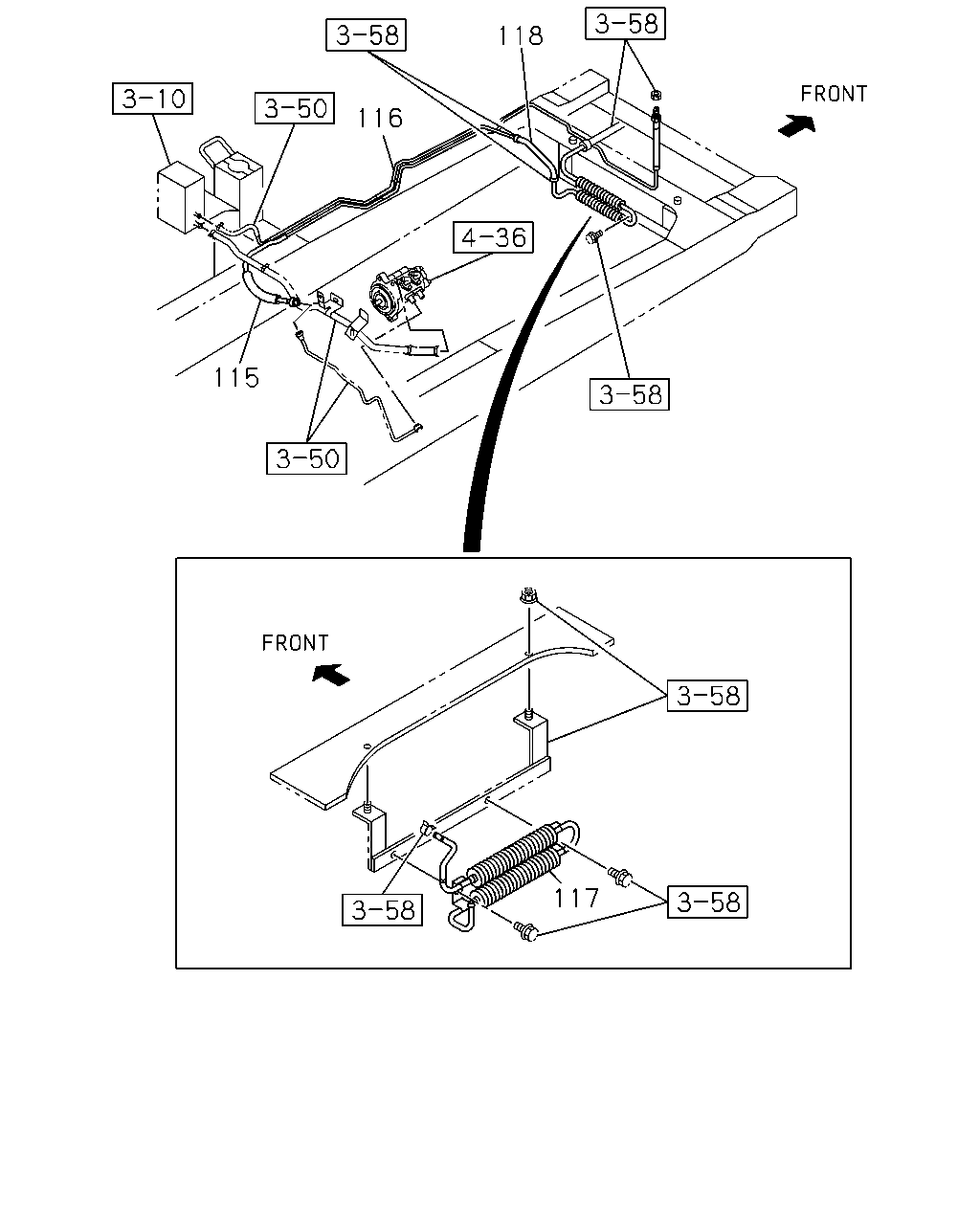

[355A] HYDRO BRAKE BOOSTER (6 parça)
[355A] ALL MODEL (19 parça)
▶
118
116
115
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
115
PIPE; PRESS,HYDRAULIC BRK BOOSTER
4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ>
8-97201-967-2
01
1
0309-
●
●
116
PIPE; BRK,PIPE TO TANK
4HE1 ENG<RLY> HYDRO BRAKE BOOSTER<7QQ> THA
8-97920-892-0
01
1
0309-
●
●
117
PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ>
8-97180-991-2
01
1
0309-
●
117
PIPE; BRK,RETURN
8-97180-991-2
01
1
0309-
●
118
HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ>
8-97181-217-2
01
1
0309-
●
118
HOSE; PIPE TO PIPE
8-97181-217-2
01
1
0309-
●
15
8
1
8
14
4
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ>
8-97308-913-0
01
1
0309-
●
1
HOSE; FLEX,RR BRK
8-97308-913-0
01
1
0309-
●
1
HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370
8-97035-574-0
01
1
0309-
●
1
HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
0309-
●
3
BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ>
8-97205-714-1
01
1
0309-
●
3
BRACKET; FLEX HOSE,RR BRK
8-97205-714-1
01
1
0309-
●
4
NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE
0-91150-108-0
01
1
0309-
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
01
1
0309-
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE
0-28680-825-0
01
1
0309-
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
01
1
0309-
●
8
CLIP; RR BRK
8-94137-662-0
02
1
0309-
●
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> THA
8-97919-116-1
01
1
0309-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA
8-97919-116-1
01
1
0309-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> THA
8-97916-816-0
01
1
0309-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA
8-97916-816-0
01
1
0309-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> THA
8-97912-873-1
01
1
0309-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
THA
8-97912-873-1
01
1
0309-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> THA
8-97916-842-0
01
1
0309-
●
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
THA
8-97916-842-0
01
1
0309-
●
