0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#2036) — 68 parça

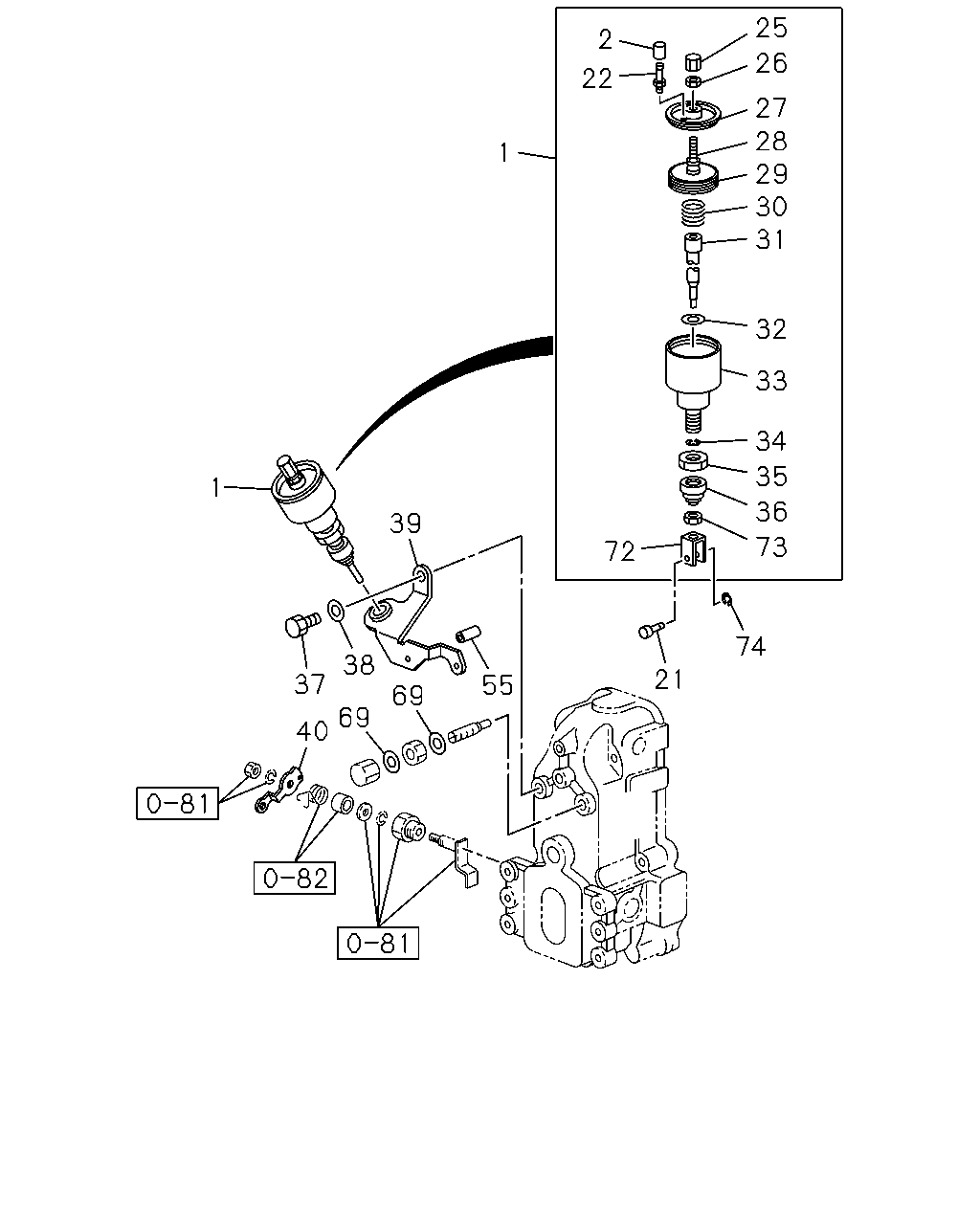

25 2 26 22 27 28 29 30 31 1 32 33 34 35 1 36 39 73 72 74 38 21 37 55 69 69 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, I = 1-15603-242-0	1-15728-015-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15728-016-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: H = 1-15602-197-2	1-15728-023-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15728-029-0	01	1	-
2	CAP; HOSE JOINT,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	8-94424-221-0	01	1	-
21	PIN; LEVER,ANEROID COMPENSATOR ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15729-581-0	01	1	-
22	JOINT; HOSE,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-360-0	01	1	-
25	NUT; CAP,SET BOLT,ANEROID COMPENSATOR CAP NUT ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-093-0	01	1	-
26	NUT; SET BOLT,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	9-81325-081-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15721-103-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-342-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: C = 1-15601-004-0, D = 1-15601-007-0	1-15729-358-0	01	1	-
29	BELLOWS; ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-622-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: H = 1-15602-197-2	1-15723-128-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15723-130-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, I = 1-15603-242-0	1-15723-203-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-357-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15729-578-0	01	1	-
32	SHIM; BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	9-81393-301-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15721-089-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	5-15729-271-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-359-0	01	1	-
36	COVER; DUST,HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	5-15721-045-0	01	1	-
37	BOLT; BRKT FIX,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-363-0	01	1	-
38	GASKET; SPACER BOLT,GOV L=96 ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1	1-15729-066-0	02	1	-
39	BRACKET; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-362-0	01	1	-
39	BRACKET; HSG,ANEROID COMPENSATOR ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15729-367-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 72 ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, H = 1-15602-197-2, I = 1-15603-242-0	1-15725-210-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 73 ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, H = 1-15602-197-2, I = 1-15603-242-0	1-15725-211-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 76 ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15725-213-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 77 ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15725-214-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 13 ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15725-319-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 14 ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15725-320-0	01	1	-
55	SPACER; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-355-0	01	1	-
69	WASHER; BRKT L=96 ASM PART: H = 1-15602-197-2, I = 1-15603-242-0	1-15729-066-0	02	1	-
72	CLEVIS; PUSH ROD,ANEROID COMPENSATOR ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15729-579-0	01	1	-
73	NUT; CLEVIS LOCK,ANEROID COMPENSATOR ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15729-395-0	01	1	-
74	RING; SNAP,LEVER PIN,ANEROID COMPENSAT ID=4 ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	9-09185-404-0	01	1	-

1 25 2 26 22 27 28 29 30 31 32 33 34 35 36 1 40 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, I = 1-15603-242-0	1-15728-015-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15728-016-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: H = 1-15602-197-2	1-15728-023-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15728-029-0	01	1	-
2	CAP; HOSE JOINT,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	8-94424-221-0	01	1	-
22	JOINT; HOSE,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-360-0	01	1	-
25	NUT; CAP,SET BOLT,ANEROID COMPENSATOR CAP NUT ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-093-0	01	1	-
26	NUT; SET BOLT,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	9-81325-081-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15721-103-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-342-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: C = 1-15601-004-0, D = 1-15601-007-0	1-15729-358-0	01	1	-
29	BELLOWS; ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-622-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: H = 1-15602-197-2	1-15723-128-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15723-130-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, I = 1-15603-242-0	1-15723-203-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-357-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15729-578-0	01	1	-
32	SHIM; BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	9-81393-301-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15721-089-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	5-15729-271-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-359-0	01	1	-
36	COVER; DUST,HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, E = 1-15601-018-1, F = 1-15601-023-1, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	5-15721-045-0	01	1	-
39	BRACKET; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15600-988-0, B = 1-15600-990-2, C = 1-15601-004-0, D = 1-15601-007-0, G = 1-15601-833-1, H = 1-15602-197-2, I = 1-15603-242-0	1-15729-362-0	01	1	-
39	BRACKET; HSG,ANEROID COMPENSATOR ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15729-367-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 72 ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, H = 1-15602-197-2, I = 1-15603-242-0	1-15725-210-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 73 ASM PART: A = 1-15600-988-0, C = 1-15601-004-0, D = 1-15601-007-0, H = 1-15602-197-2, I = 1-15603-242-0	1-15725-211-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 76 ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15725-213-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 77 ASM PART: E = 1-15601-018-1, F = 1-15601-023-1	1-15725-214-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 13 ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15725-319-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 14 ASM PART: B = 1-15600-990-2, G = 1-15601-833-1	1-15725-320-0	01	1	-
