3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#20357) — 34 parça
Tümü
A - NPC5SF
B - NPC5SN
C - NPC5SK
◀

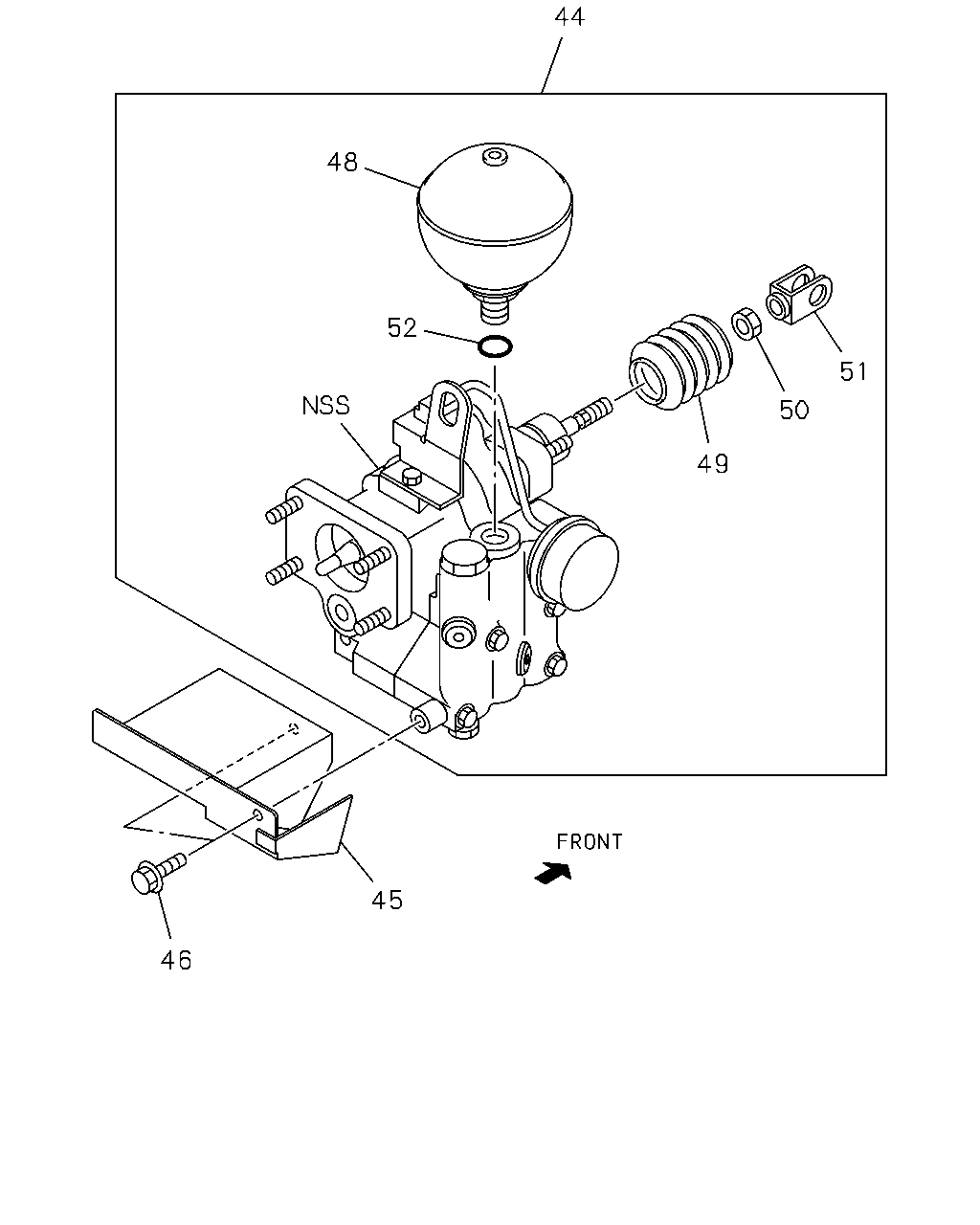

[331A] HYDRO BRAKE BOOSTER (16 parça)
[331A] EXC.HYDRO BRAKE BOOSTER (18 parça)
▶
44
48
52
51
50
49
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
44
BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ>
8-97209-212-0
01
1
0309-
●
44
BOOSTER; HYDRAULIC BRK
8-97209-212-0
01
1
0309-
●
45
PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ>
8-97182-354-1
01
1
0309-
●
45
PROTECTOR; HEAT
8-97182-354-1
01
1
0309-
●
46
BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> M6X10 FLANGE
0-28080-610-0
02
1
0309-
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28080-610-0
02
1
0309-
●
48
ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ>
8-97191-040-0
01
1
0309-
●
48
ACCUMULATOR; HYDRO BOOSTER
8-97191-040-0
01
1
0309-
●
49
GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ>
8-97191-043-0
01
1
0309-
●
49
GUARD; HYDRO BRK BOOSTER
8-97191-043-0
01
1
0309-
●
50
NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ>
8-97191-042-0
01
1
0309-
●
50
NUT; HYDRO BRK BOOSTER
8-97191-042-0
01
1
0309-
●
51
CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ>
8-97191-041-0
01
1
0309-
●
51
CLEVIS; HYDRO BRK BOOSTER
8-97191-041-0
01
1
0309-
●
52
GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ>
8-97191-038-0
01
1
0309-
●
52
GASKET; HYDRO BRK BOOSTER
8-97191-038-0
01
1
0309-
●
1
17
16
24
15
12
11
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97162-800-1
01
1
0309-
●
1
MASTER VAC ASM; BRK
8-97162-800-1
01
1
0309-
●
3
RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
9-83315-319-0
01
1
0309-
●
3
RETAINER; FRT SHELL,M/VAC
9-83315-319-0
01
1
0309-
●
11
FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97205-576-0
01
1
0309-
●
11
FILTER; M/VAC
8-97205-576-0
01
1
0309-
●
12
SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> THA
8-97205-577-0
01
1
0309-
●
12
SILENCER; M/VAC
THA
8-97205-577-0
01
1
0309-
●
15
RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-94375-083-0
01
1
0309-
●
15
RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
0309-
●
16
NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> M10
1-52139-008-0
01
1
0309-
●
16
NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
0309-
●
17
CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97224-610-0
01
1
0309-
●
17
CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
0309-
●
23
SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97079-350-0
01
1
0309-
●
23
SEAL; M/VAC
8-97079-350-0
01
1
0309-
●
24
GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97205-578-0
01
1
0309-
●
24
GUARD; VLV BODY,M/VAC
8-97205-578-0
01
1
0309-
●
