Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#20356) — 49 parça
Tümü
A - NPC5SF
B - NPC5SN
C - NPC5SK
◀

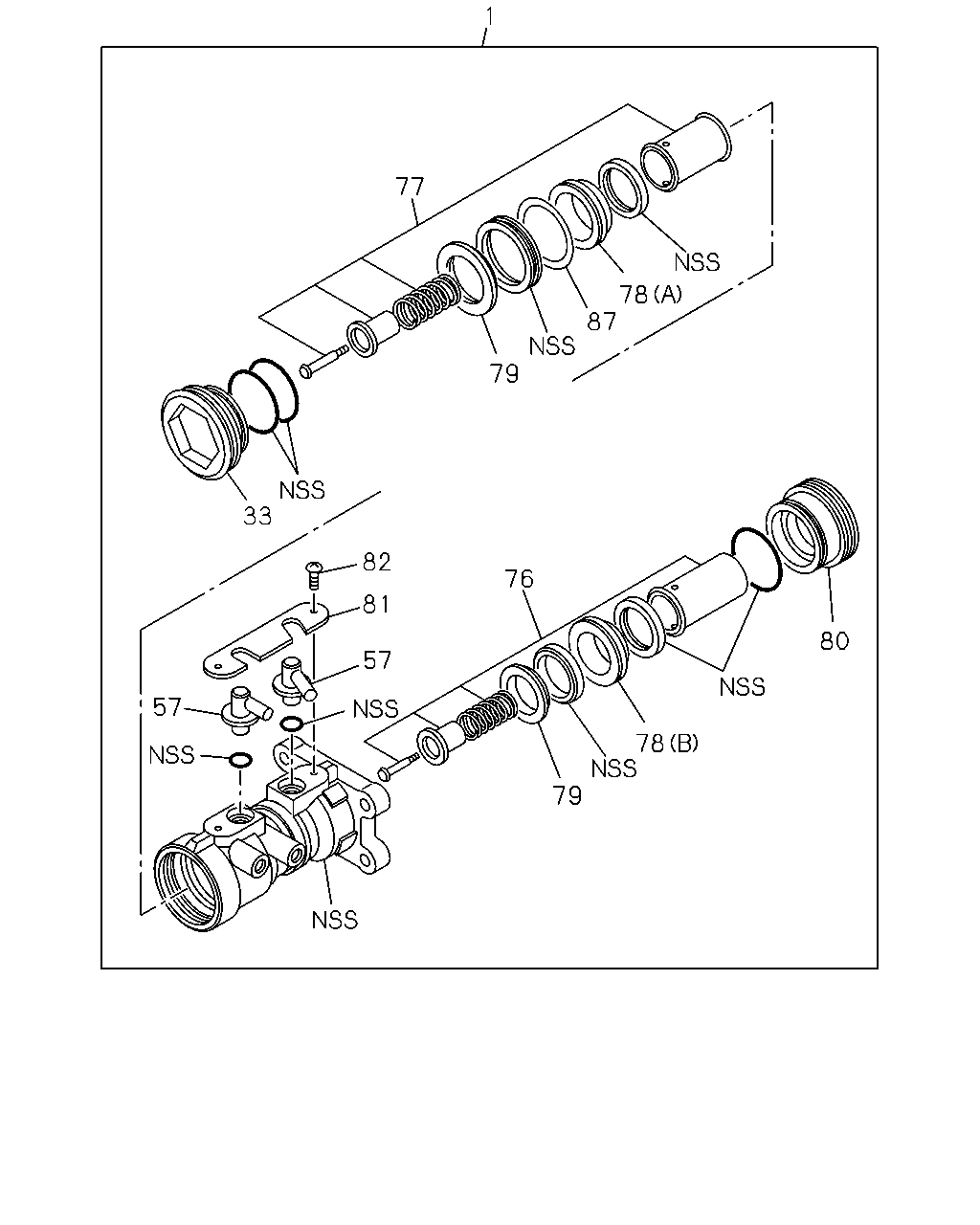

[330A] COMPONENT (45 parça)

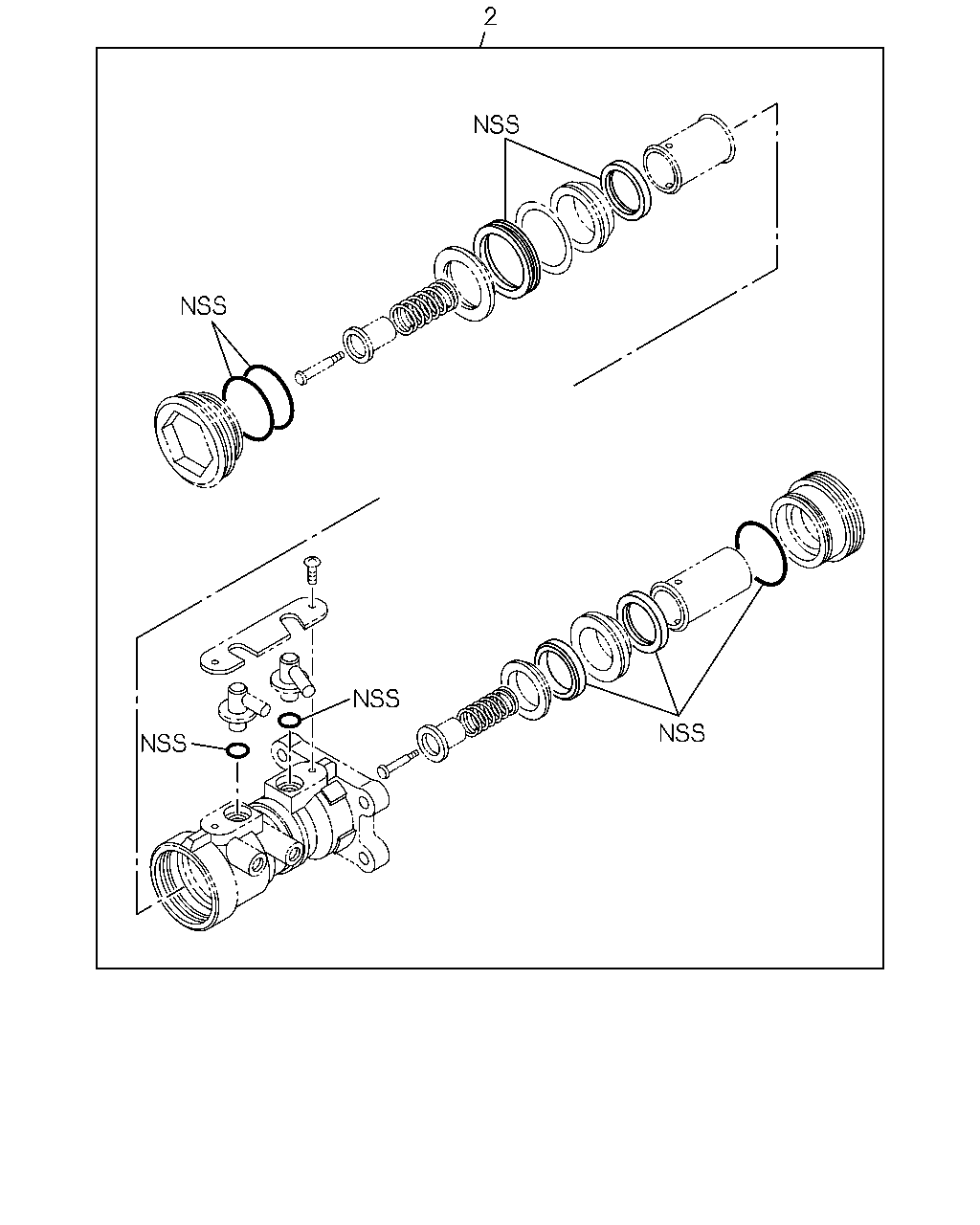

[330A] REPAIR KIT (4 parça)
▶
1
77
78
87
79
33
82
76
81
80
57
57
78
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ>
8-97254-770-0
01
1
0309-
●
1
CYLINDER ASM; BRK MASTER
8-97254-770-0
01
1
0309-
●
1
CYLINDER ASM; BRK MASTER
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97224-370-0
01
1
0309-
●
1
CYLINDER ASM; BRK MASTER
8-97224-370-0
01
1
0309-
●
33
PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ>
8-97186-699-0
01
1
0309-
●
33
PLUG; END,M/CYL
8-97186-699-0
01
1
0309-
●
33
PLUG; END,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97186-697-0
01
1
0309-
●
33
PLUG; END,M/CYL
8-97186-697-0
01
1
0309-
●
57
NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER<7QQ>
8-97130-441-0
02
1
0309-
●
57
NIPPLE; BRK M/CYL
8-97130-441-0
02
1
0309-
●
57
NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-442-0
02
1
0309-
●
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0309-
●
76
PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ>
8-97224-641-0
01
1
0309-
●
76
PISTON ASM; PRIMARY
8-97224-641-0
01
1
0309-
●
76
PISTON ASM; PRIMARY
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97224-643-0
01
1
0309-
●
76
PISTON ASM; PRIMARY
8-97224-643-0
01
1
0309-
●
77
PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ>
8-97224-640-0
01
1
0309-
●
77
PISTON ASM; SECONDARY
8-97224-640-0
01
1
0309-
●
77
PISTON ASM; SECONDARY
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97224-642-0
01
1
0309-
●
77
PISTON ASM; SECONDARY
8-97224-642-0
01
1
0309-
●
78
BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (A)
8-97170-695-0
01
1
0309-
●
78
BUSHING; MASTER CYL
(A)
8-97170-695-0
01
1
0309-
●
78
BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (B)
8-97207-685-0
01
1
0309-
●
78
BUSHING; MASTER CYL
(B)
8-97207-685-0
01
1
0309-
●
78
BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (A)
8-97130-455-0
01
1
0309-
●
78
BUSHING; MASTER CYL
(A)
8-97130-455-0
01
1
0309-
●
78
BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (B)
8-97217-312-0
01
1
0309-
●
78
BUSHING; MASTER CYL
(B)
8-97217-312-0
01
1
0309-
●
79
SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ>
8-97170-698-0
02
1
0309-
●
79
SUPPORTER; CUP
8-97170-698-0
02
1
0309-
●
79
SUPPORTER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-463-0
02
1
0309-
●
79
SUPPORTER; CUP
8-97130-463-0
02
1
0309-
●
80
COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ>
8-97170-692-0
01
1
0309-
●
80
COVER; MASTER CYL
8-97170-692-0
01
1
0309-
●
80
COVER; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-449-0
01
1
0309-
●
80
COVER; MASTER CYL
8-97130-449-0
01
1
0309-
●
81
HOLDER; NIPPLE
HYDRO BRAKE BOOSTER<7QQ>
8-97130-444-0
01
1
0309-
●
81
HOLDER; NIPPLE
8-97130-444-0
01
1
0309-
●
81
HOLDER; NIPPLE
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-445-0
01
1
0309-
●
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0309-
●
82
SCREW; HOLDER
8-97130-446-0
02
1
0309-
●
●
●
87
SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ>
8-97170-696-0
01
1
0309-
●
87
SPACER; CUP
8-97170-696-0
01
1
0309-
●
87
SPACER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-459-0
01
1
0309-
●
87
SPACER; CUP
8-97130-459-0
01
1
0309-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ>
8-97254-775-0
01
1
0309-
●
2
REPAIR KIT; BRK,M/CYL
8-97254-775-0
01
1
0309-
●
2
REPAIR KIT; BRK,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ>
8-97130-471-0
01
1
0309-
●
2
REPAIR KIT; BRK,M/CYL
8-97130-471-0
01
1
0309-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
