◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#20354) — 122 parça

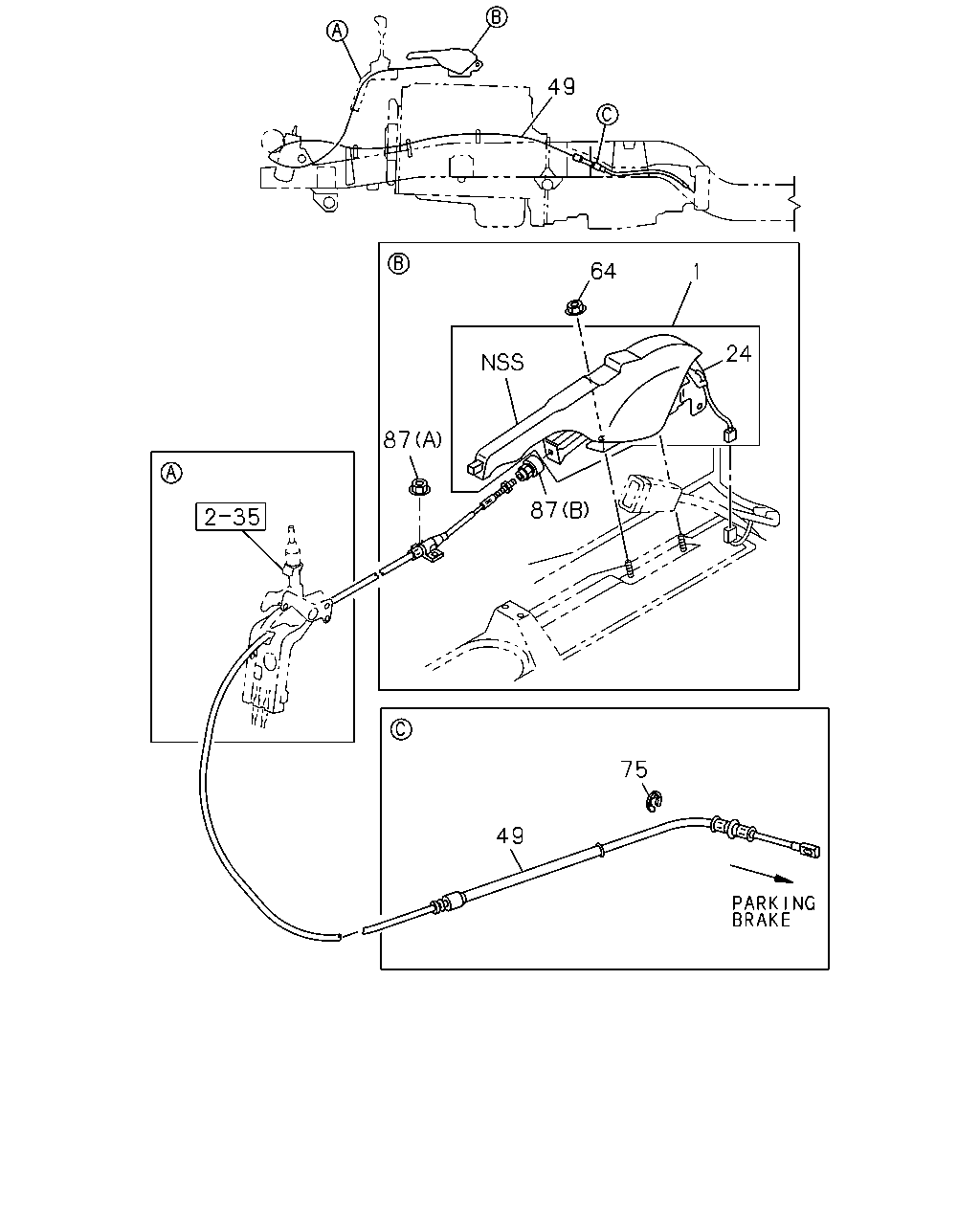

çizim 11094
49 64 1 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0309- ● ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0309- ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> M/T MYY5T<RSM> THA 		8-97943-916-0 01 1 0309- ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0309-0407 ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0408- ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97944-153-0 01 1 0408-0502 ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97922-893-0 01 1 0503- ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97148-609-4 01 1 0408-0502 ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0309- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0309-0403 ● ● ●
75 RING; SNAP,HAND BRK CABLE
M/T MYY5T<RSM> ID=12 		9-09185-412-0 01 1 0404-0407 ● ● ●
75 RING; SNAP,HAND BRK CABLE
M/T MYY5T<RSM> ID=12 		9-09185-412-0 01 1 0408- ● ●
86 BOLT
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X16 FLANGE 		0-28181-016-0 01 1 0408- ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0309- ● ● ●
87 NUT
(B) 		8-97088-730-1 01 1 0309-0310 ● ● ●
87 NUT
M6 		1-71996-312-0 01 1 0311- ● ● ●
98 BOLT; RR COVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X30 FLANGE 		0-28681-030-0 02 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 		9-09110-408-0 01 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 FLANGE 		9-46259-016-0 01 1 0408- ● ●
çizim 54101
49 24 223 241 324 225 334 181 237 236 85 235 241 238
BalonParca AdiParca NoAdetTipApplied Date A B C
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0309- ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> M/T MYY5T<RSM> THA 		8-97943-916-0 01 1 0309- ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0309-0407 ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0408- ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97944-153-0 01 1 0408-0502 ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97922-893-0 01 1 0503- ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97148-609-4 01 1 0408-0502 ● ●
85 CLIP; BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> ID=12 L=70 		1-09700-097-1 01 1 0309-0407 ● ●
85 CLIP; BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> ID=12 L=70 		1-09700-097-1 01 1 0408- ●
86 BOLT
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X16 FLANGE 		0-28181-016-0 01 1 0408- ● ●
98 BOLT; RR COVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X30 FLANGE 		0-28681-030-0 02 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 		9-09110-408-0 01 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 FLANGE 		9-46259-016-0 01 1 0408- ● ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28681-030-0 01 1 0309- ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0309- ●
181 BOLT; BRKT
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28 		9-09525-556-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(E) ID=16 L=28 		9-09525-556-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20 		1-09701-138-1 01 1 0309- ● ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0309- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 		8-97325-052-0 01 1 0309-0403 ●
235 BRACKET; CONT CABLE TO FRAME 8-97325-052-0 01 1 0309-0403 ●
235 BRACKET; CONT CABLE TO FRAME
4HE1 ENG<RLY> M/T MYY5T<RSM> 		8-97325-052-0 01 1 0404-0407 ● ●
235 BRACKET; CONT CABLE TO FRAME
4HE1 ENG<RLY> M/T MYY5T<RSM> 		8-97325-052-0 01 1 0408- ●
236 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE 		0-28681-035-0 01 1 0309-0403 ●
236 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 01 1 0309-0403 ●
236 BOLT; BRKT TO FRAME
4HE1 ENG<RLY> M/T MYY5T<RSM> M10X35 FLANGE 		0-28681-035-0 01 1 0404-0407 ● ●
236 BOLT; BRKT TO FRAME
4HE1 ENG<RLY> M/T MYY5T<RSM> M10X35 FLANGE 		0-28681-035-0 01 1 0408- ●
237 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0309-0403 ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 01 1 0309-0403 ●
237 NUT; BRKT TO FRAME
M/T MYY5T<RSM> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0404-0407 ●
237 NUT; BRKT TO FRAME
M/T MYY5T<RSM> M10 FLANGE 		0-91150-110-0 01 1 0404-0407 ●
237 NUT; BRKT TO FRAME
M/T MYY5T<RSM> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0408- ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0309-0403 ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0309-0403 ●
238 BOLT; CLIP TO BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> M8X25 FLANGE 		0-28680-825-0 01 1 0404-0407 ● ●
238 BOLT; CLIP TO BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> M8X25 FLANGE 		0-28680-825-0 01 1 0408- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0309-0403 ●
241 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0309-0403 ●
241 NUT; BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> M8 FLANGE 		0-91150-108-0 01 1 0404-0407 ● ●
241 NUT; BRKT
4HE1 ENG<RLY> M/T MYY5T<RSM> M8 FLANGE 		0-91150-108-0 01 1 0408- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0309- ●
241 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0309- ●
324 BRACKET
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97307-874-0 01 1 0408- ● ●
324 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97288-446-0 01 1 0309- ● ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0309- ● ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97071-354-2 01 1 0309- ● ●
324 BRACKET
4HE1 ENG<RLY> (D) 		8-97188-151-0 01 1 0309- ● ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0309- ● ● ●

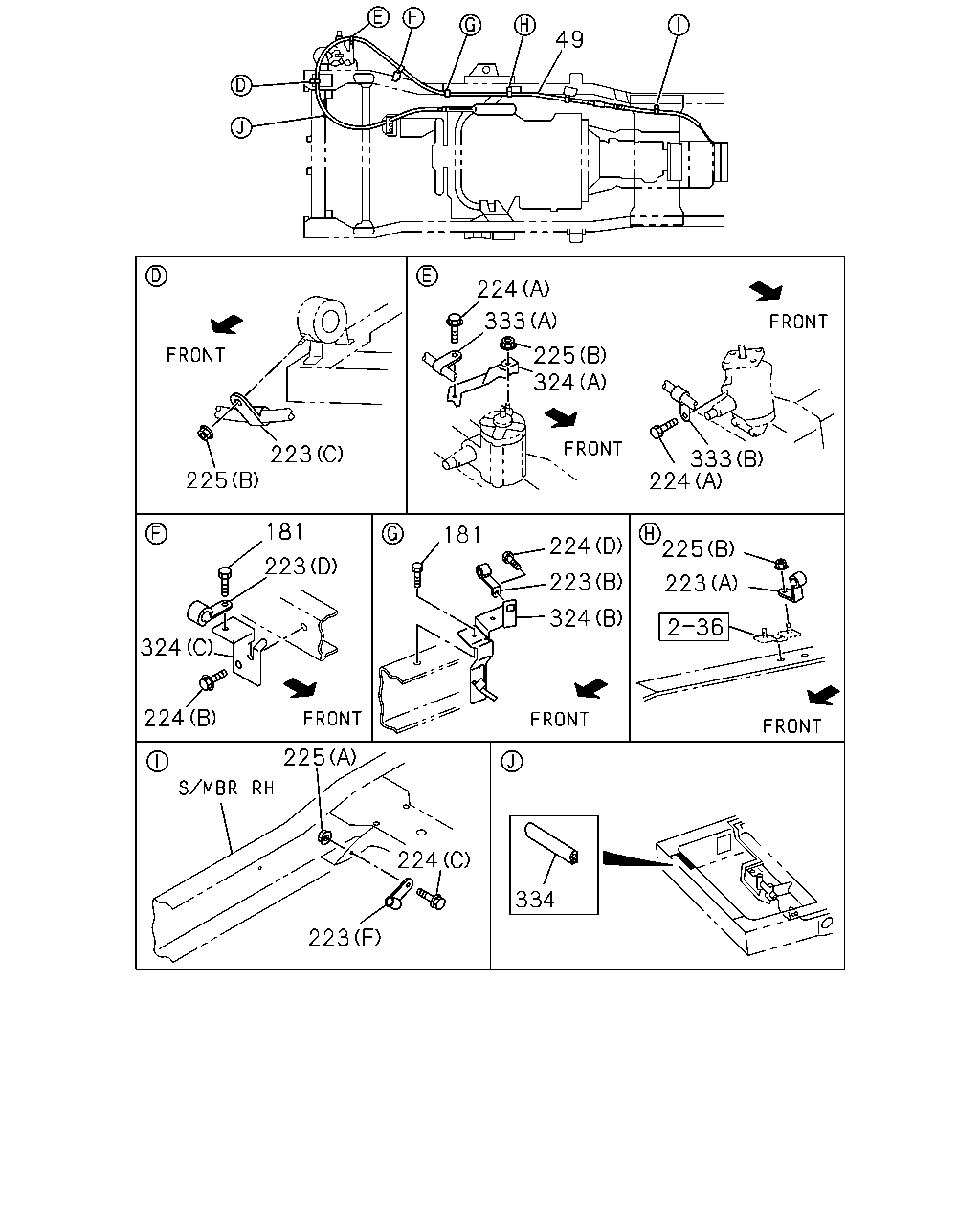

çizim 56044
49 224 333 225 324 223 333 224 225 181 181 225 224 223 223 223 324 324 224 225 224 334 223
BalonParca AdiParca NoAdetTipApplied Date A B C
49 CABLE; PARKING BRK
4HG1 ENG<RJH> M/T MYY5T<RSM> THA 		8-97943-916-0 01 1 0309- ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0309-0407 ● ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MYY5T<RSM> THA 		8-97943-917-0 01 1 0408- ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97944-153-0 01 1 0408-0502 ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> THA 		8-97922-893-0 01 1 0503- ● ●
53 CABLE; PARK BRK,FRT LWR
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97148-609-4 01 1 0408-0502 ● ●
86 BOLT
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X16 FLANGE 		0-28181-016-0 01 1 0408- ● ●
98 BOLT; RR COVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X30 FLANGE 		0-28681-030-0 02 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 		9-09110-408-0 01 1 0408- ● ●
101 NUT; CABLE TO LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8 FLANGE 		9-46259-016-0 01 1 0408- ● ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28681-030-0 01 1 0309- ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0309- ●
181 BOLT; BRKT
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28 		9-09525-556-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(E) ID=16 L=28 		9-09525-556-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0309- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0309- ● ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20 		1-09701-138-1 01 1 0309- ● ●
224 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0309- ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0309- ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X16 FLANGE 		0-28080-816-0 01 1 0309- ● ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0309- ● ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0309-0407 ● ● ●
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0408- ● ● ●
224 BOLT; CABLE CLIP
4HE1 ENG<RLY> M8X25 FLANGE 		0-28680-825-0 01 1 0408- ● ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0309- ● ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0309- ● ●
324 BRACKET
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97307-874-0 01 1 0408- ● ●
324 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97288-446-0 01 1 0309- ● ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0309- ● ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97071-354-2 01 1 0309- ● ●
324 BRACKET
4HE1 ENG<RLY> (D) 		8-97188-151-0 01 1 0309- ● ●
333 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0309- ● ●
333 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0309-0407 ● ●
333 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0408- ●
333 CLIP; CABLE
4HE1 ENG<RLY> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0408- ●
333 CLIP; CABLE
EXC. POWER STEERING<N40> ID=11 L=60 		9-09525-096-0 01 1 0408- ●
333 CLIP; CABLE
4HE1 ENG<RLY> M/T MZZ6F<RSR> ID=11 L=60 		9-09525-096-0 01 1 0408- ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0309- ● ● ●
