3-08 — PARKING BRAKE (#20352) — 76 parça

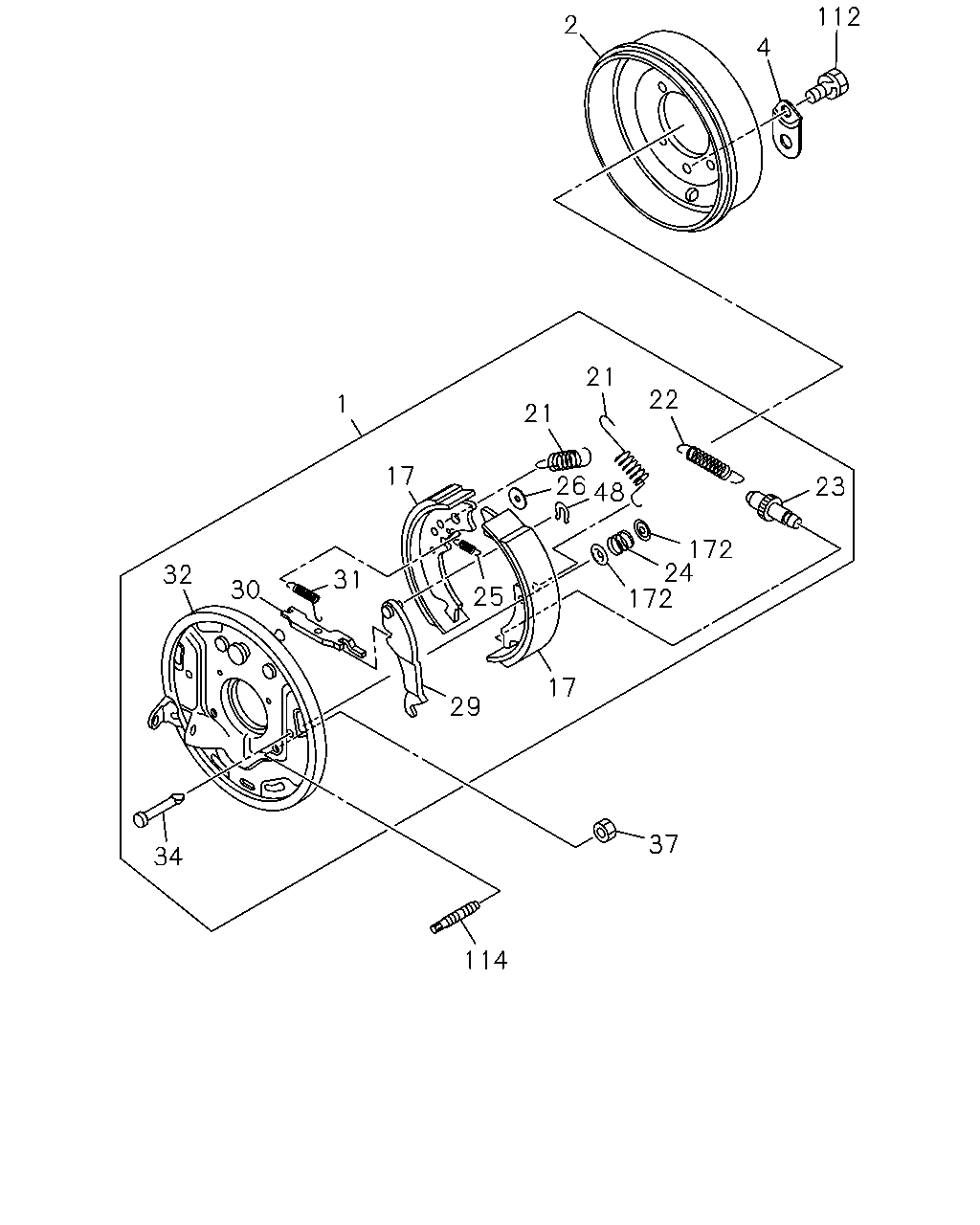

çizim 56086
112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T<RSM> 		8-97308-175-0 01 1 0309-0407 ● ● ●
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T<RSM> 		8-97308-175-0 01 1 0408- ● ●
2 DRUM; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46211-057-0 01 1 0408- ● ●
2 DRUM; PARKING BRK
M/T MYY5T<RSM> THA 		8-97916-628-0 01 1 0309-0407 ● ● ●
2 DRUM; PARKING BRK
M/T MYY5T<RSM> THA 		8-97916-628-0 01 1 0408- ● ●
4 COVER; ADJ HOLE
M/T MYY5T<RSM> 		5-46219-001-0 01 1 0309-0407 ● ● ●
4 COVER; ADJ HOLE
M/T MYY5T<RSM> 		5-46219-001-0 01 1 0408- ● ●
8 FLANGE; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97252-811-1 01 1 0408- ● ●
13 BRACE; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46239-003-0 01 1 0412- ● ●
13 BRACE; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46239-003-0 01 1 0408-0410 ● ●
17 SHOE; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97042-934-1 02 1 0412- ● ●
17 SHOE; PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97042-934-1 02 1 0408-0410 ● ●
17 SHOE; PARKING BRK
M/T MYY5T<RSM> 		8-97020-250-2 02 1 0309-0407 ● ● ●
17 SHOE; PARKING BRK
M/T MYY5T<RSM> 		8-97020-250-2 02 1 0408- ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09586-002-0 02 1 0412- ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09586-002-0 02 1 0408-0410 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09583-280-0 01 1 0412- ● ●
21 SPRING; RETURN,PARKING BRK SHOE
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09583-280-0 01 1 0408-0410 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T<RSM> 		8-94132-157-0 02 1 0309-0407 ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T<RSM> 		8-94132-157-0 02 1 0408- ● ●
22 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T<RSM> 		8-94107-618-0 01 1 0309-0407 ● ● ●
22 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T<RSM> 		8-94107-618-0 01 1 0408- ● ●
23 SCREW; ADJ,PARKING BRK SHOE
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46240-004-0 01 1 0412- ● ●
23 SCREW; ADJ,PARKING BRK SHOE
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46240-004-0 01 1 0408-0410 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T<RSM> 		5-47165-025-0 01 1 0309-0407 ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T<RSM> 		5-47165-025-0 01 1 0408- ● ●
24 SPRING; BRK SHOE
M/T MYY5T<RSM> 		8-94132-155-0 02 1 0309-0407 ● ● ●
24 SPRING; BRK SHOE
M/T MYY5T<RSM> 		8-94132-155-0 02 1 0408- ● ●
25 SPRING; SHOE ALIGNMENT
M/T MYY5T<RSM> 		8-94132-156-0 01 1 0309-0407 ● ● ●
25 SPRING; SHOE ALIGNMENT
M/T MYY5T<RSM> 		8-94132-156-0 01 1 0408- ● ●
26 PLATE; SHOE GUIDE
M/T MYY5T<RSM> 		9-09851-986-0 01 1 0309-0407 ● ● ●
26 PLATE; SHOE GUIDE
M/T MYY5T<RSM> 		9-09851-986-0 01 1 0408- ● ●
29 LEVER; PARKING BRK
M/T MYY5T<RSM> 		8-97027-125-0 01 1 0309-0407 ● ● ●
29 LEVER; PARKING BRK
M/T MYY5T<RSM> 		8-97027-125-0 01 1 0408- ● ●
30 STRUT; PARKING BRK
M/T MYY5T<RSM> 		8-94311-779-0 01 1 0309-0407 ● ● ●
30 STRUT; PARKING BRK
M/T MYY5T<RSM> 		8-94311-779-0 01 1 0408- ● ●
31 SPRING; SHOE TO STRUT
M/T MYY5T<RSM> 		8-94132-158-0 01 1 0309-0407 ● ● ●
31 SPRING; SHOE TO STRUT
M/T MYY5T<RSM> 		8-94132-158-0 01 1 0408- ● ●
32 PLATE; SUPPORT,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46213-069-0 01 1 0412- ● ●
32 PLATE; SUPPORT,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46213-069-0 01 1 0408-0410 ● ●
32 PLATE; SUPPORT,PARKING BRK
M/T MYY5T<RSM> 		8-97308-176-0 01 1 0309-0407 ● ● ●
32 PLATE; SUPPORT,PARKING BRK
M/T MYY5T<RSM> 		8-97308-176-0 01 1 0408- ● ●
33 SHAFT; CAM,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46251-009-0 01 1 0412- ● ●
33 SHAFT; CAM,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46251-009-0 01 1 0408-0410 ● ●
34 PIN; BRK SHOE
M/T MYY5T<RSM> 		8-94132-159-0 02 1 0309-0407 ● ● ●
34 PIN; BRK SHOE
M/T MYY5T<RSM> 		8-94132-159-0 02 1 0408- ● ●
37 NUT; SUPPORT PLATE
4HE1 ENG<RLY> M/T MZZ6F<RSR> M14 FLANGE 		1-09440-048-0 04 1 0408- ● ●
37 NUT; SUPPORT PLATE
M/T MYY5T<RSM> M12 LOCK NUT 		8-97248-173-0 04 1 0309-0407 ● ● ●
37 NUT; SUPPORT PLATE
M/T MYY5T<RSM> M12 LOCK NUT 		8-97248-173-0 04 1 0408- ● ●
39 COVER; DUST,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46213-075-0 01 1 0412- ● ●
39 COVER; DUST,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46213-075-0 01 1 0408-0410 ● ●
40 LEVER; CM/SHF,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46252-041-0 01 1 0412- ● ●
40 LEVER; CM/SHF,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46252-041-0 01 1 0408-0410 ● ●
41 PIN; KNOCK,LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		9-09878-594-0 01 1 0412- ● ●
41 PIN; KNOCK,LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		9-09878-594-0 01 1 0408-0410 ● ●
42 SPRING; RETURN,LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09583-041-0 01 1 0412- ● ●
42 SPRING; RETURN,LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09583-041-0 01 1 0408-0410 ● ●
46 WASHER; LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09509-057-0 01 1 0412- ● ●
46 WASHER; LEVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-09509-057-0 01 1 0408-0410 ● ●
48 RETAINER; PIN,PARKING BRK
M/T MYY5T<RSM> 		9-46349-005-1 01 1 0309-0407 ● ● ●
48 RETAINER; PIN,PARKING BRK
M/T MYY5T<RSM> 		9-46349-005-1 01 1 0408- ● ●
54 BOLT; COVER
4HE1 ENG<RLY> M/T MZZ6F<RSR> M8X18 W/LK WASHER 		0-50040-818-0 02 1 0408- ● ●
81 COVER; CHECK HOLE,PARKING BRK
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		1-46219-019-0 02 1 0408- ● ●
110 BRAKE ASM; PARKING
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97041-474-3 01 1 0408-0410 ● ●
110 BRAKE ASM; PARKING
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97205-628-0 01 1 0411- ● ●
112 BOLT; COVER TO BRK DRUM
M/T MYY5T<RSM> M6X16 W/LK WASHER 		0-50040-616-0 01 1 0404-0407 ● ● ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0309-0403 ● ● ●
112 BOLT; COVER TO BRK DRUM
M/T MYY5T<RSM> M6X16 W/LK WASHER 		0-50040-616-0 01 1 0408- ● ●
114 STUD; SUPPORT PLATE
4HE1 ENG<RLY> M/T MZZ6F<RSR> M14X22.5 L=42.5 		1-09302-138-1 04 1 0408- ● ●
114 STUD; SUPPORT PLATE
M/T MYY5T<RSM> 		8-97289-280-0 04 1 0309-0407 ● ● ●
114 STUD; SUPPORT PLATE
M/T MYY5T<RSM> 		8-97289-280-0 04 1 0408- ● ●
130 BOLT; BRKT
4HE1 ENG<RLY> M/T MZZ6F<RSR> M10X25 FLANGE 		0-28181-025-0 03 1 0408- ● ●
172 CUP; SHOE HOLD
M/T MYY5T<RSM> 		9-47162-033-0 04 1 0309-0407 ● ● ●
172 CUP; SHOE HOLD
M/T MYY5T<RSM> 		9-47162-033-0 04 1 0408- ● ●
197 BRACKET; CENTER BRAKE CABLE
4HE1 ENG<RLY> M/T MZZ6F<RSR> 		8-97244-812-0 01 1 0408- ● ●
198 BOLT; KNURL
4HE1 ENG<RLY> M/T MZZ6F<RSR> M12X39 		1-09046-001-2 04 1 0408- ● ●
