◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#20351) — 93 parça

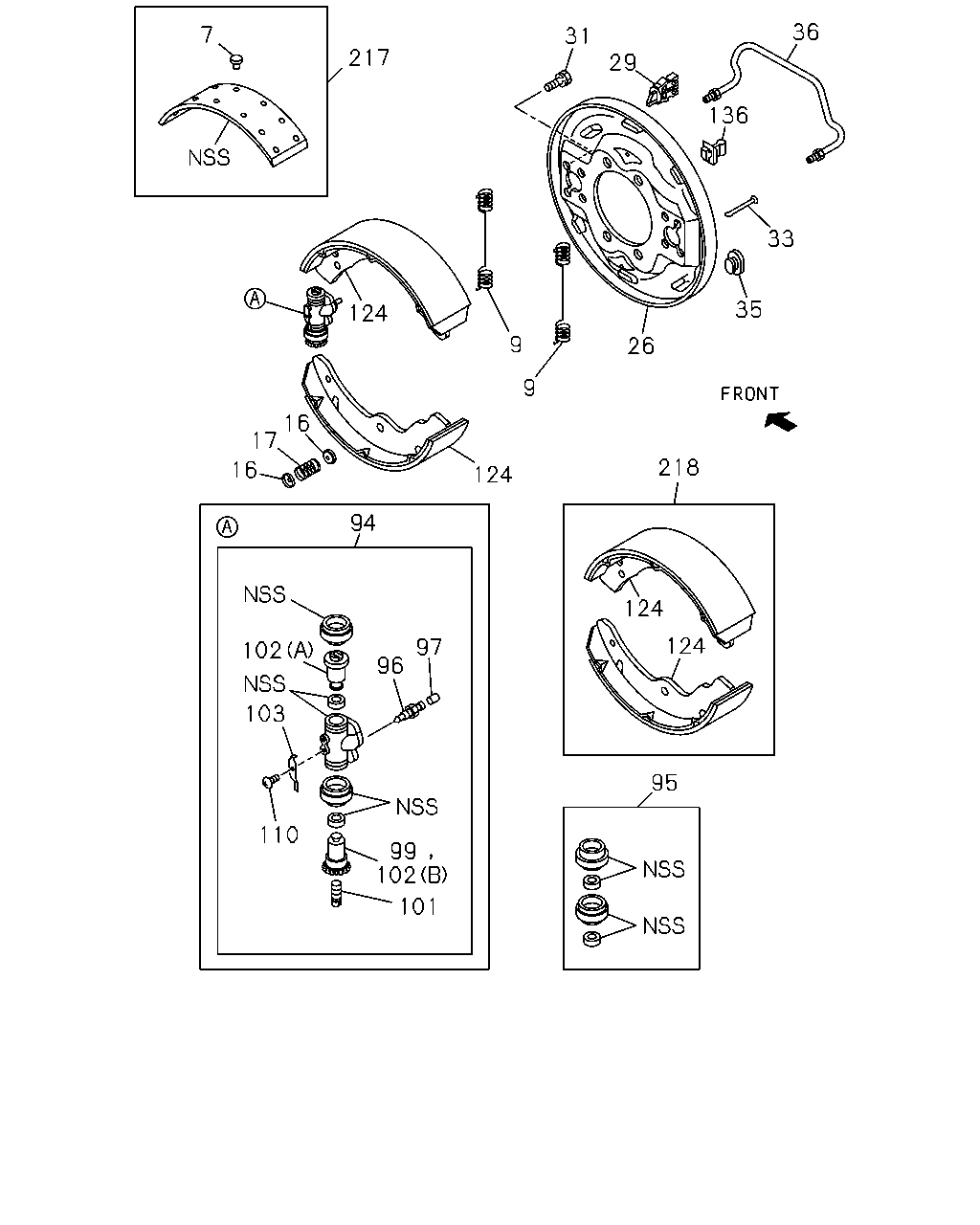

çizim 56085
36 7 31 217 29 136 33 35 124 9 26 9 16 17 218 16 124 94 124 124 97 102 96 103 95 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date A B C
7 RIVET; LINING,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 0309- ●
7 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0309- ●
7 RIVET; LINING,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 64 1 0309- ●
7 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0309- ●
9 SPRING; RETURN,BRK SHOE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 0309- ●
9 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0309- ●
9 SPRING; RETURN,BRK SHOE
FRAME STRAIGHT TYPE<7KJ> 		8-97122-869-0 04 1 0309- ●
9 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0309- ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 0309-0403 ● ● ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 0408- ● ● ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 0404-0407 ● ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 0309-0403 ● ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 0408- ● ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 0404-0407 ● ● ●
26 PLATE; BACK,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-574-0 01 1 0309- ●
26 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0309- ●
26 PLATE; BACK,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-573-0 01 1 0309- ●
26 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0309- ●
26 PLATE; BACK,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97134-731-0 01 1 0309- ●
26 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0309- ●
26 PLATE; BACK,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97134-732-0 01 1 0309- ●
26 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0309- ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 0309- ● ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0309-0403 ● ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0408- ● ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0404-0407 ● ● ●
33 PIN; SHOE HOLD DOWN
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 0309- ●
33 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0309- ●
33 PIN; SHOE HOLD DOWN
FRAME STRAIGHT TYPE<7KJ> 		8-97122-870-0 04 1 0309- ●
33 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0309- ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0309-0403 ● ● ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0408- ● ● ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0404-0407 ● ● ●
36 PIPE; OIL,RR BRK
FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-705-0 02 1 0309- ●
36 PIPE; OIL,RR BRK
THA 		8-97940-705-0 02 1 0309- ●
36 PIPE; OIL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97943-810-0 02 1 0309- ●
36 PIPE; OIL,RR BRK
THA 		8-97943-810-0 02 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-227-0 02 1 0309- ●
94 CYLINDER; WHEEL,RR BRK 8-97332-227-0 02 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97332-225-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97332-225-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97332-226-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97332-226-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-570-0 02 1 0309- ●
94 CYLINDER; WHEEL,RR BRK 8-97353-570-0 02 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> REAR 		8-97353-571-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97353-572-0 01 1 0309- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0309- ●
95 CUP SET; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87832-051-0 02 1 0309- ●
95 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0309- ●
95 CUP SET; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		5-87832-080-0 02 1 0309- ●
95 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0309- ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0309-0403 ● ● ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0408- ● ● ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0404-0407 ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0309-0403 ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0408- ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0404-0407 ● ● ●
99 PISTON; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-229-0 03 1 0309- ●
99 PISTON; RR WHEEL CYL 8-97332-229-0 03 1 0309- ●
99 PISTON; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97353-579-0 03 1 0309- ●
99 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0309- ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0309-0403 ● ● ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0408- ● ● ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0404-0407 ● ● ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97332-043-0 04 1 0309- ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97332-043-0 04 1 0309- ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97332-229-0 01 1 0309- ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97332-229-0 01 1 0309- ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97353-578-0 04 1 0309- ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97353-578-0 04 1 0309- ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97353-579-0 01 1 0309- ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97353-579-0 01 1 0309- ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0309-0403 ● ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0408- ● ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0404-0407 ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0309-0403 ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0408- ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0404-0407 ● ● ●
124 SHOE ASM; BRK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 0309- ●
124 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0309- ●
124 SHOE ASM; BRK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97188-455-0 04 1 0309- ●
124 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0309- ●
136 GROMMET
THA 		8-97044-742-1 04 1 0309- ● ● ●
217 LINING KIT; RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 0309- ●
217 LINING KIT; RR BRK 5-87831-774-0 01 1 0309- ●
217 LINING KIT; RR BRK
FRAME STRAIGHT TYPE<7KJ> 		5-87831-692-0 01 1 0309- ●
217 LINING KIT; RR BRK 5-87831-692-0 01 1 0309- ●
218 SHOE KIT; BRK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-775-0 01 1 0309- ●
218 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0309- ●
218 SHOE KIT; BRK,RR
FRAME STRAIGHT TYPE<7KJ> 		5-87831-693-0 01 1 0309- ●
218 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0309- ●
