0-36 — TURBOCHARGER SYSTEM (#20341) — 168 parça

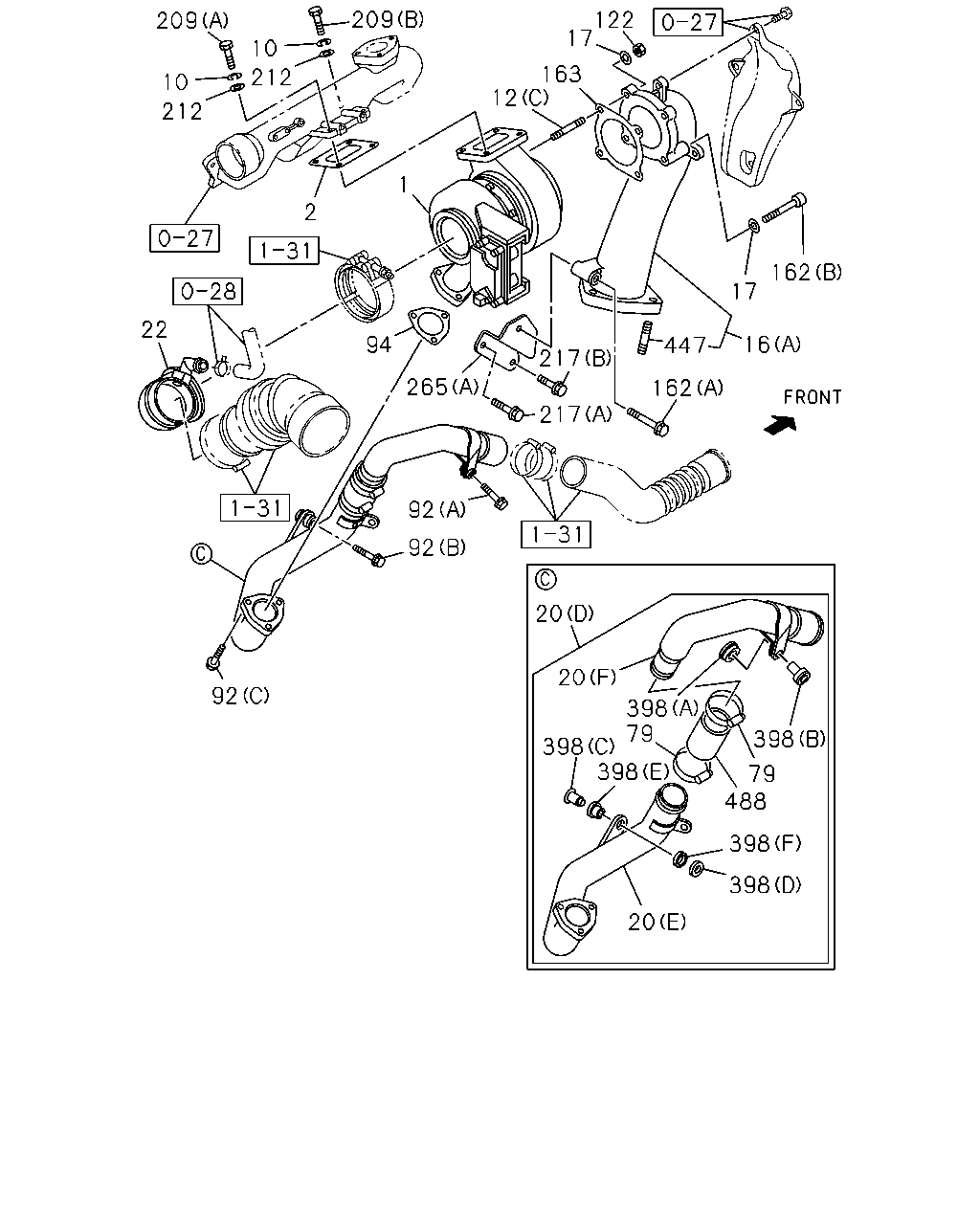

209 122 17 209 10 163 12 212 10 212 1 2 162 17 22 16 94 447 217 265 162 217 92 92 20 20 92 398 79 398 398 398 79 488 398 398 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1110-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1001-1109
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1110-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	1110-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	1001-1109
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1110-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	1110-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	1001-1109
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1110-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	1110-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1001-1109
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1110-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1001-1109
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1110-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98018-241-1	01	1	1110-
16	ADAPTER; EXH PIPE (B)	8-98069-083-0	01	1	1001-1109
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1110-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	1110-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	1001-1109
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1110-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98046-167-4	01	1	1110-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (E)	8-98046-168-1	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (F)	8-98046-169-2	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97606-675-1	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT (B)	8-97618-726-2	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-97618-726-2	01	1	1110-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-97618-734-0	01	1	1110-
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-98036-164-1	01	1	1110-
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1001-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	03	1	1110-
92	BOLT; INL PIPE (B) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
92	BOLT; INL PIPE (A) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-
94	GASKET; INL PIPE EURO3 SPECIFICATION<NT3> ID=55	8-98053-830-0	01	1	1110-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	1110-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	1001-1109
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1110-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE SOU	0-28051-060-0	01	1	1110-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	1110-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	1001-1109
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1110-
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION<NT3> ID=83	8-94392-553-2	01	1	1110-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (B) M10X80	8-98049-825-0	02	1	1110-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (A) M10X40	9-09604-007-1	02	1	1110-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1001-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	1110-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	1110-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	1001-1109
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1110-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98260-415-0	01	1	1110-
265	BRACKET; EXH PIPE (B)	8-94395-764-2	01	1	1001-1109
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	1110-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1001-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1001-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1001-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1001-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1001-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1001-
447	STUD; ADAPTER EURO3 SPECIFICATION<NT3> M12X30 L=48	0-44011-230-0	03	1	1110-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	1110-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> ID=52.5 L=70	8-98245-242-0	01	1	1409-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	1001-1109
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1110-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-

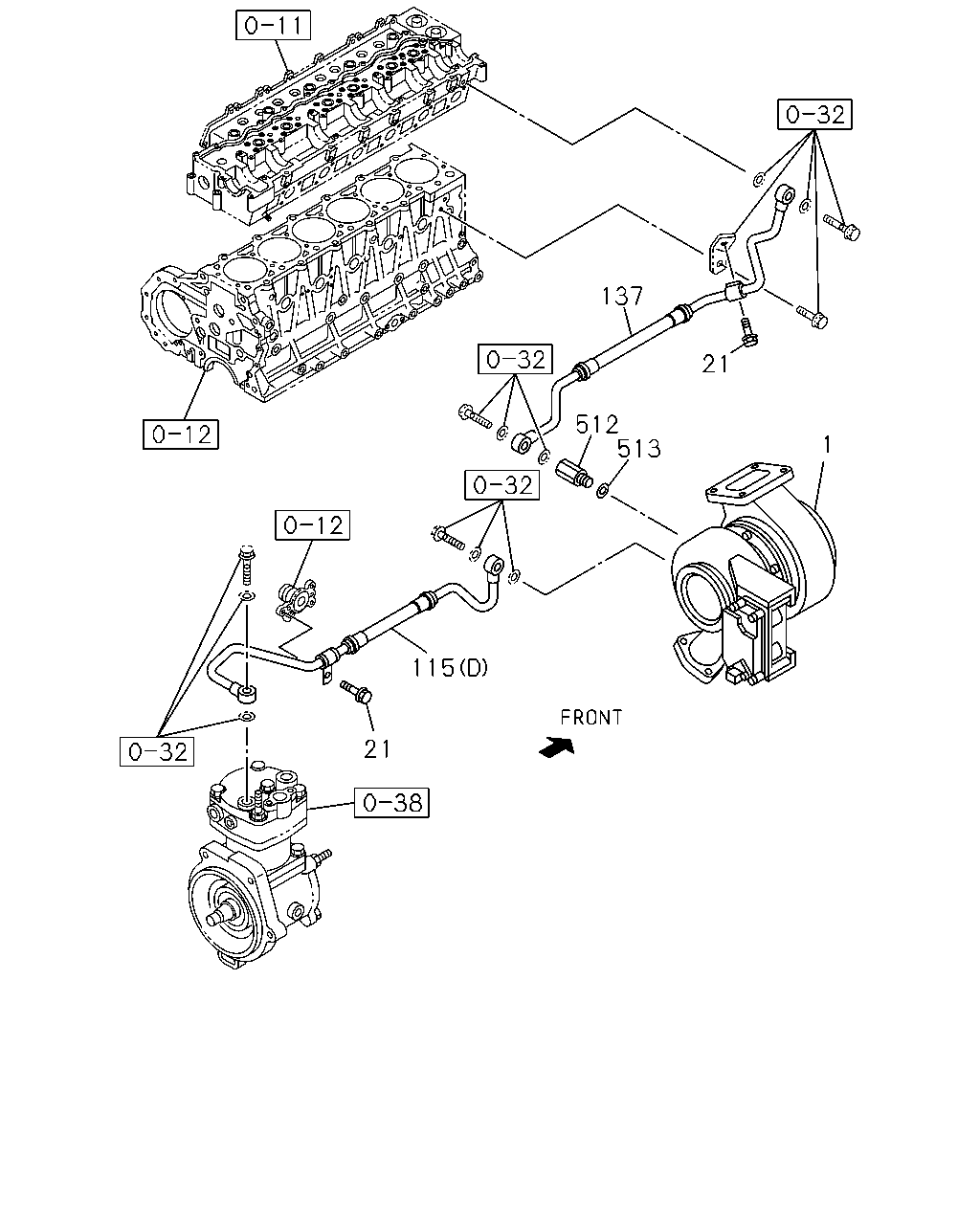

137 21 512 513 1 115 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1110-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1001-1109
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1110-
21	BOLT; PIPE EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-97610-087-2	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-807-0	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97618-807-0	01	1	1110-
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION<NT3>	8-98046-783-0	01	1	1110-
512	CONNECTOR; TURBO EURO3 SPECIFICATION<NT3>	8-98031-856-0	01	1	1110-
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 SOU	1-09630-085-0	01	1	1110-1312
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-

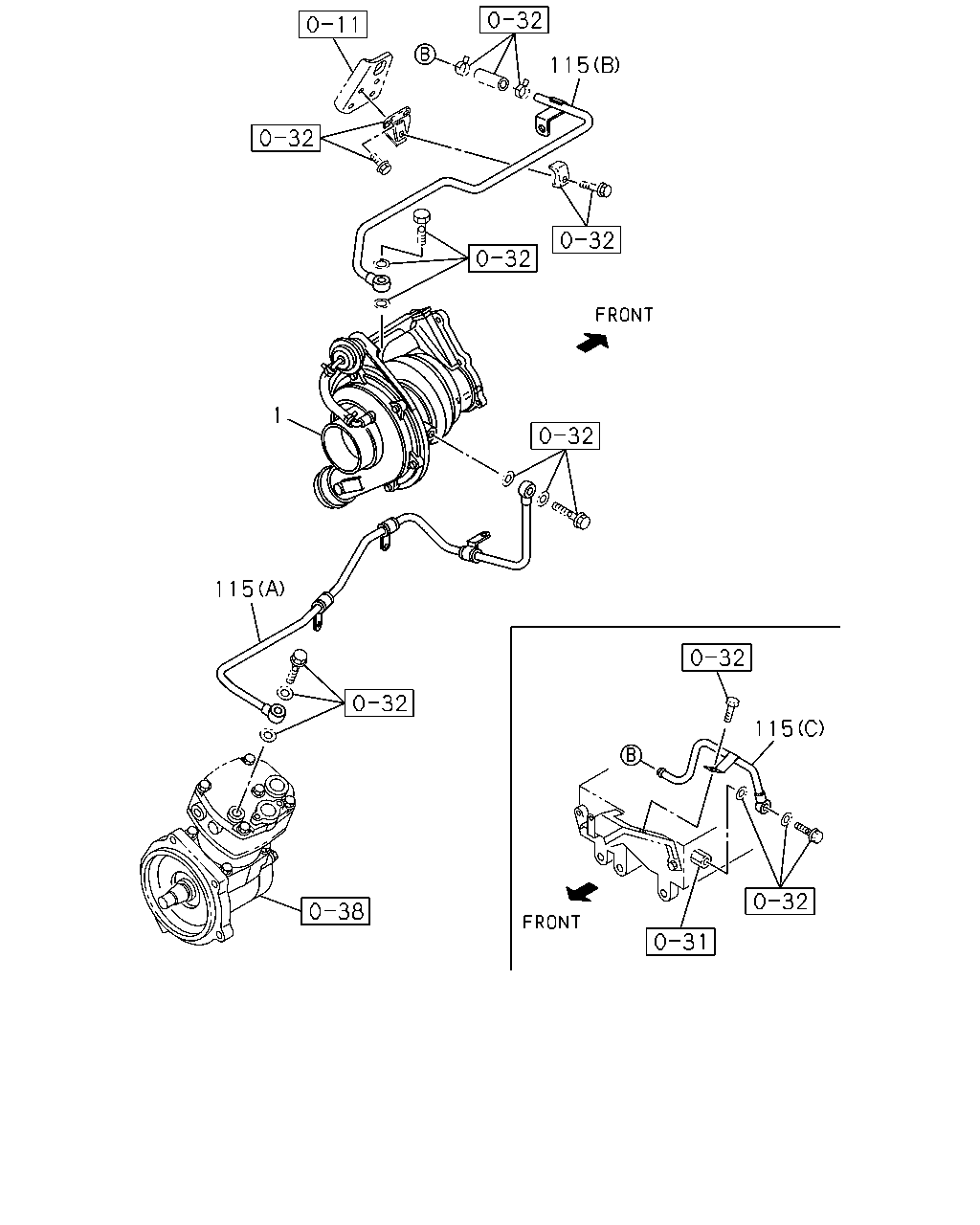

115 1 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1110-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1001-1109
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-97610-087-2	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1110-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-807-0	01	1	1001-1109
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97618-807-0	01	1	1110-

2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1110-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1001-1109
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1110-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	1110-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	1001-1109
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1110-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	1110-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	1001-1109
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1110-
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	1001-1109
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10	1-09420-005-0	04	1	1110-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	1110-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1001-1109
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1110-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1001-1109
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1110-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98018-241-1	01	1	1110-
16	ADAPTER; EXH PIPE (B)	8-98069-083-0	01	1	1001-1109
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1110-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	1110-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	1001-1109
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1110-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98046-167-4	01	1	1110-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (E)	8-98046-168-1	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (F)	8-98046-169-2	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97606-675-1	01	1	1110-
20	PIPE; INL,TURBOCHARGER OUT (B)	8-97618-726-2	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-97618-726-2	01	1	1110-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	1001-1109
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-97618-734-0	01	1	1110-
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	1001-1109
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<NT2>	8-94393-182-0	01	1	1110-
66	STUD; EXH PIPE M12X30 L=48	8-98059-951-0	03	1	1001-1109
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	1110-
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1001-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	03	1	1110-
92	BOLT; INL PIPE (B) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
92	BOLT; INL PIPE (A) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	1001-1109
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1110-1408
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	1110-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	1001-1109
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1110-
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	1001-1109
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-79	8-94126-771-0	02	1	1110-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE SOU	0-28051-060-0	01	1	1110-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	1110-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	1001-1109
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1110-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1001-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	1110-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	1110-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	1001-1109
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1110-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98260-415-0	01	1	1110-
265	BRACKET; EXH PIPE (B)	8-94395-764-2	01	1	1001-1109
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	1110-
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	1001-1109
275	WASHER; PL EURO2 SPECIFICATION<NT2> ID=12.2	1-09503-008-0	03	1	1110-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-248-2	01	1	1001-1109
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94394-248-2	01	1	1110-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1001-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1001-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1001-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1001-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1001-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1001-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	1110-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> ID=52.5 L=70	8-98245-242-0	01	1	1409-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	1001-1109
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1110-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
