0-32 — WATER PIPING; ENGINE (#20338) — 141 parça

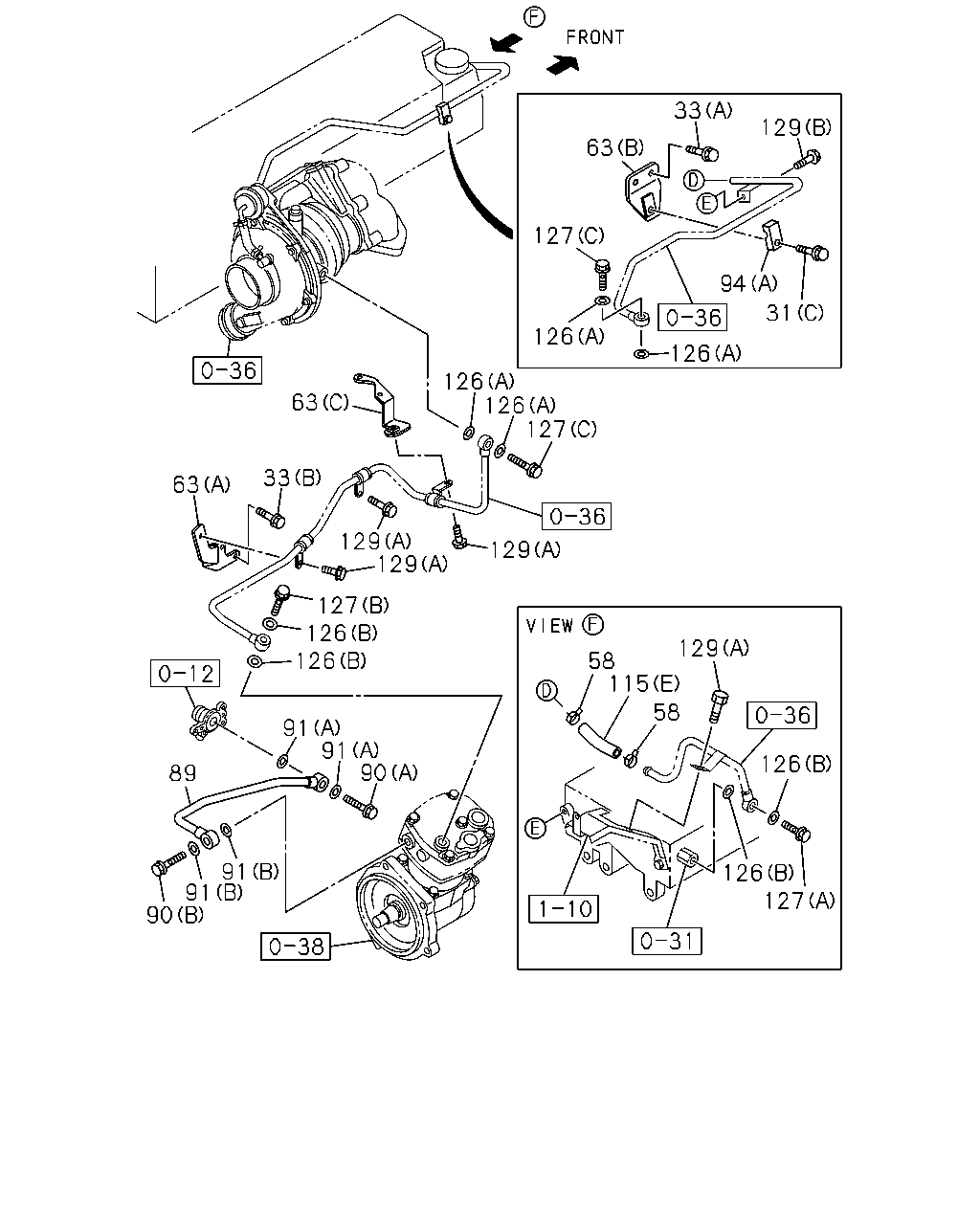

33 129 63 127 94 31 126 126 126 126 127 63 33 63 129 129 129 127 126 126 129 58 115 58 91 91 90 126 89 91 91 90 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1110-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1110-
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	1001-1109
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1110-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1110-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1110-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-
33	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X20 FLANGE	0-28050-820-0	02	1	1110-
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	1001-1109
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1110-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (D)	8-98046-784-0	01	1	1110-
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1110-
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1110-
63	BRACKET; WATER PIPE (A)	8-98074-253-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1110-
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1001-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1001-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1001-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1001-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-97605-129-1	08	1	1110-
94	CLIP; WATER PIPE (A)	8-94396-860-0	01	1	1001-1109
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1110-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-1109
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1110-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	1110-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1110-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1001-1109
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1110-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1001-1109
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1110-
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1001-1109
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1110-
127	BOLT; EYE (A) M16X25	5-09675-028-2	01	1	1001-1109
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1110-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1001-1109
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1110-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1110-
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	05	1	1001-1109
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE SOU	0-28050-816-0	05	1	1110-
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	1001-1109
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1110-

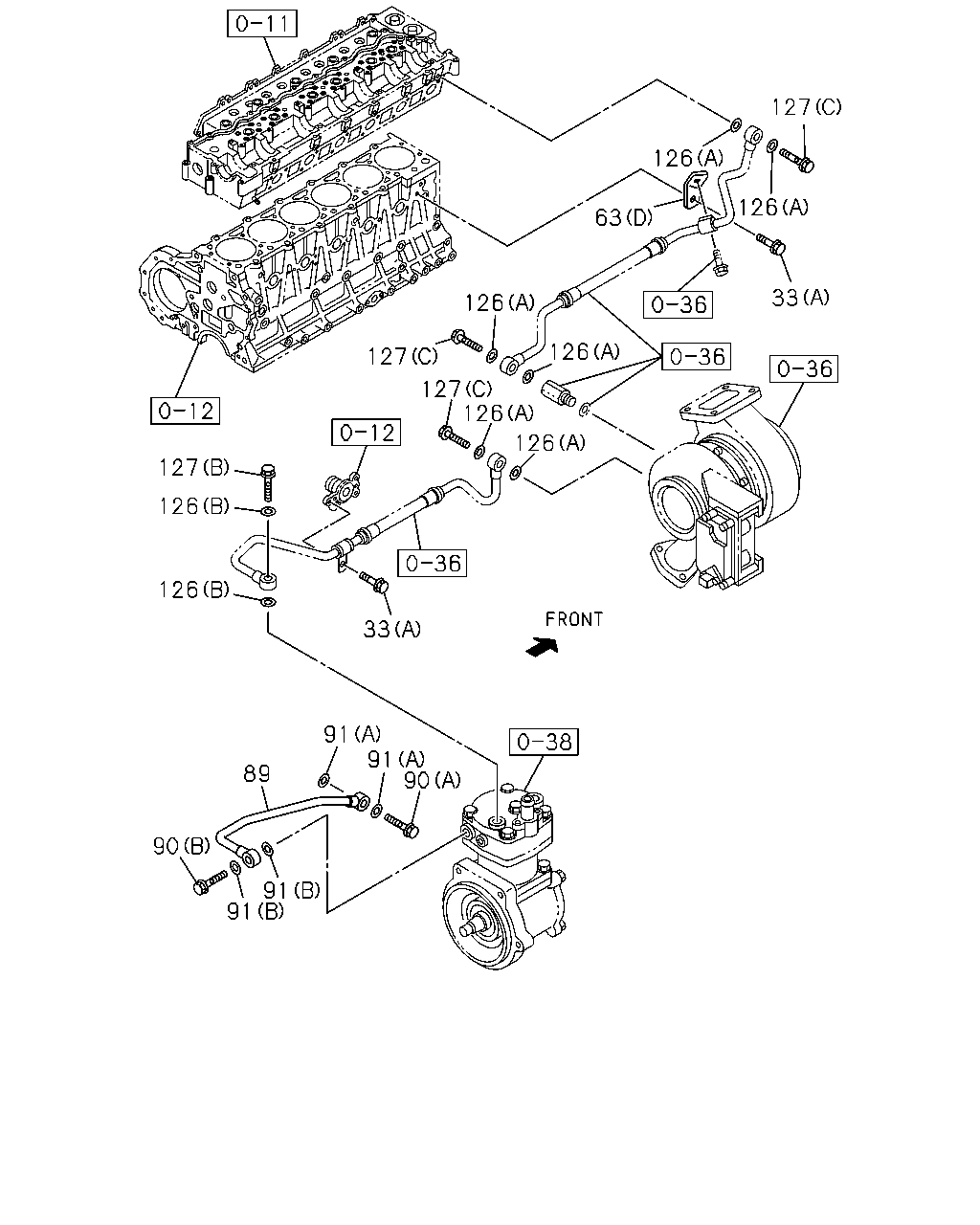

127 126 126 63 33 126 126 127 127 126 126 127 126 126 33 91 91 90 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1110-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1110-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-
33	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X20 FLANGE	0-28050-820-0	02	1	1110-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (D)	8-98046-784-0	01	1	1110-
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1110-
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1110-
63	BRACKET; WATER PIPE (A)	8-98074-253-0	01	1	1001-1109
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1110-
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1001-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1001-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1001-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1001-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	1110-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1110-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1001-1109
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1110-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1001-1109
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1110-
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1001-1109
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1110-
127	BOLT; EYE (A) M16X25	5-09675-028-2	01	1	1001-1109
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1110-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1001-1109
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1110-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1110-

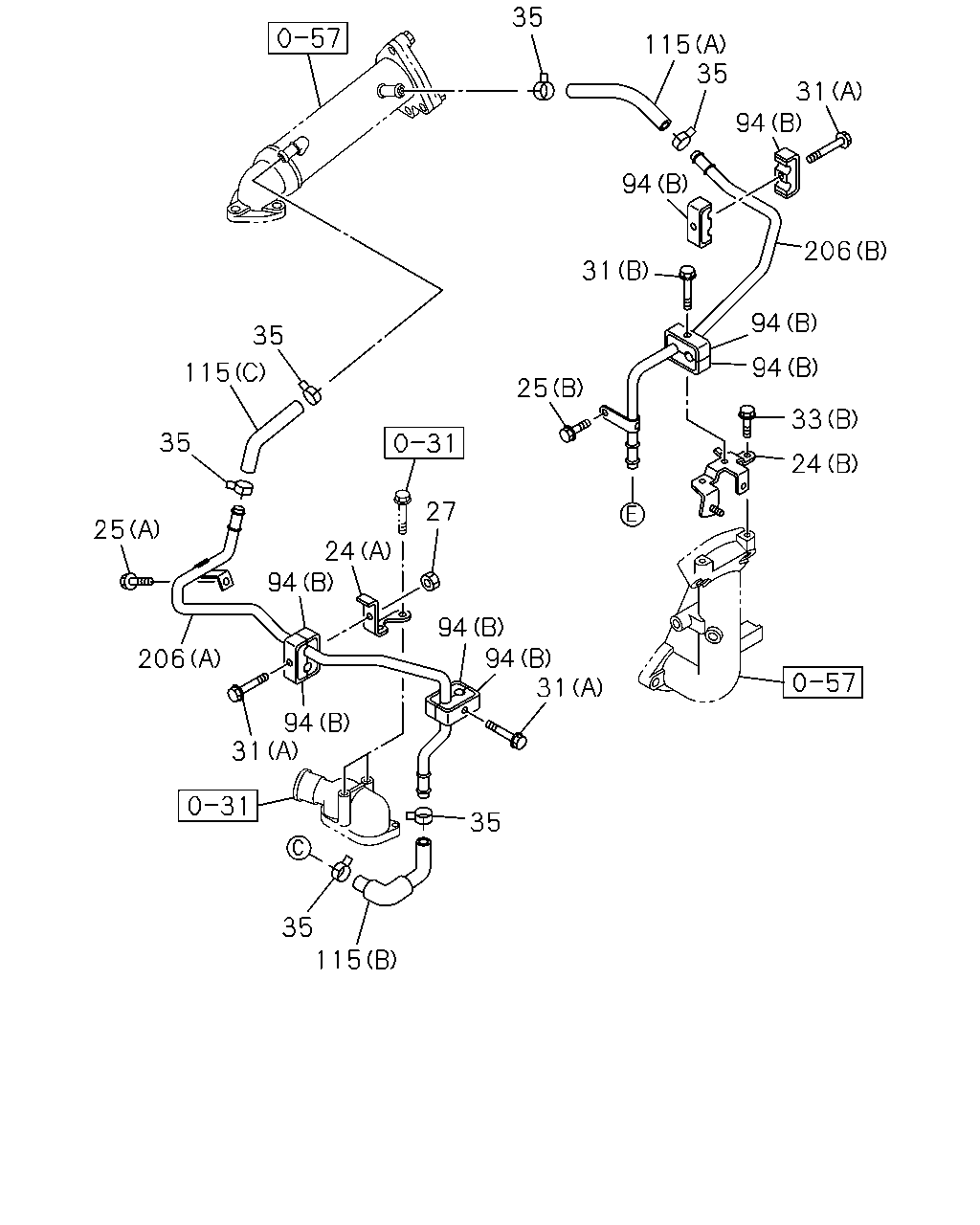

35 115 35 31 94 94 206 31 94 35 94 115 25 33 35 24 27 25 24 94 94 94 31 206 94 31 35 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98000-557-2	01	1	1110-
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98051-626-1	01	1	1110-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	01	1	1110-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	01	1	1110-
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3> M6 FLANGE SOU	0-91180-106-0	01	1	1110-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1110-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1110-
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	1001-1109
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1110-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1110-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1110-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-
33	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	1001-1109
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X20 FLANGE	0-28050-820-0	02	1	1110-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1110-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1110-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-97605-129-1	08	1	1110-
94	CLIP; WATER PIPE (A)	8-94396-860-0	01	1	1001-1109
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1110-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-1109
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1110-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-97604-928-2	01	1	1110-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98000-480-1	01	1	1110-

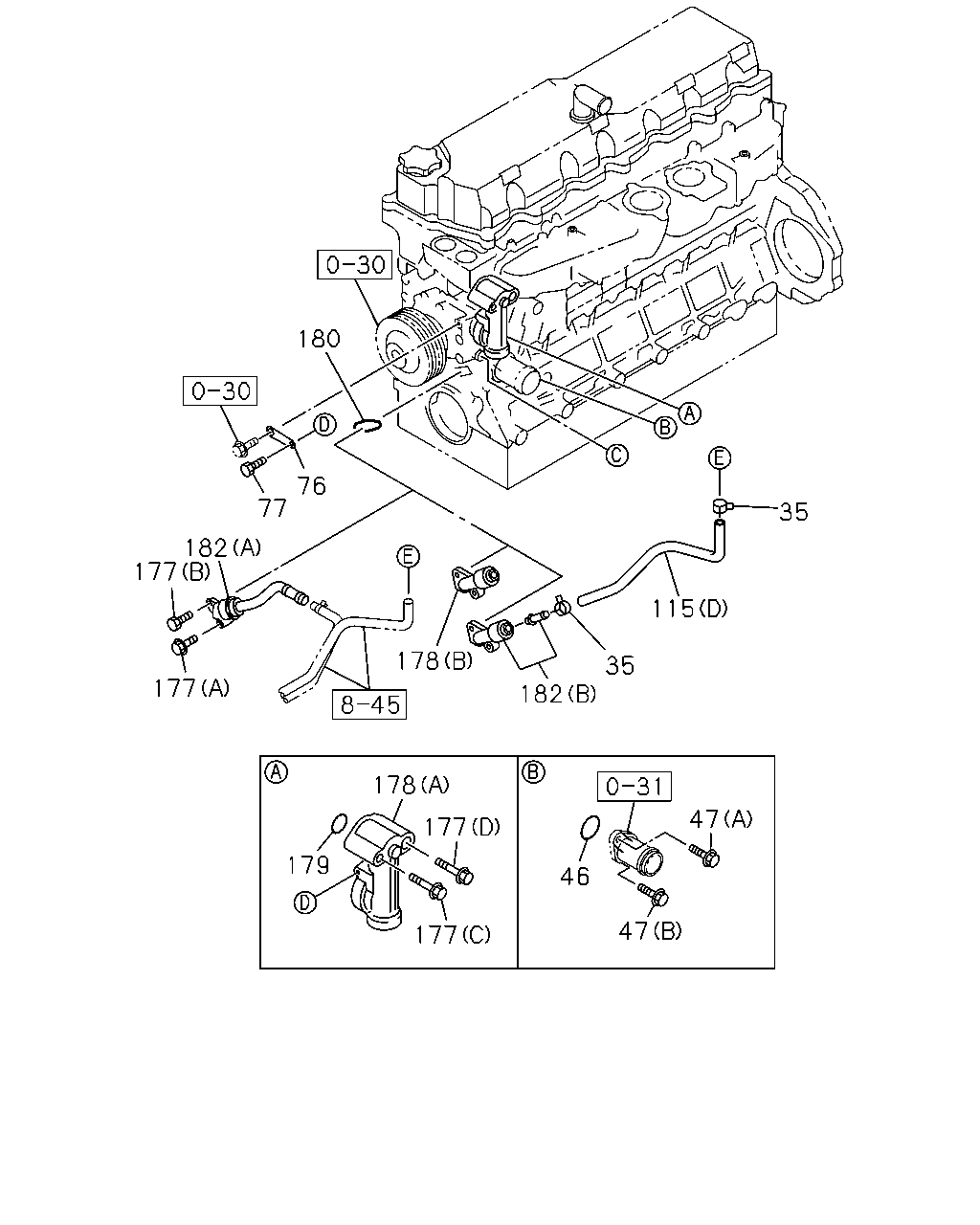

35 115 35 182 178 180 76 77 182 177 177 178 179 177 177 46 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1110-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1110-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1001-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1001-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1001-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1001-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1110-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1110-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-1109
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1110-
177	BOLT; WATER DUCT (C) M8X80 FLANGE SOU	0-28050-880-0	01	1	1001-
177	BOLT; WATER DUCT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1001-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1001-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1001-
178	DUCT; WATER,BYPASS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	1001-1109
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	1110-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1001-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1001-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1110-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1001-1109
182	DUCT; WATER,HTR EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94396-727-3	01	1	1110-
