Sayfa 0-80 - Isuzu EPC

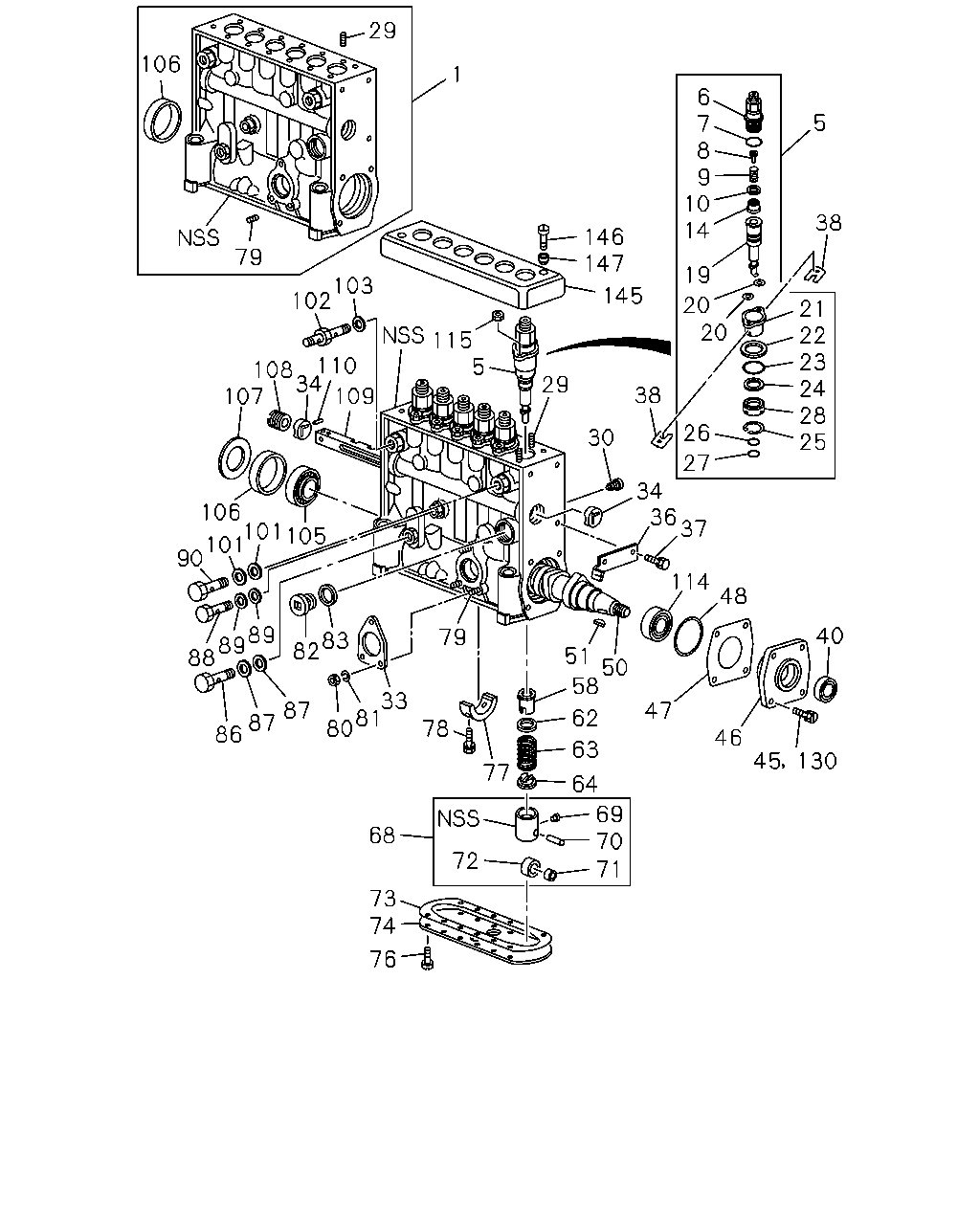

0-80 — INJECTION PUMP (#2033) — 398 parça

29 106 1 6 7 8 9 10 14 5 38 146 147 79 19 103 102 145 20 20 21 22 23 24 28 25 115 5 108 110 34 29 38 109 26 30 27 34 36 37 106 101 105 101 90 114 48 89 89 88 40 79 83 82 51 50 58 33 81 80 87 87 86 47 62 78 46 63 45 130 77 64 69 70 71 68 72 73 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15611-081-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15611-088-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: O = 1-15602-197-2	1-15631-034-0	06	1	-9601
5	PLUNGER COMPL; INJ PUMP ASM PART: P = 1-15602-883-0	1-15631-165-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: Q = 1-15603-242-0	1-15631-199-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: O = 1-15602-197-2	1-15631-199-0	06	1	9602-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: P = 1-15602-883-0	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81241-415-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-046-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81235-052-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: P = 1-15602-883-0	1-15649-005-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15643-002-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: P = 1-15602-883-0	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15641-005-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: P = 1-15602-883-0	1-15641-013-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15631-008-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: O = 1-15602-197-2	1-15631-039-0	06	1	-9601
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: P = 1-15602-883-0	1-15632-010-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: Q = 1-15603-242-0	1-15632-041-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: O = 1-15602-197-2	1-15632-041-0	06	1	9602-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15742-082-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15649-008-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-148-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15619-156-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-100-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-034-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: O = 1-15602-197-2	1-15619-069-0	02	1	-9311
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	9-01910-612-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: O = 1-15602-197-2	9-01910-612-0	02	1	9312-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81215-127-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15600-757-6	5-15729-027-0	04	1	9004-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: P = 1-15602-883-0	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-034-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.120 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.140 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.160 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.180 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15621-031-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: P = 1-15602-883-0	1-15621-034-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: P = 1-15602-883-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15634-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: O = 1-15602-197-2	1-15643-004-0	06	1	9312-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: O = 1-15602-197-2	9-81215-137-0	06	1	-9311
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81221-240-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-060-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: P = 1-15602-883-0	1-15629-094-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15729-960-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15612-050-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-274-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-016-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81225-066-0	01	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15600-757-6	9-81325-187-0	02	1	9004-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: O = 1-15602-197-2	1-15729-006-0	03	1	-9311
80	NUT; FUEL FEED PUMP FIX ASM PART: O = 1-15602-197-2	8-94171-110-0	03	1	9602-
80	NUT; FUEL FEED PUMP FIX ASM PART: P = 1-15602-883-0, Q = 1-15603-242-0	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: O = 1-15602-197-2	9-09110-406-0	03	1	9312-9601
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: O = 1-15602-197-2	9-09150-506-0	03	1	-9601
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15619-067-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15722-012-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-09630-085-0	02	1	9602-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: P = 1-15602-883-0, Q = 1-15603-242-0	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15729-066-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15759-012-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-012-0	02	1	-9601
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=10.2 OD=15.2 ASM PART: A = 1-15600-757-6	1-09630-083-0	02	1	9004-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-15619-093-0	02	1	-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15600-757-6	1-15719-093-0	02	1	-9003
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, O = 1-15602-197-2	1-15719-093-0	02	1	9602-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0	1-15759-011-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15600-757-6	1-15759-011-0	01	1	-9601
90	VALVE; OVERFLOW,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-011-0	01	1	-9311
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: P = 1-15602-883-0	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-012-0	02	1	-9311
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-13260-050-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: P = 1-15602-883-0, Q = 1-15603-242-0	1-09630-085-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: O = 1-15602-197-2	1-09630-085-0	01	1	9602-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-012-0	01	1	-9601
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15619-063-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP OR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-064-0	01	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15619-063-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP OR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-456-0	12	1	-
130	SCREW; FRT COVER TO HSG M6X15 ASM PART: A = 1-15600-757-6	5-15729-027-0	04	1	-9003
145	COVER; UPR,HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	9-81211-289-0	01	1	-
146	SCREW; UPR COVER ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	9-88410-453-0	02	1	-
147	WASHER; LK,UPR COVER ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	9-88410-452-0	02	1	-

127 6 176 118 117 117 126 7 126 155 9 10 14 127 37 73 19 36 167 74 79 109 75 87 148 87 86 1 50 159 107 107 105 89 89 33 88 79 178 177 80 45 58 77 46 161 62 160 63 64 68 51 181 48 40 69 114 162 162 49 70 72 71 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15611-081-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15611-088-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: P = 1-15602-883-0	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81241-415-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-046-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81235-052-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15643-002-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: P = 1-15602-883-0	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15641-005-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: P = 1-15602-883-0	1-15641-013-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15631-008-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: O = 1-15602-197-2	1-15631-039-0	06	1	-9601
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: P = 1-15602-883-0	1-15632-010-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: Q = 1-15603-242-0	1-15632-041-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: O = 1-15602-197-2	1-15632-041-0	06	1	9602-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-320-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-148-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15619-156-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-100-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-034-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: O = 1-15602-197-2	1-15619-069-0	02	1	-9311
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	9-01910-612-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: O = 1-15602-197-2	9-01910-612-0	02	1	9312-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81215-127-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15600-757-6	5-15729-027-0	04	1	9004-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: P = 1-15602-883-0	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-034-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81211-273-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-128-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15621-031-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: P = 1-15602-883-0	1-15621-034-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: P = 1-15602-883-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15634-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: O = 1-15602-197-2	1-15643-004-0	06	1	9312-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: O = 1-15602-197-2	9-81215-137-0	06	1	-9311
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81221-240-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-060-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: P = 1-15602-883-0	1-15629-094-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15729-960-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: P = 1-15602-883-0	1-15619-274-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-016-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	9-81225-066-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: O = 1-15602-197-2	1-15729-006-0	03	1	-9311
80	NUT; FUEL FEED PUMP FIX ASM PART: O = 1-15602-197-2	8-94171-110-0	03	1	9602-
80	NUT; FUEL FEED PUMP FIX ASM PART: P = 1-15602-883-0, Q = 1-15603-242-0	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: O = 1-15602-197-2	9-09110-406-0	03	1	9312-9601
82	PLUG; HSG,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-129-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15722-012-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-09630-085-0	02	1	9602-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: P = 1-15602-883-0, Q = 1-15603-242-0	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15729-066-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15759-012-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-012-0	02	1	-9601
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15600-757-6, B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=10.2 OD=15.2 ASM PART: A = 1-15600-757-6	1-09630-083-0	02	1	9004-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: O = 1-15602-197-2	1-15619-093-0	02	1	-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15600-757-6	1-15719-093-0	02	1	-9003
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15600-757-6, O = 1-15602-197-2	1-15719-093-0	02	1	9602-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 1-15600-947-3, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, N = 1-15601-833-1, P = 1-15602-883-0, Q = 1-15603-242-0	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15619-063-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP OR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-88410-441-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, Q = 1-15603-242-0	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: P = 1-15602-883-0	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1	1-15619-063-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP OR ASM PART: A = 1-15600-757-6, C = 1-15600-978-3, D = 1-15600-980-2, E = 1-15600-986-2, F = 1-15600-988-0, G = 1-15600-990-2, H = 1-15601-004-0, I = 1-15601-007-0, N = 1-15601-833-1, O = 1-15602-197-2, P = 1-15602-883-0, Q = 1-15603-242-0	9-81225-068-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15759-012-0	02	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: O = 1-15602-197-2	1-15759-011-0	01	1	9312-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15600-757-6	1-15759-011-0	01	1	9602-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1, Q = 1-15603-242-0	1-15759-011-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-190-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81215-144-0	02	1	-
155	BOLT; AIR BLEED,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15619-191-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-059-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 1-15600-757-6	9-81325-187-0	02	1	-9003
161	GASKET; SCREW,CENTER BRG ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-043-0	02	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: B = 1-15600-947-3, J = 1-15601-018-1, K = 1-15601-019-3, L = 1-15601-023-1, M = 1-15601-813-1	9-81235-045-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
