0-11 — CYLINDER HEAD (#20326) — 55 parça

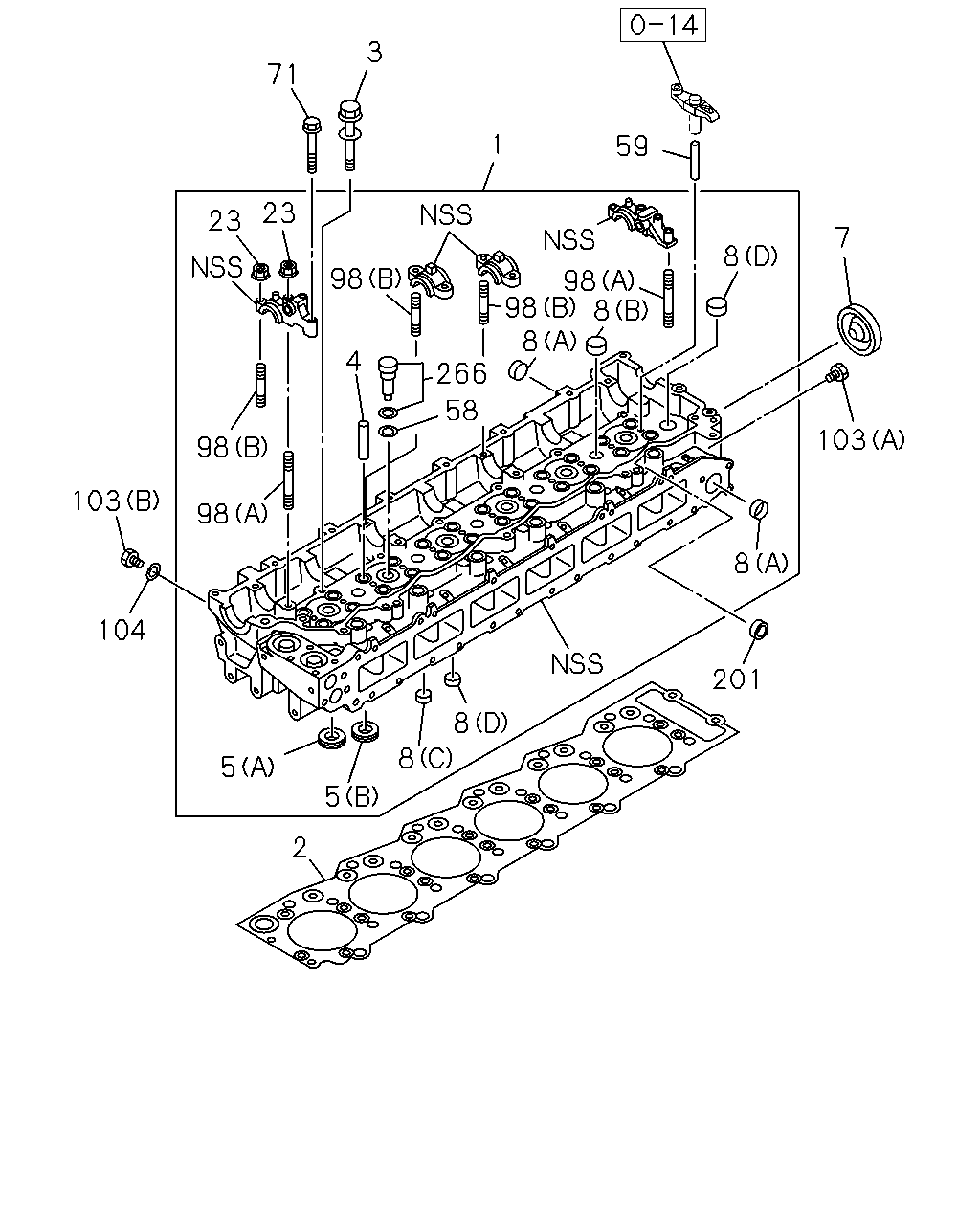

71 3 1 59 8 7 103 8 201 8 8 5 5 2 104 103 98 98 4 98 266 8 98 98 8 23 23 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	8-97604-903-7	01	1	1001-1305
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1001-
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	1001-1407
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-98260-005-0	26	1	1408-
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1001-
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1001-
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1001-
7	CUP; SEALING,CYL HEAD OD=51	8-97096-826-0	01	1	1001-
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	07	1	1001-
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	1001-
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	1001-
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	1001-
23	NUT; CAM BRKT M8 FLANGE SOU	0-91180-208-0	08	1	1001-
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	1001-
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1001-
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1001-
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	1001-
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	1001-
103	PLUG; HD (A) M8X10	8-98003-416-0	01	1	1001-
103	PLUG; HD (B) M14X14	9-09862-156-0	01	1	1001-1109
103	PLUG; HD EURO2 SPECIFICATION<NT2> (B) M14X14	9-09862-156-0	01	1	1110-
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	01	1	1001-1109
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 SOU	1-09630-085-0	01	1	1110-1312
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	1001-
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1001-

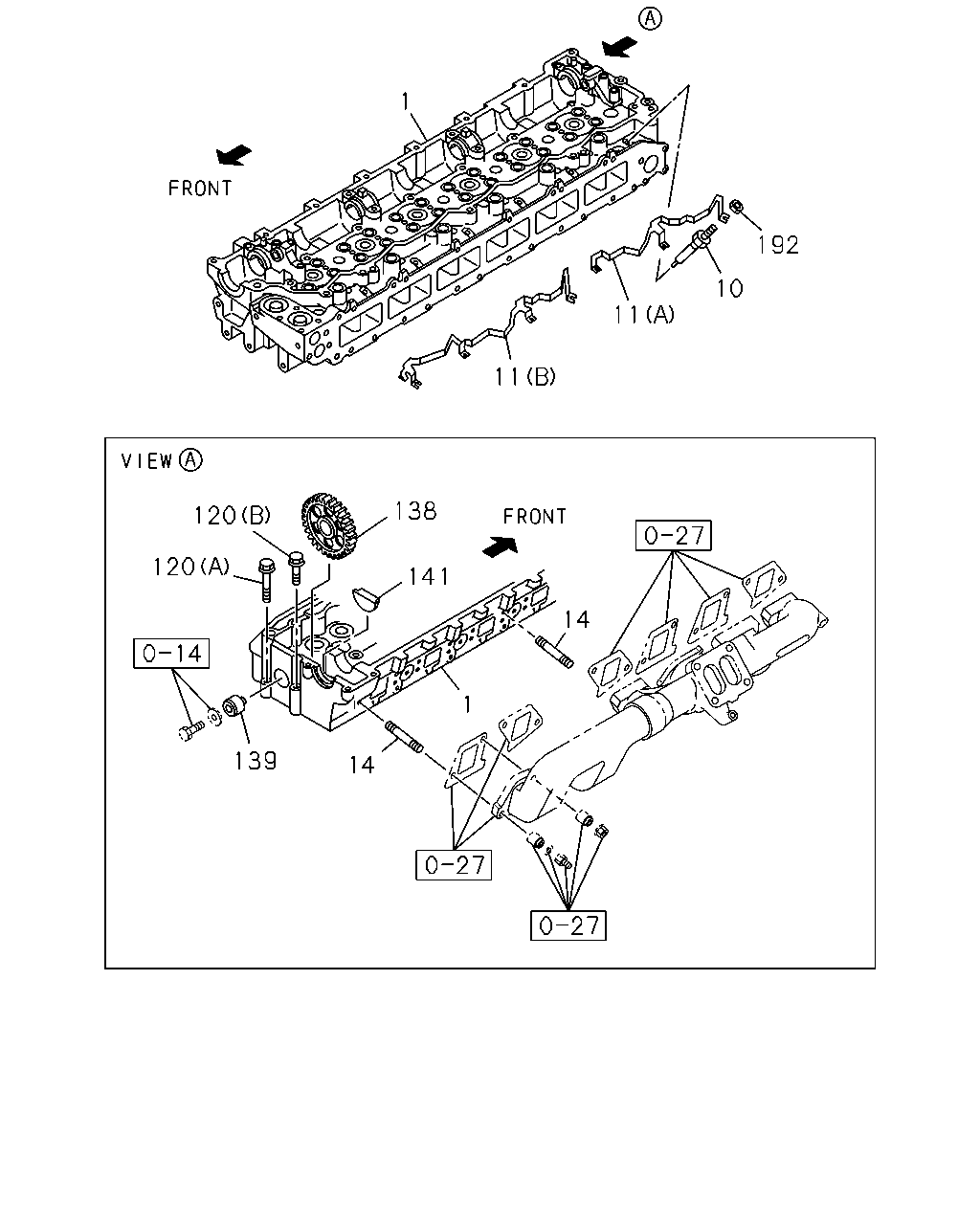

1 11 11 10 192 120 120 138 141 1 14 14 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	8-97604-903-7	01	1	1001-1305
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-
10	PLUG; GLOW NGK	8-94390-777-6	06	1	1001-
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	1001-
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	1001-
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1001-
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	1001-
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	1001-
138	GEAR; IDLE EURO3 SPECIFICATION<NT3> Z=41	8-98058-321-1	01	1	1110-
138	GEAR; IDLE Z=41	8-97606-929-0	01	1	1001-1109
138	GEAR; IDLE EURO2 SPECIFICATION<NT2> Z=41	8-97606-929-0	01	1	1110-
139	SHAFT; IDLE GEAR EURO3 SPECIFICATION<NT3>	8-97606-990-1	01	1	1110-
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	1001-1109
139	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>	8-97186-398-1	01	1	1110-
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	1001-1005
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	1001-

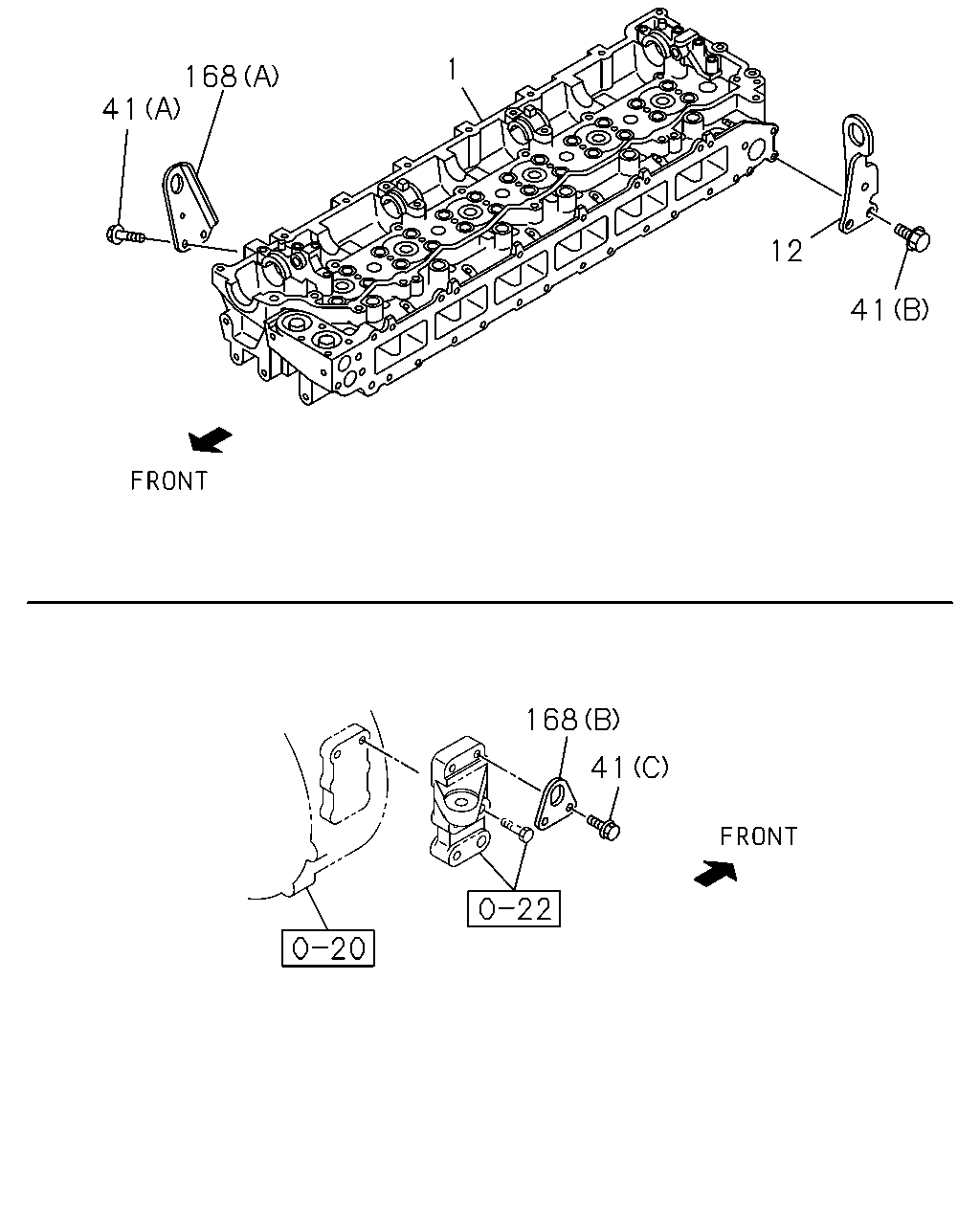

41 168 1 12 41 168 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	8-97604-903-7	01	1	1001-1305
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-
12	HANGER; ENG,RR	8-94392-081-1	01	1	1001-
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	1001-
41	BOLT; ENG HANGER (B) M10X25 FLANGE	0-28751-025-0	02	1	1001-
41	BOLT; ENG HANGER (C) M12X25 FLANGE	0-28751-225-0	02	1	1001-
168	HANGER; ENG,FRT (A)	8-94394-071-2	01	1	1001-1109
168	HANGER; ENG,FRT EURO2 SPECIFICATION<NT2> (A)	8-94394-071-2	01	1	1110-
168	HANGER; ENG,FRT (B)	8-94394-398-0	01	1	1001-1109
168	HANGER; ENG,FRT EURO3 SPECIFICATION<NT3> (A)	8-98043-134-0	01	1	1110-
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1110-
