6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#20305) — 18 parça

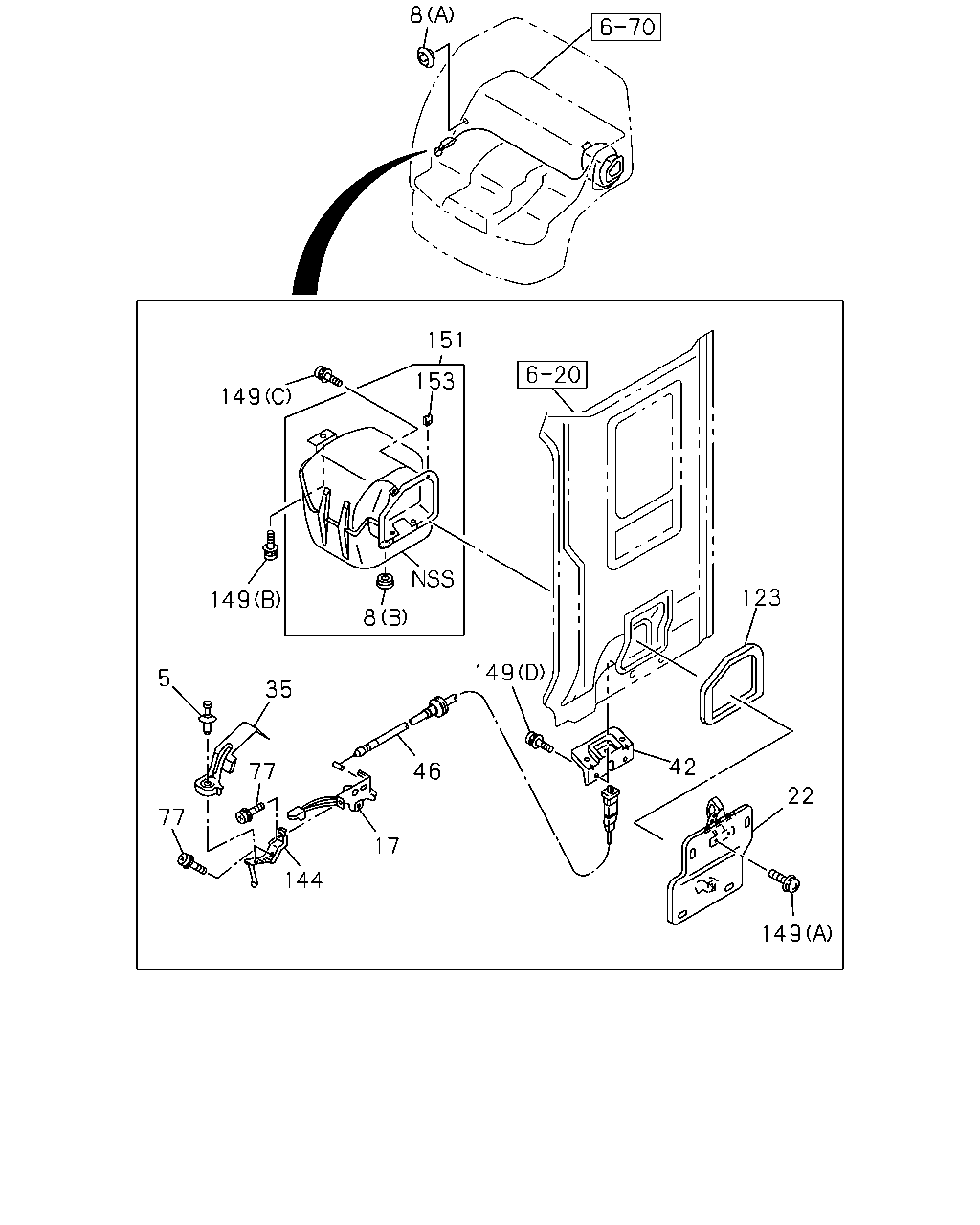

çizim 129990
8 151 153 149 123 149 8 149 5 35 42 46 77 22 77 17 144 149
BalonParca AdiParca NoAdetTipApplied Date
5 FASTENER
ID=6X6 OD=8 		1-09987-194-0 01 1 0904-
8 GROMMET; BOARD FIX
(A) OD=28 		8-94279-720-0 01 1 0904-
8 GROMMET; BOARD FIX
(B) OD=44 		8-94279-727-0 01 1 0904-
17 KNOB; LUGGAGE SIDE 1-73328-018-0 01 1 0904-
22 LID; LUGGAGE SIDE 1-71707-063-0 01 1 0904-
35 COVER; LUGGAGE 1-79517-005-1 01 1 0904-
42 BRACKET ASM; HOOK 1-71797-068-1 01 1 0904-
46 LOCK; RR COMPT LID
L=2842 		1-79517-008-0 01 1 0904-
77 SCREW; BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0904-
123 SEAL; REAR 1-71797-061-1 01 1 0904-
144 BRACKET 1-73907-267-2 01 1 0904-
149 SCREW; BRKT
(D) BOLT M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0904-
149 SCREW; BRKT
(B) BOLT M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0904-0904
149 SCREW; BRKT
(B) BOLT M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
149 SCREW; BRKT
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0904-
149 SCREW; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0904-
151 BOX ASM 1-71797-951-2 01 1 0904-
153 J-NUT 8-94279-056-0 02 1 0904-
