0-61 — BATTERY AND BATTERY CABLE (#2030) — 27 parça

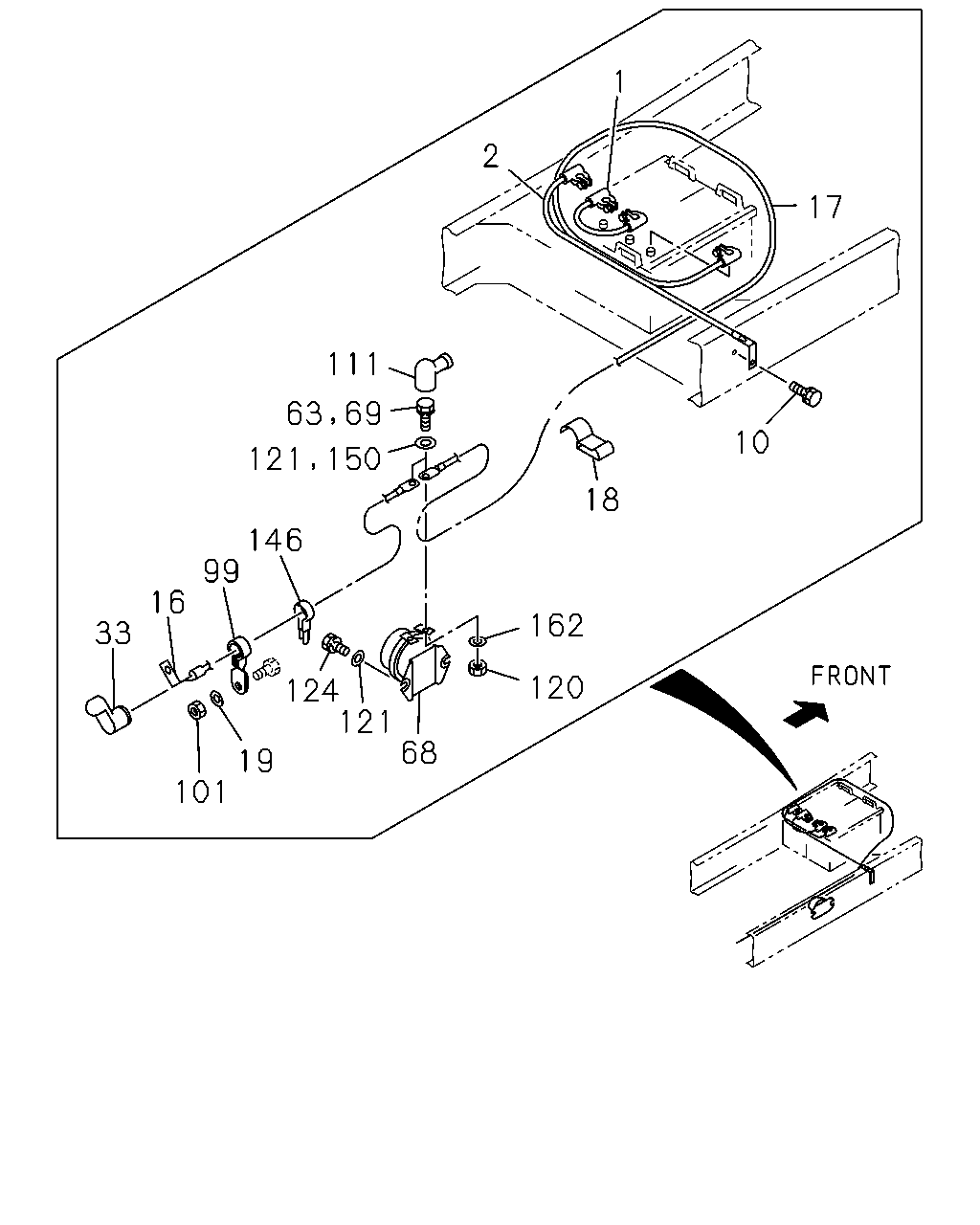

çizim 95166
1 2 17 111 63 10 121 150 18 146 99 16 162 33 124 121 120 68 19 101 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
L=500 		1-82650-130-0 01 1 9001- ● ● ● ●
2 CABLE; BATTERY
L=1400 		1-82652-163-0 01 1 9001- ● ● ● ●
10 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9207-9212 ● ● ● ●
10 BOLT; BATTERY CABLE CLIP
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9301- ● ● ● ●
16 CABLE; STARTER TO RELAY
L=900 		1-82652-122-0 01 1 9001- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=2600 		1-82652-167-0 01 1 9001- ● ● ● ●
18 CLIP; BATTERY CABLE 9-09916-222-0 01 1 9001- ● ● ● ●
19 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9001- ● ● ● ●
33 CAP; INSULATOR 9-82951-354-0 01 1 9001- ● ● ● ●
63 BOLT; RELAY BATTERY
M8X40 		9-01045-840-0 02 1 9001-9204 ● ● ● ●
63 BOLT; RELAY BATTERY
M8X40 		0-10805-840-0 02 1 9205- ● ● ● ●
63 BOLT; RELAY BATTERY
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9001-9204 ● ● ● ●
63 BOLT; RELAY BATTERY
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9206 ● ● ● ●
68 RELAY; BATTERY 1-82550-108-0 01 1 9001- ● ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9405- ● ● ● ●
99 CLIP; BATTERY CABLE 1-09700-131-2 01 1 9001- ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M10 		9-09110-510-0 01 1 9308-9606 ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 01 1 9607- ● ● ● ●
111 CAP; INSULATOR,BATTERY RELAY 1-82699-001-0 02 1 9001- ● ● ● ●
120 NUT; RELAY BATTERY
M8 		9-09110-408-0 02 1 9001-9606 ● ● ● ●
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ●
121 WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22 		9-09160-708-0 04 1 9001- ● ● ● ●
124 BOLT; RELAY,BATTERY
M8X18 		9-02040-818-0 02 1 9001-9204 ● ● ● ●
124 BOLT; RELAY,BATTERY
M8X18 		0-20800-818-0 02 1 9205- ● ● ● ●
146 CLIP; BATTERY CABLE EARTH
ID=18 L=48 		9-09917-429-0 07 1 9001- ● ● ● ●
150 WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22 		9-09160-708-0 01 1 9001-9206 ● ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9405- ● ● ● ●
