3-45 — LOAD SENSING PROPORTIONING VALVE
(#203) — 54 parça
◀

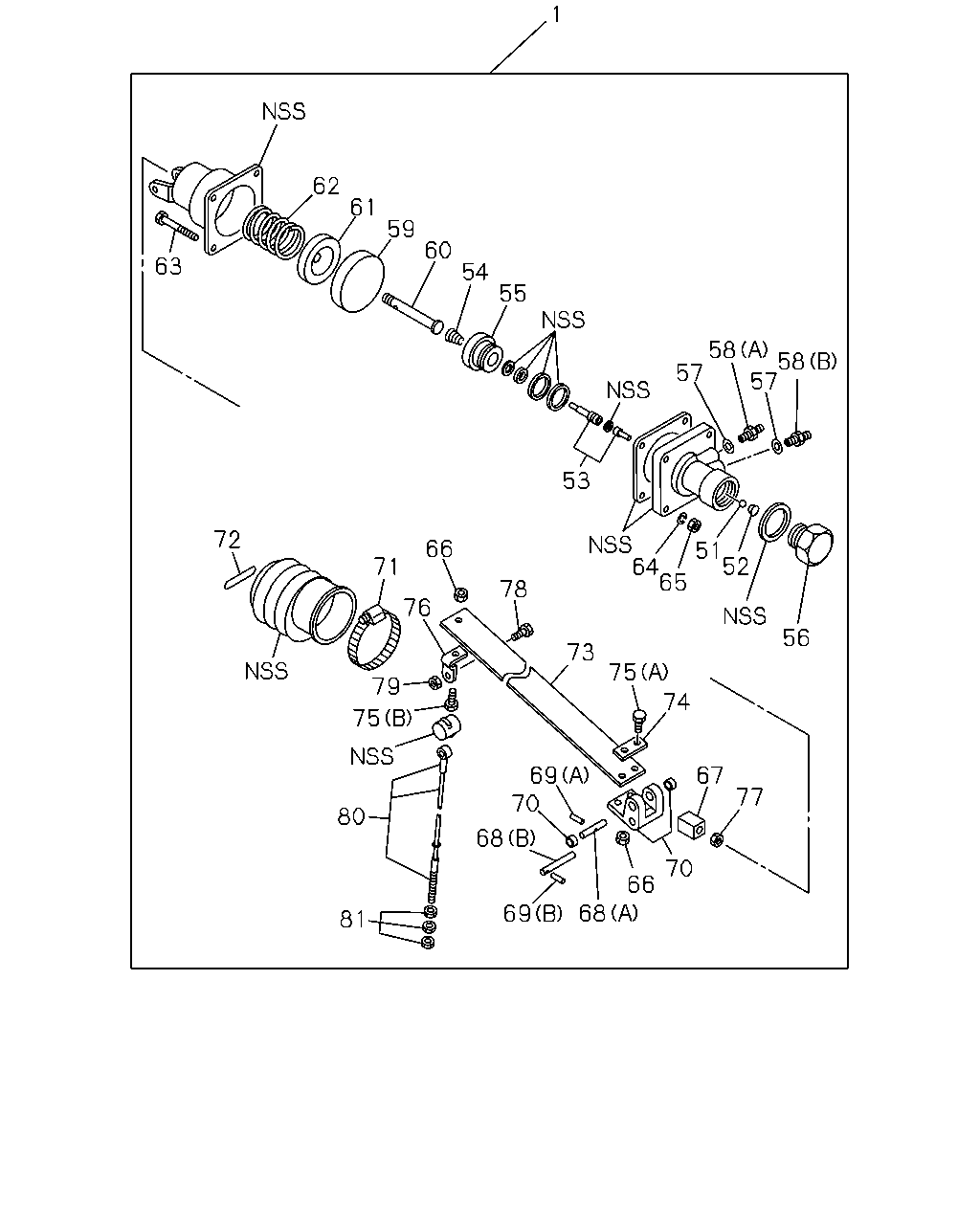

[345A] NO.2 (39 parça)

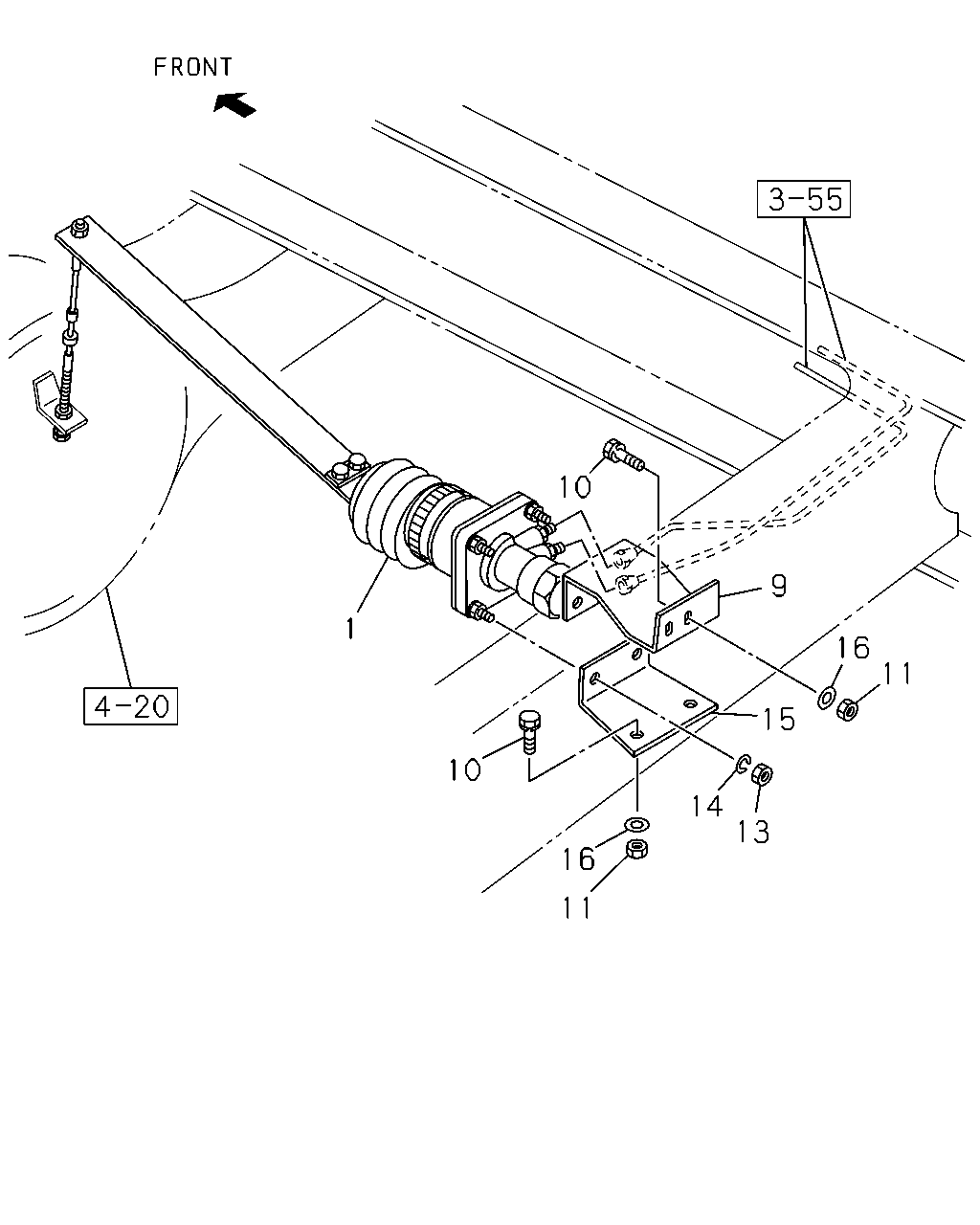

[345A] NO.1 (9 parça)
[345A] NO.3 (6 parça)
▶
1
62
61
59
60
63
54
55
58
57
58
57
53
51
52
72
64
65
66
71
78
76
56
73
75
79
74
75
67
69
70
77
80
68
70
66
68
69
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47710-018-0
01
1
9212-
1
VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47710-010-0
01
1
9212-
51
BALL; LSPV
LSPV(JR7)
1-47719-010-0
01
1
9212-
52
SPRING; BALL
LSPV(JR7)
1-47714-001-0
01
1
9212-
53
PLUNGER; LSPV
LSPV(JR7) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47719-038-0
01
1
9212-
53
PLUNGER; LSPV
LSPV(JR7) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47719-012-0
01
1
9212-
54
SPRING; RET,LSPV
LSPV(JR7)
1-47714-002-0
01
1
9212-
55
RETAINER; LSPV
LSPV(JR7)
1-47719-015-0
01
1
9212-
56
PLUG; LSPV
LSPV(JR7)
1-47719-011-0
01
1
9212-
57
GASKET; CONNECTOR
LSPV(JR7)
1-47719-039-0
02
1
9212-
58
CONNECTOR; LSPV
LSPV(JR7) (A)
1-47719-035-0
01
1
9212-
58
CONNECTOR; LSPV
LSPV(JR7) (B)
1-47719-040-0
01
1
9212-
59
SPACER; LSPV
LSPV(JR7)
1-47719-019-0
01
1
9212-
60
ROD; ACTUATOR
LSPV(JR7)
1-47719-020-0
01
1
9212-
61
RETAINER; SPRING
LSPV(JR7)
1-47719-021-0
01
1
9212-
62
SPRING; LSPV
LSPV(JR7)
1-47714-003-0
01
1
9212-
63
BOLT; LSPV
LSPV(JR7)
1-31829-015-0
04
1
9212-
64
WASHER; LSPV
LSPV(JR7) ID=8.2
9-09150-508-0
04
1
9212-
65
NUT; LSPV
LSPV(JR7)
9-83315-085-0
04
1
9212-
66
NUT; LEAF SPR,LSPV
LSPV(JR7)
1-47819-021-0
03
1
9212-
67
CLEVIS; LSPV
LSPV(JR7)
1-47719-023-0
01
1
9212-
68
PIN; LEVER
LSPV(JR7) (A)
1-47719-024-0
01
1
9212-
68
PIN; LEVER
LSPV(JR7) (B)
1-47719-026-0
01
1
9212-
69
PIN; SPR
LSPV(JR7) (A)
1-47719-025-0
01
1
9212-
69
PIN; SPR
LSPV(JR7) (B)
1-47719-027-0
01
1
9212-
70
LEVER; LSPV
LSPV(JR7)
1-47711-001-0
01
1
9212-
71
CLAMP; BOOT
LSPV(JR7)
9-44519-012-0
01
1
9212-
72
CLIP; BOOT
LSPV(JR7)
1-47719-029-0
01
1
9212-
73
SPRING; LEAF,LSPV
LSPV(JR7) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47714-005-0
01
1
9212-
73
SPRING; LEAF,LSPV
LSPV(JR7) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47714-004-0
01
1
9212-
74
PLATE; LEAF SPRING
LSPV(JR7)
1-47719-030-0
01
1
9212-
75
BOLT; LEAF SPRING
LSPV(JR7) (A)
1-47719-031-0
02
1
9212-
75
BOLT; LEAF SPRING
LSPV(JR7) (B)
9-88510-122-0
01
1
9212-
76
BRACKET; WIRE
LSPV(JR7)
1-47719-032-0
01
1
9212-
77
NUT; CLEVIS
LSPV(JR7)
1-47819-021-0
01
1
9212-
78
BOLT; WIRE BRKT
LSPV(JR7)
1-47719-033-0
01
1
9212-
79
NUT; WIRE BRKT
LSPV(JR7)
1-47819-021-0
01
1
9212-
80
WIRE; LSPV
LSPV(JR7)
1-47719-034-0
01
1
9212-
81
NUT; WIRE
LSPV(JR7)
9-83315-085-0
03
1
9212-
10
9
16
1
11
15
10
14
13
16
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47710-018-0
01
1
9212-
1
VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-47710-010-0
01
1
9212-
9
BRACKET; UPR,LSPV
LSPV(JR7)
1-47475-469-0
01
1
9212-
10
BOLT; BRKT
LSPV(JR7) M8X25 FLANGE
0-28080-825-0
04
1
9212-
11
NUT; BRKT
LSPV(JR7) M8
9-09110-408-0
04
1
9212-
13
NUT; LSPV TO BRKT
LSPV(JR7) M8
9-09110-408-0
04
1
9212-
14
WASHER; LK,LSPV TO BRKT
LSPV(JR7) ID=8.2
9-09150-508-0
04
1
9212-
15
BRACKET; LWR,LSPV
LSPV(JR7)
1-47465-585-1
01
1
9212-
16
WASHER; PL,BRKT
LSPV(JR7) ID=8.4 OD=22
9-09160-708-0
04
1
9212-
50
78
69
80
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
REPAIR KIT; LSPV
LSPV(JR7) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-85576-009-0
01
1
9212-
50
REPAIR KIT; LSPV
LSPV(JR7) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
1-87830-354-0
01
1
9212-
69
PIN; SPR
LSPV(JR7) (A)
1-47719-025-0
01
1
9212-
69
PIN; SPR
LSPV(JR7) (B)
1-47719-027-0
01
1
9212-
78
BOLT; WIRE BRKT
LSPV(JR7)
1-47719-033-0
01
1
9212-
80
WIRE; LSPV
LSPV(JR7)
1-47719-034-0
01
1
9212-
