◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#20299) — 15 parça

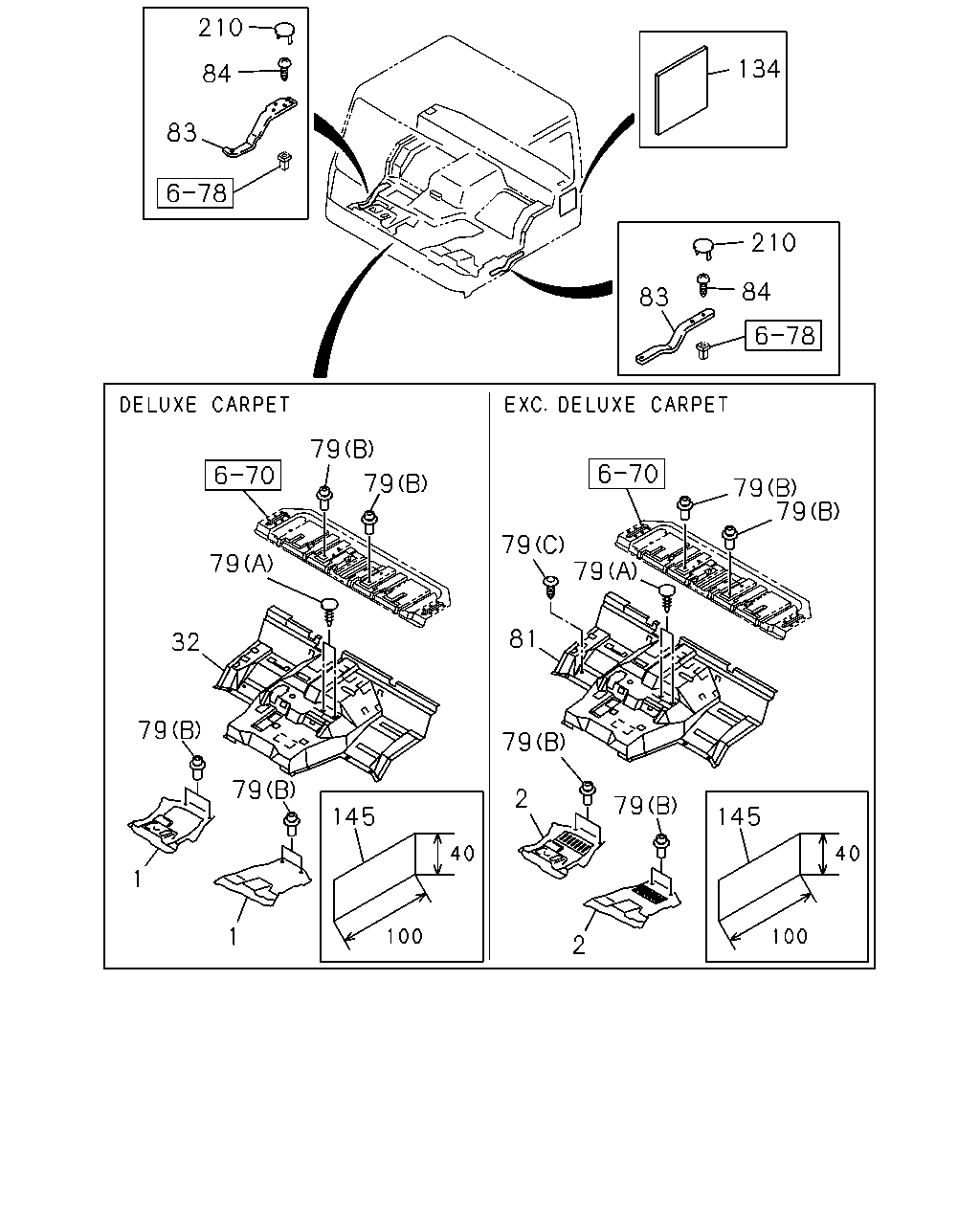

çizim 129991
210 134 84 83 210 84 83 79 79 79 79 79 79 79 81 32 79 79 79 2 79 145 145 1 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0904-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0904-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0904-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0904-
32 CARPET; FLOOR
DELUXE CARPET<BF2> 		1-73237-925-2 01 1 0904-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0904-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0904-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0904-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-929-1 01 1 0904-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0904-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0904-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0904-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 0904-1007
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0904-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0904-
