◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#20295) — 234 parça
çizim 129913
130 130 281 185 281 185 249 249 130 130 185 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1011-
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0904-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-890-2 01 1 0904-1008
130 PANEL; SHUTTER NOISE
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79937-890-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0904-
185 CLIP; HEAT INSULATOR
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ID=6.2 L=11.4 		8-97808-623-0 05 1 1010-1010
185 CLIP; HEAT INSULATOR
EMISSION REGULATION NEW LONG TERM<JBG> ID=6.2 L=11.4 		8-97808-623-0 05 1 1011-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0904-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0904-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0904-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0904-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0904-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0904-
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0904-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0904-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0904-

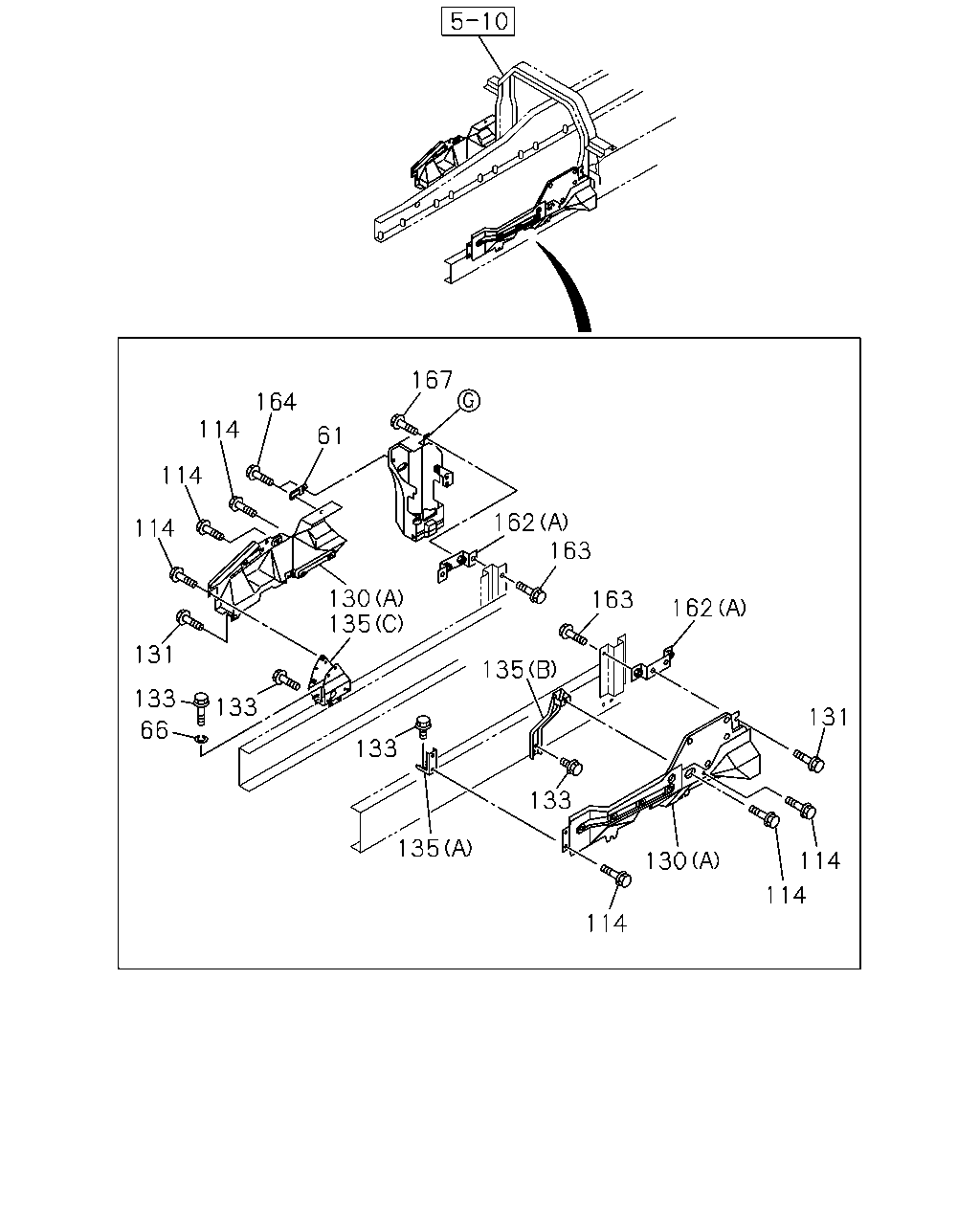

çizim 129922
167 164 114 61 114 162 163 114 130 135 163 162 131 135 133 133 131 66 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 0904-
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0904-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0904-
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1011-
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0904-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-890-2 01 1 0904-1008
130 PANEL; SHUTTER NOISE
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79937-890-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0904-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0904-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0904-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0904-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0904-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0904-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0904-
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0904-
162 BRACKET
6WG1 TC-S(97L) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 0904-
162 BRACKET
(C) 		1-71907-815-0 01 1 0904-
162 BRACKET
(B) 		1-53441-552-1 01 1 0904-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0904-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0904-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0904-

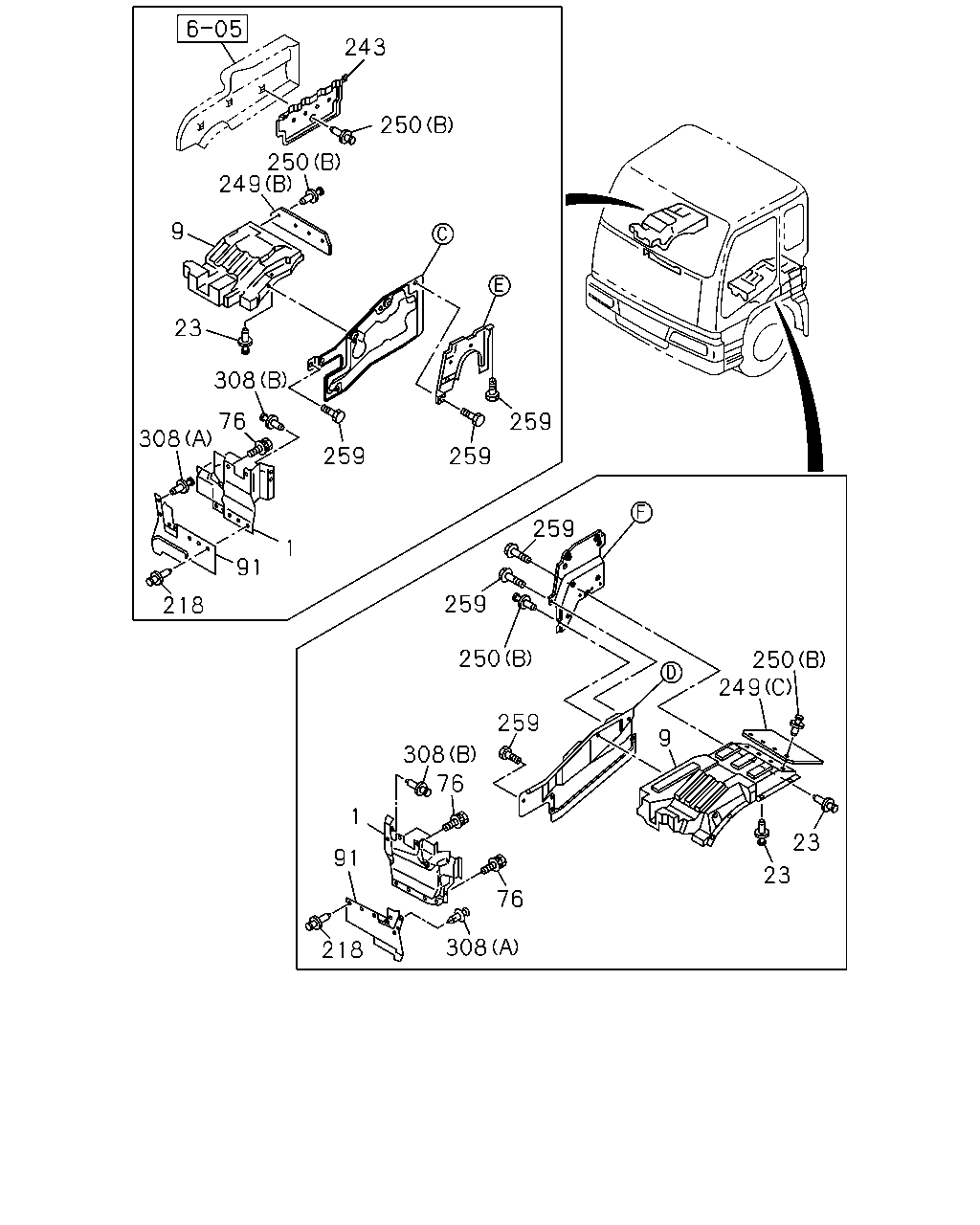

çizim 129924
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 259 218 250 250 249 259 9 308 76 1 23 91 23 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0904-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0904-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0904-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0904-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0904-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0904-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0904-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0904-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0904-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0904-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0904-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0904-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0904-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0904-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0904-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0904-
250 FASTENER; SHUTTER
6WG1 TC-S(97L) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0904-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0904-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0904-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0904-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0904-

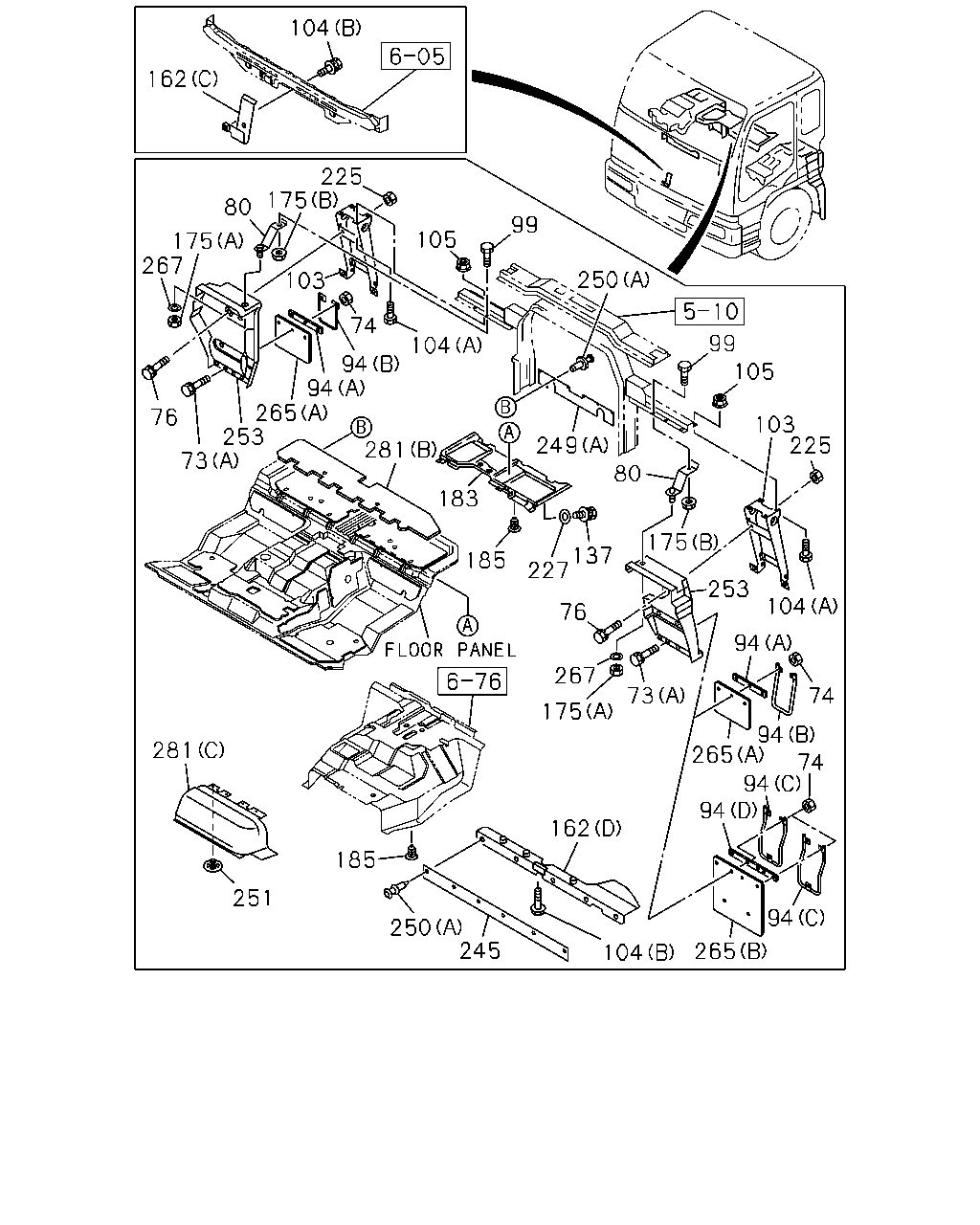

çizim 129933
104 162 225 175 80 99 105 175 267 250 103 74 99 104 94 94 265 253 73 105 76 103 225 281 249 80 183 175 137 227 185 253 104 76 94 267 73 74 175 94 74 94 94 281 265 162 185 251 94 250 245 265 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0904-0910
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0904-0910
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0911-1008
73 BOLT; MUD COVER BRKT
EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0904-
74 NUT
EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 07 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0904-0910
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0911-
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 1009-
74 NUT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 06 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0904-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0904-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0904-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0904-
94 RETAINER; FLAP RUBBER
EMISSION REGULATION NEW LONG TERM<JBG> (D) 		8-98035-095-0 01 1 1009-
94 RETAINER; FLAP RUBBER
EMISSION REGULATION NEW LONG TERM<JBG> (A) 		8-98038-675-0 01 1 1009-
94 RETAINER; FLAP RUBBER
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98079-256-0 02 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0904-0910
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0904-0910
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0911-1008
94 RETAINER; FLAP RUBBER
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (A) 		1-79931-091-2 02 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0904-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 0904-1008
94 RETAINER; FLAP RUBBER
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (B) 		1-79931-524-0 01 1 1009-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0904-
103 BRACKET ASM; RR MUD FLAP
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98038-679-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98306-896-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98158-218-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98306-898-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0904-1008
103 BRACKET ASM; RR MUD FLAP
EXC. EMISSION REGULATION NEW LONG TERM<JBG> 		1-79931-444-0 02 1 1009-1502
103 BRACKET ASM; RR MUD FLAP
EXC. EMISSION REGULATION NEW LONG TERM<JBG> 		8-98306-892-0 02 1 1503-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 1010-
104 BOLT; BRKT
6WG1 TC-S(97L) (B) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0904-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0904-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0904-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0904-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0904-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
6WG1 TC-S(97L) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 0904-
162 BRACKET
(C) 		1-71907-815-0 01 1 0904-
162 BRACKET
(B) 		1-53441-552-1 01 1 0904-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0904-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0904-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0904-
185 CLIP; HEAT INSULATOR
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ID=6.2 L=11.4 		8-97808-623-0 05 1 1010-1010
185 CLIP; HEAT INSULATOR
EMISSION REGULATION NEW LONG TERM<JBG> ID=6.2 L=11.4 		8-97808-623-0 05 1 1011-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0904-
225 NUT; MUD GUARD
EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 02 1 1009-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0904-0909
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 0910-1008
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 0910-1008
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1009-
225 NUT; MUD GUARD
EXC. EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 04 1 1009-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0904-
245 RUBBER; SHUTTER,RAD
6WG1 TC-S(97L) 		8-98113-211-0 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0904-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0904-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0904-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0904-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0904-
250 FASTENER; SHUTTER
6WG1 TC-S(97L) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0904-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0904-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0904-
253 GUARD; MUD
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98134-761-0 01 1 1009-
253 GUARD; MUD
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98134-765-0 01 1 1009-
253 GUARD; MUD 8-98134-759-0 01 1 0904-1008
253 GUARD; MUD
EXC. EMISSION REGULATION NEW LONG TERM<JBG> 		8-98134-759-0 01 1 1009-
253 GUARD; MUD 8-98134-766-1 01 1 0904-1008
253 GUARD; MUD
EXC. EMISSION REGULATION NEW LONG TERM<JBG> 		8-98134-766-1 01 1 1009-
265 RUBBER; FLAP,REAR
EMISSION REGULATION NEW LONG TERM<JBG> (A) 		8-98038-674-0 01 1 1009-1010
265 RUBBER; FLAP,REAR
EMISSION REGULATION NEW LONG TERM<JBG> (A) 		8-98106-956-0 01 1 1011-
265 RUBBER; FLAP,REAR
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		8-98065-692-0 01 1 1009-1010
265 RUBBER; FLAP,REAR
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		8-98159-862-0 01 1 1011-
265 RUBBER; FLAP,REAR
(A) 		1-79931-460-0 01 1 0904-0910
265 RUBBER; FLAP,REAR
(A) 		1-79931-460-0 01 1 0904-0910
265 RUBBER; FLAP,REAR
(A) 		1-79931-460-0 02 1 0911-1008
265 RUBBER; FLAP,REAR
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (A) 		1-79931-460-0 02 1 1009-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0904-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0904-
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0904-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0904-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0904-
çizim 129941
130 74 130 73 167 167 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0904-0910
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0904-0910
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0911-1008
73 BOLT; MUD COVER BRKT
EMISSION REGULATION NEW LONG TERM<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0904-
74 NUT
EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 07 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0904-0910
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0911-
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 1009-
74 NUT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 06 1 1009-
122 BOLT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> M8X30 FLANGE 		0-28650-830-0 04 1 1009-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 0904-1008
122 BOLT
EMISSION REGULATION NEW LONG TERM<JBG> M8X30 FLANGE 		0-28650-830-0 02 1 1009-
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79947-084-1 01 1 1011-
130 PANEL; SHUTTER NOISE
EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> (C) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0904-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0904-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-890-2 01 1 0904-1008
130 PANEL; SHUTTER NOISE
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (C) 		1-79937-890-2 01 1 1009-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0904-
160 COVER ASM; EXH
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		8-98156-979-0 01 1 1009-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 0904-1008
160 COVER ASM; EXH
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (A) 		1-79931-418-1 01 1 1009-
160 COVER ASM; EXH
(B) 		1-79931-443-0 01 1 0904-1008
160 COVER ASM; EXH
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (B) 		1-79931-443-0 01 1 1009-1207
160 COVER ASM; EXH
EXC. EMISSION REGULATION NEW LONG TERM<JBG> (B) 		1-79931-441-0 01 1 1208-
162 BRACKET
6WG1 TC-S(97L) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 0904-
162 BRACKET
(C) 		1-71907-815-0 01 1 0904-
162 BRACKET
(B) 		1-53441-552-1 01 1 0904-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0904-
çizim 129981
145 194 104 74 195 194 74 104 195 74 194 104 104 145 194 74
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 07 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0904-0910
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0911-
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0904-0910
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0911-1008
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 1009-
74 NUT
EXC. EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE 		0-91180-108-0 06 1 1009-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 1010-
104 BOLT; BRKT
6WG1 TC-S(97L) (B) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0904-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0904-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0904-
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 1010-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0904-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0904-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0904-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0904-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
