Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#2028) — 268 parça

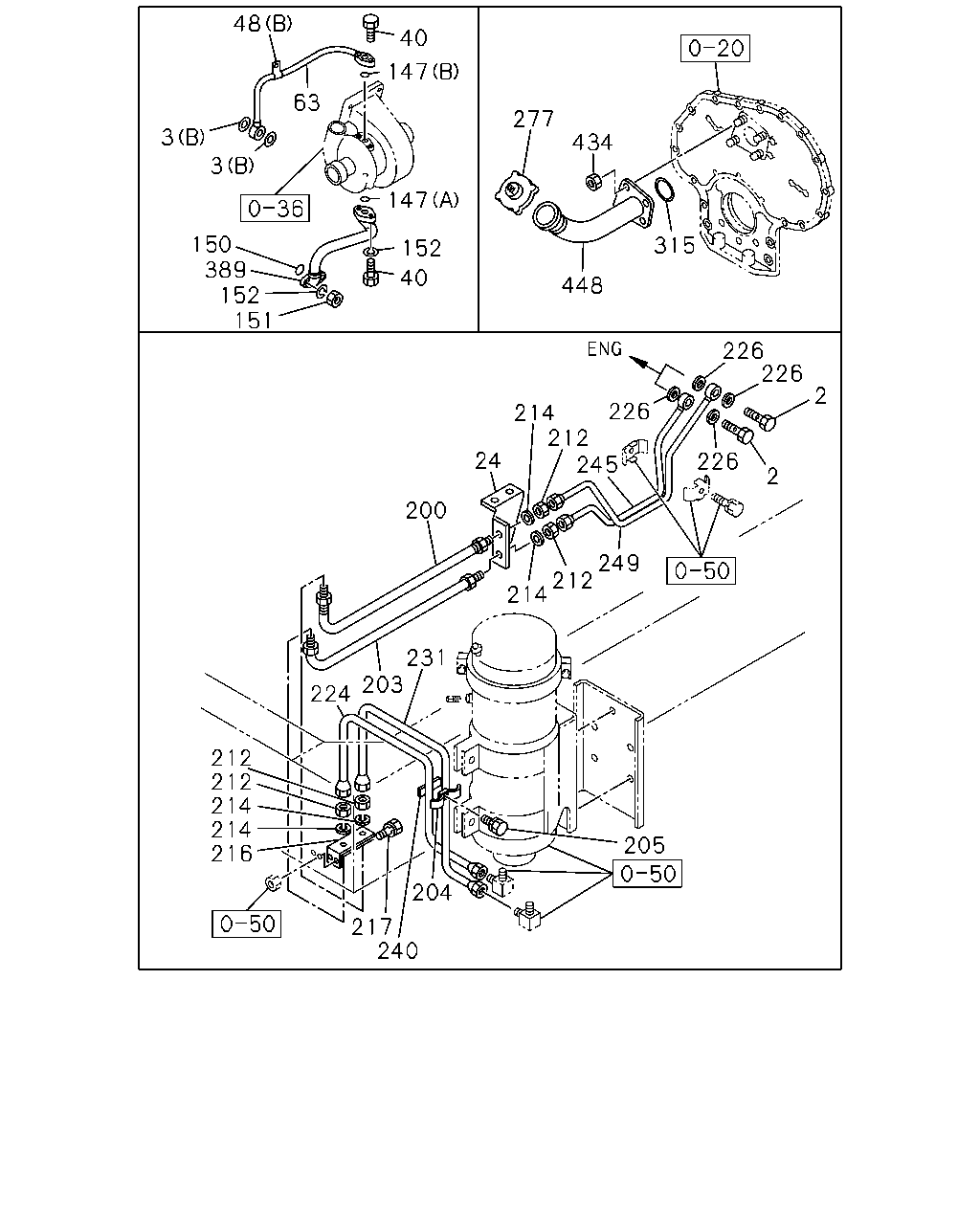

48 40 147 63 277 3 3 434 147 315 150 389 152 151 152 40 448 226 226 2 226 214 212 245 24 226 2 200 249 212 214 231 203 224 212 212 214 214 216 205 204 217 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE M10X49	1-09675-064-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X59.5	1-09675-065-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	02	1	9001-	●
2	BOLT; EYE,OIL PIPE M12X21	1-09675-085-0	01	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M14X27	1-09675-086-0	02	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	03	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9001-9705	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9001-9705	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9706-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9001-				●
24	BRACKET; OIL FILLER	1-11369-096-0	01	1	9001-	●
40	BOLT; OIL PIPE M8X70	9-01055-870-0	02	1	9001-9005	●
40	BOLT; OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	04	1	9001-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	04	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-		●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-		●	●	●
40	BOLT; OIL PIPE M10X60	0-16806-060-0	01	1	9101-				●
40	BOLT; OIL PIPE M10X35 W/LK WASHER	0-50051-035-0	02	1	9101-				●
40	BOLT; OIL PIPE M10X45 W/LK WASHER	0-50051-045-0	01	1	9101-				●
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9001-	●	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-332-0	01	1	9101-				●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-577-0	01	1	9101-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=29.7	1-09623-273-0	01	1	9101-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=19.8	1-09623-274-0	01	1	9101-				●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	9101-				●
151	NUT; PIPE,TURBOCHARGER RETAINER M8	9-09110-408-0	02	1	9101-				●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=8.2	9-09150-508-0	02	1	9101-				●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=10.2	9-09150-510-0	01	1	9101-				●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=450	1-09364-513-0	01	1	9001-	●	●	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=385	1-09364-512-0	01	1	9001-	●	●	●	●
204	CLIP; OIL PIPE ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-	●	●	●	●
205	BOLT; CLIP M6X16 W/LK WASHER	9-01910-616-0	01	1	9001-9005	●	●	●
205	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9606	●	●	●	●
205	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9607-	●	●	●	●
212	NUT; FLEX HOSE,PARTIAL FILTER M16	9-99111-416-0	04	1	9001-	●	●	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER ID=16.2	9-09150-516-0	04	1	9001-9312	●	●	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47465-095-0	01	1	9001-	●	●	●	●
217	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9001-9204	●	●	●	●
217	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9606	●	●	●	●
217	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●	●	●
224	PIPE; OIL,DELIVERY	1-13311-700-0	01	1	9001-9212	●	●	●	●
224	PIPE; OIL,DELIVERY	1-13313-285-0	01	1	9301-	●	●	●	●
226	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	04	1	9001-	●	●	●	●
231	PIPE; OIL,RETURN	1-13311-701-0	01	1	9001-9212	●	●	●	●
231	PIPE; OIL,RETURN	1-13313-286-0	01	1	9301-	●	●	●	●
240	BRACKET; CLIP	1-47466-005-0	01	1	9001-	●	●	●	●
245	PIPE; OIL,FLEX HOSE TO PARTIAL FILTER	1-13311-417-0	01	1	9001-9212	●	●	●	●
245	PIPE; OIL,FLEX HOSE TO PARTIAL FILTER	1-13313-287-0	01	1	9301-	●	●	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13311-418-0	01	1	9001-9212	●	●	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13313-288-0	01	1	9301-	●	●	●	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9001-	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7	1-09623-465-0	01	1	9001-	●	●	●	●
389	PIPE; OIL,TURBOCHARGER TO C/BL	1-13312-578-1	01	1	9101-				●
434	NUT; OIL FILLER M8	9-09110-408-0	04	1	9001-	●	●	●	●
448	FILLER; OIL	1-11741-116-0	01	1	9001-	●	●	●	●

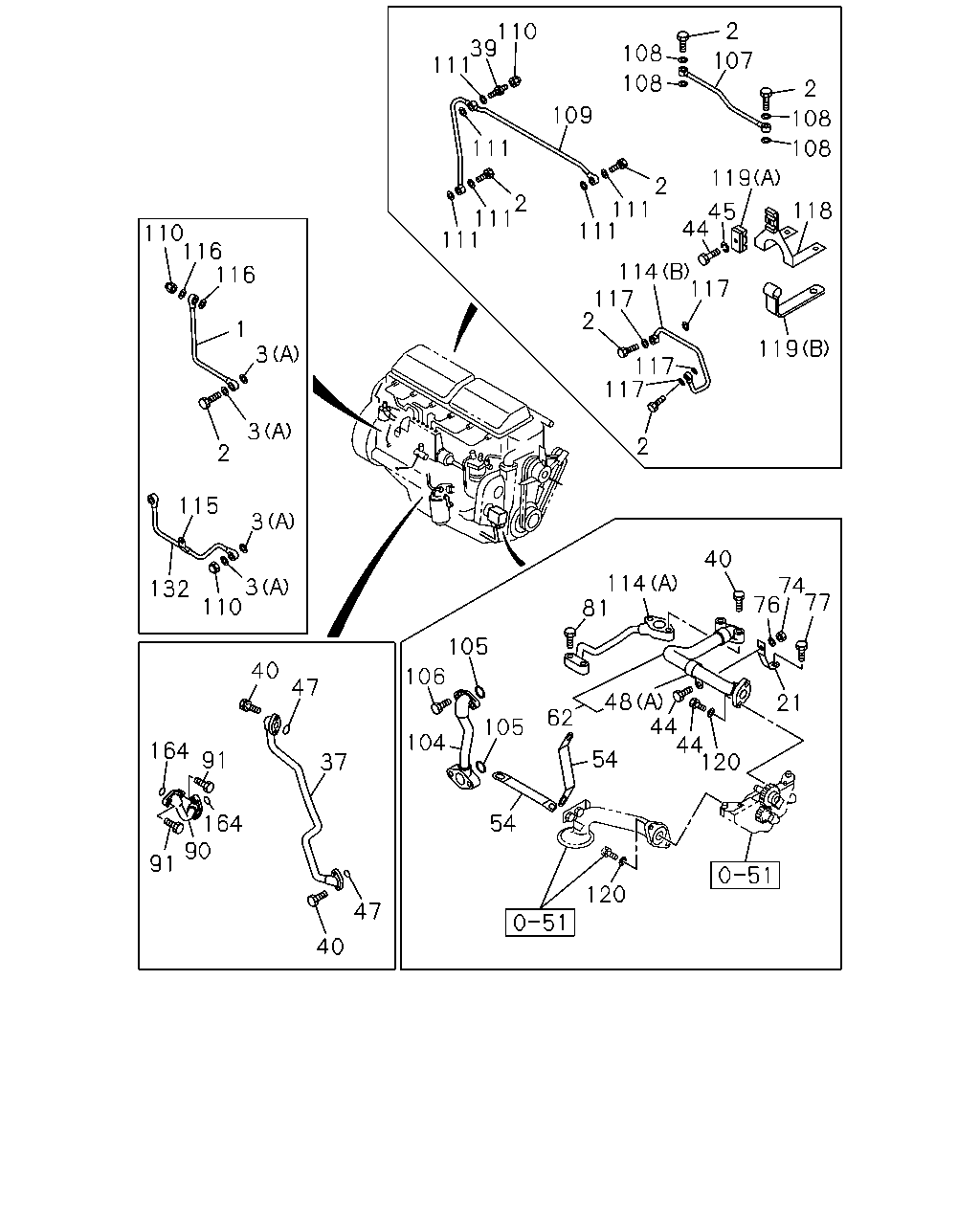

2 110 39 111 108 107 108 2 109 108 111 108 119 2 111 111 2 111 111 118 45 44 110 116 116 114 117 117 2 1 119 117 117 3 3 2 2 115 3 40 114 81 74 76 77 3 110 132 105 40 106 47 48 44 44 120 21 62 105 104 164 54 91 37 164 90 54 91 120 47 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-650-0	01	1	9001-	●
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9001-		●	●	●
2	BOLT; EYE,OIL PIPE M10X49	1-09675-064-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X59.5	1-09675-065-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	02	1	9001-	●
2	BOLT; EYE,OIL PIPE M12X21	1-09675-085-0	01	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M14X27	1-09675-086-0	02	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	03	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9001-9705	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9001-9705	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9706-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9001-				●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9001-	●	●	●	●
37	PIPE; OIL,FILTER TO COOLER	9-13312-556-1	01	1	9001-	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-840-0	01	1	9001-		●	●	●
39	CONNECTOR	1-09660-088-0	01	1	9001-	●
40	BOLT; OIL PIPE M8X70	9-01055-870-0	02	1	9001-9005	●
40	BOLT; OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	04	1	9001-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	04	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-		●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-		●	●	●
40	BOLT; OIL PIPE M10X60	0-16806-060-0	01	1	9101-				●
40	BOLT; OIL PIPE M10X35 W/LK WASHER	0-50051-035-0	02	1	9101-				●
40	BOLT; OIL PIPE M10X45 W/LK WASHER	0-50051-045-0	01	1	9101-				●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9001-9004	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	9-01931-022-0	01	1	9001-9002	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9003-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9001-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M5X25	9-09602-082-0	01	1	9001-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9001-9005		●	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-		●	●	●
45	WASHER; LK,CLIP ID=5.1	9-09150-505-0	01	1	9001-	●	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9001-	●	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-332-0	01	1	9101-				●
54	STAY; OIL STRAINER M/T<X9C> L=110	1-13145-032-2	01	1	9001-	●
54	STAY; OIL STRAINER L=110	1-13145-032-2	01	1	9001-		●	●	●
54	STAY; OIL STRAINER M/T<X9C> L=130	1-13145-033-2	01	1	9001-	●
54	STAY; OIL STRAINER L=130	1-13145-033-2	01	1	9001-		●	●	●
62	PIPE; OIL,PUMP TO C/BL A/T<X9D>	1-13311-871-1	01	1	9001-	●
62	PIPE; OIL,PUMP TO C/BL M/T<X9C>	1-13311-704-1	01	1	9001-	●
62	PIPE; OIL,PUMP TO C/BL	1-13311-704-1	01	1	9001-		●	●	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9001-	●	●	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9001-	●	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9001-9005	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9001-9005	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●			●
81	BOLT; OIL PIPE,BODY TO BODY M8X40 W/LK WASHER	9-01910-840-0	02	1	9001-9005		●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-		●	●
90	PIPE ASM; OIL,C/BL TO FILTER	9-13312-508-1	01	1	9001-	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	03	1	9001-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	01	1	9001-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	01	1	9006-9304	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER TAIWAN EMISSION REGULATION<TAL> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-		●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	01	1	9305-	●		●	●
91	BOLT; OIL PIPE,BODY TO FILTER EXC. TAIWAN EMISSION REGULATION<TAL> M8X40 W/LK WASHER	0-50040-840-0	01	1	9305-		●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-500-1	01	1	9001-	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9001-		●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9001-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9001-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●	●	●
107	PIPE; OIL,CAM BRG	9-13312-149-1	01	1	9001-	●
108	GASKET; OIL PIPE,CAM BRG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9001-	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-515-0	01	1	9001-	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-586-0	01	1	9001-		●	●	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	03	1	9001-	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9001-		●	●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9001-		●	●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	07	1	9001-	●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9001-	●	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-866-1	01	1	9001-9101	●	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13313-101-0	01	1	9102-	●	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-404-0	01	1	9001-	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9001-9401		●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-		●	●	●
116	GASKET; CAP NUT,OIL PIPE ID=12.2	1-09630-084-0	02	1	9001-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9001-	●	●	●	●
118	BRACKET; CLIP,OIL PIPE	1-13319-012-1	01	1	9001-9101	●	●	●	●
118	BRACKET; CLIP,OIL PIPE	1-13319-016-0	01	1	9102-	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A)	1-09700-110-0	01	1	9001-9101	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A)	9-15419-613-0	01	1	9102-	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (B)	9-09916-397-0	01	1	9001-	●	●	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9001-	●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9001-	●	●	●	●
120	WASHER; PL,PIPE FIX ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-453-1	01	1	9001-	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9001-		●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●

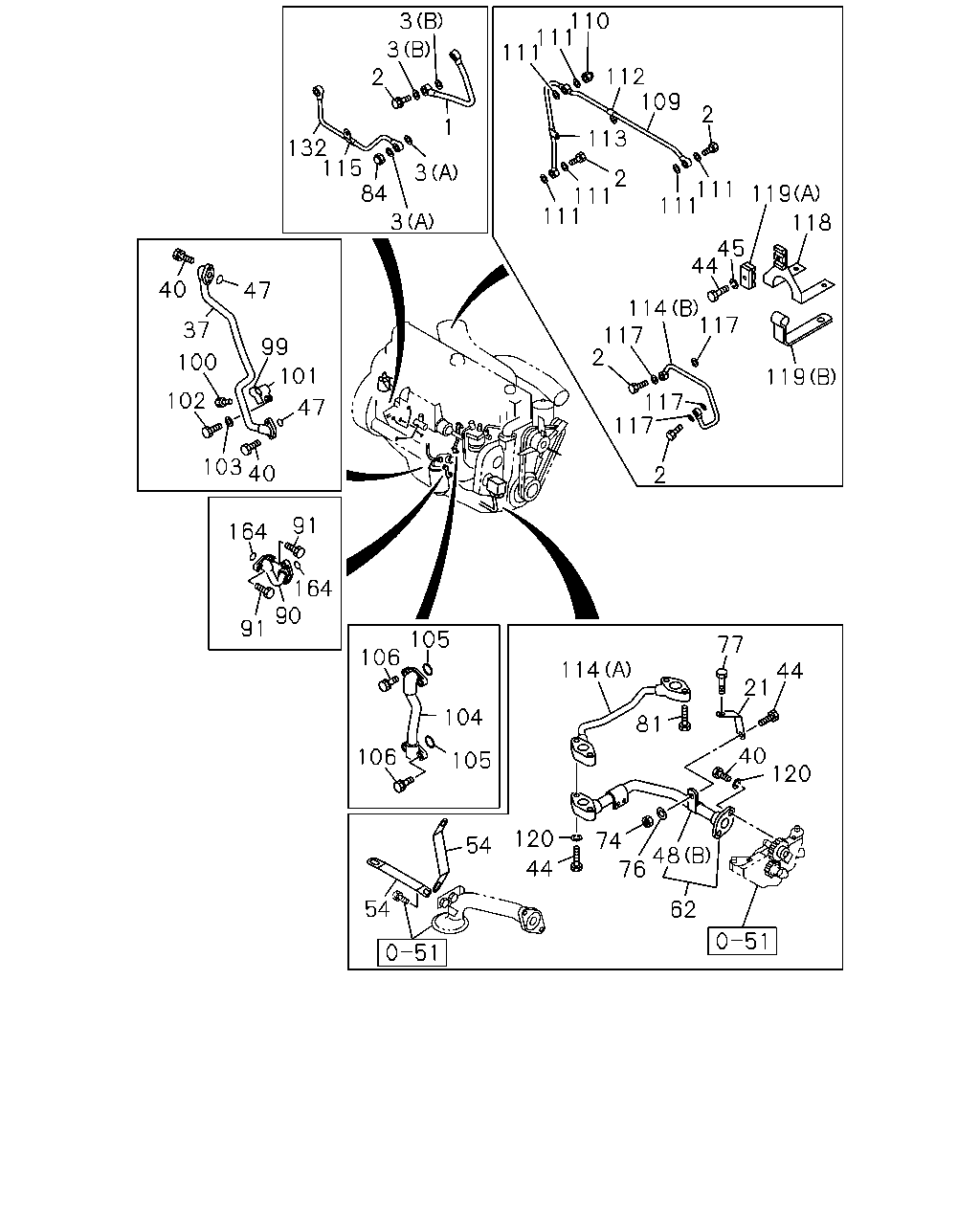

3 110 111 111 3 2 112 109 2 113 1 132 115 84 3 2 111 111 111 111 119 3 118 45 44 40 47 114 117 117 2 37 99 100 101 119 117 117 102 47 103 40 2 91 164 164 90 91 105 77 106 114 44 21 104 81 40 120 106 105 120 74 48 76 54 44 54 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-650-0	01	1	9001-	●
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9001-		●	●	●
2	BOLT; EYE,OIL PIPE M10X49	1-09675-064-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X59.5	1-09675-065-0	01	1	9001-	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	02	1	9001-	●
2	BOLT; EYE,OIL PIPE M12X21	1-09675-085-0	01	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M14X27	1-09675-086-0	02	1	9001-	●	●	●	●
2	BOLT; EYE,OIL PIPE M10X21	1-09675-077-0	03	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9001-9705	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9001-9705	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9706-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	9001-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9001-				●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9001-	●	●	●	●
37	PIPE; OIL,FILTER TO COOLER	9-13312-556-1	01	1	9001-	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-840-0	01	1	9001-		●	●	●
40	BOLT; OIL PIPE M8X70	9-01055-870-0	02	1	9001-9005	●
40	BOLT; OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	04	1	9001-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	04	1	9006-	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-		●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9001-9005		●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-		●	●	●
40	BOLT; OIL PIPE M10X60	0-16806-060-0	01	1	9101-				●
40	BOLT; OIL PIPE M10X35 W/LK WASHER	0-50051-035-0	02	1	9101-				●
40	BOLT; OIL PIPE M10X45 W/LK WASHER	0-50051-045-0	01	1	9101-				●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9001-9004	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	9-01931-022-0	01	1	9001-9002	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9003-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9001-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M5X25	9-09602-082-0	01	1	9001-	●	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9001-9005		●	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-		●	●	●
45	WASHER; LK,CLIP ID=5.1	9-09150-505-0	01	1	9001-	●	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9001-	●	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-332-0	01	1	9101-				●
54	STAY; OIL STRAINER M/T<X9C> L=110	1-13145-032-2	01	1	9001-	●
54	STAY; OIL STRAINER L=110	1-13145-032-2	01	1	9001-		●	●	●
54	STAY; OIL STRAINER M/T<X9C> L=130	1-13145-033-2	01	1	9001-	●
54	STAY; OIL STRAINER L=130	1-13145-033-2	01	1	9001-		●	●	●
62	PIPE; OIL,PUMP TO C/BL A/T<X9D>	1-13311-871-1	01	1	9001-	●
62	PIPE; OIL,PUMP TO C/BL M/T<X9C>	1-13311-704-1	01	1	9001-	●
62	PIPE; OIL,PUMP TO C/BL	1-13311-704-1	01	1	9001-		●	●	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9001-	●	●	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9001-	●	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9001-9005	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9001-9005	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●			●
81	BOLT; OIL PIPE,BODY TO BODY M8X40 W/LK WASHER	9-01910-840-0	02	1	9001-9005		●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-		●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9001-		●	●	●
84	NUT; CAP,OIL PIPE M12	9-09844-632-1	01	1	9101-				●
90	PIPE ASM; OIL,C/BL TO FILTER	9-13312-508-1	01	1	9001-	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	03	1	9001-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	01	1	9001-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	01	1	9006-9304	●	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER TAIWAN EMISSION REGULATION<TAL> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-		●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	01	1	9305-	●		●	●
91	BOLT; OIL PIPE,BODY TO FILTER EXC. TAIWAN EMISSION REGULATION<TAL> M8X40 W/LK WASHER	0-50040-840-0	01	1	9305-		●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9001-		●	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9001-9002		●	●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-		●	●	●
101	BRACKET; CLIP	1-13345-118-0	01	1	9001-		●	●	●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9001-9005		●	●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-		●	●	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9001-		●	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-500-1	01	1	9001-	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9001-		●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9001-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9001-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-515-0	01	1	9001-	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-586-0	01	1	9001-		●	●	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	03	1	9001-	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9001-		●	●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9001-		●	●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	07	1	9001-	●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9001-		●	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9001-		●	●	●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9001-	●	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-866-1	01	1	9001-9101	●	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13313-101-0	01	1	9102-	●	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-404-0	01	1	9001-	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9001-9401		●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9001-	●	●	●	●
118	BRACKET; CLIP,OIL PIPE	1-13319-012-1	01	1	9001-9101	●	●	●	●
118	BRACKET; CLIP,OIL PIPE	1-13319-016-0	01	1	9102-	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A)	1-09700-110-0	01	1	9001-9101	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A)	9-15419-613-0	01	1	9102-	●	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (B)	9-09916-397-0	01	1	9001-	●	●	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9001-	●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9001-	●	●	●	●
120	WASHER; PL,PIPE FIX ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-453-1	01	1	9001-	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9001-		●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9001-9003	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
