5-01 — FRAME AND OTHER PARTS (#20278) — 154 parça

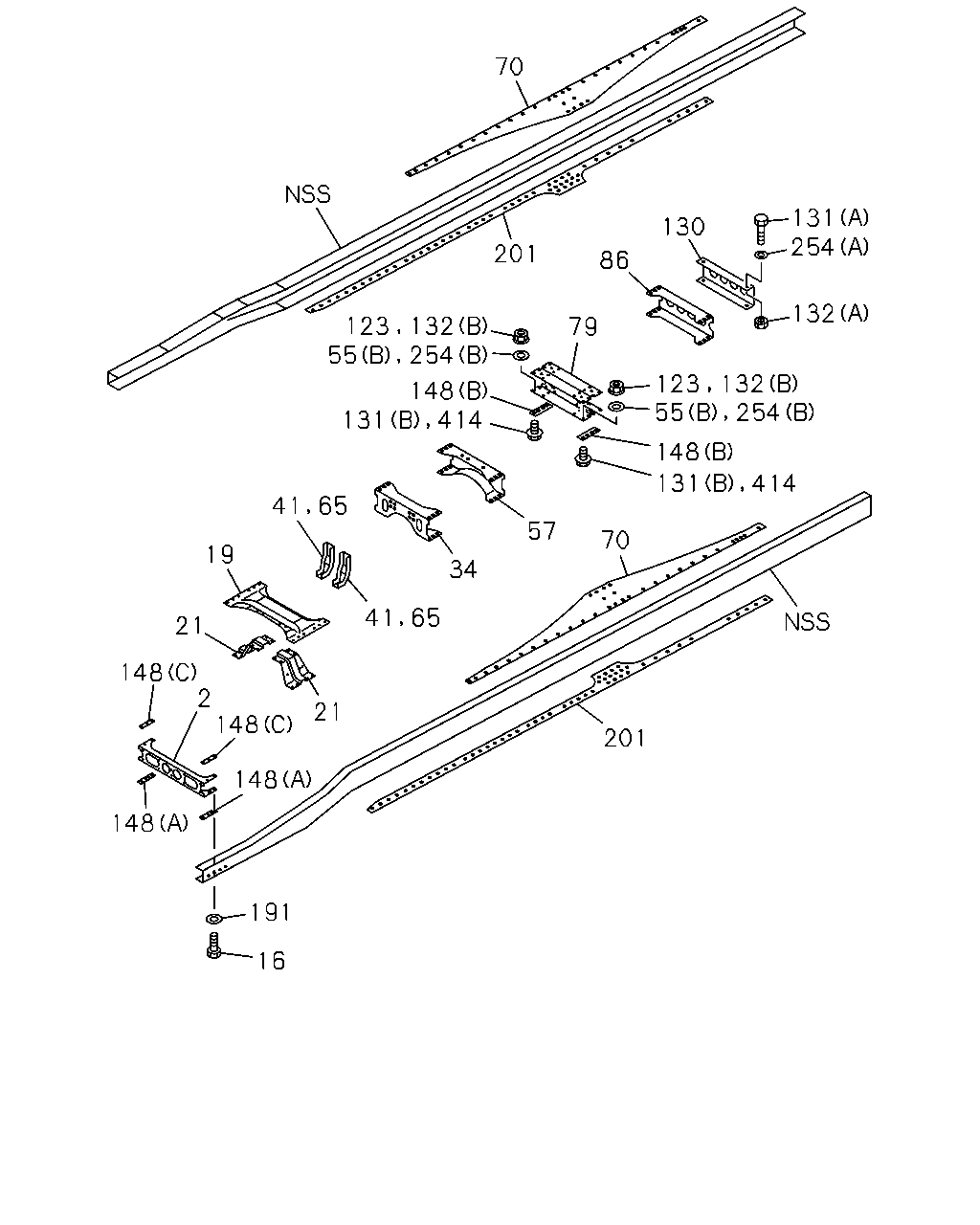

70 13 254 130 201 86 132 79 148 148 57 70 19 34 21 148 2 148 21 201 148 148 191 16 132 123 55 254 131 414 123 132 254 55 131 414 41 65 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST 6WG1 TC-R(75L)	8-97604-959-2	01	1	0904-1008
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	1009-
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) M14X40	0-20951-440-0	04	1	0904-1008
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1009-
16	BOLT; 1ST C/MBR TO S/MBR 6WG1 TC-R(75L) M16X40	0-20951-640-0	02	1	0904-1008
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1009-
19	MEMBER; CROSS,2ND 6WG1 TC-R(75L)	1-53174-231-1	01	1	0904-1008
19	MEMBER; CROSS,2ND	1-53174-231-2	01	1	1009-
21	GUSSET; 2ND CROSS 6WG1 TC-R(75L)	1-53164-185-0	02	1	0904-1008
21	GUSSET; 2ND CROSS	1-53164-185-1	02	1	1009-
34	MEMBER; CROSS,3RD 6WG1 TC-R(75L)	1-53182-090-0	01	1	0904-1008
34	MEMBER; CROSS,3RD	1-53182-090-0	01	1	1009-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-R(75L) L=320	1-53271-385-0	02	1	0904-
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	10	1	1009-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	9-09160-518-0	16	1	0904-1410
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	0-91610-518-0	16	1	1411-
55	WASHER; PL 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	10	1	0904-1201
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-R(75L)	1-53181-937-3	01	1	0904-1008
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	1009-
65	BRACKET; CENTER BRG 6WG1 TC-C(72L),6WG1 TC-S(97L) L=320	1-53271-385-0	02	1	1009-
70	GUSSET; TRUNNION,UPR 6WG1 TC-R(75L)	1-53161-888-0	02	1	0904-1008
70	GUSSET; TRUNNION,UPR	1-53161-888-0	02	1	1009-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-912-3	01	1	0904-1008
79	MEMBER; CROSS,TRUNNION ASM	1-53181-912-3	01	1	1009-
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-R(75L)	1-53181-646-7	01	1	0904-1008
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-8	01	1	1009-
123	NUT 6WG1 TC-R(75L) M18	0-91110-518-0	16	1	0904-1410
123	NUT 6WG1 TC-R(75L) M18	0-91110-518-0	08	1	1411-
130	MEMBER; CROSS,END 6WG1 TC-R(75L)	1-53181-613-1	01	1	0904-1008
130	MEMBER; CROSS,END	1-53181-613-1	01	1	1009-
131	BOLT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M18X60	8-98036-497-0	08	1	1009-
131	BOLT; END C/MBR 6WG1 TC-R(75L) (A) M14X40	0-20951-440-0	04	1	0904-1008
131	BOLT; END C/MBR (A) M14X40	0-20951-440-0	04	1	1009-1410
132	NUT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M18	0-91110-518-0	08	1	1009-
132	NUT; END C/MBR 6WG1 TC-R(75L) (A) M14	0-91110-514-0	04	1	0904-1008
132	NUT; END C/MBR (A) M14	0-91110-514-0	04	1	1009-1410
148	SPACER; C/MBR 6WG1 TC-R(75L) (B)	1-53168-375-0	02	1	0904-1008
148	SPACER; C/MBR (B)	1-53168-375-0	02	1	1009-
148	SPACER; C/MBR 6WG1 TC-R(75L) (C)	1-53168-400-1	02	1	0904-1008
148	SPACER; C/MBR (C)	1-53168-400-1	02	1	1009-
148	SPACER; C/MBR 6WG1 TC-R(75L) (A)	1-53168-403-1	02	1	0904-1008
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	1009-
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-316-0	02	1	1009-1410
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1411-
191	WASHER; PL,1ST C/MBR TO S/MBR 6WG1 TC-R(75L) ID=16.2	1-09503-223-0	02	1	0904-1410
201	GUSSET; C/MBR 6WG1 TC-R(75L)	1-53161-925-0	02	1	0904-1008
201	GUSSET; C/MBR	1-53161-925-0	02	1	1009-
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	04	1	1009-1201
254	WASHER; PL,C/MBR (A) ID=15	8-98010-627-1	04	1	1202-1410
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=19	9-09160-518-0	16	1	1009-1410
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=19	0-91610-518-0	16	1	1411-
254	WASHER; PL,C/MBR 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	04	1	0904-1201
414	BOLT 6WG1 TC-R(75L) M18X60	8-98036-497-0	16	1	0904-

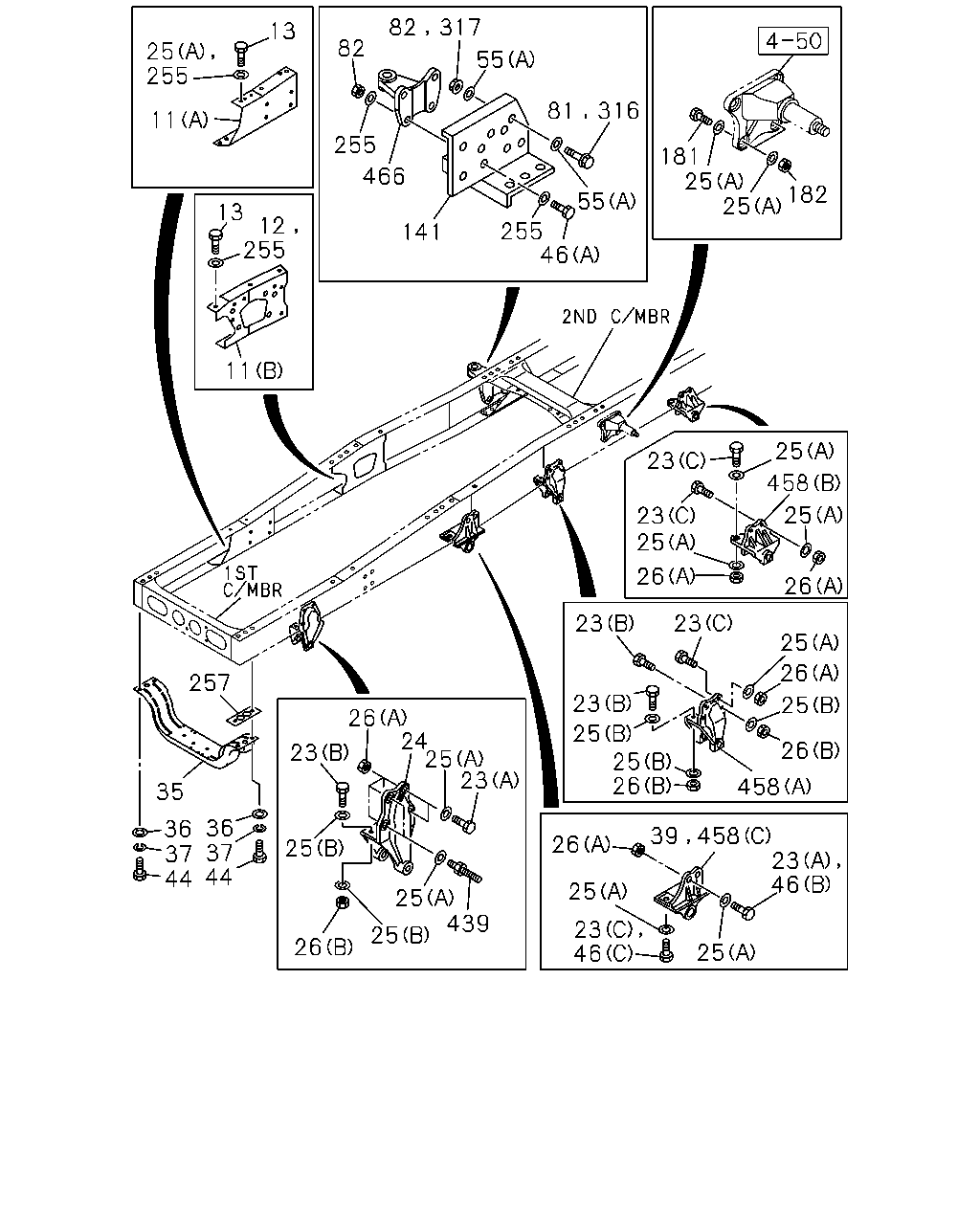

82 13 82 25 255 55 81 316 11 255 181 25 25 466 182 55 13 12 255 255 46 141 11 25 23 458 25 23 25 26 26 23 23 25 26 257 23 25 26 24 25 23 25 25 26 26 23 458 35 36 37 44 36 37 44 23 26 25 25 25 439 23 25 26 25 317 39 458 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (A)	1-53211-367-1	01	1	0904-1008
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1009-
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (A)	1-53211-368-1	01	1	0904-1008
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1009-
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-611-0	01	1	0904-1008
11	BRACKET; ENG MTG (B)	8-98056-611-1	01	1	1009-
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (B)	8-98056-612-0	01	1	0904-1008
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	1009-
12	WASHER; PL,BRKT,ENG MTG 6WG1 TC-R(75L) ID=15	9-09651-069-0	02	1	0904-1201
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) M14X40	0-20951-440-0	04	1	0904-1008
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1009-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X40	0-20951-440-0	06	1	1009-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	04	1	1009-
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (A) M14X40	0-20951-440-0	10	1	0904-
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (C) M14X50	0-20951-450-0	16	1	0904-
23	BOLT; BRKT,SPR 6WG1 TC-R(75L) (B) M16X50	0-20951-650-0	12	1	0904-1008
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	1009-
24	BRACKET; FRT SPR,FRT 6WG1 TC-R(75L)	1-53351-237-1	01	1	0904-1008
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1009-
24	BRACKET; FRT SPR,FRT 6WG1 TC-R(75L)	1-53351-238-1	01	1	0904-1008
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1009-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=16.2	1-09503-316-0	20	1	1009-1410
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1411-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	80	1	1009-
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (B) ID=16.2	1-09503-223-0	20	1	0904-1410
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	82	1	0904-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	82	1	1202-
26	NUT; BRKT,SPR 6WG1 TC-R(75L) (A) M14	0-91110-514-0	24	1	0904-1008
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	1009-
26	NUT; BRKT,SPR 6WG1 TC-R(75L) (B) M16	0-91110-516-0	12	1	0904-1008
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	1009-
35	MEMBER; UNDER	1-53174-263-2	01	1	0904-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0904-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0904-
39	BRACKET; FRT SPR,RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53352-179-0	01	1	1009-
39	BRACKET; FRT SPR,RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53352-180-0	01	1	1009-
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	0-10961-680-0	04	1	1009-1504
44	BOLT; UNDER MBR 6WG1 TC-S(97L) M16X80	8-98135-460-0	04	1	1505-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0904-1007
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1008-1008
44	BOLT; UNDER MBR 6WG1 TC-C(72L),6WG1 TC-R(75L) M16X60	0-20951-660-0	04	1	1009-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X40	0-20951-440-0	04	1	1009-
46	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	12	1	1009-
46	BOLT; BRKT FIX 6WG1 TC-R(75L) (A) M14X60	0-20951-460-0	04	1	0904-1008
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	1009-
55	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	10	1	1009-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	9-09160-518-0	16	1	0904-1410
55	WASHER; PL 6WG1 TC-R(75L) (B) ID=19	0-91610-518-0	16	1	1411-
55	WASHER; PL 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	10	1	0904-1201
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14X50	0-20951-450-0	05	1	1009-
82	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	09	1	1009-
82	NUT; BRKT 6WG1 TC-R(75L) M14	0-91110-514-0	04	1	0904-
141	STIFFENER 6WG1 TC-R(75L)	1-53151-833-1	01	1	0904-1008
141	STIFFENER	1-53151-833-1	01	1	1009-
181	BOLT; S/ABS BRKT TO FRAME 6WG1 TC-R(75L) M14X50	0-20951-450-0	08	1	0904-1008
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1009-
182	NUT; S/ABS BRKT TO FRAME 6WG1 TC-R(75L) M14	0-91110-514-0	08	1	0904-1008
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1009-
255	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	16	1	1009-
255	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=15	9-09651-069-0	08	1	0904-1201
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-
257	SPACER; UNDER MBR 6WG1 TC-S(97L)	1-53168-447-1	02	1	1009-
316	BOLT; STIFFENER 6WG1 TC-R(75L) M14X50	0-20951-450-0	05	1	0904-
317	NUT; STIFFENER 6WG1 TC-R(75L) M14	0-91110-514-0	05	1	0904-
439	STUD; BRKT,SPR 6WG1 TC-R(75L) M12X25,M14X45 L=81	1-09029-103-0	02	1	0904-1008
439	STUD; BRKT,SPR M12X25,M14X45 L=81	1-09029-103-0	02	1	1009-
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (A)	1-53351-217-0	01	1	0904-1008
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	1009-
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (A)	1-53351-218-0	01	1	0904-1008
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	1009-
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (B)	1-53352-067-3	02	1	0904-1008
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	1009-
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-179-0	01	1	0904-
458	BRACKET; LEAF SPRING 6WG1 TC-R(75L) (C)	1-53352-180-0	01	1	0904-
466	BRACKET; BOOSTER 6WG1 TC-R(75L)	1-44515-073-0	01	1	0904-1008
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1009-

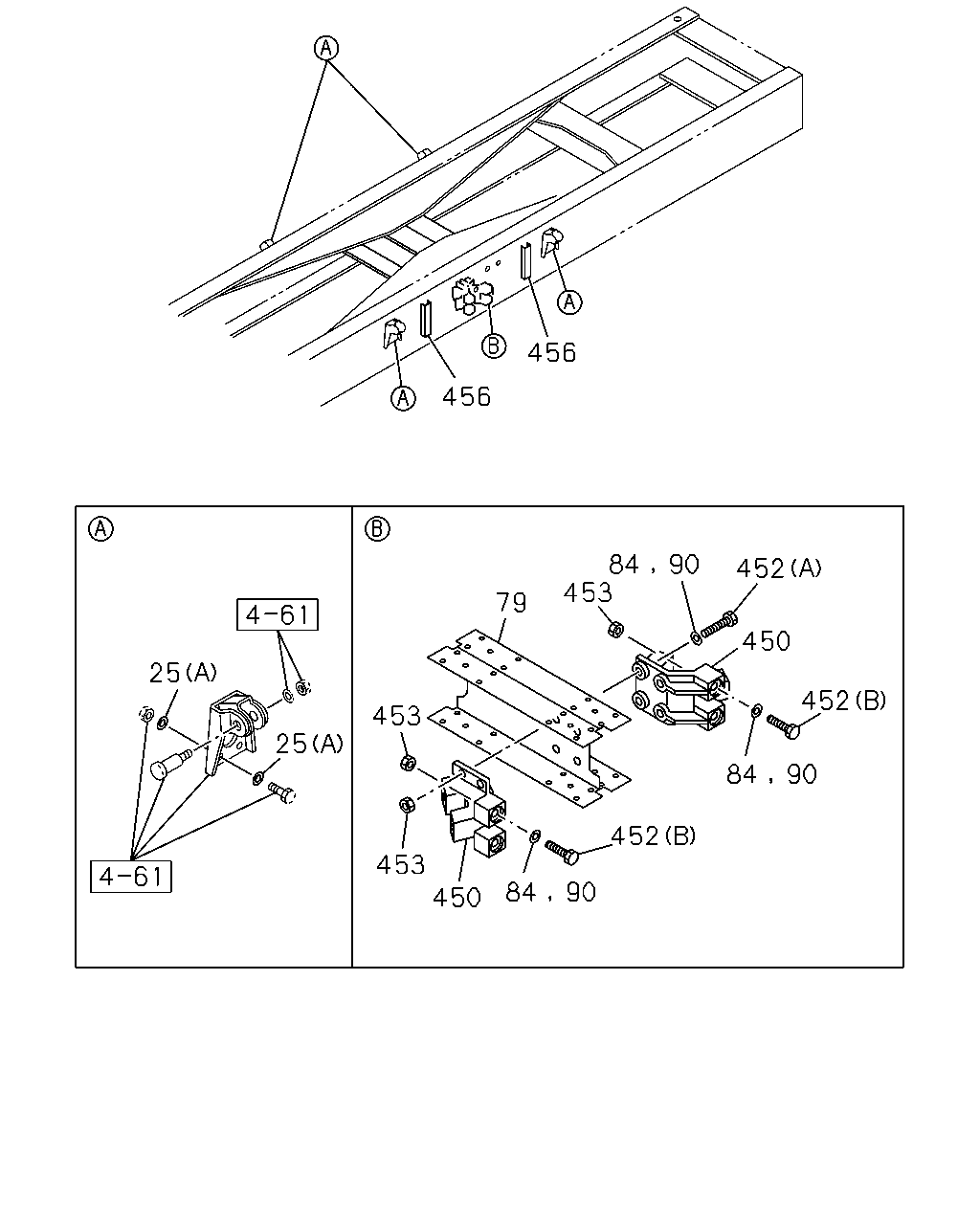

456 456 84 453 90 452 79 450 25 452 453 25 84 90 452 453 84 90 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=16.2	1-09503-316-0	20	1	1009-1410
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1411-
25	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	80	1	1009-
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (B) ID=16.2	1-09503-223-0	20	1	0904-1410
25	WASHER; PL,BRKT 6WG1 TC-R(75L) (A) ID=15	9-09651-069-0	82	1	0904-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	82	1	1202-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-R(75L)	1-53181-912-3	01	1	0904-1008
79	MEMBER; CROSS,TRUNNION ASM	1-53181-912-3	01	1	1009-
84	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=16.2	1-09503-223-0	16	1	0904-1410
84	WASHER; PL,BRKT 6WG1 TC-R(75L) ID=16.2	1-09503-316-0	16	1	1411-
90	WASHER; PL 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-316-0	16	1	1009-
450	BRACKET; V ROD 6WG1 TC-R(75L)	1-53353-122-1	04	1	0904-1008
450	BRACKET; V ROD	1-53353-122-1	04	1	1009-
452	BOLT; V ROD 6WG1 TC-R(75L) (A) M16X70	1-09000-673-0	08	1	0904-1008
452	BOLT; V ROD (A) M16X70	1-09000-673-0	08	1	1009-1410
452	BOLT; V ROD 6WG1 TC-R(75L) (B) M16X90	1-09000-675-0	08	1	0904-1008
452	BOLT; V ROD (B) M16X90	1-09000-675-0	08	1	1009-1410
452	BOLT; V ROD (B) M16X90	1-09000-675-0	16	1	1411-
453	NUT; V ROD 6WG1 TC-R(75L) M16 FLANGE	1-09440-066-0	16	1	0904-1008
453	NUT; V ROD M16 FLANGE	1-09440-066-0	16	1	1009-
456	PATCH; STOPPER 6WG1 TC-R(75L)	1-53119-203-0	04	1	0904-1008
456	PATCH; STOPPER	1-53119-203-0	04	1	1009-
