Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#20272) — 81 parça
◀

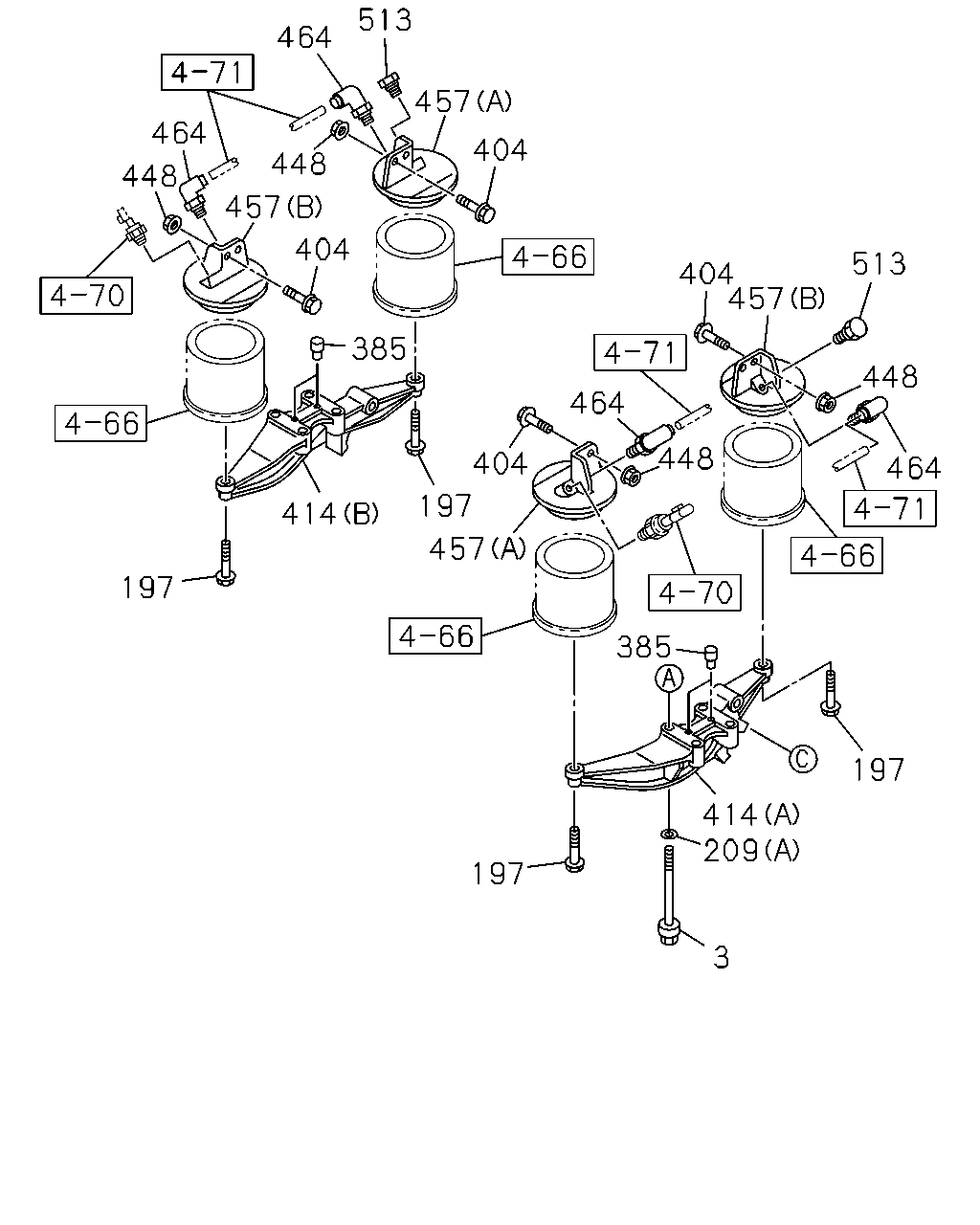

[460A] FORWARD NO.2 (15 parça)

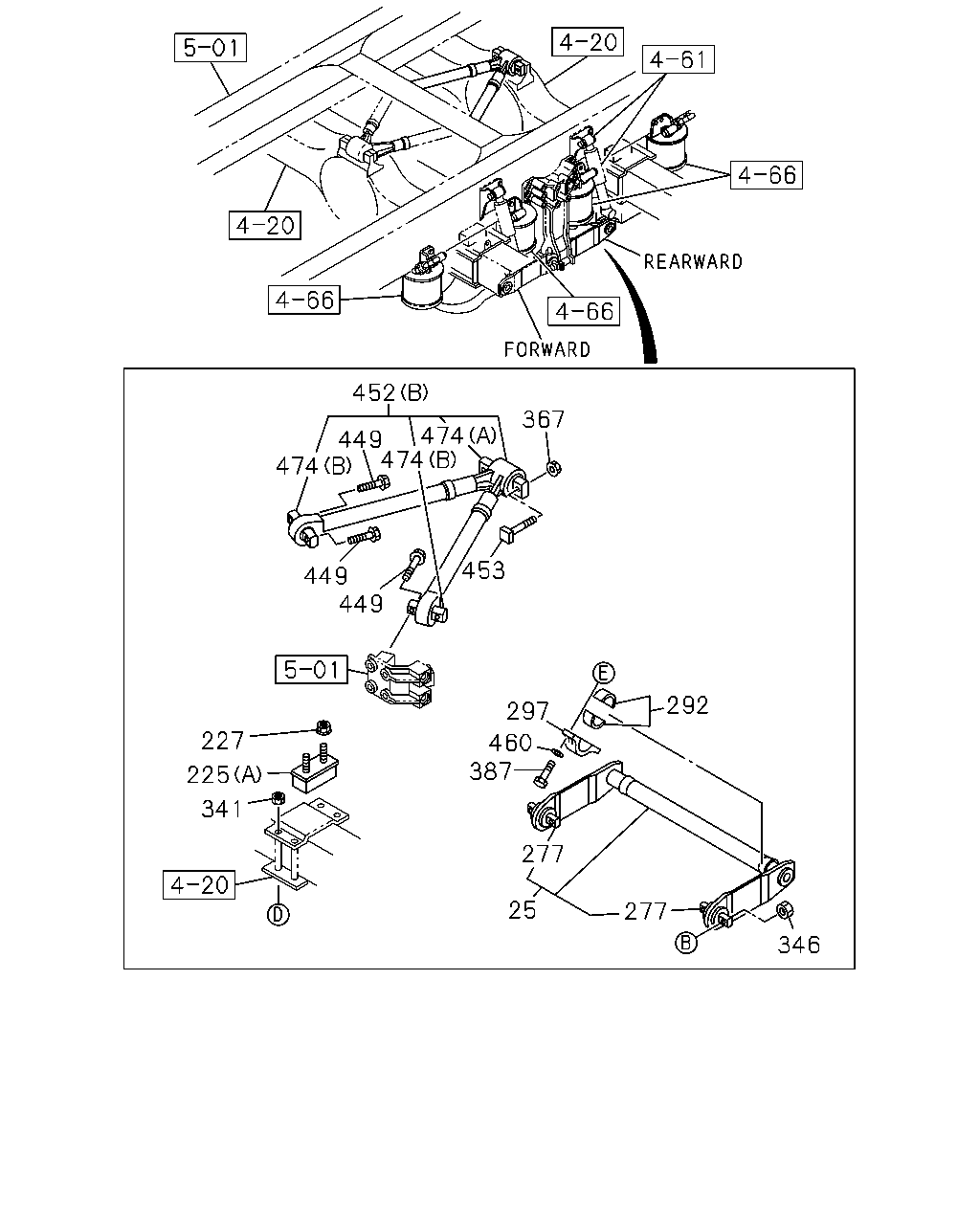

[460A] REARWARD NO.1 (21 parça)

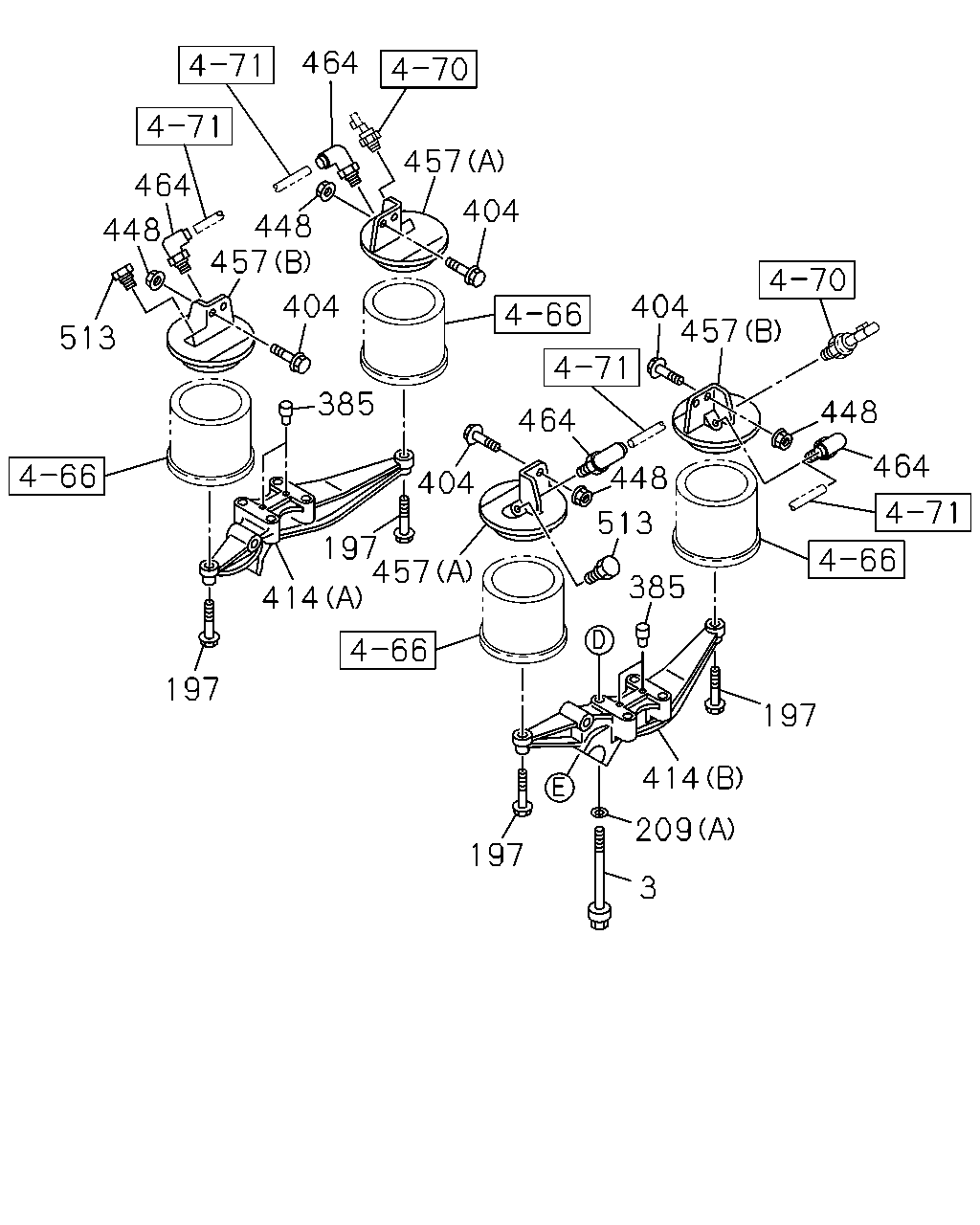

[460A] REARWARD NO.2 (15 parça)

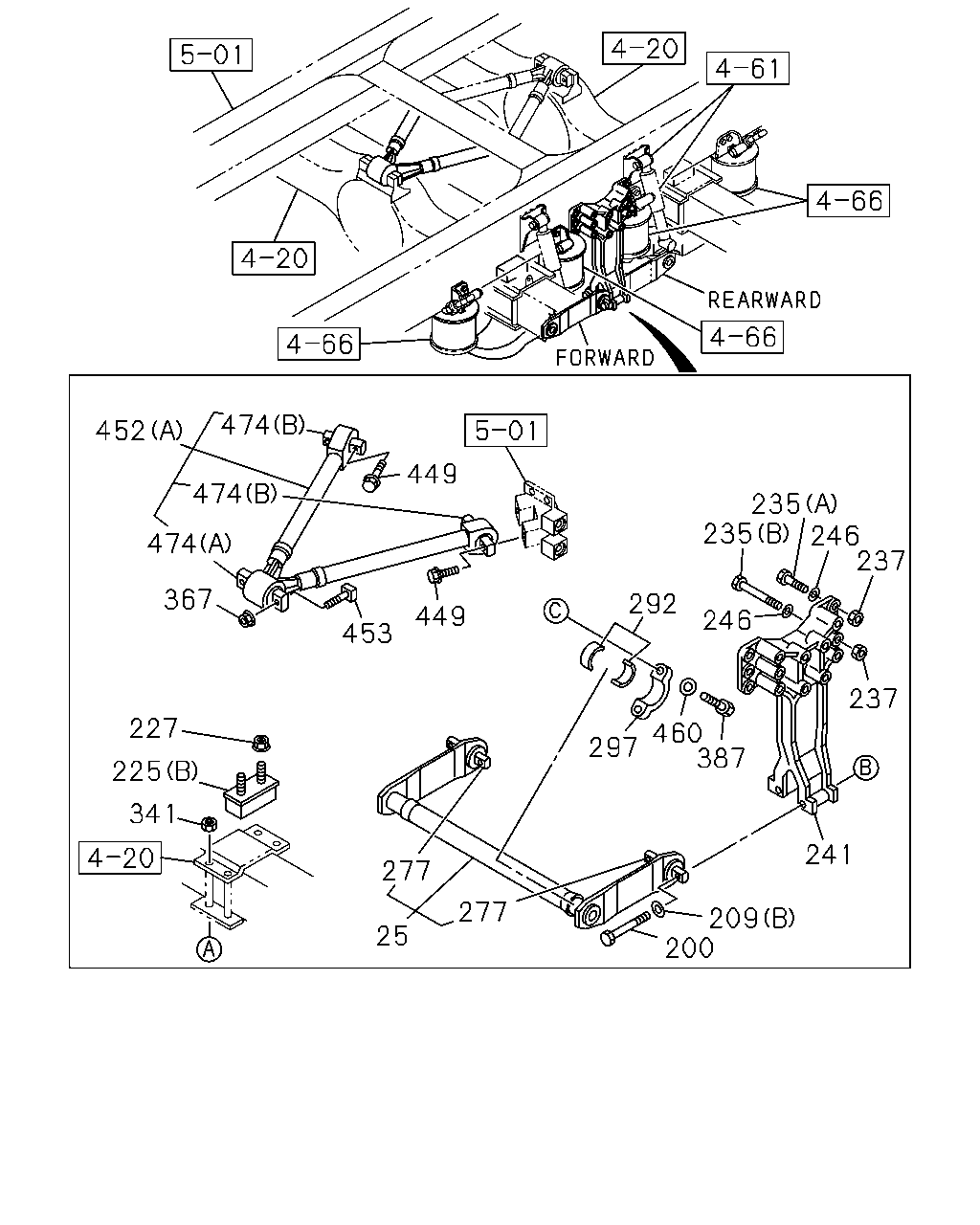

[460A] FORWARD NO.1 (30 parça)
▶
513
464
457
464
404
448
448
457
404
513
404
457
385
448
464
448
404
464
197
414
457
197
385
197
414
209
197
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BEAM
8-98019-969-0
16
1
0904-
197
BOLT
M16X90 FLANGE
8-98010-538-0
08
1
0904-
209
WASHER; PL
(B) ID=19
0-91610-518-0
04
1
0904-1212
209
WASHER; PL
(A) ID=25
1-09503-282-0
16
1
0904-
385
PIN; KNOCK,SUSP BEAM
1-52179-036-2
08
1
0904-
404
BOLT; PLATE
M14X45 FLANGE
8-98019-971-0
16
1
0904-
414
BEAM; AIR SPR
(A)
8-97604-492-5
02
1
0904-1402
414
BEAM; AIR SPR
(A)
8-98257-385-0
02
1
1403-
414
BEAM; AIR SPR
(B)
8-97604-493-5
02
1
0904-1402
414
BEAM; AIR SPR
(B)
8-98257-386-0
02
1
1403-
448
NUT; PLATE
M14 FLANGE
8-98010-395-0
16
1
0904-
457
PLATE; AIR SPRING,UPR
(A)
8-97604-502-0
04
1
0904-
457
PLATE; AIR SPRING,UPR
(B)
8-97604-503-0
04
1
0904-
464
UNION; AIR
DIN8 & M16 ELBOW
1-09661-520-0
08
1
0904-
513
PLUG; PLATE
9-09204-510-0
04
1
0904-
452
367
449
474
474
474
453
449
449
292
297
227
460
387
225
341
277
25
277
346
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
8-98121-503-0
02
1
0904-1212
25
BAR ASM; STAB,RR SUSP
8-98235-511-0
02
1
1301-
225
RUBBER; CUSHION,RR SPR
(A)
1-53366-028-2
02
1
0904-
225
RUBBER; CUSHION,RR SPR
(B)
1-53366-041-2
02
1
0904-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
08
1
0904-
277
BUSHING; STAB,RR UPR
8-97604-512-0
04
1
0904-1212
277
BUSHING; STAB,RR UPR
8-98226-232-0
04
1
1301-
292
BUSHING; RUBBER,STAB
1-51779-126-0
04
1
0904-
297
CAP; STAB BAR
1-52175-025-0
04
1
0904-
341
NUT; BEAM
M24
0-91110-524-0
16
1
0904-
346
NUT; BRKT
M18 SELF LOCK
8-98010-391-0
04
1
0904-
367
NUT
M24 FLANGE
8-98019-963-0
04
1
0904-
387
BOLT; CAP FIX,STAB BAR
M18X55
8-98019-973-0
08
1
0904-
449
BOLT; FRAME
M18X70 FLANGE
8-98010-540-0
08
1
0904-1102
449
BOLT; FRAME
M18X70 FLANGE
8-98183-506-0
08
1
1103-
452
ROD ASM; V
(A)
8-97609-115-0
01
1
0904-
452
ROD ASM; V
(B)
8-97609-116-0
01
1
0904-
453
PIN; AXLE
M24X78 SQUARE HEAD
8-98010-551-0
04
1
0904-
460
WASHER; CAP
ID=19
8-98010-401-0
08
1
0904-
474
REPAIR KIT; V-ROD
(A)
8-97609-171-0
02
1
0904-
474
REPAIR KIT; V-ROD
(B)
8-97609-172-0
04
1
0904-
464
457
464
404
448
457
448
404
404
457
513
385
448
464
404
464
448
513
197
457
385
414
197
197
414
209
197
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BEAM
8-98019-969-0
16
1
0904-
197
BOLT
M16X90 FLANGE
8-98010-538-0
08
1
0904-
209
WASHER; PL
(B) ID=19
0-91610-518-0
04
1
0904-1212
209
WASHER; PL
(A) ID=25
1-09503-282-0
16
1
0904-
385
PIN; KNOCK,SUSP BEAM
1-52179-036-2
08
1
0904-
404
BOLT; PLATE
M14X45 FLANGE
8-98019-971-0
16
1
0904-
414
BEAM; AIR SPR
(A)
8-97604-492-5
02
1
0904-1402
414
BEAM; AIR SPR
(A)
8-98257-385-0
02
1
1403-
414
BEAM; AIR SPR
(B)
8-97604-493-5
02
1
0904-1402
414
BEAM; AIR SPR
(B)
8-98257-386-0
02
1
1403-
448
NUT; PLATE
M14 FLANGE
8-98010-395-0
16
1
0904-
457
PLATE; AIR SPRING,UPR
(A)
8-97604-502-0
04
1
0904-
457
PLATE; AIR SPRING,UPR
(B)
8-97604-503-0
04
1
0904-
464
UNION; AIR
DIN8 & M16 ELBOW
1-09661-520-0
08
1
0904-
513
PLUG; PLATE
9-09204-510-0
04
1
0904-
474
452
449
474
235
237
474
367
292
449
246
453
237
460
387
227
297
225
341
241
277
277
209
200
25
246
235
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
8-98121-503-0
02
1
0904-1212
25
BAR ASM; STAB,RR SUSP
8-98235-511-0
02
1
1301-
200
BOLT; BRKT
M18X190
1-09000-772-1
04
1
0904-
209
WASHER; PL
(B) ID=19
0-91610-518-0
04
1
0904-1212
209
WASHER; PL
(A) ID=25
1-09503-282-0
16
1
0904-
225
RUBBER; CUSHION,RR SPR
(A)
1-53366-028-2
02
1
0904-
225
RUBBER; CUSHION,RR SPR
(B)
1-53366-041-2
02
1
0904-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
08
1
0904-
235
BOLT; TORQUE ROD
(A) M20X50
8-97606-081-0
12
1
0904-1212
235
BOLT; TORQUE ROD
(A) M20X60
8-98225-110-0
12
1
1301-
235
BOLT; TORQUE ROD
(B) M20X110
8-97606-082-0
12
1
0904-1212
235
BOLT; TORQUE ROD
(B) M20X110
8-98225-111-0
12
1
1301-
237
NUT; TORQUE ROD
M20
0-91110-520-0
20
1
0904-
241
BRACKET; TORQUE ROD
8-97606-015-1
02
1
0904-
246
WASHER; TORQUE ROD
ID=21
8-98010-403-0
24
1
0904-
277
BUSHING; STAB,RR UPR
8-97604-512-0
04
1
0904-1212
277
BUSHING; STAB,RR UPR
8-98226-232-0
04
1
1301-
292
BUSHING; RUBBER,STAB
1-51779-126-0
04
1
0904-
297
CAP; STAB BAR
1-52175-025-0
04
1
0904-
341
NUT; BEAM
M24
0-91110-524-0
16
1
0904-
367
NUT
M24 FLANGE
8-98019-963-0
04
1
0904-
387
BOLT; CAP FIX,STAB BAR
M18X55
8-98019-973-0
08
1
0904-
449
BOLT; FRAME
M18X70 FLANGE
8-98010-540-0
08
1
0904-1102
449
BOLT; FRAME
M18X70 FLANGE
8-98183-506-0
08
1
1103-
452
ROD ASM; V
(A)
8-97609-115-0
01
1
0904-
452
ROD ASM; V
(B)
8-97609-116-0
01
1
0904-
453
PIN; AXLE
M24X78 SQUARE HEAD
8-98010-551-0
04
1
0904-
460
WASHER; CAP
ID=19
8-98010-401-0
08
1
0904-
474
REPAIR KIT; V-ROD
(A)
8-97609-171-0
02
1
0904-
474
REPAIR KIT; V-ROD
(B)
8-97609-172-0
04
1
0904-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
