4-55 — FRONT LEAF SPRING (#20271) — 39 parça

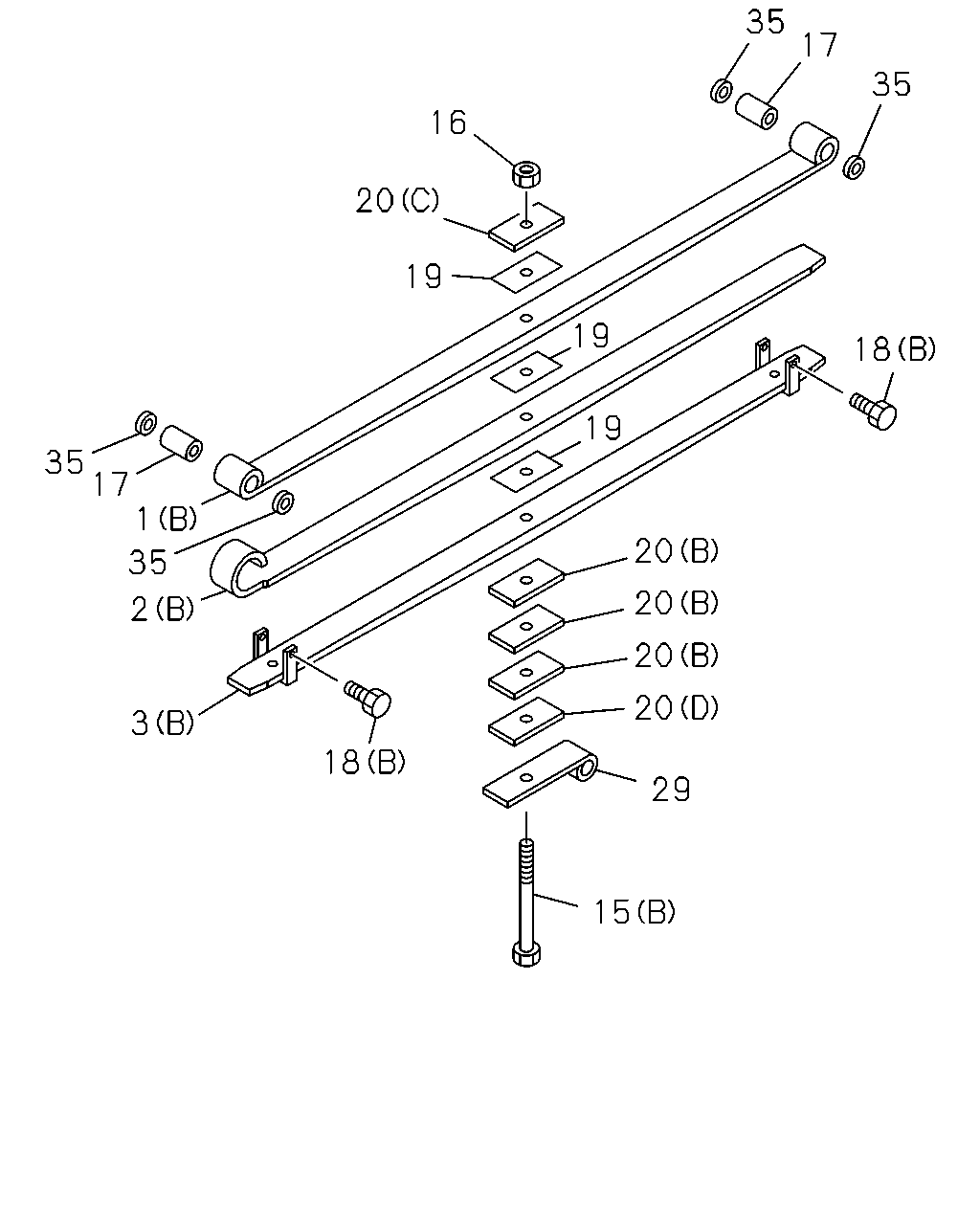

çizim 129872
35 17 35 16 20 19 19 18 19 35 17 1 20 35 20 2 20 20 3 18 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51131-922-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51132-922-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51133-922-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-023-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98118-964-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=155 ASM PART: B = 8-98202-920-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98202-920-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98118-964-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 8-98118-964-0 		1-51177-069-0 03 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98202-920-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98118-964-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98202-920-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: B = 8-98202-920-0 		1-51177-097-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98202-920-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51177-321-0 04 1 -

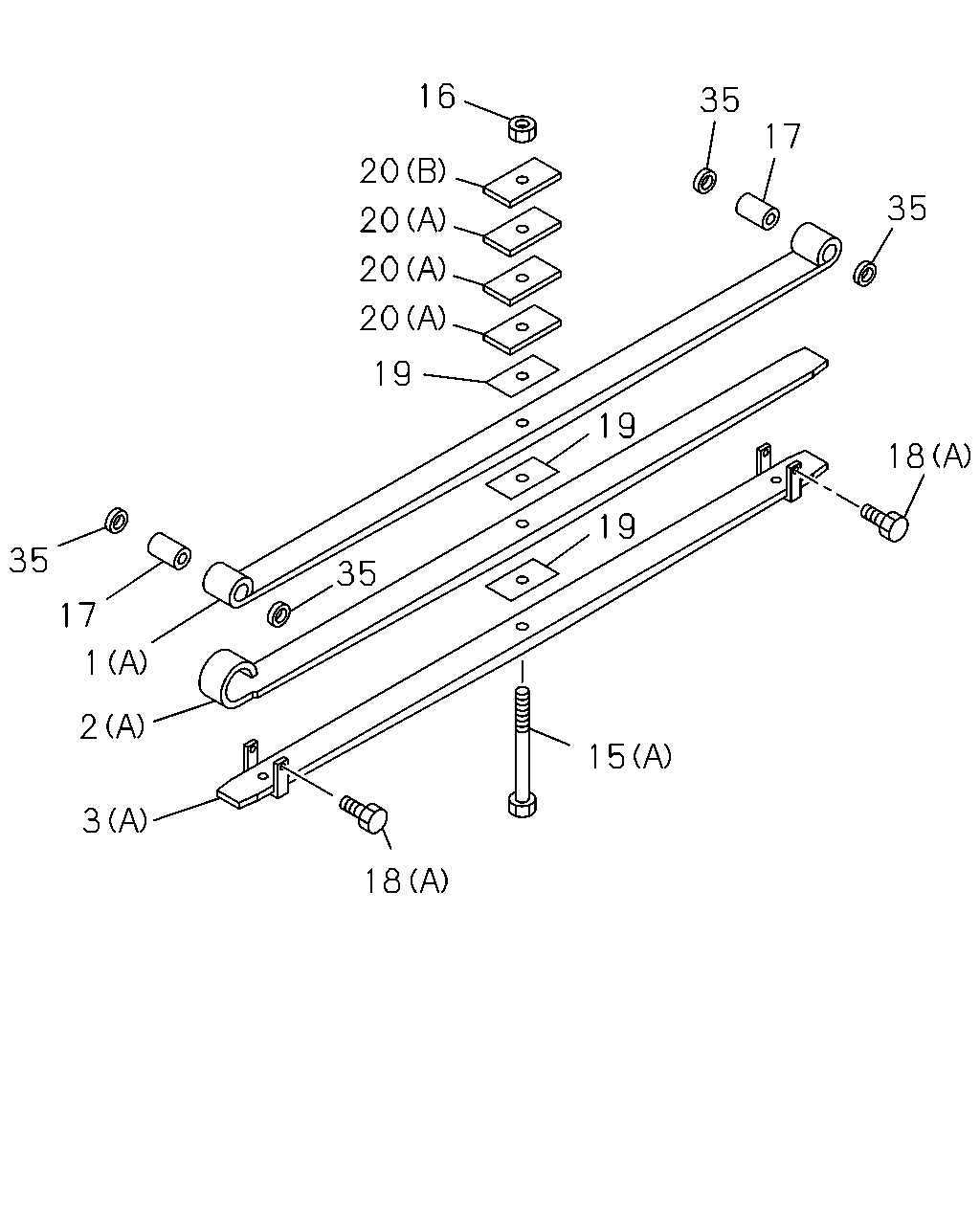

çizim 129904
16 35 17 20 35 20 20 20 19 19 18 19 35 35 17 1 2 15 3 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51131-922-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51132-922-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98118-964-0 		1-51133-922-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98202-920-0 		8-98140-023-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98118-964-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=155 ASM PART: B = 8-98202-920-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98202-920-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98118-964-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 8-98118-964-0 		1-51177-069-0 03 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98202-920-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98118-964-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98202-920-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: B = 8-98202-920-0 		1-51177-097-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98118-964-0, B = 8-98202-920-0 		1-51177-321-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
