0-50 — OIL COOLER AND OIL FILTER (#2026) — 119 parça

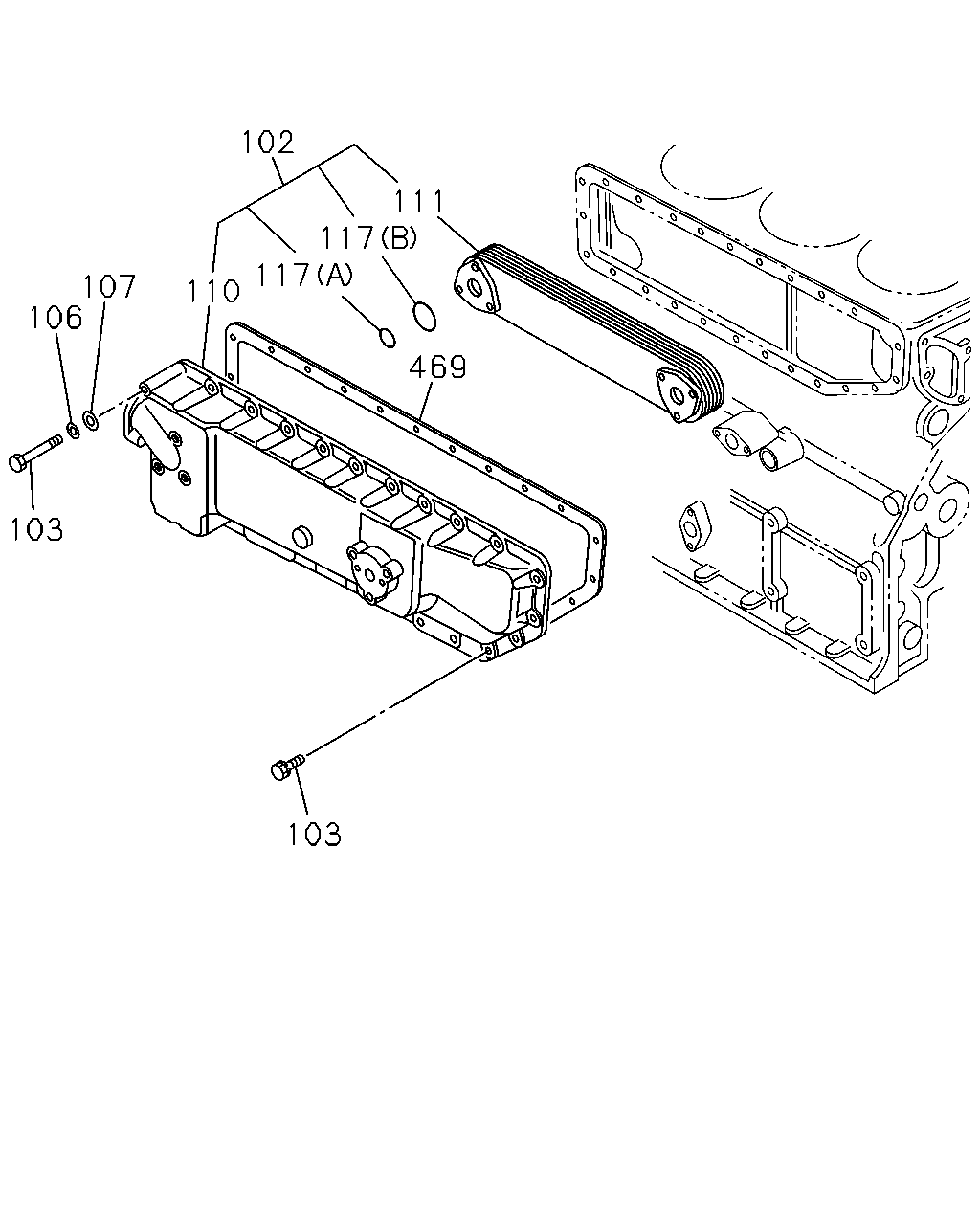

102 111 117 117 107 106 110 469 103 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
102	COOLER ASM; OIL	1-21700-140-2	01	1	9001-	●
102	COOLER ASM; OIL	1-21700-156-3	01	1	9001-		●	●
102	COOLER ASM; OIL	1-21700-142-6	01	1	9101-				●
103	BOLT; OIL COOLER M8X80	9-01055-880-0	01	1	9001-9005	●
103	BOLT; OIL COOLER M8X80	0-10805-880-0	01	1	9006-	●
103	BOLT; OIL COOLER M8X22	9-01970-822-0	23	1	9001-9005	●
103	BOLT; OIL COOLER M8X22 W/LK&PL WASHER	0-50140-822-0	23	1	9006-	●
103	BOLT; OIL COOLER EXC. A/T<X9D> M8X70	9-01055-870-0	01	1	9001-9005		●
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9001-9005			●
103	BOLT; OIL COOLER EXC. A/T<X9D> M8X70	0-10805-870-0	01	1	9006-9012		●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-9012			●
103	BOLT; OIL COOLER M/T<X9C> M8X70	0-10805-870-0	01	1	9101-		●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9101-			●	●
103	BOLT; OIL COOLER A/T<X9D> M8X28 W/LK WASHER	9-01910-828-0	03	1	9001-9005		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X28 W/LK WASHER	0-50040-828-0	03	1	9006-		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X25 W/LK&PL WASHER	9-01970-825-0	29	1	9001-9005		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X25 W/LK&PL WASHER	0-50140-825-0	29	1	9006-		●	●
103	BOLT; OIL COOLER M/T<X9C> M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9001-9005		●	●
103	BOLT; OIL COOLER M/T<X9C> M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-		●	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9001-9701	●	●	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9702-		●	●	●
110	BODY; CASE,OIL COOLER	1-21721-044-1	01	1	9001-	●
110	BODY; CASE,OIL COOLER	1-21721-045-4	01	1	9001-		●	●	●
111	CORE; OIL COOLER	1-21723-018-1	01	1	9001-	●
111	CORE; OIL COOLER	1-21723-035-0	01	1	9001-		●	●
111	CORE; OIL COOLER	1-21723-025-1	01	1	9101-				●
117	GASKET; OIL COOLER (A) D=27.7	1-09623-187-0	02	1	9001-	●	●	●	●
117	GASKET; OIL COOLER (B) D=39.7	1-09623-188-0	02	1	9001-	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-096-0	01	1	9001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9001-9603		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-155-0	01	1	9604-		●	●	●

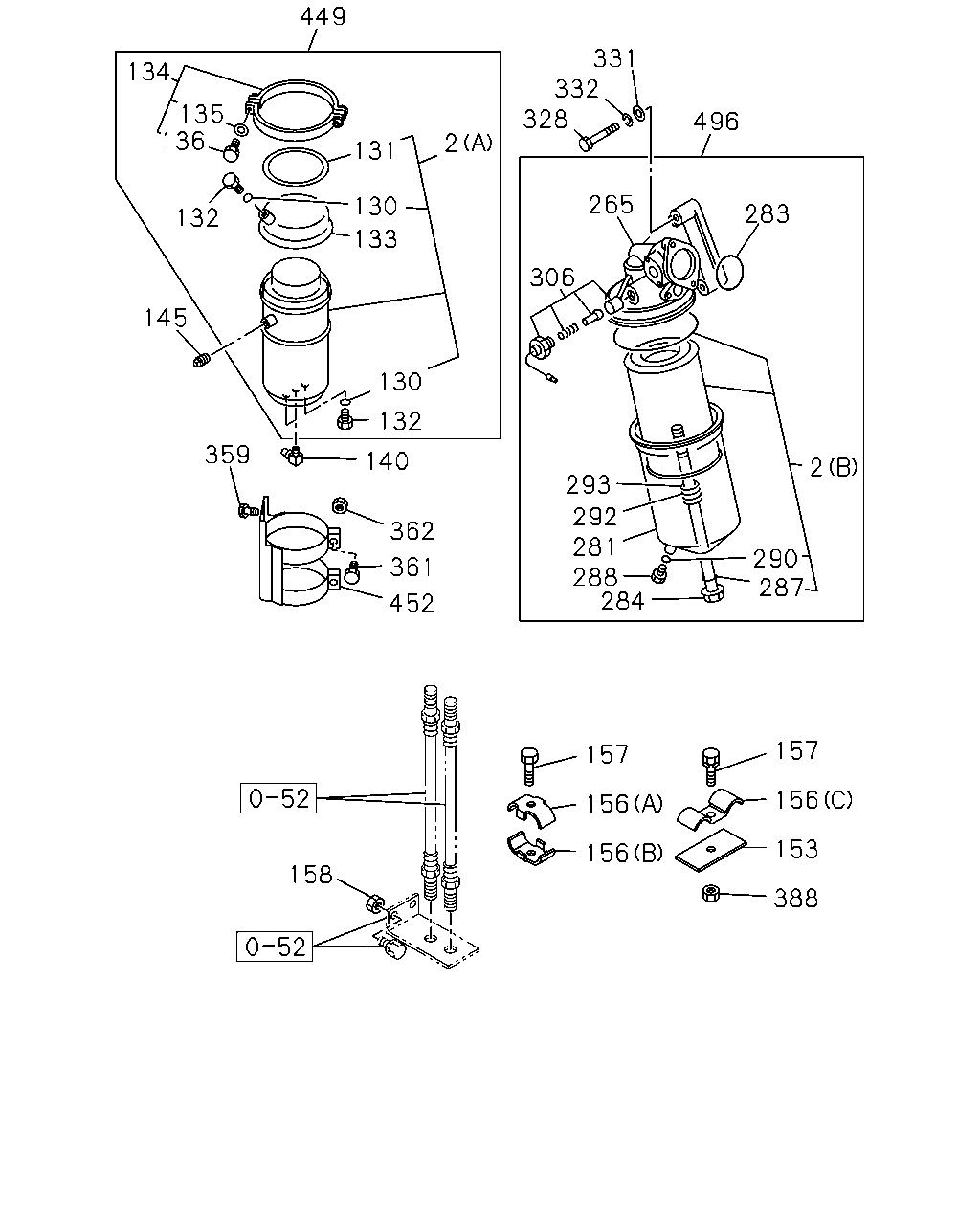

449 331 332 328 134 135 136 496 2 131 265 130 283 132 133 306 145 130 132 359 140 2 293 292 281 288 284 362 290 287 361 452 157 157 156 156 153 156 158 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ELEMENT; OIL FILTER (A)	1-87810-050-1	01	1	9001-9505	●	●	●	●
2	ELEMENT; OIL FILTER (A)	1-13240-056-0	01	1	9506-	●	●	●	●
2	ELEMENT; OIL FILTER (B)	9-88513-265-3	01	1	9001-	●	●	●	●
130	GASKET; PARTIAL OIL FILTER ID=9.8	1-09623-055-0	02	1	9001-	●	●	●	●
131	GASKET; PARTIAL OIL FILTER	1-13213-006-0	01	1	9001-	●	●	●	●
132	PLUG; PARTIAL OIL FILTER M10	1-09000-105-0	02	1	9001-	●	●	●	●
133	COVER; PARTIAL OIL FILTER	1-13212-034-0	01	1	9001-	●	●	●	●
134	CLAMP; PARTIAL OIL FILTER	1-13219-009-0	01	1	9001-	●	●	●	●
135	WASHER; PARTIAL OIL FILTER ID=10.5	9-09164-510-0	01	1	9001-	●	●	●	●
136	BOLT; PARTIAL OIL FILTER	1-09029-021-0	01	1	9001-	●	●	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER PT1/2	1-09650-180-1	02	1	9001-9302	●	●	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER PT3/8	1-09650-438-0	02	1	9303-	●	●	●	●
145	PLUG; FILTER	1-09605-024-0	01	1	9001-	●	●	●	●
153	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	9001-	●	●	●	●
156	CLIP; OIL PIPE (A)	8-94212-452-0	01	1	9001-9110	●	●	●	●
156	CLIP; OIL PIPE (C)	1-09700-656-0	01	1	9111-	●	●	●	●
156	CLIP; OIL PIPE (B)	8-94212-453-0	01	1	9001-9110	●	●	●	●
157	BOLT; CLIP,OIL PIPE M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9110	●	●	●	●
157	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	9-01900-816-0	01	1	9111-9204	●	●	●	●
157	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9606	●	●	●	●
157	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●	●	●
158	NUT; BRKT,OIL PIPE M8	9-09110-408-0	02	1	9001-9606	●	●	●	●
158	NUT; BRKT,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-	●	●	●	●
265	BODY; OIL FILTER	1-13211-028-0	01	1	9001-	●	●	●	●
281	COVER; OIL FILTER	1-13212-040-1	01	1	9001-	●	●	●	●
283	GASKET; BODY TO COVER	9-09920-311-0	01	1	9001-	●	●	●	●
284	BOLT; CENTER,OIL FILTER	1-13231-043-0	01	1	9001-	●	●	●	●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9001-	●	●	●	●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9001-	●	●	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9001-	●	●	●	●
292	SPRING; ELEMENT	9-09941-286-0	01	1	9001-	●	●	●	●
293	SEAT; SPR	9-13239-025-0	01	1	9001-	●	●	●	●
306	VALVE; OIL FILTER	1-13260-056-0	01	1	9001-	●	●	●	●
328	BOLT; OIL FILTER M10X30	9-01931-030-0	02	1	9001-9002	●	●	●
328	BOLT; OIL FILTER M10X30 W/LK WASHER	0-50051-030-0	02	1	9003-	●	●	●	●
328	BOLT; OIL FILTER M10X110	9-09804-143-1	01	1	9001-	●	●	●	●
331	WASHER; PL,OIL FILTER ID=10.5 OD=18	9-09160-510-0	03	1	9001-	●	●	●	●
332	WASHER; LK,OIL FILTER ID=10.2	9-09150-510-0	01	1	9001-	●	●	●	●
359	BOLT; BRKT TO FRAME M8X25 W/LK WASHER	9-01910-825-0	04	1	9001-9005	●	●	●
359	BOLT; BRKT TO FRAME M8X25 W/LK WASHER	0-50040-825-0	04	1	9006-9606	●	●	●	●
359	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	04	1	9607-	●	●	●	●
361	BOLT; PARTIAL OIL FILTER M8X20 W/LK WASHER	9-01910-820-0	01	1	9001-9005	●	●	●
361	BOLT; PARTIAL OIL FILTER M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9106	●	●	●	●
361	BOLT; PARTIAL OIL FILTER M10X45	9-01911-045-0	02	1	9001-9002	●	●	●
361	BOLT; PARTIAL OIL FILTER M10X45 W/LK WASHER	0-50041-045-0	02	1	9003-9606	●	●	●	●
361	BOLT; PARTIAL OIL FILTER M10X40 FLANGE	0-28681-040-0	02	1	9607-	●	●	●	●
362	NUT; OIL FILTER M10	9-09110-510-0	02	1	9308-9606	●	●	●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●	●
388	NUT; CLIP M8	9-09110-408-0	01	1	9111-9606	●	●	●	●
388	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-	●	●	●	●
449	FILTER ASM; OIL PARTIAL	1-13200-417-2	01	1	9001-	●	●	●	●
452	BRACKET; PARTIAL OIL FILTER	1-13219-041-1	01	1	9001-9106	●	●	●	●
452	BRACKET; PARTIAL OIL FILTER	1-13219-296-0	01	1	9107-	●	●	●	●
496	FILTER ASM; OIL	1-13200-297-2	01	1	9001-	●	●	●	●

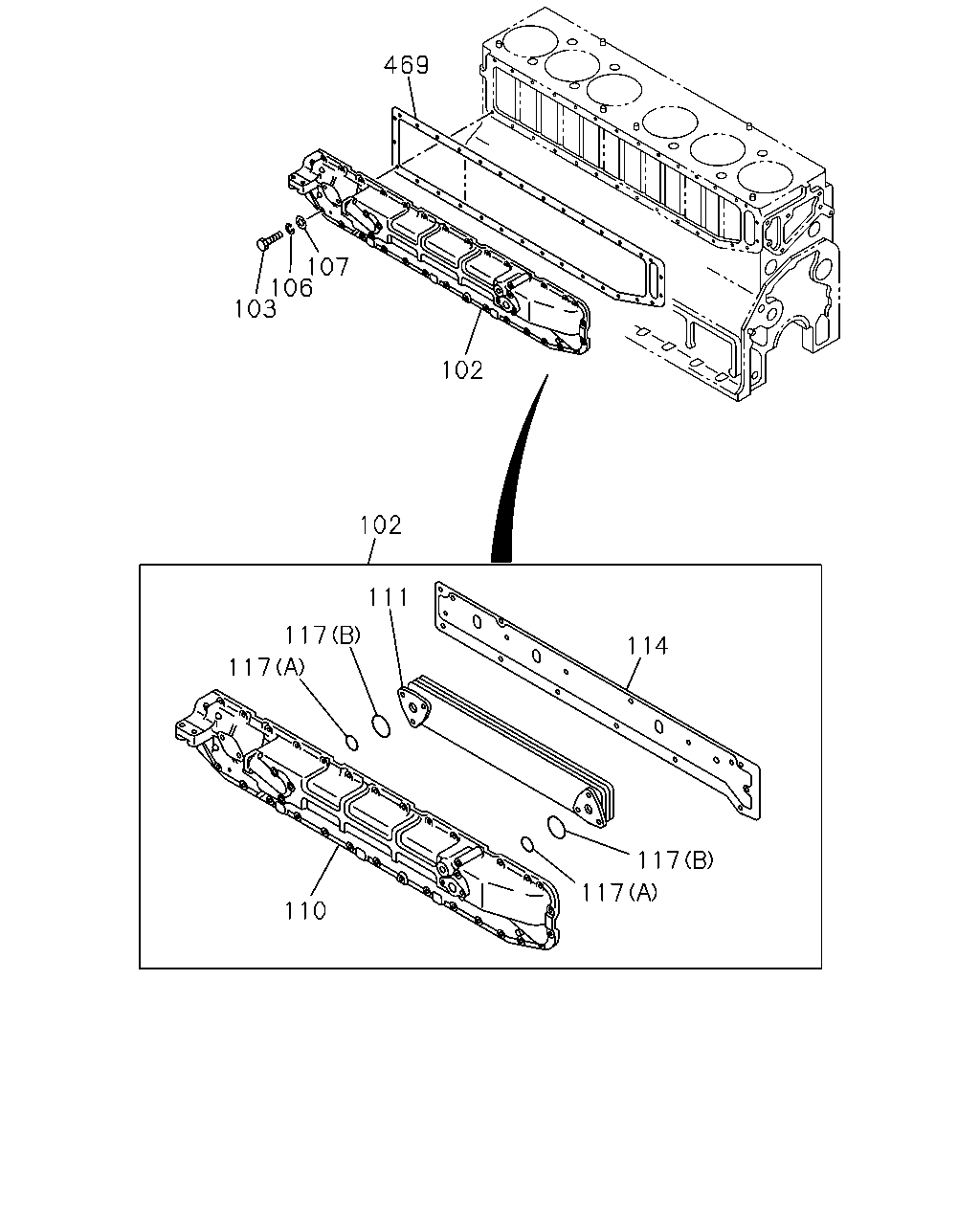

469 107 106 103 102 102 111 117 114 117 117 117 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
102	COOLER ASM; OIL	1-21700-140-2	01	1	9001-	●
102	COOLER ASM; OIL	1-21700-156-3	01	1	9001-		●	●
102	COOLER ASM; OIL	1-21700-142-6	01	1	9101-				●
103	BOLT; OIL COOLER M8X80	9-01055-880-0	01	1	9001-9005	●
103	BOLT; OIL COOLER M8X80	0-10805-880-0	01	1	9006-	●
103	BOLT; OIL COOLER M8X22	9-01970-822-0	23	1	9001-9005	●
103	BOLT; OIL COOLER M8X22 W/LK&PL WASHER	0-50140-822-0	23	1	9006-	●
103	BOLT; OIL COOLER EXC. A/T<X9D> M8X70	9-01055-870-0	01	1	9001-9005		●
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9001-9005			●
103	BOLT; OIL COOLER EXC. A/T<X9D> M8X70	0-10805-870-0	01	1	9006-9012		●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-9012			●
103	BOLT; OIL COOLER M/T<X9C> M8X70	0-10805-870-0	01	1	9101-		●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9101-			●	●
103	BOLT; OIL COOLER A/T<X9D> M8X28 W/LK WASHER	9-01910-828-0	03	1	9001-9005		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X28 W/LK WASHER	0-50040-828-0	03	1	9006-		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X25 W/LK&PL WASHER	9-01970-825-0	29	1	9001-9005		●	●
103	BOLT; OIL COOLER A/T<X9D> M8X25 W/LK&PL WASHER	0-50140-825-0	29	1	9006-		●	●
103	BOLT; OIL COOLER M/T<X9C> M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9001-9005		●	●
103	BOLT; OIL COOLER M/T<X9C> M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-		●	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9001-9701	●	●	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9702-		●	●	●
110	BODY; CASE,OIL COOLER	1-21721-044-1	01	1	9001-	●
110	BODY; CASE,OIL COOLER	1-21721-045-4	01	1	9001-		●	●	●
111	CORE; OIL COOLER	1-21723-018-1	01	1	9001-	●
111	CORE; OIL COOLER	1-21723-035-0	01	1	9001-		●	●
111	CORE; OIL COOLER	1-21723-025-1	01	1	9101-				●
114	PLATE; BAFFLE,OIL COOLER	1-21729-071-0	01	1	9001-		●	●	●
117	GASKET; OIL COOLER (A) D=27.7	1-09623-187-0	02	1	9001-	●	●	●	●
117	GASKET; OIL COOLER (B) D=39.7	1-09623-188-0	02	1	9001-	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-096-0	01	1	9001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9001-9603		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-155-0	01	1	9604-		●	●	●
