Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#20258) — 251 parça

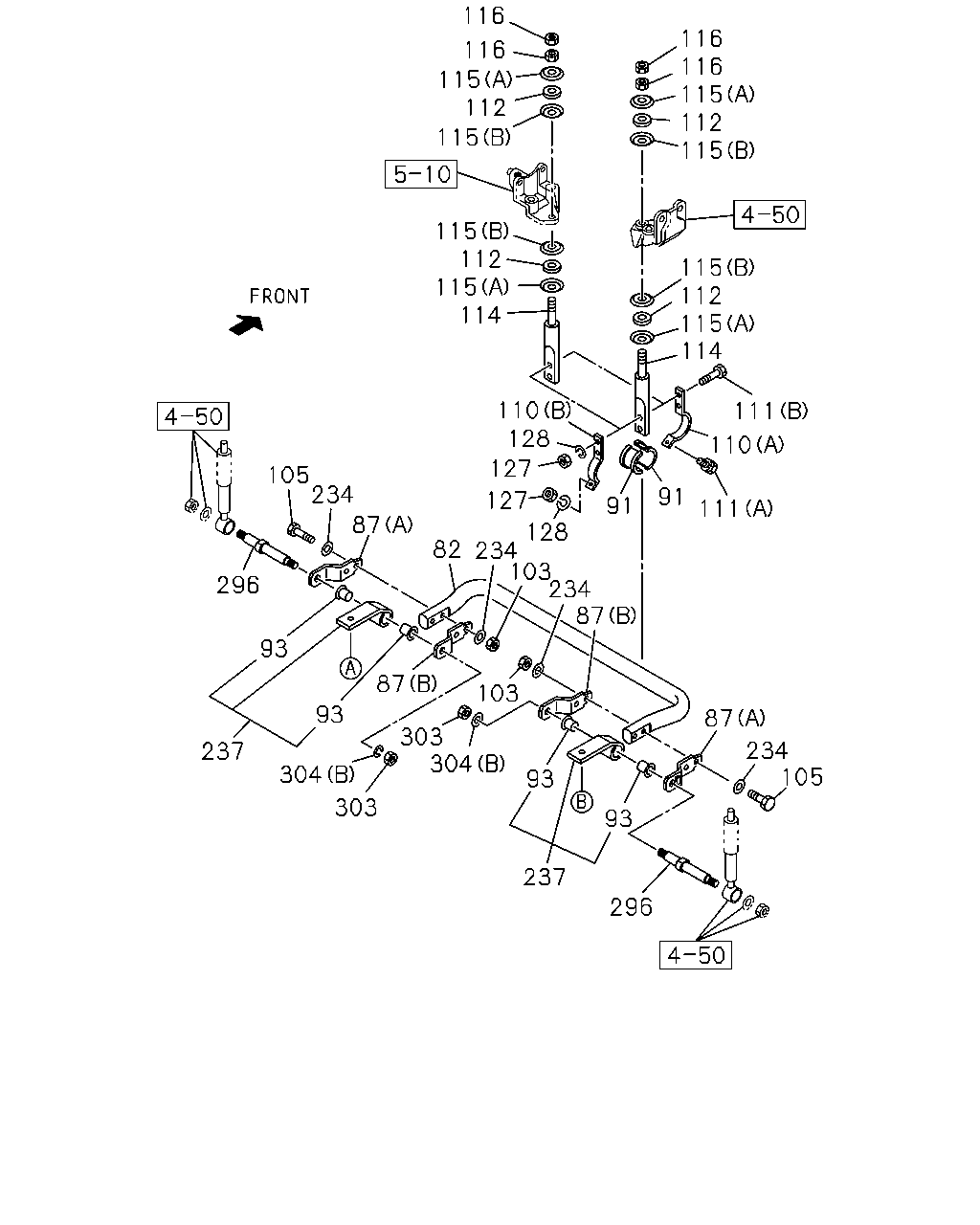

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 128 91 127 91 111 87 82 234 103 234 87 296 93 87 103 93 87 303 304 234 105 237 304 93 303 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	1-51771-134-1	01	1	0904-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0904-0912
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0904-0912
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-1	04	1	0904-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0904-
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0904-
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0904-0910
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0904-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0904-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0904-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0904-
112	BUSHING; ROD	9-51631-039-0	04	1	0904-
114	ROD; STAB BAR	1-51773-072-2	02	1	0904-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0904-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0904-
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0904-
127	NUT; CLAMP M12	0-91110-512-0	06	1	0904-
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0904-0912
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0904-
237	SUPPORT; STAB BAR	1-51681-842-0	02	1	0904-
296	PIN; STAB	1-51682-145-2	02	1	0904-0907
296	PIN; STAB	8-98022-874-1	02	1	0908-
303	NUT; PIN M20	0-91110-520-0	02	1	0904-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0904-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0904-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-

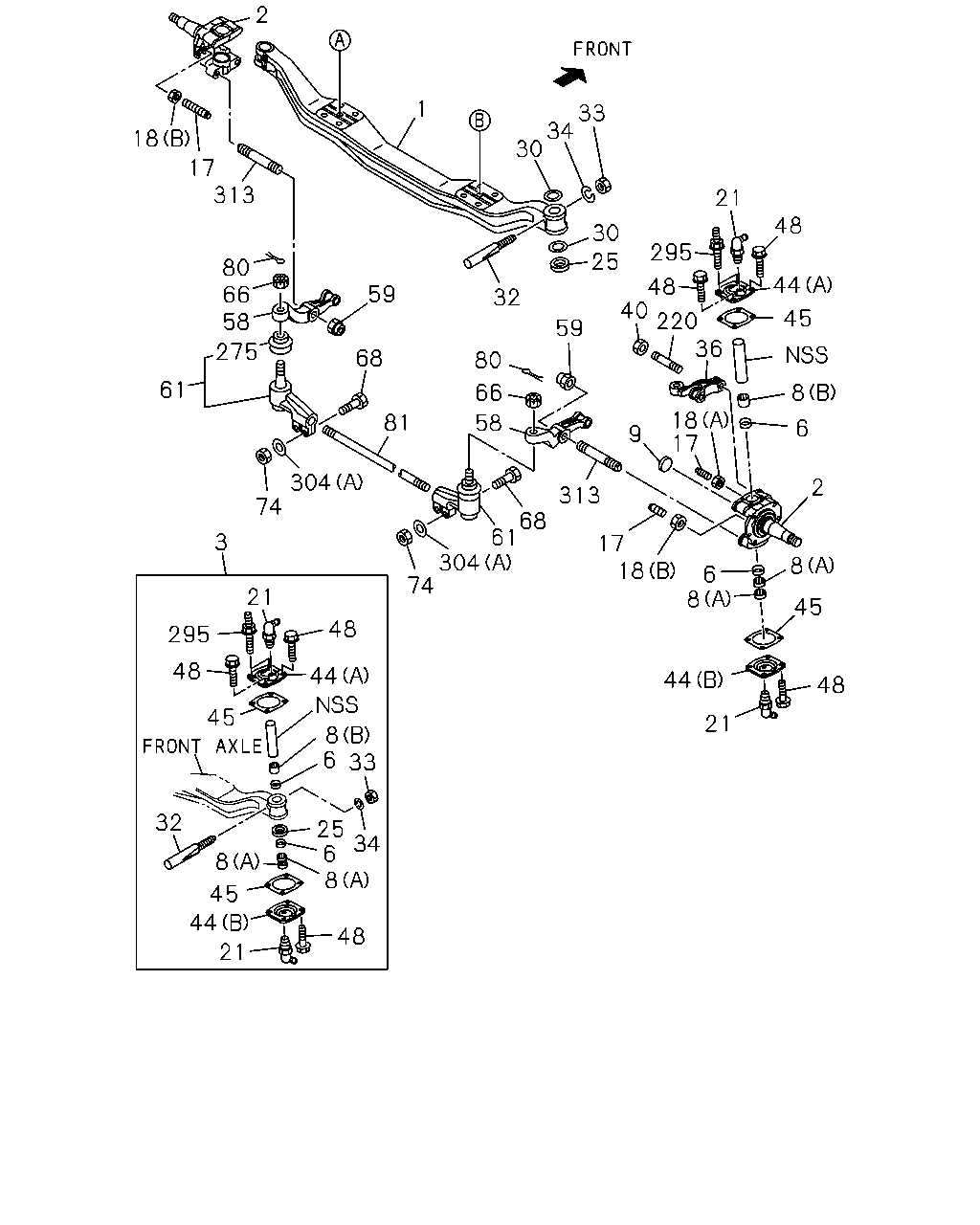

2 1 33 34 30 18 17 313 21 48 30 295 25 80 66 58 44 48 40 220 36 59 32 45 59 275 68 80 61 8 66 18 17 81 58 6 9 304 74 2 313 68 61 304 74 3 17 18 8 6 8 21 45 48 295 48 44 44 48 45 21 8 6 33 32 25 34 6 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-177-4	01	1	0904-
1	AXLE; FRT	1-43111-177-4	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0904-
3	KING PIN SET	1-87831-349-2	02	1	0904-
3	KING PIN SET	1-87831-349-2	02	1	0904-
6	SEAL; KING PIN	9-09926-024-0	04	1	0904-
6	SEAL; KING PIN	9-09926-024-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0904-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0904-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0904-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0904-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0904-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0904-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0904-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0904-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0904-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0904-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0904-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0904-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0904-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0904-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0904-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0904-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0904-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0904-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0904-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0904-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0904-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0904-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0904-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0904-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0904-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	28	1	0904-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	0904-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	0904-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	0904-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	0904-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0904-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0904-
61	ROD END; TIE ROD	8-98054-851-0	02	1	0904-1009
61	ROD END; TIE ROD	8-98096-753-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	02	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	02	1	0904-1009
61	ROD END; TIE ROD	8-98096-754-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	02	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0904-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0904-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0904-
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	0904-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0904-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0904-
81	ROD; TIE	1-43151-154-0	02	1	0904-1009
81	ROD; TIE	8-98105-064-0	02	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0904-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0904-
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0904-1009
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	04	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0904-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0904-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0904-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0904-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0904-

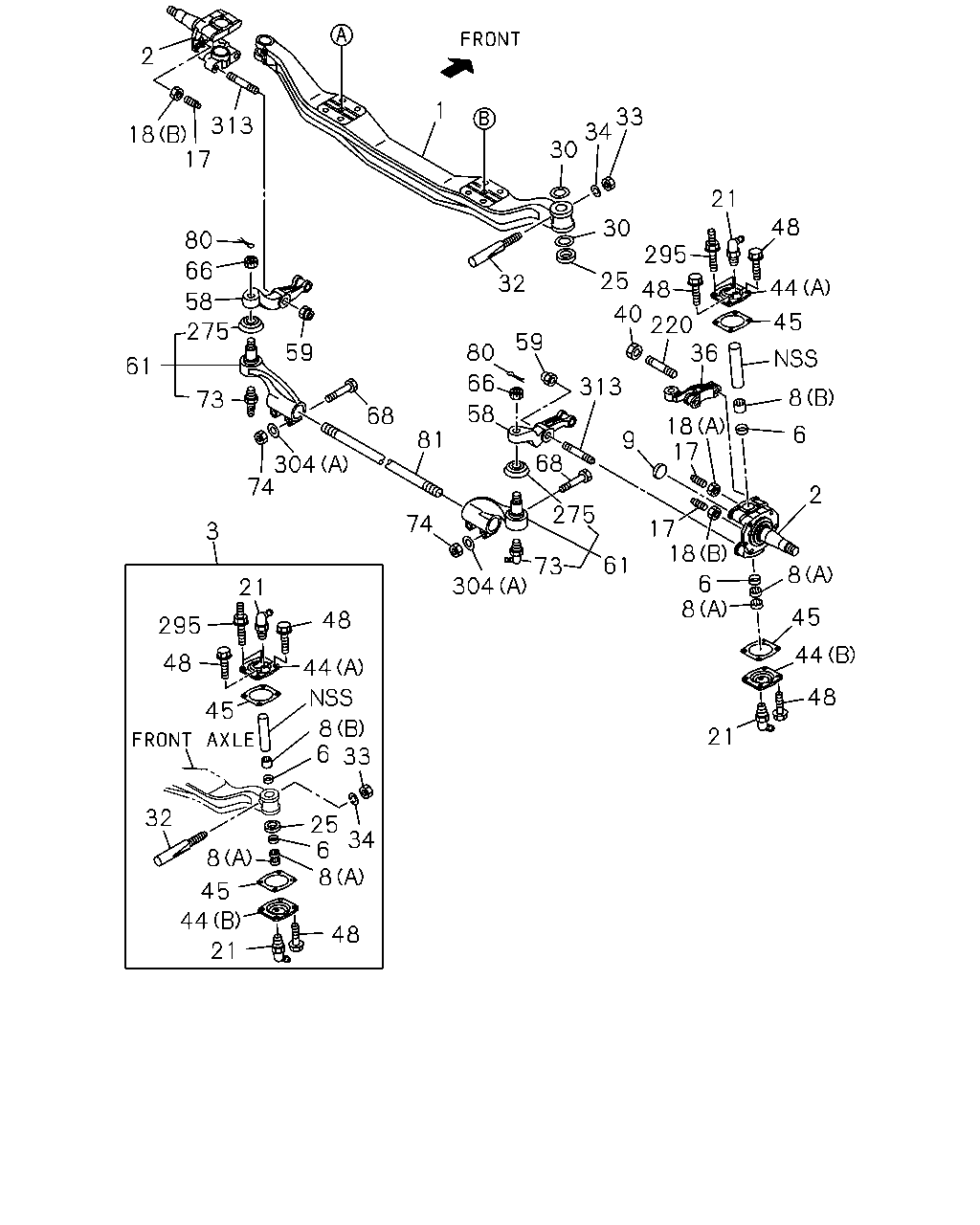

2 1 33 34 30 313 18 17 21 48 30 80 295 66 25 32 44 48 40 220 36 58 275 45 59 59 80 61 66 313 8 73 18 17 58 68 6 81 9 68 304 74 2 275 74 17 18 3 61 73 8 6 8 304 21 45 48 295 44 48 44 45 48 8 6 33 21 32 25 34 6 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-177-4	01	1	0904-
1	AXLE; FRT	1-43111-177-4	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0904-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0904-
3	KING PIN SET	1-87831-349-2	02	1	0904-
3	KING PIN SET	1-87831-349-2	02	1	0904-
6	SEAL; KING PIN	9-09926-024-0	04	1	0904-
6	SEAL; KING PIN	9-09926-024-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0904-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0904-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0904-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0904-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	0904-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0904-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0904-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0904-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0904-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0904-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0904-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0904-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0904-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0904-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0904-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0904-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0904-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0904-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0904-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0904-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0904-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0904-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0904-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0904-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0904-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0904-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0904-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0904-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0904-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	28	1	0904-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	0904-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	0904-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	0904-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	0904-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0904-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0904-
61	ROD END; TIE ROD	8-98054-851-0	02	1	0904-1009
61	ROD END; TIE ROD	8-98096-753-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	02	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	02	1	0904-1009
61	ROD END; TIE ROD	8-98096-754-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	02	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0904-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0904-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0904-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	04	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	04	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	0904-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0904-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0904-
81	ROD; TIE	1-43151-154-0	02	1	0904-1009
81	ROD; TIE	8-98105-064-0	02	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0904-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0904-
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0904-1009
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	04	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0904-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0904-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0904-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0904-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0904-

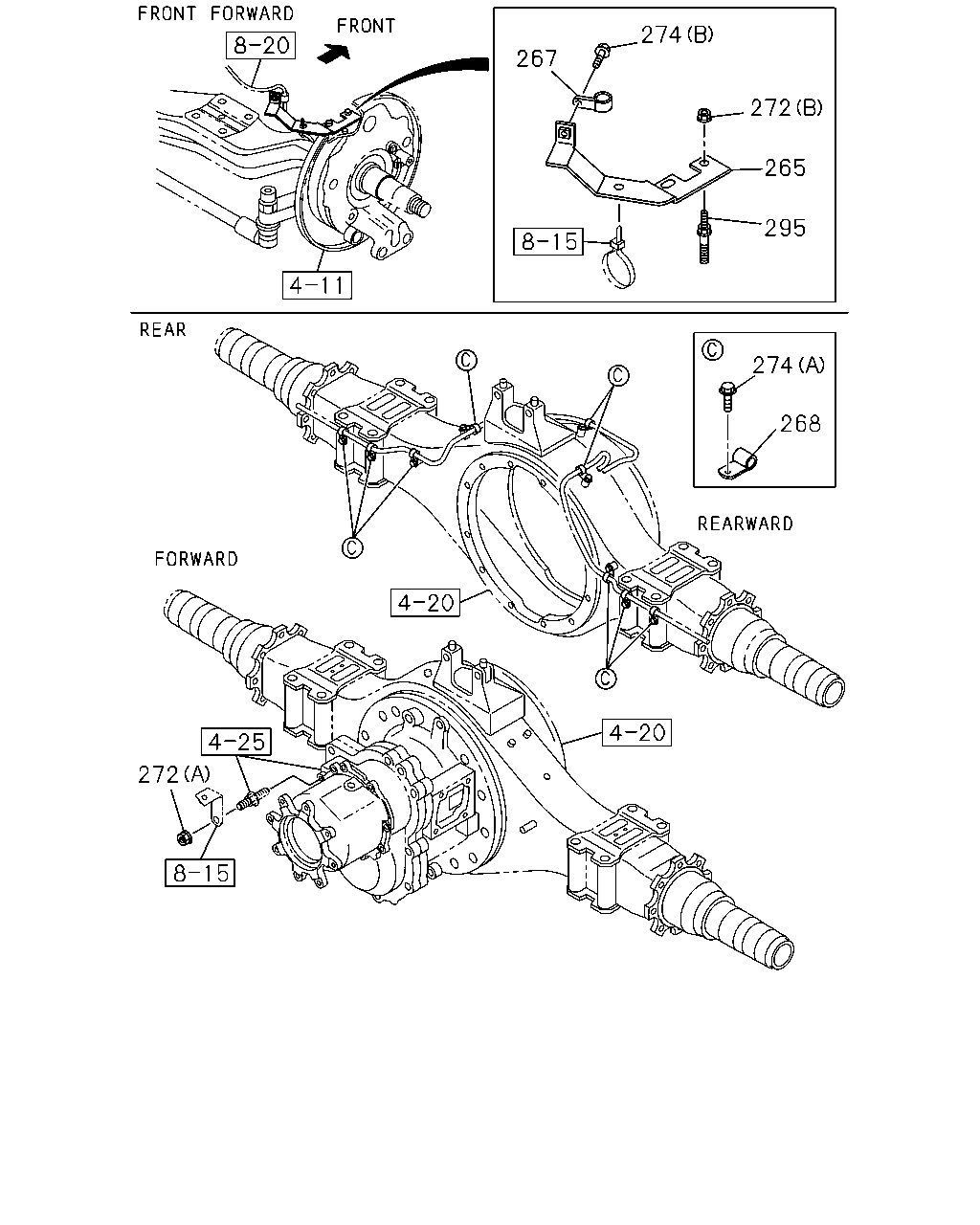

274 267 272 265 295 274 268 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0904-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0904-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0904-
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	09	1	0904-
272	NUT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 FLANGE	0-91180-212-0	01	1	0904-
272	NUT; CLIP (B) M10 FLANGE	0-91180-110-0	04	1	0904-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0904-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0904-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
