3-80 — BRAKE PIPING; TRAILER (#20254) — 25 parça

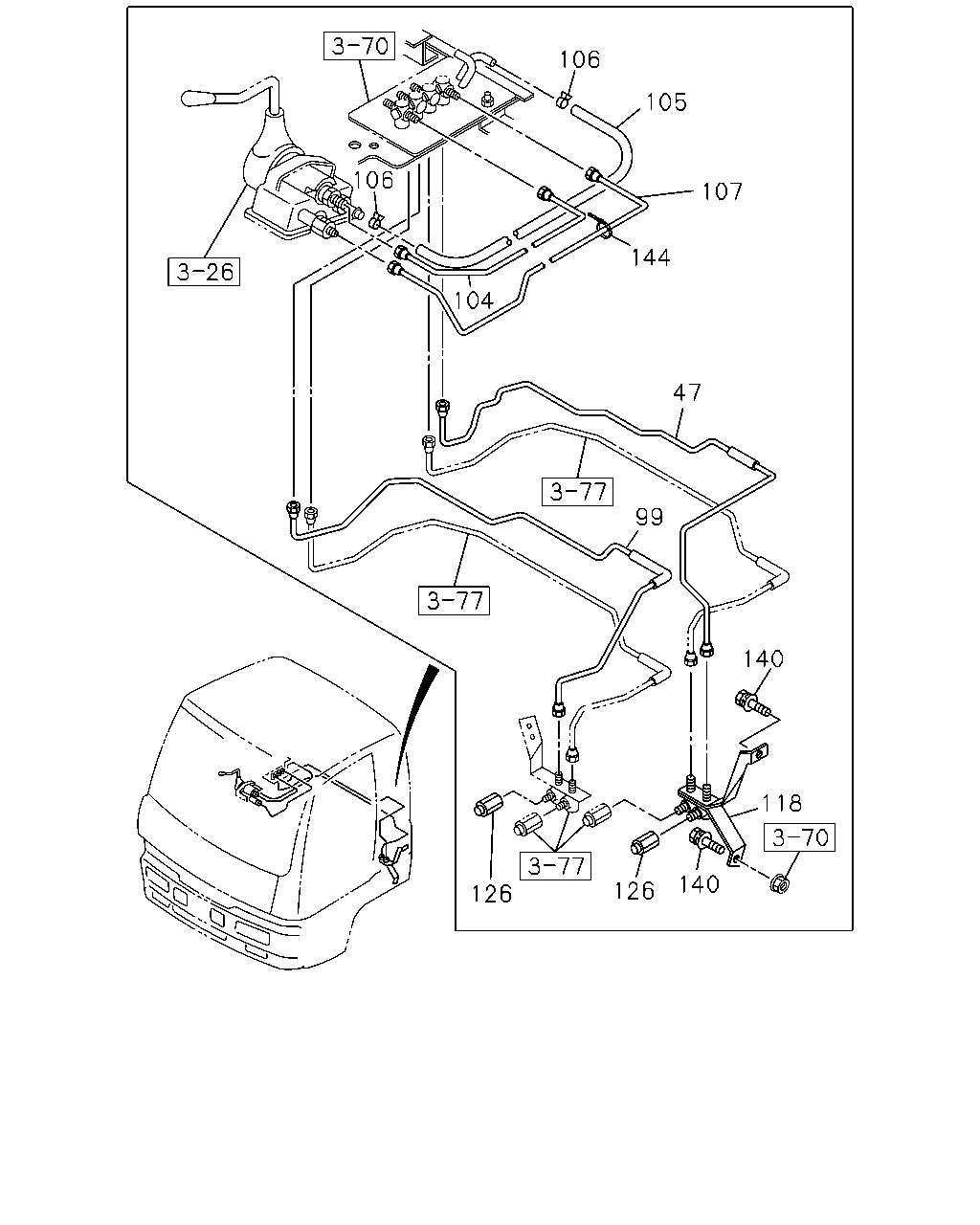

çizim 129877
106 105 106 107 144 104 47 99 140 118 140 126 126
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION 1-49121-763-2 01 1 0904-
99 PIPE; AIR,JOINT TO JOINT 1-49122-058-1 01 1 0904-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0904-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0904-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0904-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0904-
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0904-
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0904-1006
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1007-
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0904-0904
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0904-

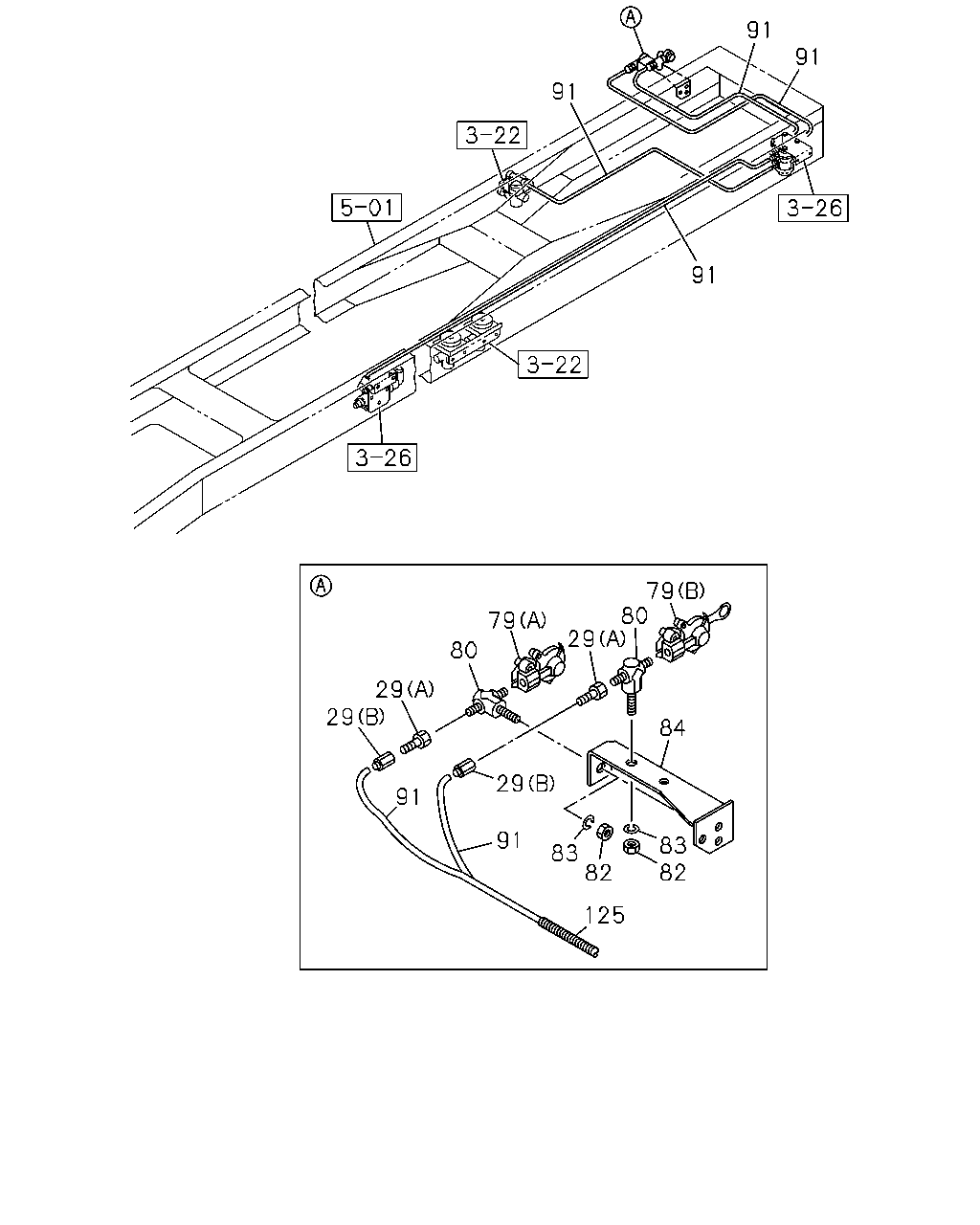

çizim 129894
91 91 91 91 79 80 79 29 80 29 29 84 29 91 91 83 82 83 82 125
BalonParca AdiParca NoAdetTipApplied Date
29 CONNECTOR; COCK
(A) 		1-09650-222-1 02 1 0904-
29 CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0904-
79 COUPLING; AIR,TRAILER
(A) RED 		1-47478-466-1 01 1 0904-
79 COUPLING; AIR,TRAILER
(B) YELLOW 		1-47478-467-1 01 1 0904-
80 NIPPLE; AIR COUPLING 1-09656-377-1 02 1 0904-
82 NUT; LK,CONNECTOR
M16 		0-91111-516-0 02 1 0904-
83 WASHER; LK,CONNECTOR
ID=16.2 		0-91510-516-0 02 1 0904-
84 BRACKET; COUPLER 1-47465-883-1 01 1 0904-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0904-
91 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0904-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0904-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0904-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0904-
