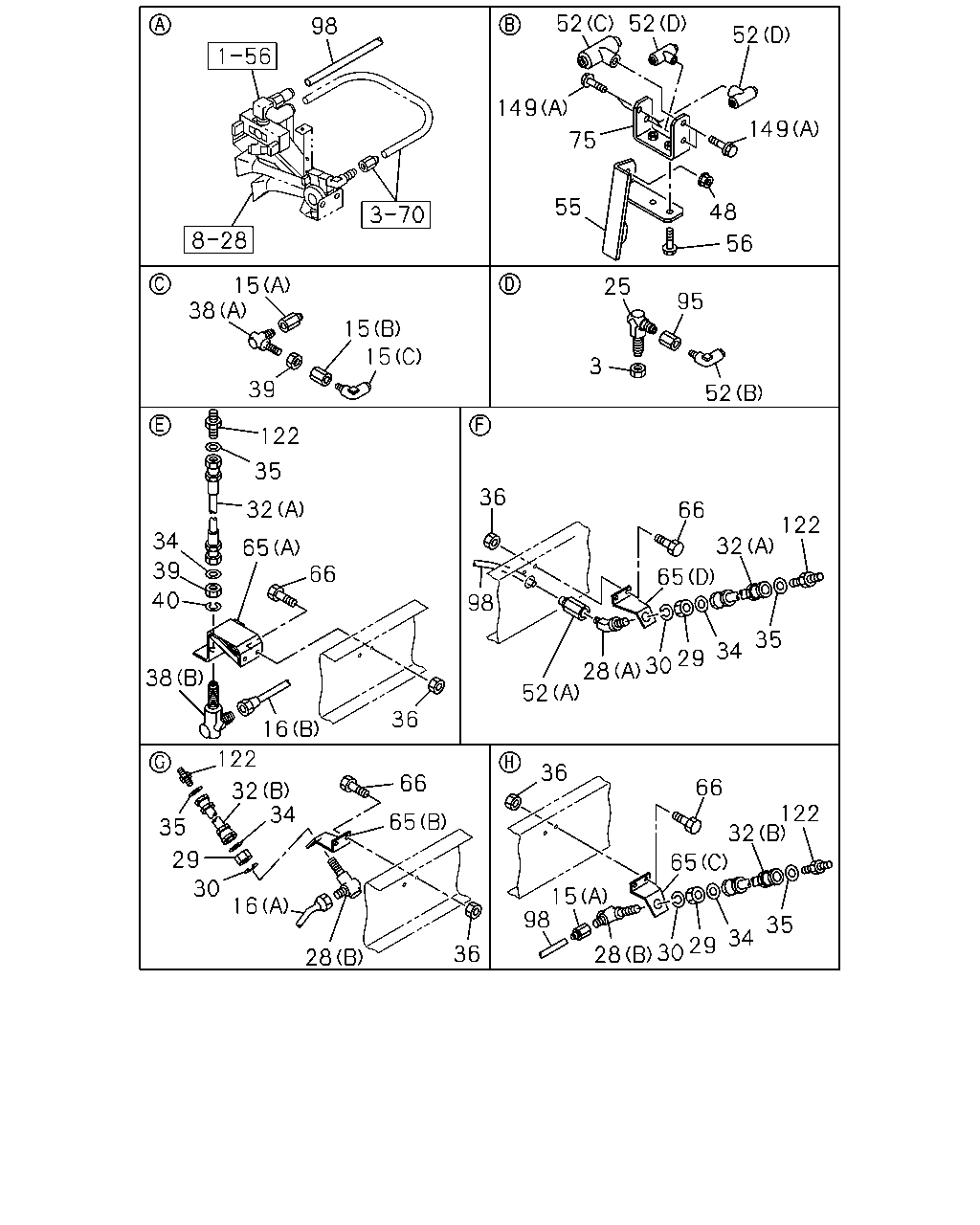

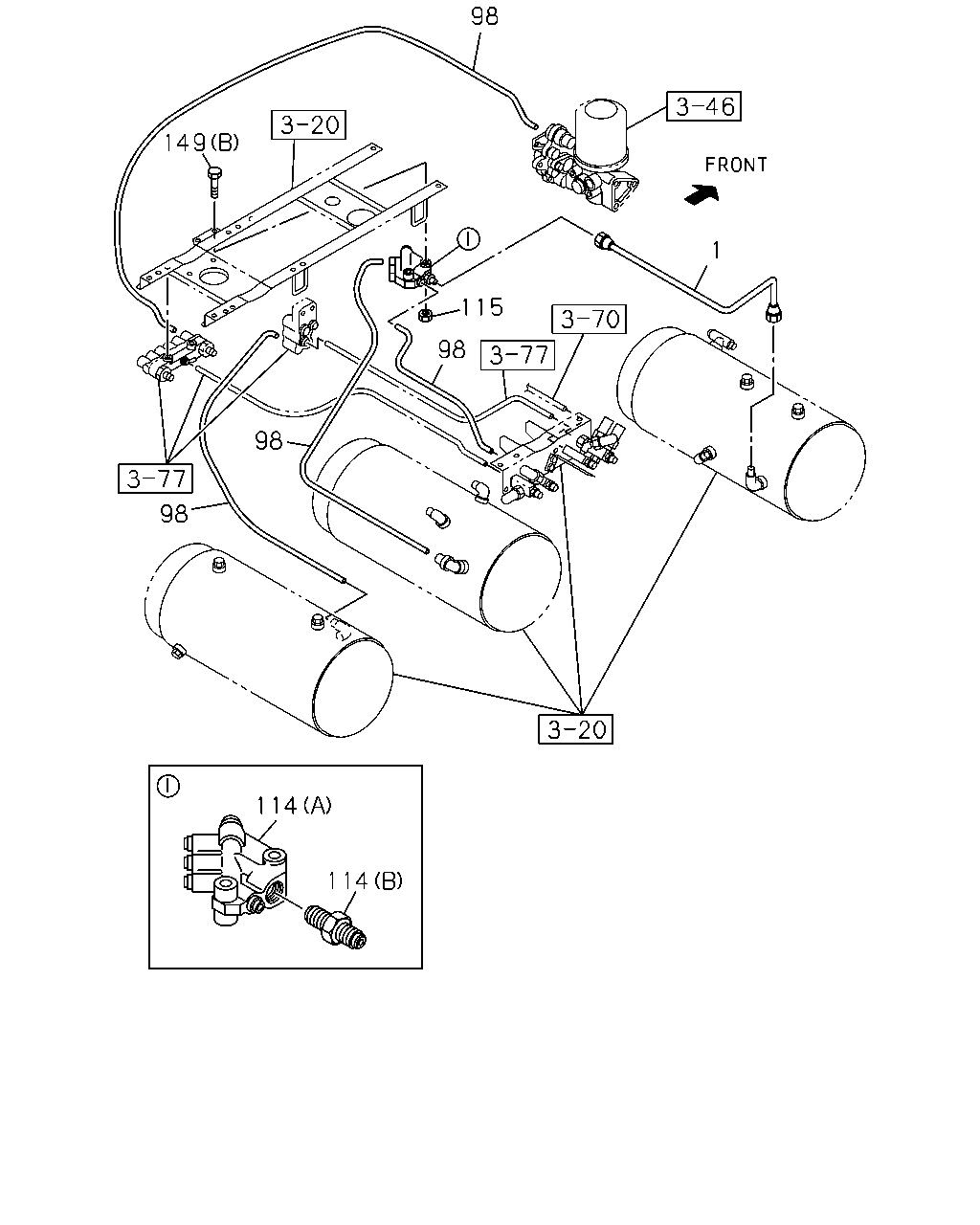

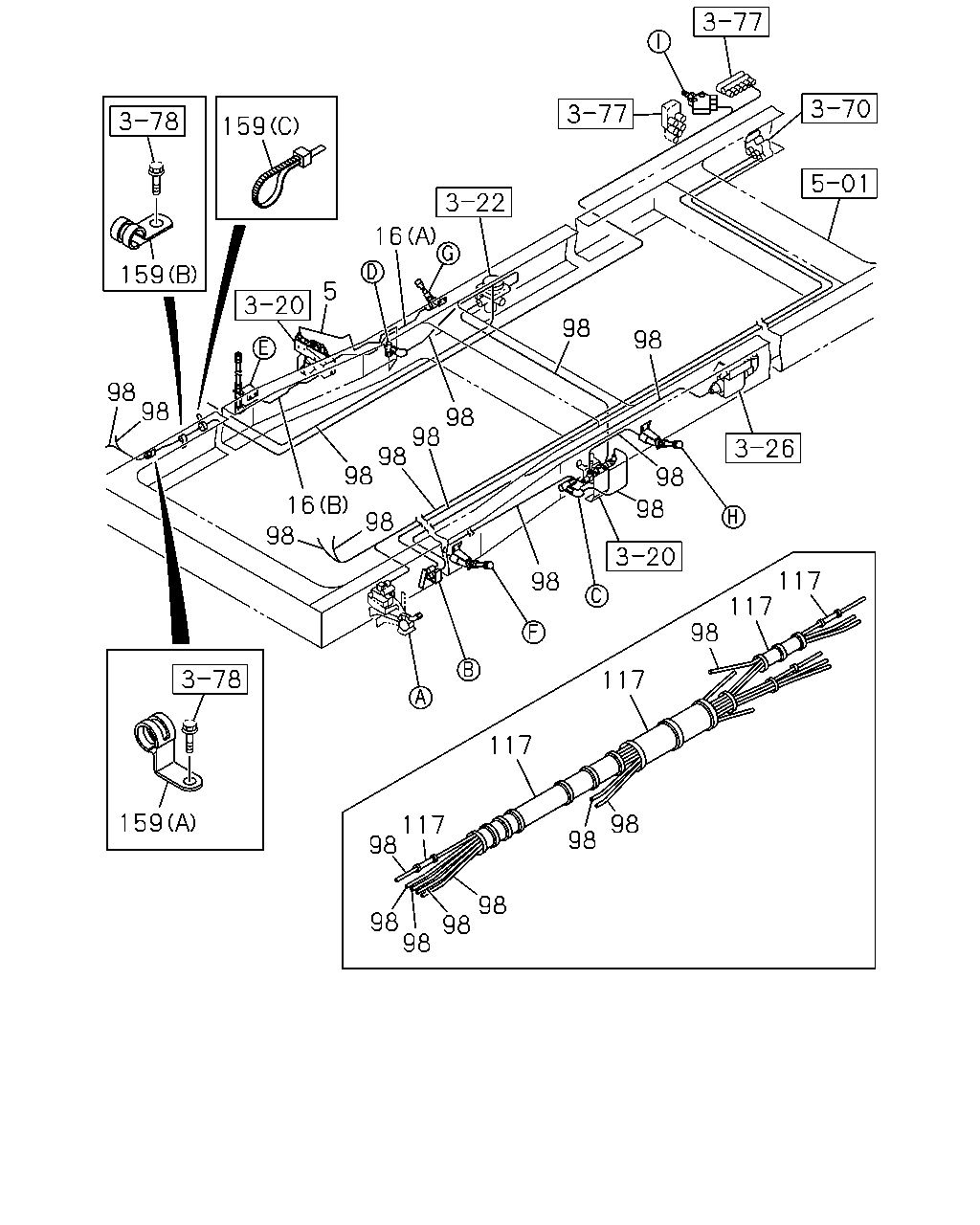

3-75 — BRAKE PIPING; AIR,FRONT (#20251) — 83 parça

52 52 98 52 149 149 75 55 48 56 15 38 25 95 15 15 3 39 52 122 35 36 32 66 122 34 32 65 39 66 65 40 98 35 34 29 30 28 38 52 36 16 122 36 66 66 32 34 122 32 65 35 29 65 1 98 30 1 35 34 29 36 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0904-
3	NUT; PIPE UNION M20	0-91111-520-0	01	1	0904-
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0904-
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0904-
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0904-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0904-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0904-1504
16	PIPE; AIR,UNION TO MODULATOR (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
25	UNION; AIR PIPE M20	0-92135-212-0	01	1	0904-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	0904-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	0904-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	0904-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	0904-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	0904-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	02	1	0904-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0904-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0904-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	0904-
38	UNION; AIR PIPE (A) M20	0-92135-212-0	01	1	0904-
38	UNION; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	01	1	0904-
39	NUT; PIPE UNION M20	0-91111-520-0	02	1	0904-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	0904-
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	0904-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0904-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0904-
52	CONNECTOR; NYLON TUBE (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0904-
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0904-
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0904-
56	BOLT; UNION BRKT M8X16 FLANGE	0-28050-816-0	02	1	0904-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	0904-
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	0904-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	0904-
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	0904-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	0904-
75	BRACKET; UNION	1-47478-382-0	01	1	0904-
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0904-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0904-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0904-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0904-
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0904-
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0904-

98 149 1 115 98 98 98 114 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0904-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0904-
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	0904-
114	UNION; NYLON TUBE (B) M22X2 STRAIGHT	8-98107-103-0	01	1	0904-
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0904-
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0904-
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0904-

159 16 159 5 98 98 98 98 98 98 98 98 16 98 98 98 98 117 117 98 98 117 117 159 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO UNION L=1438	8-98098-030-0	01	1	0904-1001
5	PIPE; AIR,UNION TO UNION L=1438 SERVICED BY L=1450	1-49115-466-0	01	1	1002-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0904-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0904-1504
16	PIPE; AIR,UNION TO MODULATOR (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0904-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0904-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0904-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0904-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0904-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0904-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0904-
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0904-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0904-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	11	1	0904-
