0-42 — FUEL PUMP AND PIPE (#2025) — 75 parça

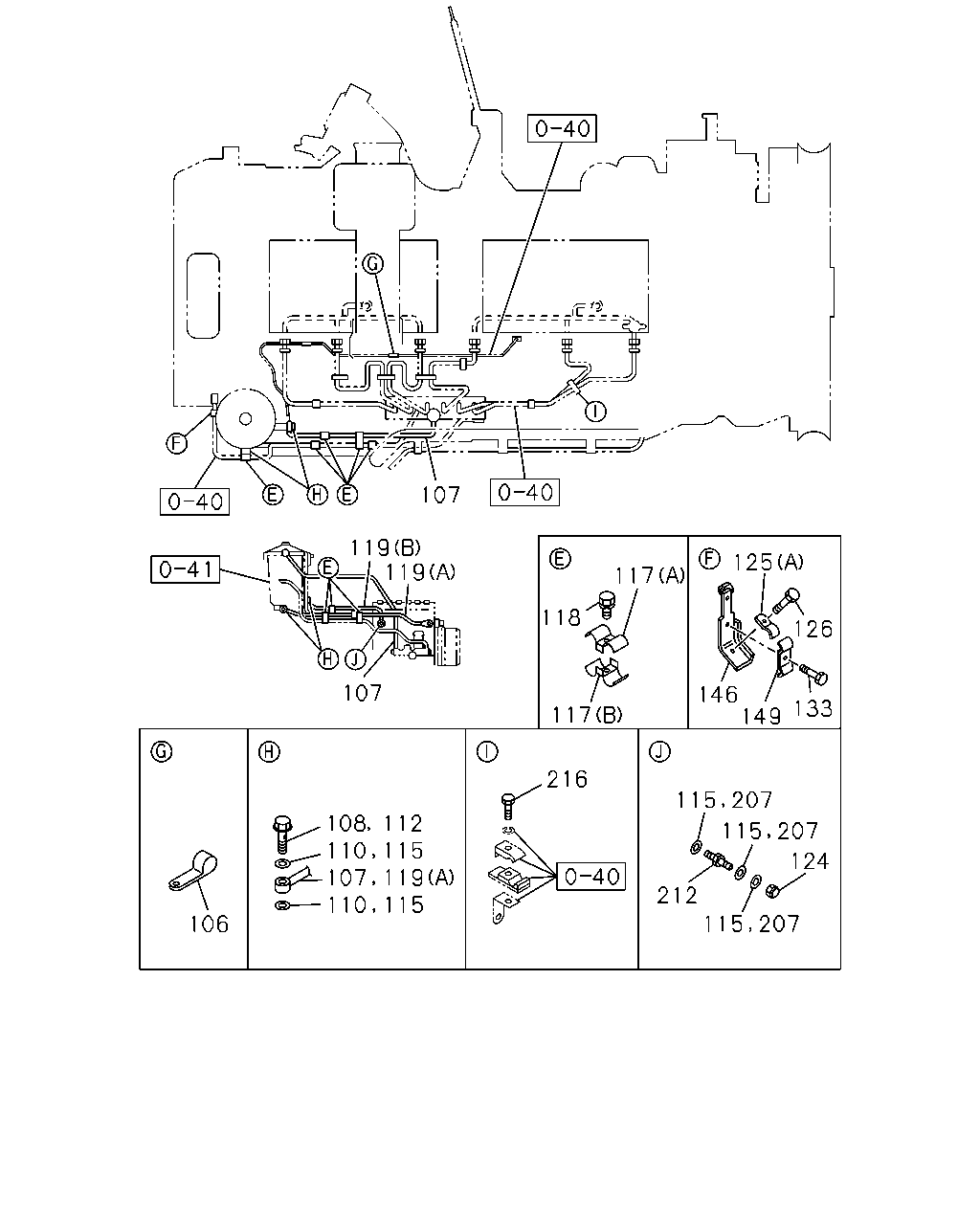

çizim 95304
107 119 119 125 117 118 126 107 146 149 133 117 216 115 108 110 110 115 124 212 115 106 107 112 115 119 115 207 207 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 CLIP; FUEL PIPE,LEAK OFF
B=22 		9-09917-511-1 01 1 9001- ● ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15411-891-1 01 1 9001- ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15412-654-0 01 1 9001- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9001- ● ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9001- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9001- ● ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9001- ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9001- ● ● ●
117 CLIP; FUEL PIPE
(A) 		9-09716-114-0 01 1 9001- ● ● ●
117 CLIP; FUEL PIPE
(B) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 01 1 9001- ● ● ●
118 BOLT; CLIP,FUEL PIPE
M6X25 		9-01910-625-0 01 1 9001-9005 ● ●
118 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9006- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(C) 		1-15411-895-1 01 1 9001- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15413-077-0 01 1 9001- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15413-113-1 01 1 9001- ● ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9001- ● ● ● ●
125 CLIP; FUEL PIPE
(B) 		1-09700-053-0 01 1 9001- ●
125 CLIP; FUEL PIPE
(A) 		1-09700-163-0 02 1 9001-9411 ● ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 02 1 9412- ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 		9-01910-630-0 01 1 9001-9005 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50040-630-0 01 1 9006- ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		9-01900-625-0 01 1 9001-9204 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9205- ● ● ●
133 BOLT; BRKT & CLIP
M10X20 W/LK WASHER 		9-01931-020-0 01 1 9001-9002 ● ● ●
133 BOLT; BRKT & CLIP
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9003- ● ● ● ●
146 BRACKET; FUEL END 1-15419-108-0 01 1 9001- ● ● ● ●
149 CLIP; AIR PIPE 1-09700-053-0 01 1 9001- ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9001-9307 ● ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9308-9801 ● ● ●
207 GASKET; EYE BOLT
EXC. TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 03 1 9308-9801 ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9802- ● ●
207 GASKET; EYE BOLT
EXC. TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 03 1 9802- ●
207 GASKET; EYE BOLT
TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9308-9801 ●
207 GASKET; EYE BOLT
TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9802- ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9802- ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9001-9304 ● ● ● ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9305-9801 ● ● ●
212 VALVE; OVERFLOW
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-13260-041-0 01 1 9305-9801 ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9802- ● ●
212 VALVE; OVERFLOW
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-13260-041-0 01 1 9802- ●
216 BOLT; CLIP,FUEL PIPE
M5X25 		9-09602-082-0 01 1 9001- ● ● ●

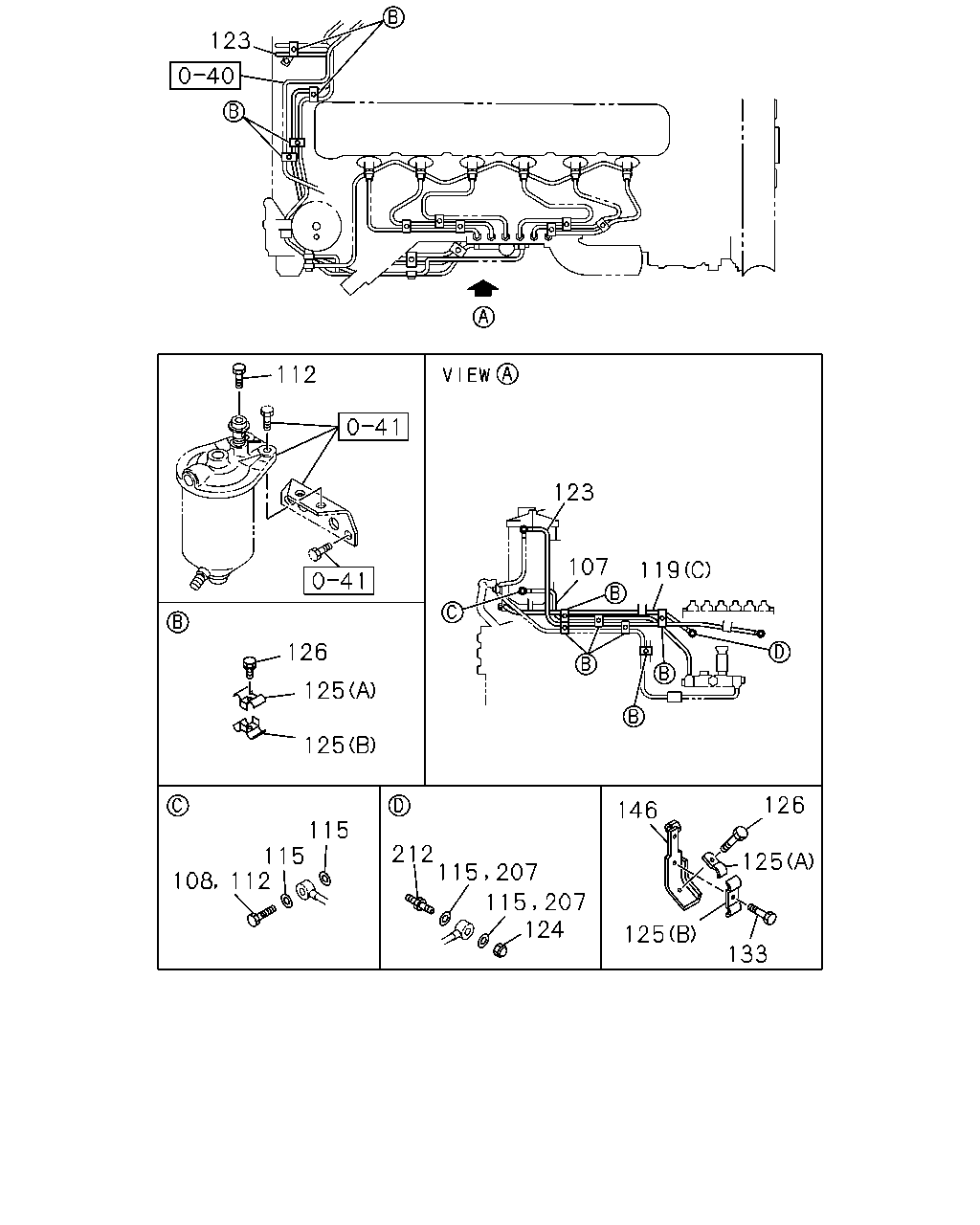

çizim 95357
123 112 123 107 119 126 125 125 126 146 115 115 112 212 115 125 108 115 124 125 133 207 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15411-891-1 01 1 9001- ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15412-654-0 01 1 9001- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9001- ● ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9001- ● ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9001- ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9001- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(C) 		1-15411-895-1 01 1 9001- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15413-077-0 01 1 9001- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15413-113-1 01 1 9001- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF 1-15412-937-2 01 1 9001- ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9001- ● ● ● ●
125 CLIP; FUEL PIPE
(B) 		1-09700-053-0 01 1 9001- ●
125 CLIP; FUEL PIPE
(A) 		1-09700-163-0 02 1 9001-9411 ● ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 02 1 9412- ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 		9-01910-630-0 01 1 9001-9005 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50040-630-0 01 1 9006- ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		9-01900-625-0 01 1 9001-9204 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9205- ● ● ●
133 BOLT; BRKT & CLIP
M10X20 W/LK WASHER 		9-01931-020-0 01 1 9001-9002 ● ● ●
133 BOLT; BRKT & CLIP
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9003- ● ● ● ●
146 BRACKET; FUEL END 1-15419-108-0 01 1 9001- ● ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9001-9307 ● ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9308-9801 ● ● ●
207 GASKET; EYE BOLT
EXC. TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 03 1 9308-9801 ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 03 1 9802- ● ●
207 GASKET; EYE BOLT
EXC. TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 03 1 9802- ●
207 GASKET; EYE BOLT
TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9308-9801 ●
207 GASKET; EYE BOLT
TAIWAN EMISSION REGULATION<TAL> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9802- ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9802- ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9001-9304 ● ● ● ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9305-9801 ● ● ●
212 VALVE; OVERFLOW
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-13260-041-0 01 1 9305-9801 ●
212 VALVE; OVERFLOW 1-13260-041-0 01 1 9802- ● ●
212 VALVE; OVERFLOW
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-13260-041-0 01 1 9802- ●
