Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#20247) — 37 parça
◀
[346A] REPAIR AND SEAL KIT (6 parça)
[346A] COMPONENT (16 parça)
[346A] FIXING (15 parça)
▶

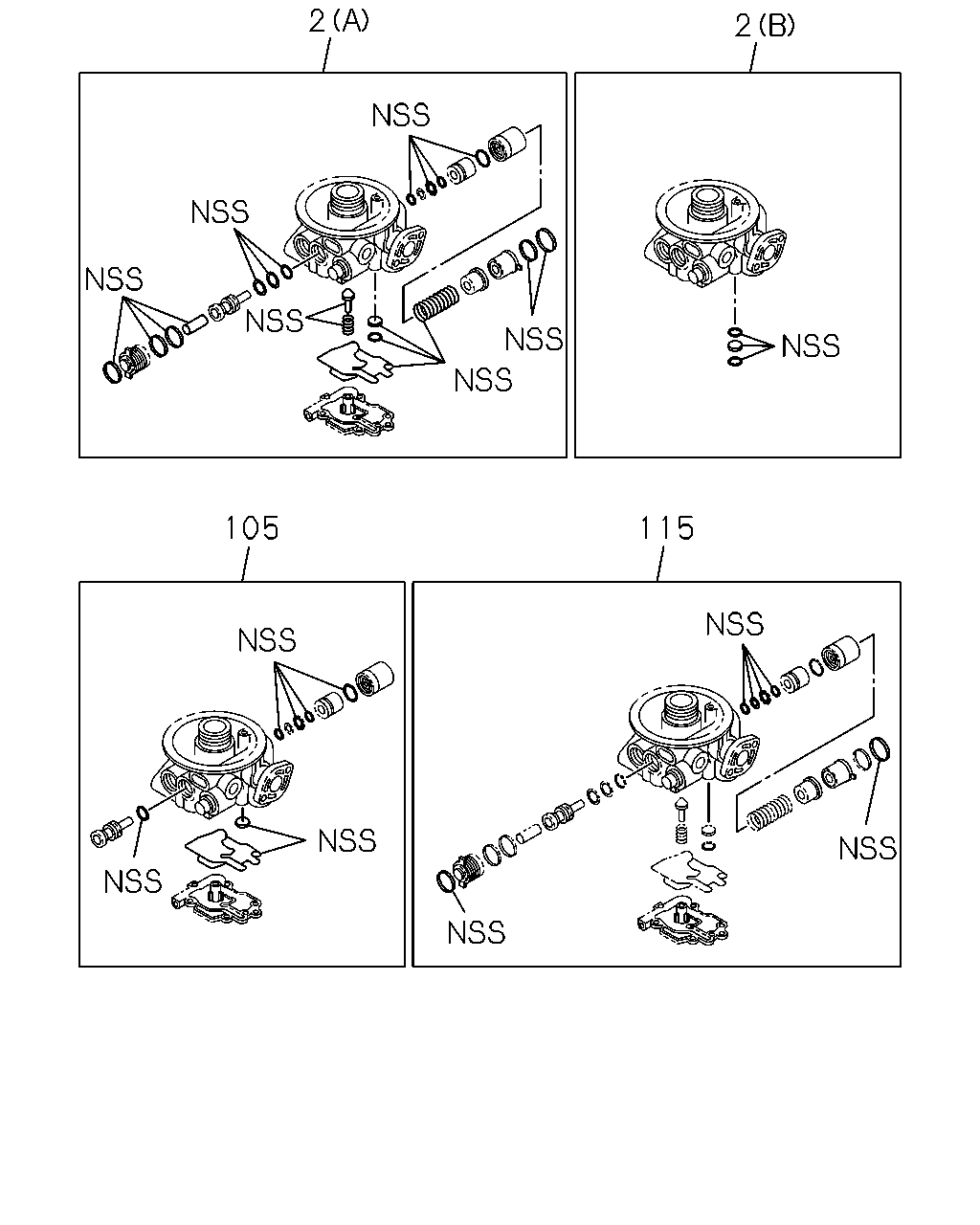

115
105
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
(B)
8-98302-391-0
01
1
1412-
2
REPAIR KIT; AIR DRYER
(A)
1-85576-398-0
01
1
0904-1102
2
REPAIR KIT; AIR DRYER
(A)
8-98185-664-0
01
1
1103-
105
SEAL KIT; AIR DRYER
1-85576-397-0
01
1
0904-1102
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1103-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
0904-

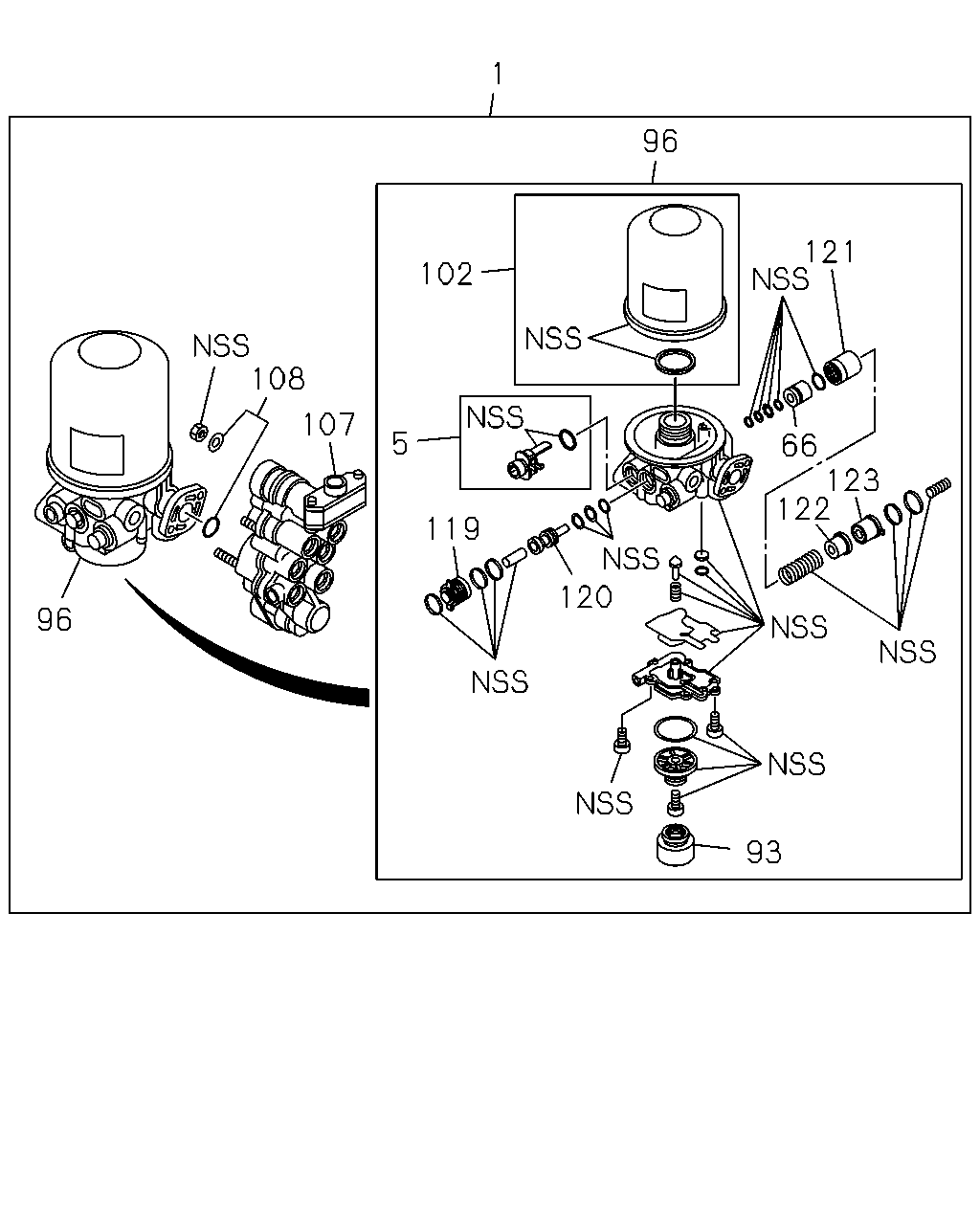

1
96
121
102
108
107
5
66
123
122
119
120
96
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-368-4
01
1
0904-1102
1
DRYER; AIR
8-98180-492-1
01
1
1103-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
0904-
66
PISTON; AIR DRYER
1-85576-475-0
01
1
0904-
93
SILENCER; AIR DRYER
1-85576-362-0
01
1
0904-
96
DRYER KIT; AIR
1-85576-455-1
01
1
0904-1102
96
DRYER KIT; AIR
8-98185-663-1
01
1
1103-
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
0904-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
0904-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
0904-
119
COVER; PURGE VALVE
1-85576-473-0
01
1
0904-
120
TAPPET
1-85576-474-0
01
1
0904-1102
120
TAPPET
8-98185-666-0
01
1
1103-
121
HOLDER; SPRING
1-85576-476-0
01
1
0904-
122
SEAT; SPRING
1-85576-477-0
01
1
0904-
123
COVER; GOVERNER
1-85576-478-0
01
1
0904-

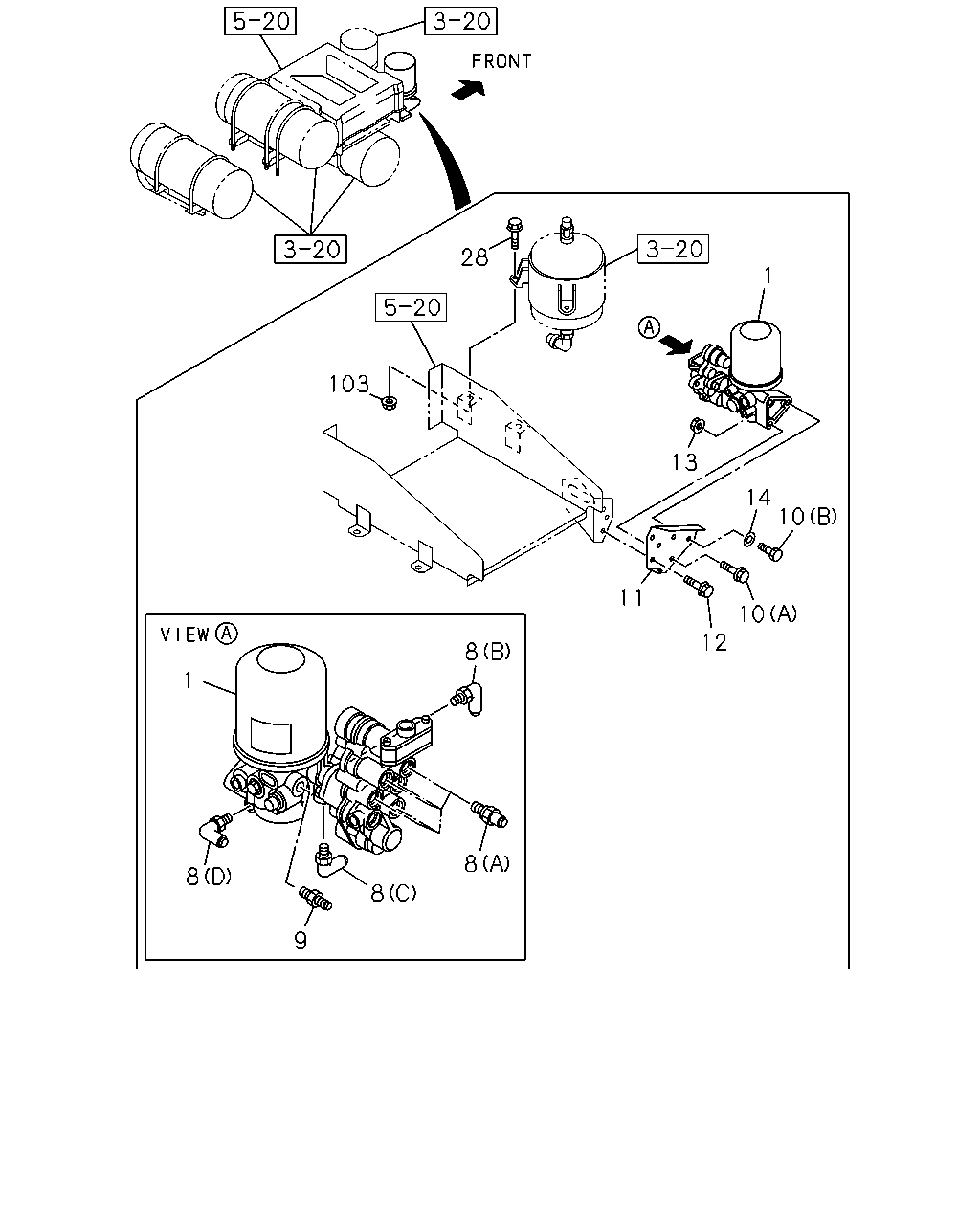

28
1
103
13
14
10
11
10
12
8
1
8
8
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-368-4
01
1
0904-1102
1
DRYER; AIR
8-98180-492-1
01
1
1103-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
05
1
0904-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
0904-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
0904-
8
CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW
1-09661-574-0
01
1
0904-
9
CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT
8-98107-103-0
01
1
0904-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
0904-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
0904-
11
BRACKET; AIR DRYER
1-48316-019-0
01
1
0904-
12
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
03
1
0904-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
01
1
0904-
14
WASHER; PL,AIR DRYER
ID=12.5 OD=22
0-91610-512-0
02
1
0904-
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28651-025-0
02
1
0904-
103
NUT; PURGE TANK
M10 FLANGE
0-91180-210-0
02
1
0904-
