3-41 — REAR BRAKE POWER CHAMBER (#20246) — 164 parça

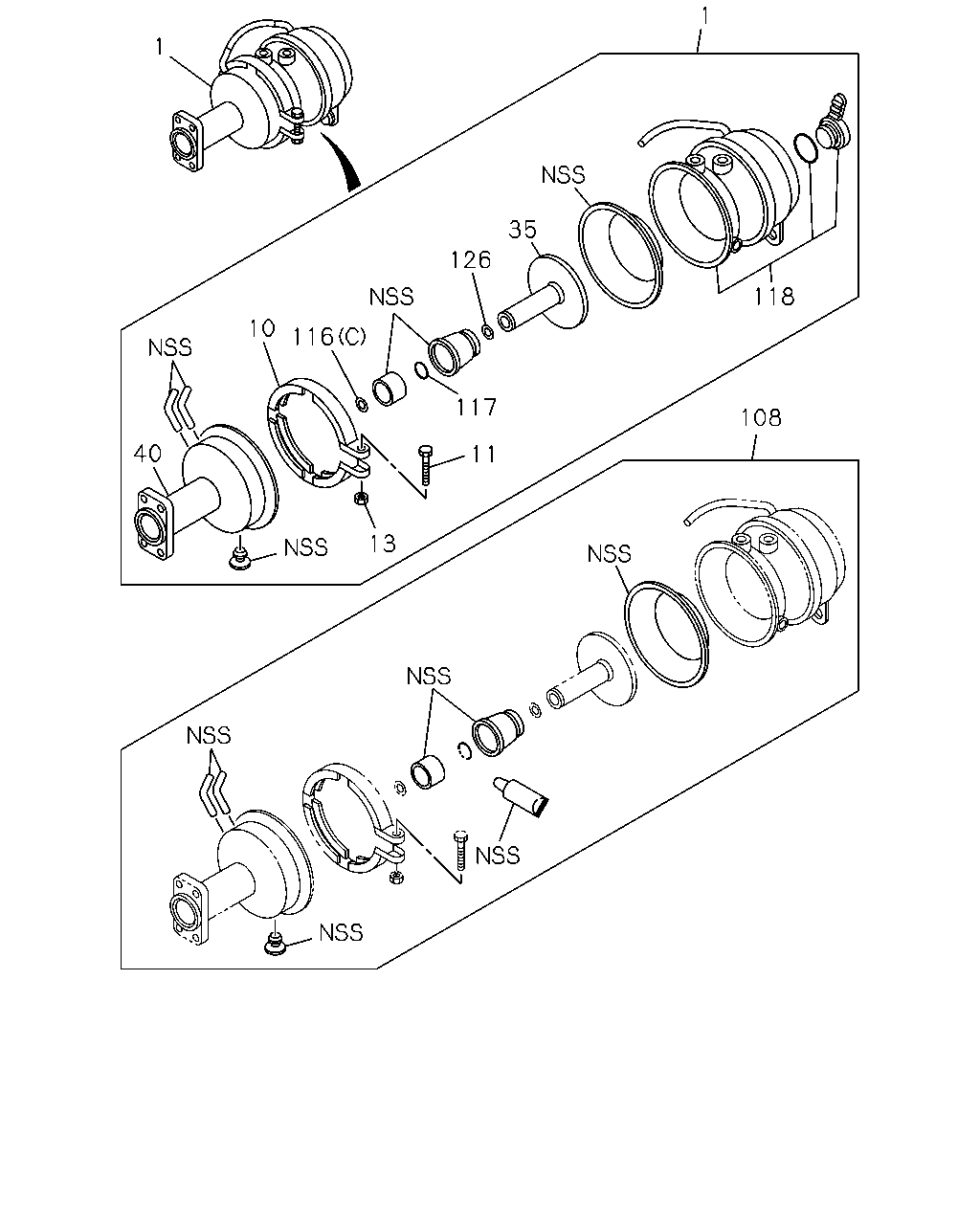

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-
126	SHIM	8-98146-965-0	AR	1	0911-
126	SHIM	8-98146-965-0	AR	1	0911-

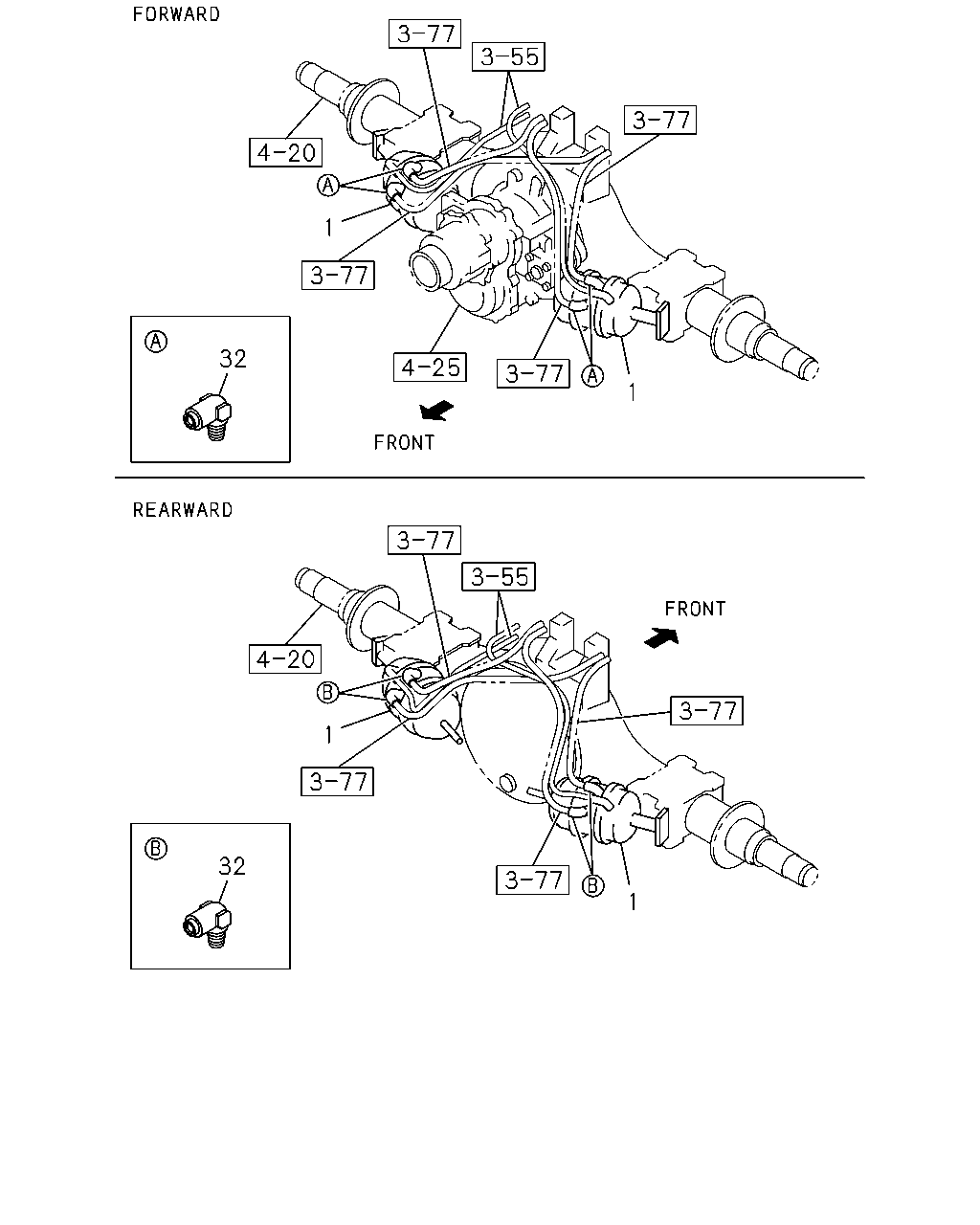

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0904-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0904-

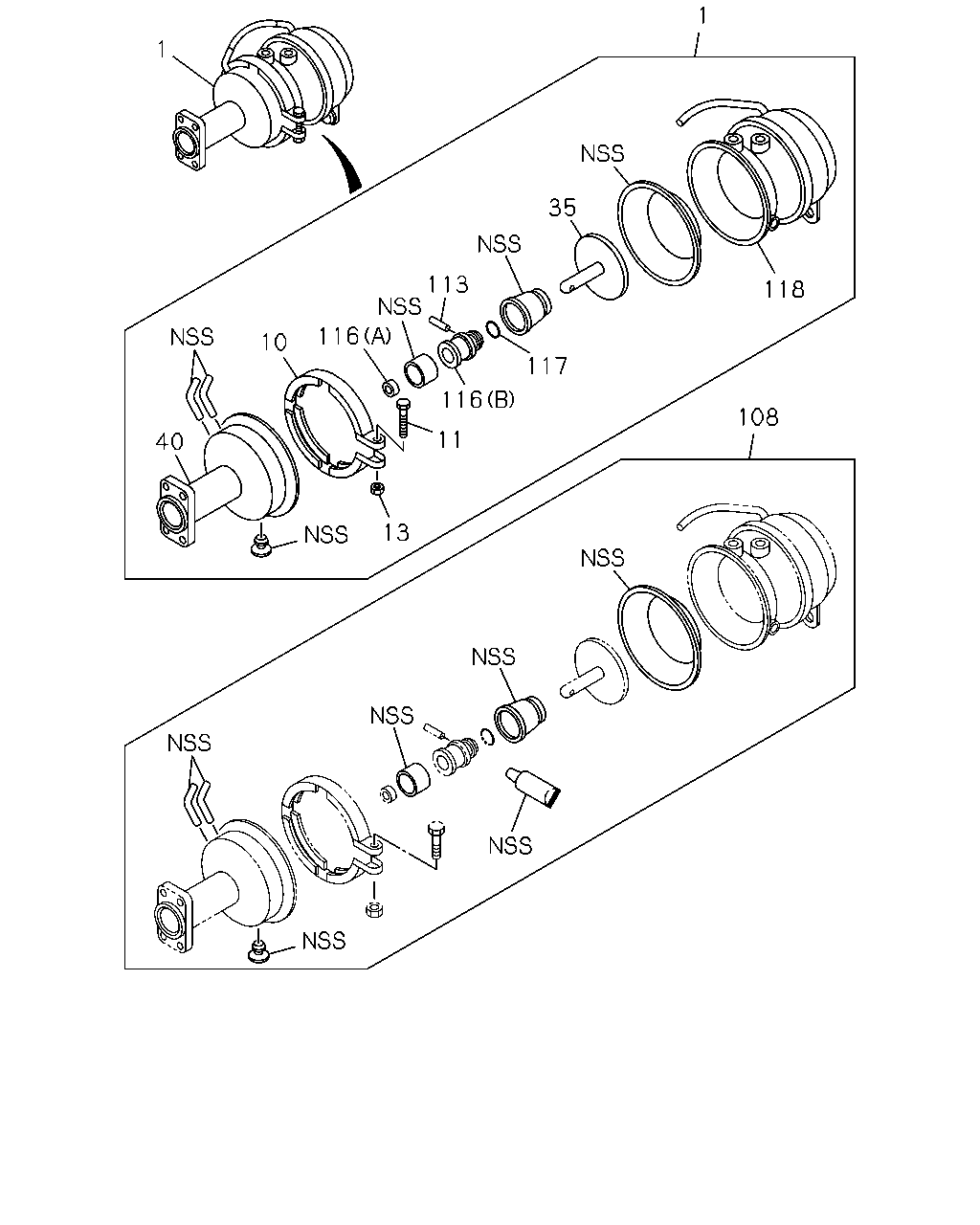

1 1 35 113 118 116 10 117 116 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0904-0910
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-

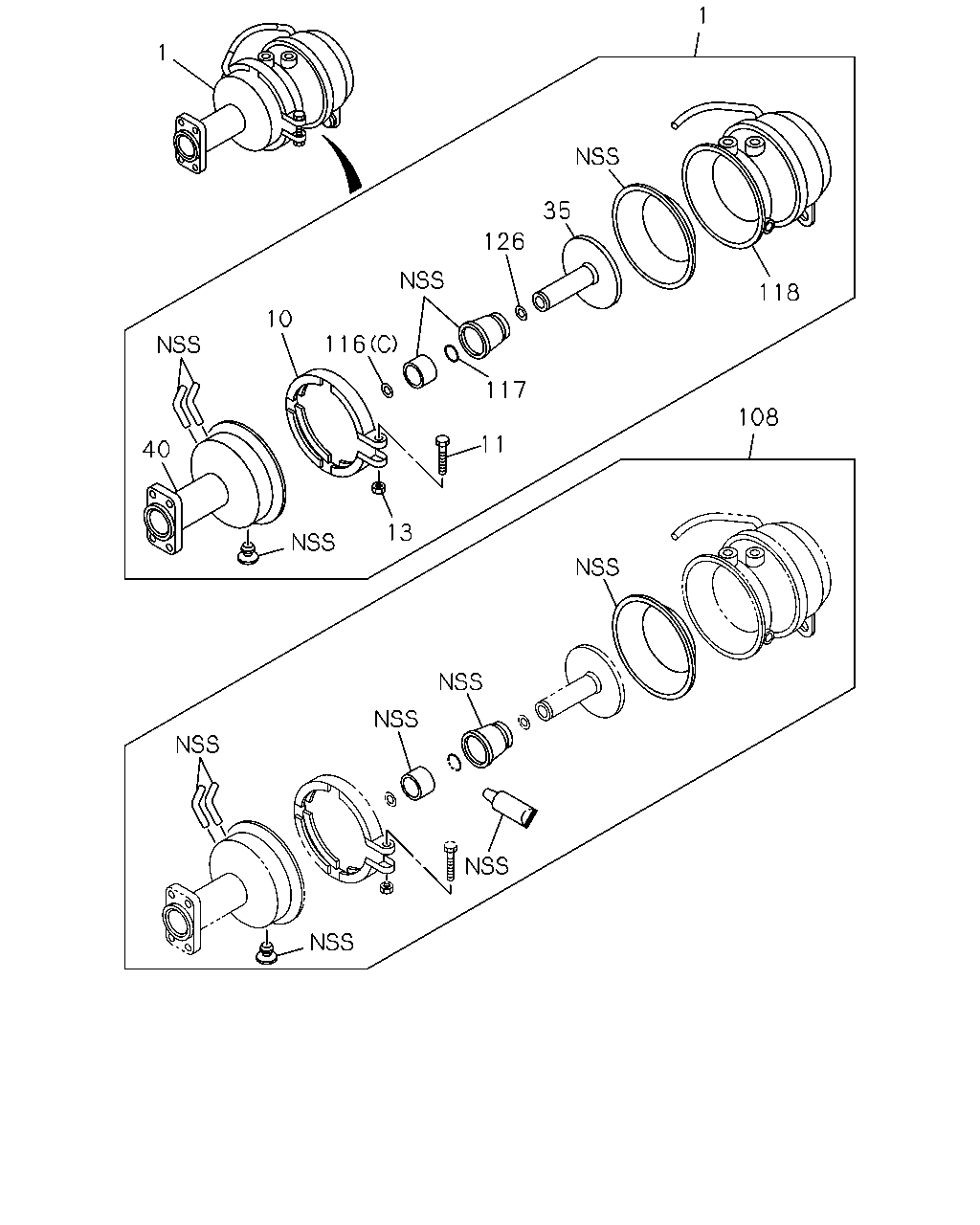

1 1 35 126 118 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-690-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0904-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-691-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1006-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
11	BOLT; CLAMP RING	1-48269-257-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0904-
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0904-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-972-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0904-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0904-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0904-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-111-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0904-1005
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-112-0	01	1	1006-
126	SHIM	8-98146-965-0	AR	1	0911-
126	SHIM	8-98146-965-0	AR	1	0911-
