Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#2023) — 397 parça

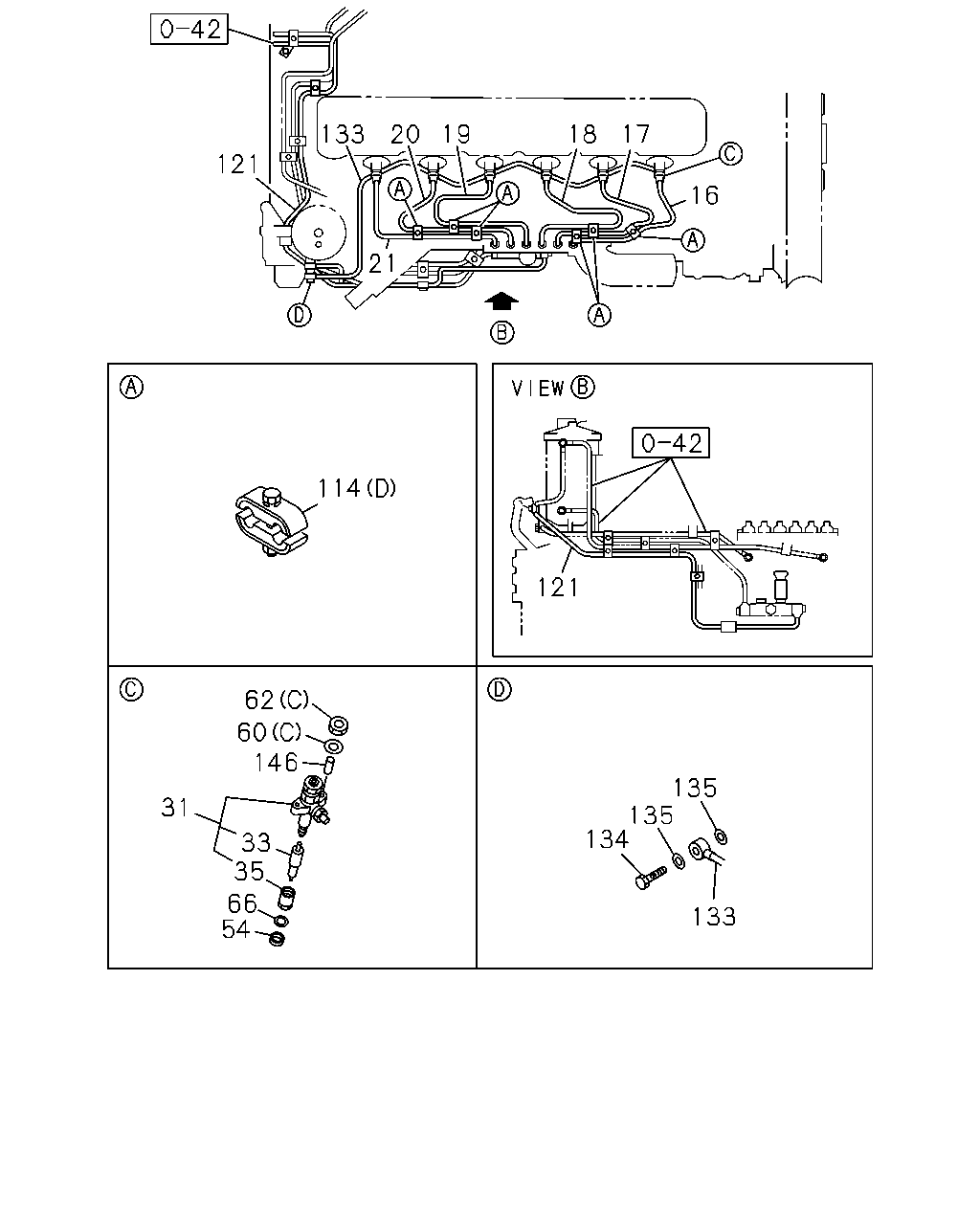

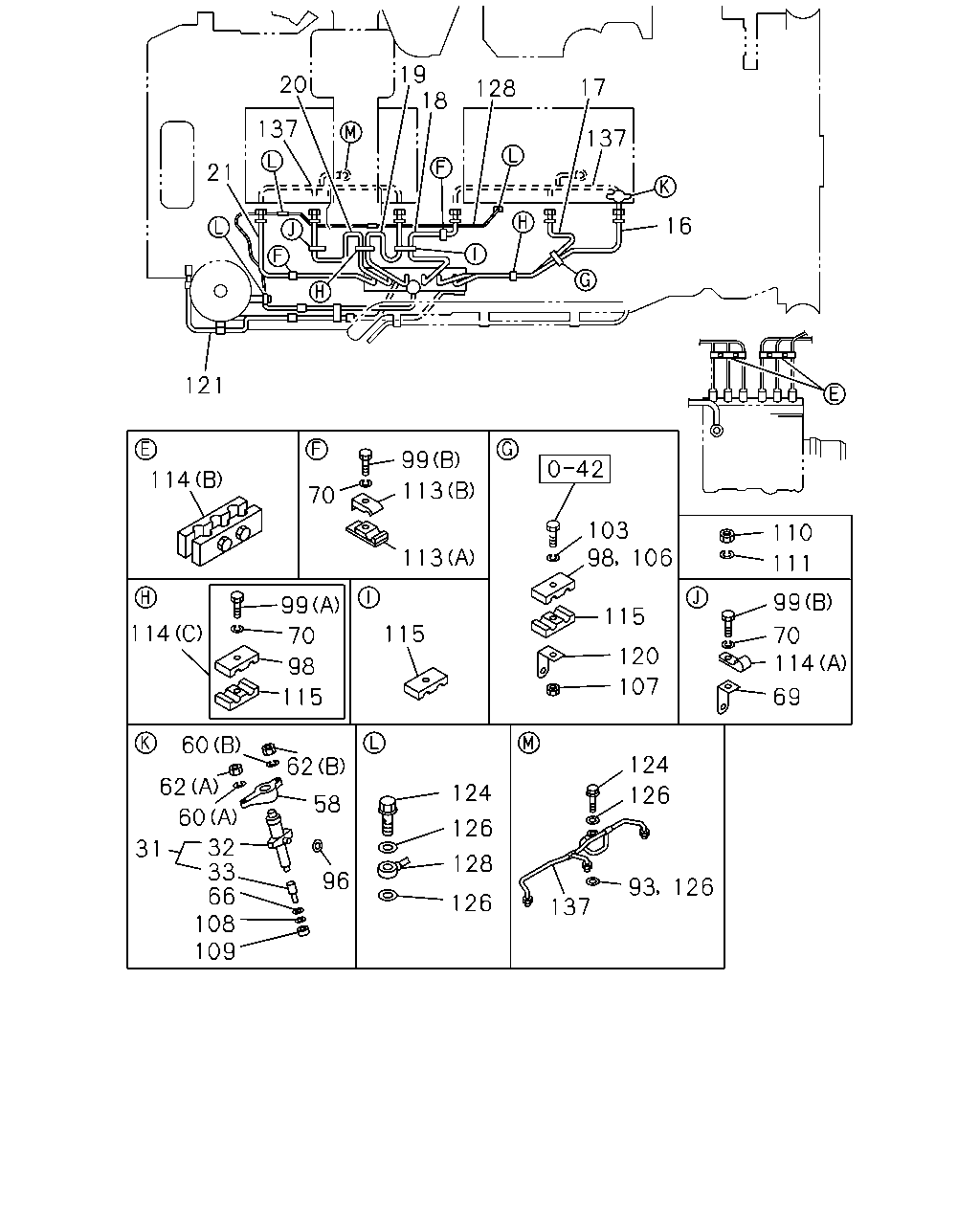

19 18 20 17 128 137 137 21 16 121 99 114 113 70 103 106 110 113 111 99 99 115 114 115 70 114 70 120 98 107 69 115 60 124 62 62 124 126 58 60 126 32 33 66 108 109 31 128 96 93 126 126 137 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15412-270-1	01	1	9001-	●
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9001-		●	●	●
17	PIPE; INJ NO.2	1-15412-529-0	01	1	9001-	●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9001-		●	●	●
18	PIPE; INJ NO.3	1-15412-530-0	01	1	9001-	●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9001-		●	●	●
19	PIPE; INJ NO.4	1-15412-273-1	01	1	9001-	●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9001-		●	●	●
20	PIPE; INJ NO.5	1-15412-274-1	01	1	9001-	●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9001-		●	●	●
21	PIPE; INJ NO.6	1-15412-532-1	01	1	9001-	●
21	PIPE; INJ NO.6	1-15413-046-0	01	1	9001-		●	●	●
31	NOZZLE ASM; INJ	1-15300-103-2	06	1	9001-	●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-269-1	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-1	06	1	9001-9304		●	●	●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-041-2	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9305-			●	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9001-	●
32	HOLDER ASM; NOZZLE TAIWAN EMISSION REGULATION<TAL>	1-15330-086-1	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9001-9304		●	●	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EMISSION REGULATION<TAL>	9-15330-085-3	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9305-			●	●
33	NOZZLE; INJ	1-15311-112-0	06	1	9001-	●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-220-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9001-9304		●	●	●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-073-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9305-			●	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-017-0	06	1	9001-		●	●	●
60	WASHER; NOZZLE HOLDER (C) ID=8.5 OD=15 T=4	1-09503-219-0	12	1	9001-	●
60	WASHER; NOZZLE HOLDER (A) ID=10	1-09503-033-1	06	1	9001-		●	●	●
60	WASHER; NOZZLE HOLDER (B) ID=8.4 OD=16	1-09503-039-0	06	1	9001-		●	●	●
62	NUT; NOZZLE HOLDER (C) M8	9-09110-508-0	12	1	9001-	●
62	NUT; NOZZLE HOLDER (A) M8	9-09110-408-0	06	1	9001-		●	●	●
62	NUT; NOZZLE HOLDER (B) M10	9-09110-510-0	06	1	9001-		●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18	9-15315-075-0	06	1	9001-	●	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-103-0	01	1	9001-		●	●	●
70	WASHER; LK,BRKT ID=5.1	9-09150-505-0	05	1	9001-		●	●	●
93	GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2	1-09630-082-0	02	1	9001-		●	●	●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-019-0	06	1	9001-		●	●	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9001-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	01	1	9101-				●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-09802-539-0	05	1	9001-		●
99	BOLT; CLIP,INJ,PIPE (B) M5X10	9-92050-510-0	01	1	9001-9005		●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X10	0-20800-510-0	01	1	9006-		●	●	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-09802-539-0	01	1	9101-				●
103	WASHER; LK,CLIP,INJ PIPE ID=5.1	9-09150-505-0	01	1	9001-		●	●	●
106	CLIP; INJ PIPE	9-15419-613-0	06	1	9001-		●	●	●
107	NUT; INJ PIPE CLIP M5	9-99110-405-0	04	1	9001-		●	●	●
108	GASKET; SLEEVE NUT TO HD ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-018-0	06	1	9001-		●	●	●
109	NUT; GASKET M18.5	9-15419-105-0	06	1	9001-		●	●	●
110	NUT; CLIP M10	9-09110-410-0	02	1	9101-				●
111	WASHER; LK,CLIP ID=10.2	9-09150-510-0	02	1	9101-				●
113	CLIP; INJ PIPE (B)	1-09700-110-0	02	1	9001-		●	●	●
113	CLIP; INJ PIPE (A)	1-15419-102-0	02	1	9001-		●	●	●
114	CLIP; INJ PIPE (D) ID=6	9-15419-084-0	07	1	9001-	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	05	1	9001-		●
114	CLIP; INJ PIPE (B) ID=6	1-15419-099-0	02	1	9001-		●	●	●
114	CLIP; INJ PIPE (A)	9-09524-632-0	01	1	9001-		●	●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	01	1	9101-				●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9001-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	01	1	9101-				●
120	BRACKET; INJ PIPE	1-15419-103-0	01	1	9001-		●	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15412-715-0	01	1	9001-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-089-0	01	1	9001-		●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	05	1	9001-		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EMISSION REGULATION<TAL> ID=8.2 OD=13.2	1-09630-082-0	10	1	9305-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	08	1	9001-9304		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TAIWAN EMISSION REGULATION<TAL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	08	1	9305-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	08	1	9305-			●	●
128	PIPE ASM; INJ	1-15412-657-0	01	1	9001-		●	●	●
137	PIPE ASM; LEAK OFF	9-15413-003-1	02	1	9001-9304		●	●	●
137	PIPE ASM; LEAK OFF EXC. TAIWAN EMISSION REGULATION<TAL>	9-15413-003-1	02	1	9305-		●
137	PIPE ASM; LEAK OFF	9-15413-003-1	02	1	9305-			●	●
137	PIPE ASM; LEAK OFF TAIWAN EMISSION REGULATION<TAL>	1-15414-803-0	02	1	9305-		●

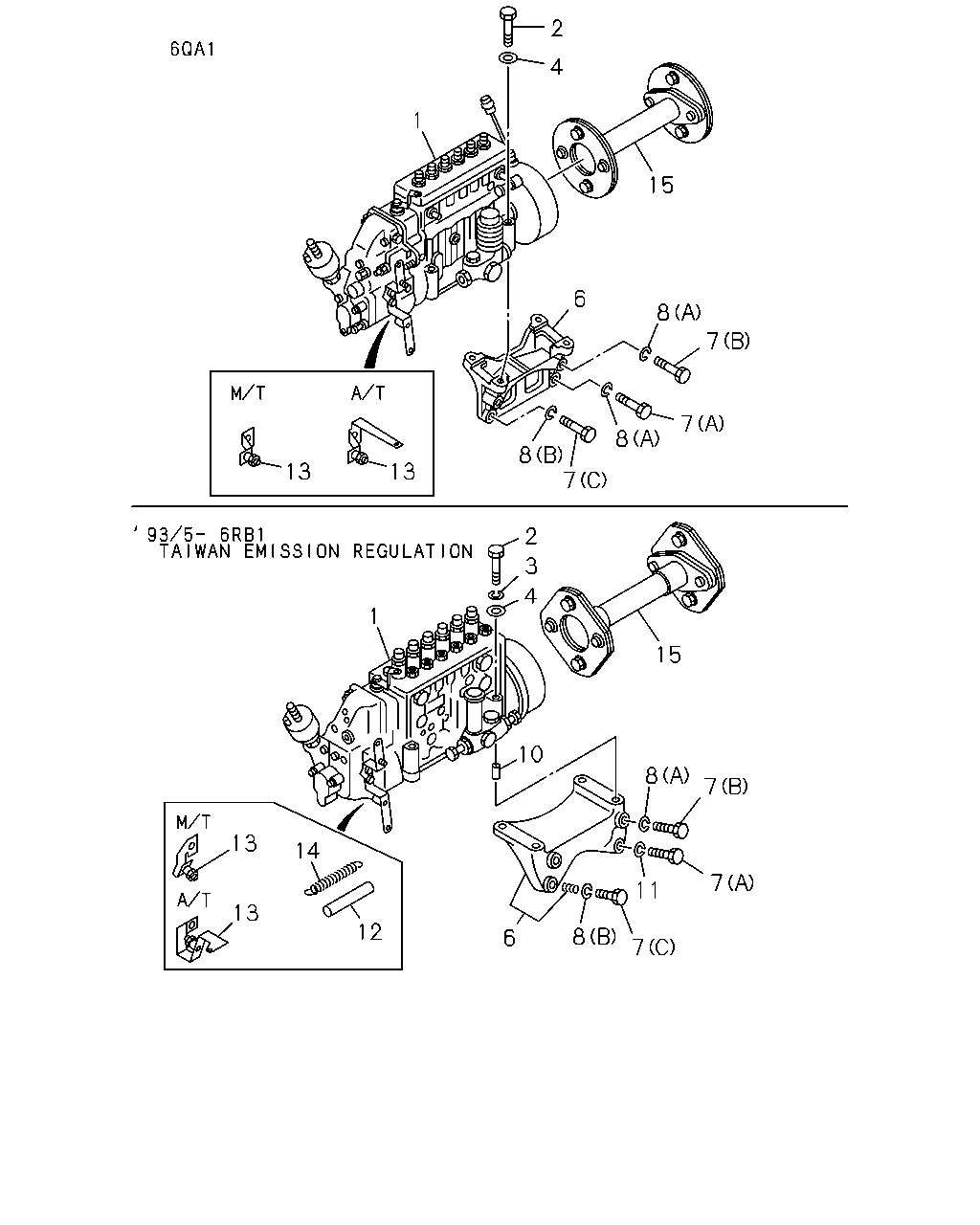

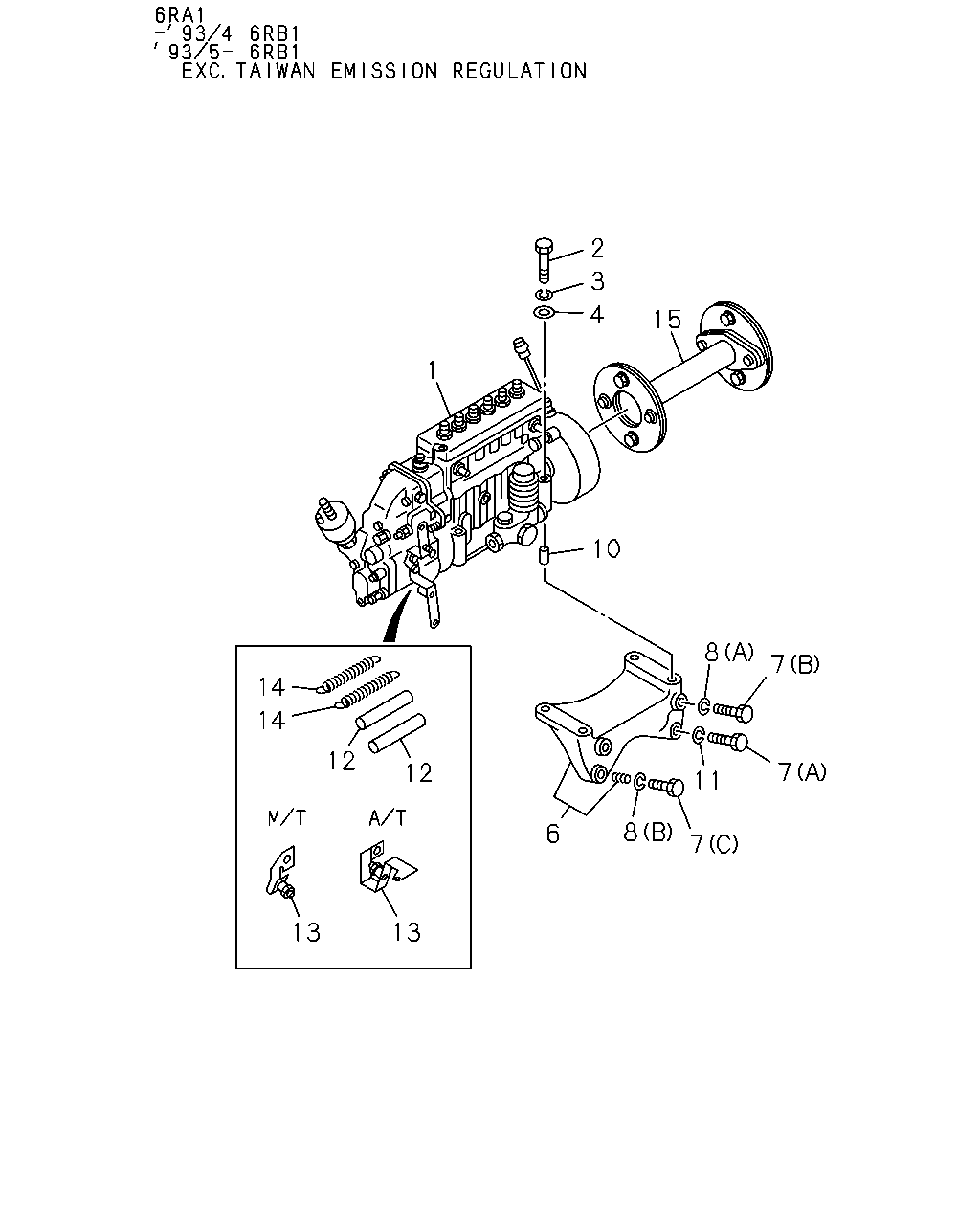

2 3 4 15 1 10 8 7 14 14 12 7 12 11 8 6 7 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-023-1	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-019-3	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-018-1	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-813-1	01	1	9001-9204	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3), INJPUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-947-3	01	1	9001-9204	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-947-3	01	1	9205-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-004-0	01	1	9001-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-978-3	01	1	9001-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-988-0	01	1	9001-9304		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. TAIWAN EMISSION REGULATION<TAL>	1-15600-988-0	01	1	9305-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-757-5	01	1	9001-9304		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. TAIWAN EMISSION REGULATION<TAL>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-757-6	01	1	9305-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> TAIWAN EMISSION REGULATION<TAL>	1-15602-883-0	01	1	9305-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-007-0	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-986-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. COLOMBIA EQUIPMENT(WJ2),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-980-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) COLOMBIA EQUIPMENT(WJ2)	1-15600-990-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. COLOMBIA EQUIPMENT(WJ2)	1-15601-833-1	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-197-2	01	1	9101-9701				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-197-2	01	1	9702-9705				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. COLOMBIA EQUIPMENT(WJ2)	1-15602-197-2	01	1	9706-				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) COLOMBIA EQUIPMENT(WJ2)	1-15603-242-0	01	1	9706-				●
2	BOLT; INJ PUMP M8X75	9-01055-875-0	04	1	9001-9005	●
2	BOLT; INJ PUMP M8X75	0-10805-875-0	04	1	9006-9108	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9109-	●
2	BOLT; INJ PUMP M10X90	9-01656-090-0	04	1	9001-9004		●	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9005-		●	●	●
3	WASHER; LK,INJ PUMP ID=10.2	9-09150-510-0	04	1	9001-		●	●	●
4	WASHER; INJ PUMP ID=8.5	9-09851-934-0	04	1	9001-	●
4	WASHER; INJ PUMP ID=8.5	9-09851-983-0	04	1	9001-	●
4	WASHER; INJ PUMP ID=10.0	9-09160-510-0	04	1	9001-		●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-026-1	01	1	9001-	●
6	BRACKET; INJ PUMP TO C/BL	9-19751-118-1	01	1	9001-		●	●	●
7	BOLT; INJ PUMP BRKT (B) M10X60	9-01656-060-0	02	1	9001-9004	●
7	BOLT; INJ PUMP BRKT (B) M10X60	0-16806-060-0	02	1	9005-	●
7	BOLT; INJ PUMP BRKT (A) M10X35 W/LK WASHER	9-01931-035-0	01	1	9001-9002	●
7	BOLT; INJ PUMP BRKT (A) M10X35 W/LK WASHER	0-50051-035-0	01	1	9003-	●
7	BOLT; INJ PUMP BRKT (C) M14X40	9-92351-440-0	01	1	9001-9005	●
7	BOLT; INJ PUMP BRKT (C) M14X40	0-23801-440-0	01	1	9006-	●
7	BOLT; INJ PUMP BRKT (B) M10X80	9-01656-080-0	02	1	9001-9004		●	●
7	BOLT; INJ PUMP BRKT (B) M10X80	0-16806-080-0	02	1	9005-		●	●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 W/LK WASHER	9-01931-040-0	01	1	9001-9002		●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 W/LK WASHER	0-50051-040-0	01	1	9003-		●	●	●
7	BOLT; INJ PUMP BRKT (C) M14X55	9-91656-455-0	01	1	9001-9005		●	●
7	BOLT; INJ PUMP BRKT (C) M14X55	0-16806-455-0	01	1	9006-		●	●	●
8	WASHER; LK,INJ PUMP BRKT (A) ID=10.2	9-09150-510-0	02	1	9001-	●	●	●	●
8	WASHER; LK,INJ PUMP BRKT (B) ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9001-		●	●	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	01	1	9001-		●	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	01	1	9001-		●	●	●
12	COVER; SPRING	1-09360-343-0	01	1	9001-		●	●
12	COVER; SPRING	1-09360-343-0	02	1	9101-				●
13	EYE; SPRING INJ PUMP BRKT A/T<X9D>	1-23336-022-0	01	1	9001-	●
13	EYE; SPRING INJ PUMP BRKT M/T<X9C>	1-23336-021-0	01	1	9001-	●
13	EYE; SPRING INJ PUMP BRKT A/T<X9D>	1-23336-023-0	01	1	9001-		●	●
13	EYE; SPRING INJ PUMP BRKT M/T<X9C>	1-23336-019-0	01	1	9001-		●	●
13	EYE; SPRING INJ PUMP BRKT	1-23336-018-0	01	1	9101-				●
14	SPRING; ENG CONT RETURN	1-09583-151-0	01	1	9001-		●	●
14	SPRING; ENG CONT RETURN	1-09583-222-0	02	1	9101-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9001-9304	●	●	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9305-	●		●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. TAIWAN EMISSION REGULATION<TAL>	1-15780-105-0	01	1	9305-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. TAIWAN EMISSION REGULATION<TAL>	1-15780-033-0	01	1	9305-		●

31 32 34 36 36 140 138 37 45 38 39 40 143 46 44 33 141 35 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-103-2	06	1	9001-	●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-269-1	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-1	06	1	9001-9304		●	●	●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-041-2	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9305-			●	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9001-	●
32	HOLDER ASM; NOZZLE TAIWAN EMISSION REGULATION<TAL>	1-15330-086-1	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9001-9304		●	●	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EMISSION REGULATION<TAL>	9-15330-085-3	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9305-			●	●
33	NOZZLE; INJ	1-15311-112-0	06	1	9001-	●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-220-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9001-9304		●	●	●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-073-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9305-			●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9001-9304	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9305-	●
34	BOLT; EYE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15339-009-0	06	1	9305-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-017-0	06	1	9001-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-018-0	06	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15332-010-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9307-		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9001-9304		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15332-024-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9305-9306			●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9001-9304	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9305-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EMISSION REGULATION<TAL>	1-15339-010-0	12	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	5-15334-001-0	06	1	9001-9306	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-006-0	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15334-010-0	06	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-001-0	06	1	9001-9304		●	●	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15334-001-1	06	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-001-1	06	1	9305-			●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9001-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9001-9310		●	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EMISSION REGULATION<TAL>.	9-15339-056-0	12	1	9305-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9305-			●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EMISSION REGULATION<TAL>	9-15339-056-0	06	1	9305-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9001-9304	●	●	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9305-	●		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15343-011-0	06	1	9305-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15345-004-0	06	1	9305-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9001-9306	●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15332-011-0	06	1	9305-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-001-0	06	1	9001-9304		●	●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-001-0	06	1	9305-9306		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-001-0	06	1	9305-9306			●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9307-9705	●		●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-002-0	06	1	9307-9705		●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-002-0	06	1	9706-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9706-			●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9001-9304	●	●	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9305-	●		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15343-013-0	06	1	9305-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	9-15343-005-0	06	1	9305-9306		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	8-94246-531-0	06	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-005-0	06	1	9001-	●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15341-004-0	06	1	9305-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9001-9304		●	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15341-008-0	06	1	9305-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9305-			●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9001-	●	●	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15343-001-0	06	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.500	5-15339-007-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.60	5-15339-008-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.700	5-15339-009-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.800	5-15339-010-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.900	5-15339-011-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.100	5-15339-012-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.52	5-15339-018-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.540	5-15339-019-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.56	5-15339-020-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.580	5-15339-021-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.10	8-94128-982-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.20	8-94128-983-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.30	8-94128-984-0	AR	1	9305-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL> T=0.40	8-94128-985-0	AR	1	9305-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15341-006-0	06	1	9305-		●
142	SPACER; PUSH ROD TAIWAN EMISSION REGULATION<TAL>	1-15339-093-0	06	1	9305-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15345-003-0	06	1	9305-		●

2 4 1 15 6 8 7 7 8 8 7 13 13 2 3 4 1 15 10 8 7 13 14 7 11 13 12 8 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-023-1	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-019-3	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-018-1	01	1	9001-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-813-1	01	1	9001-9204	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3), INJPUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-947-3	01	1	9001-9204	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-947-3	01	1	9205-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-004-0	01	1	9001-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-978-3	01	1	9001-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-988-0	01	1	9001-9304		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. TAIWAN EMISSION REGULATION<TAL>	1-15600-988-0	01	1	9305-9601		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-757-5	01	1	9001-9304		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. TAIWAN EMISSION REGULATION<TAL>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-757-6	01	1	9305-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> TAIWAN EMISSION REGULATION<TAL>	1-15602-883-0	01	1	9305-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15601-007-0	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-986-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> EXC. COLOMBIA EQUIPMENT(WJ2),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15600-980-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) COLOMBIA EQUIPMENT(WJ2)	1-15600-990-2	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T<X9C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. COLOMBIA EQUIPMENT(WJ2)	1-15601-833-1	01	1	9001-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-197-2	01	1	9101-9701				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-197-2	01	1	9702-9705				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. COLOMBIA EQUIPMENT(WJ2)	1-15602-197-2	01	1	9706-				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) COLOMBIA EQUIPMENT(WJ2)	1-15603-242-0	01	1	9706-				●
2	BOLT; INJ PUMP M8X75	9-01055-875-0	04	1	9001-9005	●
2	BOLT; INJ PUMP M8X75	0-10805-875-0	04	1	9006-9108	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9109-	●
2	BOLT; INJ PUMP M10X90	9-01656-090-0	04	1	9001-9004		●	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9005-		●	●	●
3	WASHER; LK,INJ PUMP ID=10.2	9-09150-510-0	04	1	9001-		●	●	●
4	WASHER; INJ PUMP ID=8.5	9-09851-934-0	04	1	9001-	●
4	WASHER; INJ PUMP ID=8.5	9-09851-983-0	04	1	9001-	●
4	WASHER; INJ PUMP ID=10.0	9-09160-510-0	04	1	9001-		●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-026-1	01	1	9001-	●
6	BRACKET; INJ PUMP TO C/BL	9-19751-118-1	01	1	9001-		●	●	●
7	BOLT; INJ PUMP BRKT (B) M10X60	9-01656-060-0	02	1	9001-9004	●
7	BOLT; INJ PUMP BRKT (B) M10X60	0-16806-060-0	02	1	9005-	●
7	BOLT; INJ PUMP BRKT (A) M10X35 W/LK WASHER	9-01931-035-0	01	1	9001-9002	●
7	BOLT; INJ PUMP BRKT (A) M10X35 W/LK WASHER	0-50051-035-0	01	1	9003-	●
7	BOLT; INJ PUMP BRKT (C) M14X40	9-92351-440-0	01	1	9001-9005	●
7	BOLT; INJ PUMP BRKT (C) M14X40	0-23801-440-0	01	1	9006-	●
7	BOLT; INJ PUMP BRKT (B) M10X80	9-01656-080-0	02	1	9001-9004		●	●
7	BOLT; INJ PUMP BRKT (B) M10X80	0-16806-080-0	02	1	9005-		●	●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 W/LK WASHER	9-01931-040-0	01	1	9001-9002		●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 W/LK WASHER	0-50051-040-0	01	1	9003-		●	●	●
7	BOLT; INJ PUMP BRKT (C) M14X55	9-91656-455-0	01	1	9001-9005		●	●
7	BOLT; INJ PUMP BRKT (C) M14X55	0-16806-455-0	01	1	9006-		●	●	●
8	WASHER; LK,INJ PUMP BRKT (A) ID=10.2	9-09150-510-0	02	1	9001-	●	●	●	●
8	WASHER; LK,INJ PUMP BRKT (B) ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9001-		●	●	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	01	1	9001-		●	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	01	1	9001-		●	●	●
12	COVER; SPRING	1-09360-343-0	01	1	9001-		●	●
12	COVER; SPRING	1-09360-343-0	02	1	9101-				●
13	EYE; SPRING INJ PUMP BRKT A/T<X9D>	1-23336-022-0	01	1	9001-	●
13	EYE; SPRING INJ PUMP BRKT M/T<X9C>	1-23336-021-0	01	1	9001-	●
13	EYE; SPRING INJ PUMP BRKT A/T<X9D>	1-23336-023-0	01	1	9001-		●	●
13	EYE; SPRING INJ PUMP BRKT M/T<X9C>	1-23336-019-0	01	1	9001-		●	●
13	EYE; SPRING INJ PUMP BRKT	1-23336-018-0	01	1	9101-				●
14	SPRING; ENG CONT RETURN	1-09583-151-0	01	1	9001-		●	●
14	SPRING; ENG CONT RETURN	1-09583-222-0	02	1	9101-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9001-9304	●	●	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9305-	●		●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. TAIWAN EMISSION REGULATION<TAL>	1-15780-105-0	01	1	9305-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. TAIWAN EMISSION REGULATION<TAL>	1-15780-033-0	01	1	9305-		●

31 31 34 36 37 36 38 37 40 38 32 40 32 38 38 39 39 139 139 44 44 45 45 46 41 42 46 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-103-2	06	1	9001-	●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-269-1	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-1	06	1	9001-9304		●	●	●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-041-2	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9305-			●	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9001-	●
32	HOLDER ASM; NOZZLE TAIWAN EMISSION REGULATION<TAL>	1-15330-086-1	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9001-9304		●	●	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EMISSION REGULATION<TAL>	9-15330-085-3	06	1	9305-		●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9305-			●	●
33	NOZZLE; INJ	1-15311-112-0	06	1	9001-	●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-220-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9001-9304		●	●	●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-073-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9305-			●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9001-9304	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9305-	●
34	BOLT; EYE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15339-009-0	06	1	9305-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-017-0	06	1	9001-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-018-0	06	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15332-010-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9307-		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9001-9304		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15332-024-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9305-9306			●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9001-9304	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9305-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TAIWAN EMISSION REGULATION<TAL>	1-15339-010-0	12	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	5-15334-001-0	06	1	9001-9306	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-006-0	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15334-010-0	06	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-001-0	06	1	9001-9304		●	●	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15334-001-1	06	1	9305-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-001-1	06	1	9305-			●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9001-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9001-9310		●	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EMISSION REGULATION<TAL>.	9-15339-056-0	12	1	9305-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9305-			●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EMISSION REGULATION<TAL>	9-15339-056-0	06	1	9305-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9001-9304	●	●	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9305-	●		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15343-011-0	06	1	9305-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15345-004-0	06	1	9305-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9001-9306	●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15332-011-0	06	1	9305-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-001-0	06	1	9001-9304		●	●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-001-0	06	1	9305-9306		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-001-0	06	1	9305-9306			●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9307-9705	●		●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-002-0	06	1	9307-9705		●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	1-15332-002-0	06	1	9706-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9706-			●	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15339-012-0	06	1	9001-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-15352-005-0	06	1	9001-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9001-9304	●	●	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9305-	●		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15343-013-0	06	1	9305-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	9-15343-005-0	06	1	9305-9306		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	8-94246-531-0	06	1	9307-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-005-0	06	1	9001-	●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15341-004-0	06	1	9305-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9001-9304		●	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15341-008-0	06	1	9305-		●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9305-			●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9001-	●	●	●	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	06	1	9001-9304	●	●	●	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	06	1	9305-	●		●	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15339-057-0	06	1	9305-		●

133 20 19 18 17 121 16 21 114 121 62 60 146 135 135 134 31 33 35 66 54 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15412-270-1	01	1	9001-	●
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9001-		●	●	●
17	PIPE; INJ NO.2	1-15412-529-0	01	1	9001-	●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9001-		●	●	●
18	PIPE; INJ NO.3	1-15412-530-0	01	1	9001-	●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9001-		●	●	●
19	PIPE; INJ NO.4	1-15412-273-1	01	1	9001-	●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9001-		●	●	●
20	PIPE; INJ NO.5	1-15412-274-1	01	1	9001-	●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9001-		●	●	●
21	PIPE; INJ NO.6	1-15412-532-1	01	1	9001-	●
21	PIPE; INJ NO.6	1-15413-046-0	01	1	9001-		●	●	●
31	NOZZLE ASM; INJ	1-15300-103-2	06	1	9001-	●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-269-1	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-1	06	1	9001-9304		●	●	●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-041-2	06	1	9305-		●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9305-			●	●
33	NOZZLE; INJ	1-15311-112-0	06	1	9001-	●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-220-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9001-9304		●	●	●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-073-0	06	1	9305-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9305-			●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-017-0	06	1	9001-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-018-0	06	1	9307-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EMISSION REGULATION<TAL>	1-15332-010-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9307-		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9001-9304		●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EMISSION REGULATION<TAL>	9-15332-024-0	06	1	9305-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9305-9306			●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9001-	●
60	WASHER; NOZZLE HOLDER (C) ID=8.5 OD=15 T=4	1-09503-219-0	12	1	9001-	●
60	WASHER; NOZZLE HOLDER (A) ID=10	1-09503-033-1	06	1	9001-		●	●	●
60	WASHER; NOZZLE HOLDER (B) ID=8.4 OD=16	1-09503-039-0	06	1	9001-		●	●	●
62	NUT; NOZZLE HOLDER (C) M8	9-09110-508-0	12	1	9001-	●
62	NUT; NOZZLE HOLDER (A) M8	9-09110-408-0	06	1	9001-		●	●	●
62	NUT; NOZZLE HOLDER (B) M10	9-09110-510-0	06	1	9001-		●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18	9-15315-075-0	06	1	9001-	●	●	●	●
114	CLIP; INJ PIPE (D) ID=6	9-15419-084-0	07	1	9001-	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	05	1	9001-		●
114	CLIP; INJ PIPE (B) ID=6	1-15419-099-0	02	1	9001-		●	●	●
114	CLIP; INJ PIPE (A)	9-09524-632-0	01	1	9001-		●	●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	01	1	9101-				●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15412-715-0	01	1	9001-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-089-0	01	1	9001-		●	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15412-714-0	01	1	9001-	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9001-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9001-	●
146	SPACER; NOZZLE	1-15339-013-0	12	1	9001-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
