Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#2022) — 34 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1 STD ENG
C - 6RA1 TC ENG
D - 6QA1 STD ENG
◀

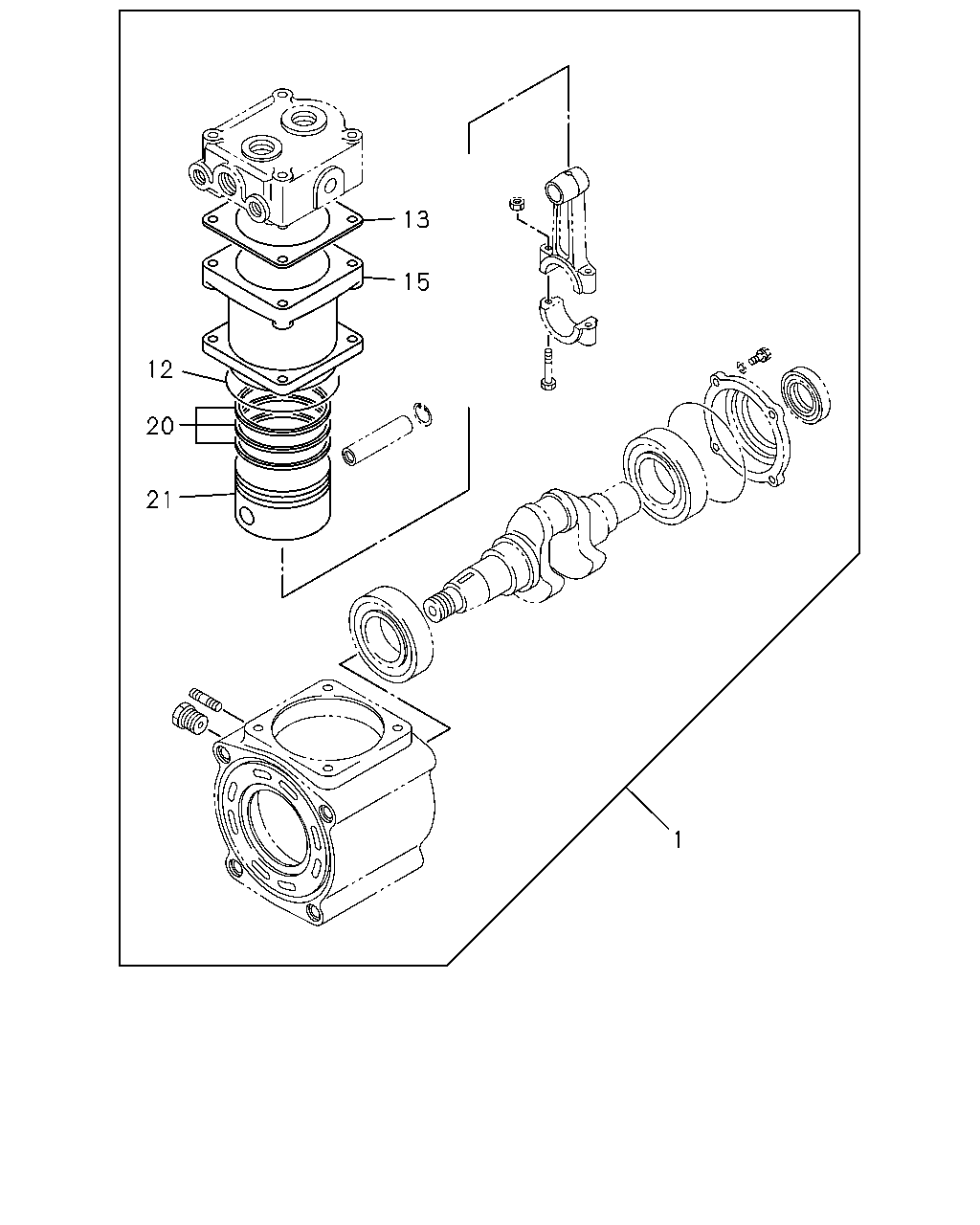

[039A] LINER KIT (6 parça)

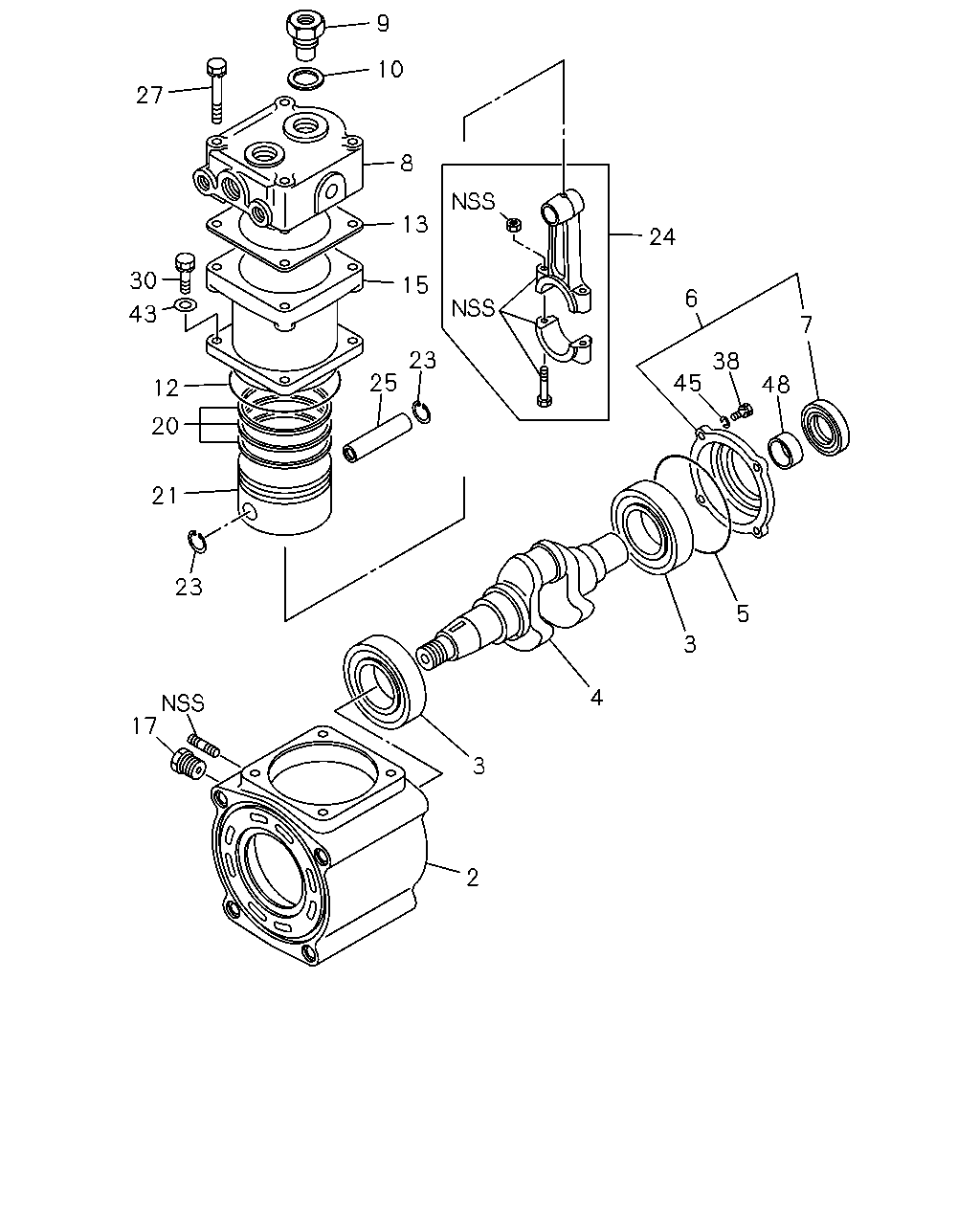

[039A] COMPONENT (28 parça)
▶
13
15
12
20
21
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LINER KIT; CYL,AIR CMPR
1-19163-038-0
01
1
9001-
●
●
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9001-
●
●
●
●
13
GASKET; AIR CMPR
1-19139-001-0
01
1
9001-
●
●
●
●
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
9001-
●
●
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9001-
●
●
●
●
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9001-
●
●
●
●
9
10
27
8
13
24
30
43
15
6
7
23
25
38
45
48
12
20
21
23
5
3
4
17
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
CRANKCASE; AIR CMPR
1-19151-233-0
01
1
9001-
●
●
●
●
3
BEARING; AIR CMPR
1-09800-232-0
02
1
9001-
●
●
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-023-1
01
1
9001-
●
●
●
●
5
GASKET; AIR CMPR
1-09623-150-0
01
1
9001-
●
●
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-049-0
01
1
9001-9311
●
●
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-070-0
01
1
9312-
●
●
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-187-0
01
1
9001-9311
●
●
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
9312-
●
●
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-027-0
01
1
9001-9204
●
●
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
9205-
●
●
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-002-0
01
1
9001-9204
●
●
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
9205-
●
●
●
●
10
SHIM; AIR CMPR
9-19139-021-0
01
1
9001-
●
●
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9001-
●
●
●
●
13
GASKET; AIR CMPR
1-19139-001-0
01
1
9001-
●
●
●
●
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
9001-
●
●
●
●
17
ADAPTER; AIR CMPR
9-09902-405-0
01
1
9001-
●
●
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9001-
●
●
●
●
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9001-
●
●
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9001-
●
●
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
9001-
●
●
●
●
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
9001-
●
●
●
●
27
BOLT; HD
M10X60
9-01066-060-0
04
1
9001-
●
●
●
●
30
BOLT; CYL TO CRANKCASE
1-19159-004-0
04
1
9001-
●
●
●
●
38
BOLT; COVER FIX
9-81385-023-0
04
1
9001-
●
●
●
●
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9001-
●
●
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09164-508-0
04
1
9001-
●
●
●
●
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
9312-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
