◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#20212) — 52 parça

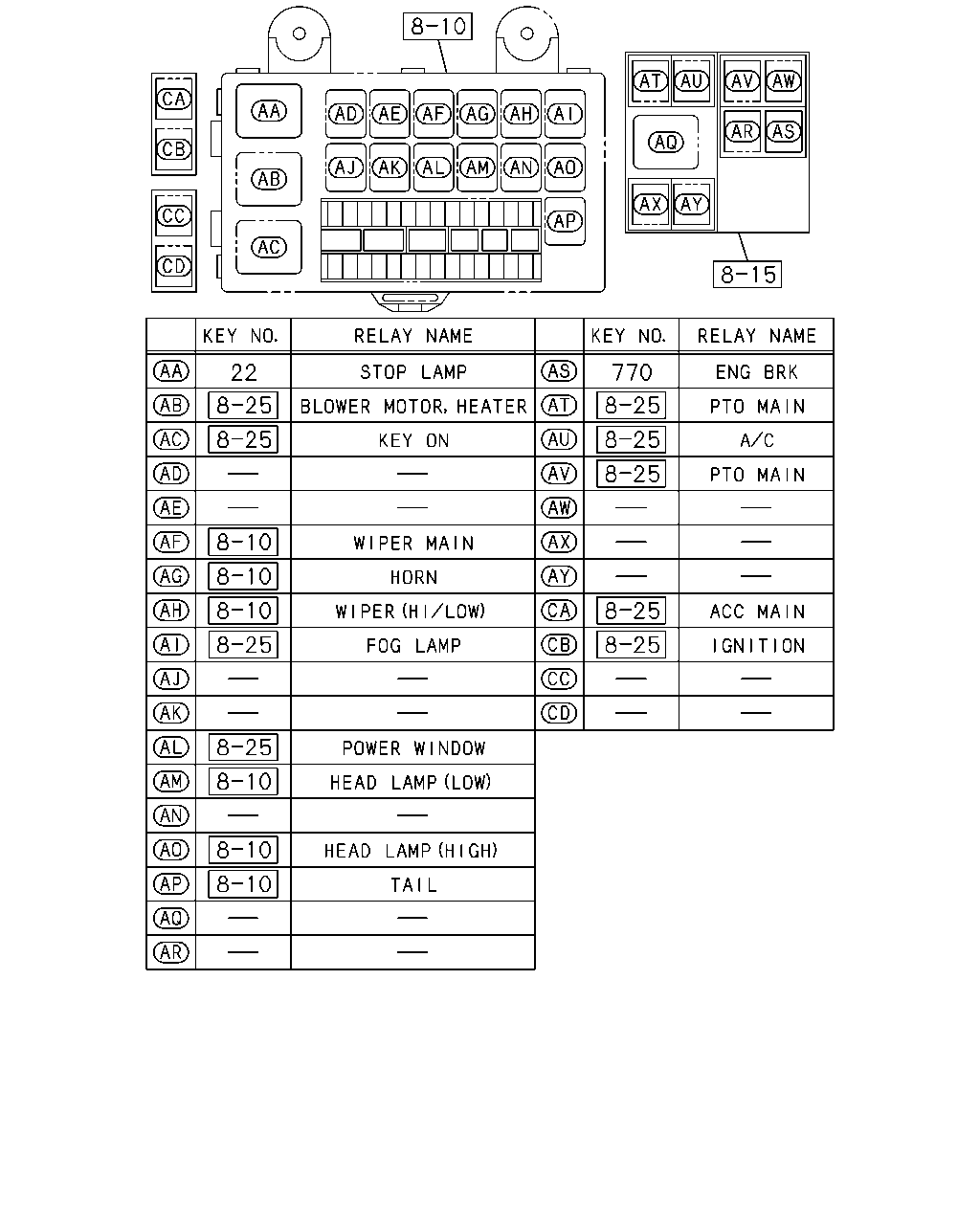

çizim 110229
22 770
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-
770 RELAY; ENG BRK
ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC 		8-97173-035-1 01 1 1206-
çizim 110231
424 41 35 36 33 34 34 39 34 34 34 261
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) 		1-82563-871-2 01 1 1109-
33 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1109-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1109-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1109-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1109-1111
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1109-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1109-
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1109-
35 BRACKET; MAG VLV,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) 		8-98154-633-0 01 1 1109-
35 BRACKET; MAG VLV,PTO CONT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98154-633-0 01 1 1109-
36 BOLT; MAG VLV,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE 		0-28650-820-0 02 1 1109-
36 BOLT; MAG VLV,PTO CONT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1109-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1109-
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1109-
261 PLUG; MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1109-
424 ADAPTER
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109-1111
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109-
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109-

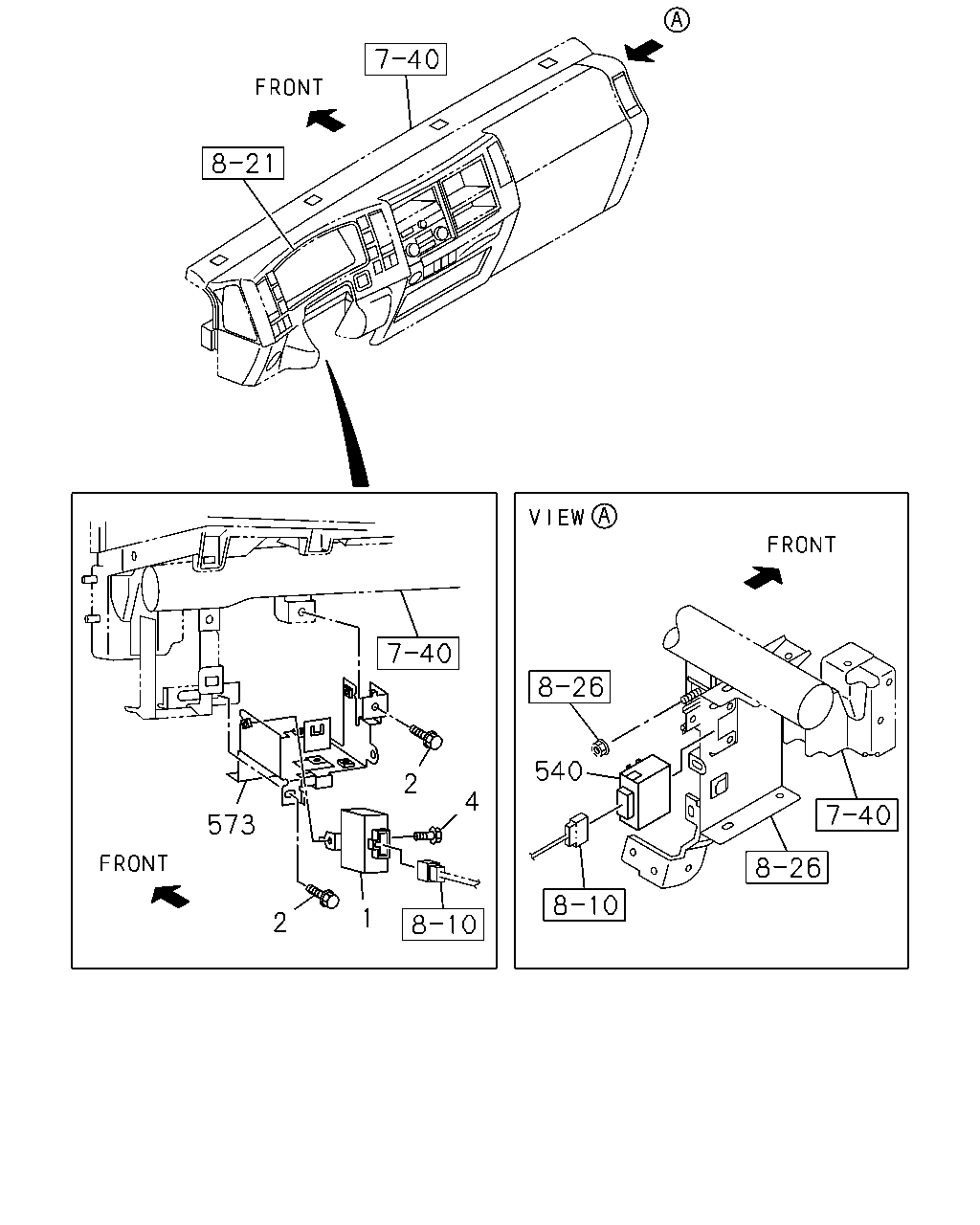

çizim 110232
540 2 4 573 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1109-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1109-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1109-
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1109-1308
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97616-351-3 01 1 1109-
çizim 110233
584 744 449
BalonParca AdiParca NoAdetTipApplied Date
449 SWITCH; OIL PRESS,CLUTCH
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1109-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1109-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1109-

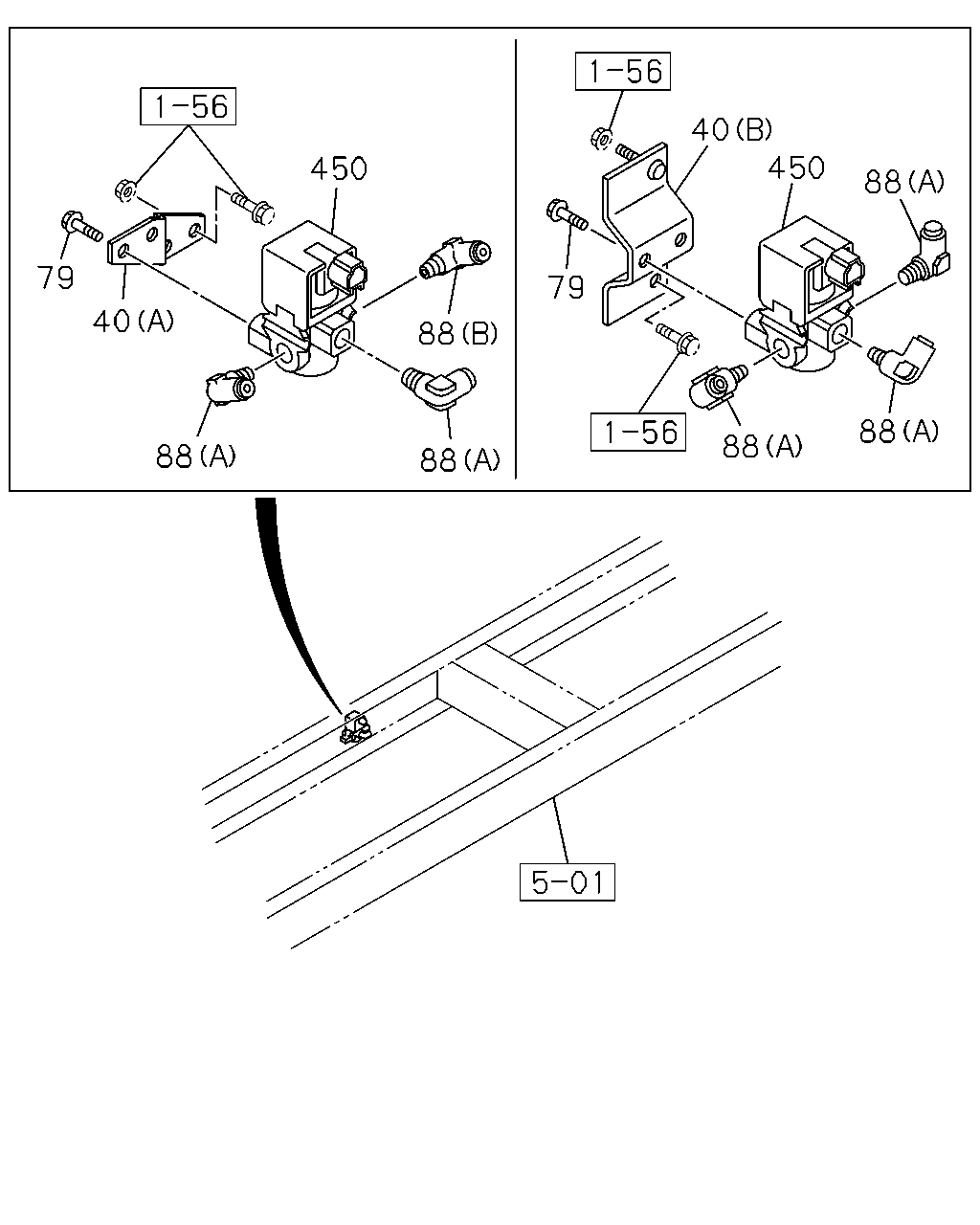

çizim 110234
40 450 450 88 79 79 40 88 88 88 88 88
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98174-365-0 01 1 1206-
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98057-863-0 01 1 1206-
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) M8X20 FLANGE 		0-28650-820-0 02 1 1206-
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1206-
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1206-
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1206-
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1206-
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) 		1-82563-871-2 01 1 1206-
450 VALVE; MAG
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> 		1-82563-871-2 01 1 1206-

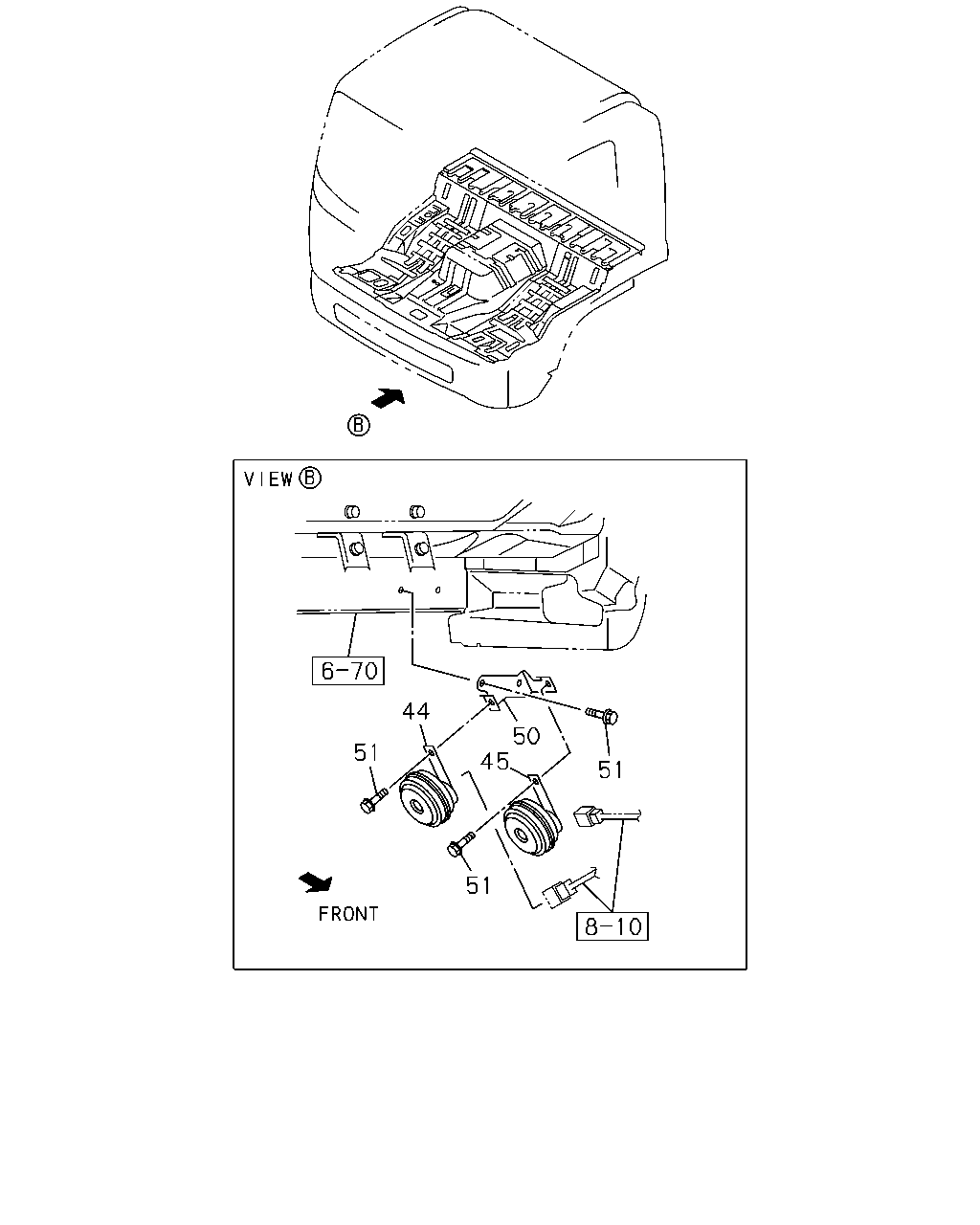

çizim 110253
44 50 45 51 51 51
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-98022-022-0 01 1 1109-
45 HORN; LOW NOTE 8-98022-023-0 01 1 1109-
50 BRACKET; HORN 8-97616-529-2 01 1 1109-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1109-
51 BOLT; HORN TO BRKT
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1109-
51 BOLT; HORN TO BRKT
EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1109-
çizim 284324
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1109-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
